Microphones

This is a Special Order Item

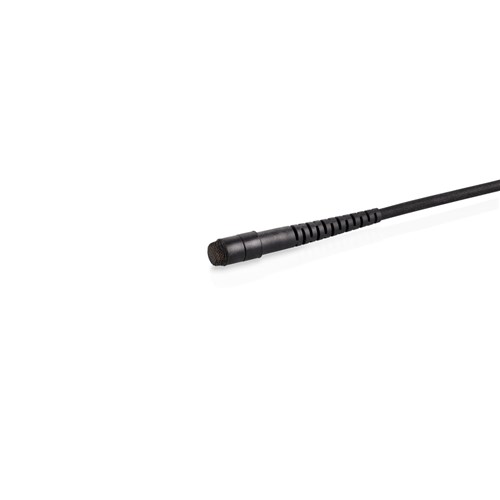

4660 CORE Heavy Duty Omni Mic, Normal SPL, Black, MicroDot

Product Code: DP-4660-OC-H-B00

Brand
DPA Microphones
RRP $869.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands DPA Microphones
Microphone Type Lavalier Microphones
Series 4660
  • Details
  • Downloads
  • Where to Buy
  • Ordering

4660 Heavy Duty Omni Mic


  • SOUND PRESSURE LEVEL (SPL):Normal SPL (6060/4060/4660)
  • COLOUR: Black
  • WIRED OR WIRELESS: MicroDot
  • AMPLIFIER TECHNOLOGY: CORE by DPA

Our toughest miniatures

  • The most rugged and reliable version of DPA miniatures
  • Stainless steel housing, heavy-duty strain relief and thick cable
  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Sturdy but small for flexible and easy concealment
  • Modular adapter system fits most professional wireless systems


Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty Mic Series features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. Our Heavy Duty microphones are a more robust version of the original lavalier mics they are based upon.

These microphones withstand the toughest of conditions. They are designed with an extra-robust, Kevlar-reinforced cable and a strain relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments. A 5.4 mm diameter pre-polarized condenser element with a contained within a vertical diaphragm called the Double Vent Protection System, which makes the mics extremely resistant to humidity and sweat

The acoustic response of the these mics (both the normal and heavy duty version) can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the 4671). The Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz while the High Boost Grid introduces a 10 dB soft boost around 12 kHz. Both of these grids are made of anodized stainless steel. They can be detached from the microphone and wiped cleaned of sweat, makeup, dust etc.


4660 Heavy Duty Miniature Omnidirectional Microphone, Normal SPL
A very flexible and durable miniature microphone, the 4660 Heavy Duty exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. It is especially suited for capturing speech in all of its nuances and can be used for very high-end ambient recordings where space is limited or the microphone needs to be hidden.. This microphone handles sound pressure levels up to 134 dB before clipping occurs.

Flexible Adapter System

All of DPA’s microphones can be configured to run easily and effortlessly with a wireless system. We use a unique MicroDot termination on our microphones together with a changeable adapter to ensure secure configuration. All of the adapters we use are original, developed and manufactured by the wireless system brand you use. This ensures that your mic will work consistently with no connection trouble to your system.

The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. Moreover, when you make the switch, you won't hear any loss or change in sound quality.

Using an adapter for wireless, our microphones with MicroDot termination are compatible with the professional wireless systems listed below. Many of these brands have several model numbers. To ensure compatibility you should find your particular model number, which in most cases can be found on the transmitter. Other configurations are possible; however, DPA Microphones cannot guarantee full compatibility in these cases.

Wireless brands we work with: Sennheiser, Shure, Sony, Wisycom, Lectrosonics , Zaxcom and many more.

If you prefer to run via a wired system, all of our mics are available with an XLR connector.



Specifications

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
  • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
  • Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
  • Dynamic range: Typ. 100 dB
  • Max. SPL, THD 10%: 134 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
  • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
  • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Colour: Black or beige
  • Weight: 13 g (0.46 oz) incl. Cable and MicroDot connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 17.6 mm (0.7 in)
  • Cable length: 1.8 m (5.9 ft)
  • Cable colour: Black or beige
  • Cable diameter: 2.2 mm (0.09 in)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
