James Loudspeaker

This is a Special Order Item

James QX1020 In Wall 10" In Wall Sub woofer James loudspeaker

Product Code: SO-QX1020

Brand
James
RRP $4,795.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands James Loudspeaker
Series QX Series
Size 10"
Speaker Type Subwoofer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

QX1020

10" Dual Shallow Depth Subwoofer

*Now with Magnetic Grille mount.

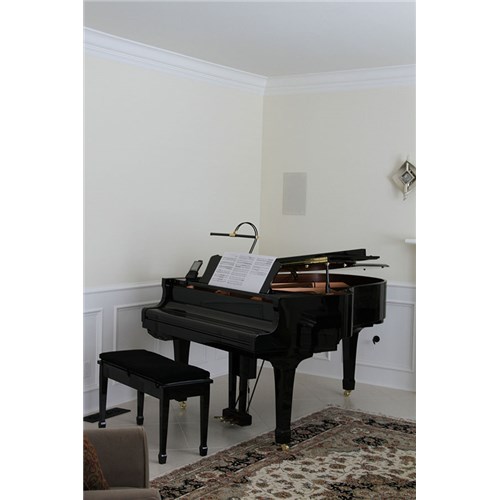

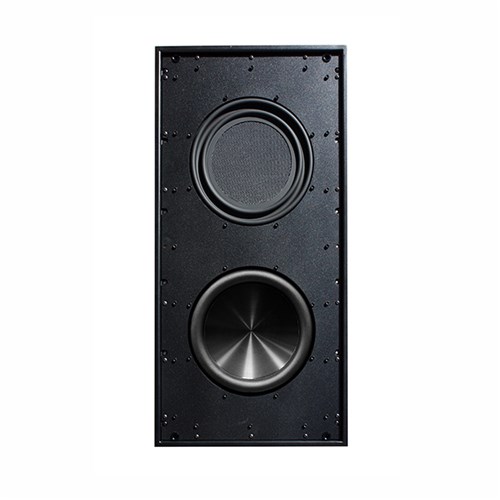

The QX1020 is just one option in James Loudspeaker’s series of in wall subwoofers. These unique subs are designed to offer smooth, deep bass to compliment any audio system while maintaining a discrete and space-saving design which doesn’t break the budget. The QX1020 is a compact QX style in-wall subwoofer, using the same mounting system as other QX style speakers. With a single 10” active woofer and a matching 10” passive radiator, this sub offers a great solution for smaller footprint subwoofers while still delivering booming bass. Designed for mounting behind displays, this sub is extremely versatile and easily hidden.

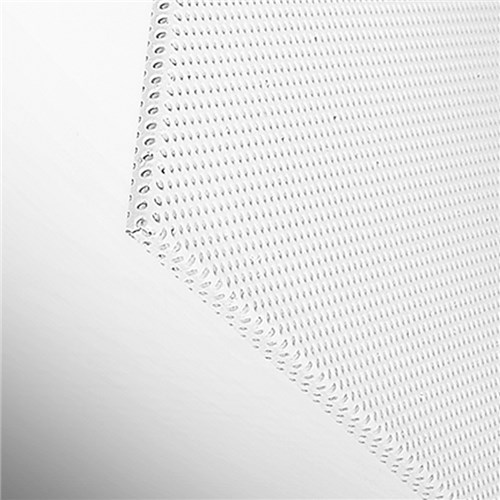

The QX1020 is constructed entirely from aircraft grade aluminum for strength, sonic performance, and durability. Available for marine and outdoor use with the addition of a severe powder coat. Complete with a custom colored, perforated aluminum grille which sits only 3/16” off the wall or completely flush with the addition of a custom James pre-construction board, this sub can easily be integrated into any environment, offering a subdued visual effect, designed to be as unobtrusive as possible. Paintable grille available by request only.

For marine/outdoor use, order the QX1020M.

Specifications

  • Frequency Response:    22-140Hz +/-3dB
  • Nominal Impedance:     8 ohms
  • Sensitivity:    90dB 2.83V/1m
  • Recommended Power Range:    150 - 500W
  • Recommended Amplifier:    M1000
  • Woofer:    (2) 10" (254mm) Active/Passive Laminated Aluminum Honeycomb
  • Enclosure:    Aircraft Marine Grade Aluminum
  • Finishes:    White Paintable Grille (Paintable By Request Only)
  • Cutout:    13.563" x 27.750"
  • Required Mounting Depth:    3.9 in (99.06 mm)
  • Width:    14.32 in (363.73 mm)
  • Depth:    4.125 in (104.77 mm)
  • Height:    28.46 in (722.88 mm)
  • Grille Height:    28.46 in (722.88 mm)
  • Grille Width:    14.32 in (363.73 mm)
  • Preconstruction Board (PCB):    QX1020PB
  • Flush Mount Preconstruction Board (PCBF):    QX1020PBF
