AV switching and distribution

1080P Extndr W/ Ir & Poc 40M EX40G3 Wyrestorm

Product Code: WY-EX40G3

Brand
Wyrestorm
RRP $219.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Product Category AV switching and distribution
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

1080p HDMI-over-UTP Extender with IR and PoC

EX-40-G3

With the low-profile point-to-point EX-40-G3 extender set, it’s never been easier to extend full 1080p HD video over a Cat5e cable; HD audio is also supported. Plus, IR source control and PoC (Power-over-Cable) all wrapped up in a compact chassis for unbeatable value, reliability and ease of installation.

DISCREET, SMALLER FOOTPRINT
WyreStorm’s newly designed 40 meter extender, the EX-40-G3, is now smaller than ever. With almost half the width of its predecessor, this makes the G3 lighter in weight and easier to keep discreet.

POC READY
Size isn’t the only upgrade found in the newly designed 40 meter extender. The G3 now includes Power over Cable abilities, saving the installer time and headache from having to supply local power discreetly to the receiver. But don’t fret if PoC isn’t available, as the receiver is capable of accepting local power.

FEATURE RICH; UNBEATABLE VALUE
With features such as PoC, automatic EDID, long cable mode capability and IR source control, the EX-40-G3 brings a tremendous amount of features to any simple installation at a cost effective price.

HDCP COMPLIANT
WyreStorm extender solutions play nice with the equipment they’re connected to, ensuring that the HDCP encryption is maintained throughout the process.


FEATURES

  • Transmits 1080p HDMI content over UTP to 40m/131ft
  • PoC allows for powering both TX and RX using a single power supply connected to the TX
  • IR pass-through RX>TX for source control
  • Simple signal equalization via slider switch
  • Slim 21mm chassis for discreet installation

SPECIFICATIONS

  • Audio and Video
  • Inputs

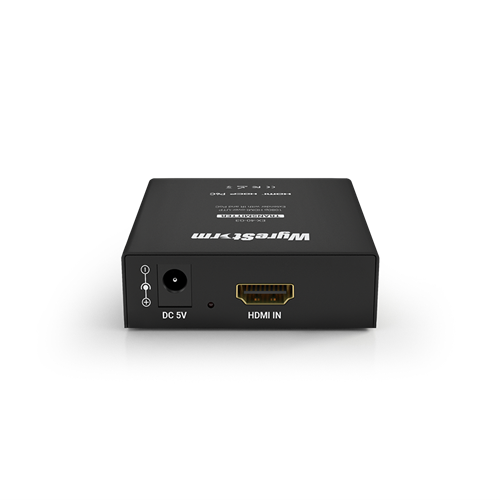

    • (Transmitter) 1x HDMI 19-pin type A
    • (Receiver) 1x UTP 8-pin RJ-45 female
  • Outputs

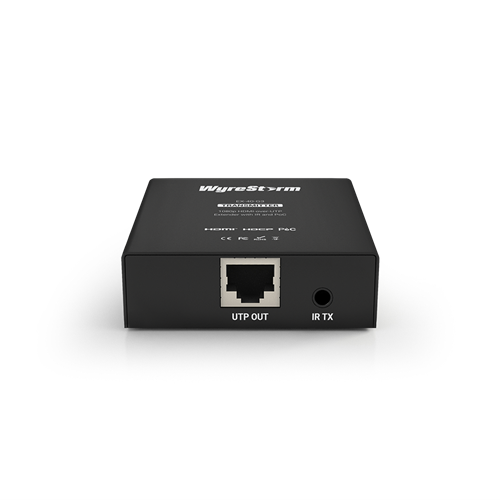

    • (Transmitter) 1x UTP 8-pin RJ-45 female
    • (Receiver) 1x HDMI 19-pin type A
  • Output Video Encoding: TMDS over UTP
  • Encoding Data Rate: 6.75Gb/s
  • End to End Latency: N/A
  • Audio Formats: 2ch PCM
  • Video Resolutions (Max)Video ResolutionsHDMICat6Cat6a/7
    1920x1200p @60Hz 16bit15m/49ft40m/131ft40m/131ft
  • Supported Standards: DCI
  • Maximum Pixel Clock: 297mHz
Communication and Control
  • HDMI: HDMI 1.3b | HDCP 1.4 | EDID | DVI/D supported with adapter (not included)
  • UTP: HDMI | HDCP 1.4 | EDID | IR RX-TX | 1-way PoC Transmitter to Receiver
  • IR: Transmitter: 1x IR TX: 3.5mm (1/8in) TRS Mono | Receiver: 1x IR RX: 3.5mm (1/8in) TRS Stereo
Power
  • Power Supply: 5V DC 1A (Optional for Receiver)
  • PoC: 1-way Transmitter to Receiver
  • Max Power Consumption: 2.5W (Pair, PoC)
Environmental
  • Operating Temperature: 0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
  • Storage Temperature: -20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
  • Maximum BTU: 8.53 BTU/hr
Dimensions & Weight
  • Rack Units/Wall Box: 1U
  • Height: 21mm/0.83in
  • Width: 70mm/2.76in
  • Depth: 70.2mm/2.77in
  • Weight: 0.2kg/0.44lbs
Regulatory
  • Safety and Emission CE | FCC | RoHS | RCM

Product Documents

No documents available
