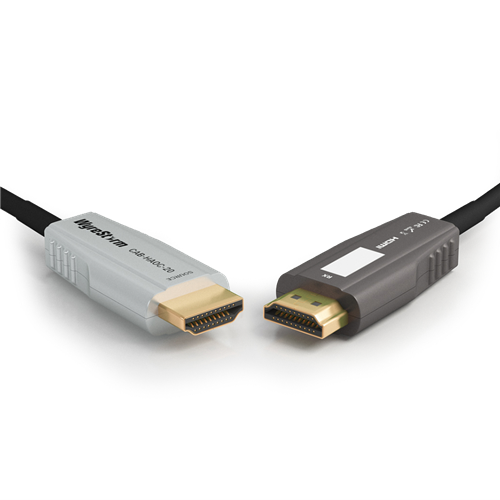

18Gbps Optical Hdmi Cable 20M CABHAOC20 Wyrestorm

Product Code: WY-CABHAOC20

RRP $409.00
Unit of Measure


2 Year
Technical Specifications
Brands WyreStorm
Terminated Cable Type HDMI
  • Details
  • Downloads
  • Where to Buy
  • Ordering


24Gbps 4-core Active Optical HDMI Cable | 4K HDR 4:4:4/60, ARC, CEC, ALLM & VRR | Kevlar strengthened | ISF Certified

The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication, thanks to their ability to be a passive communication technology compared to normal HDBaseT extenders that often terminate the HDMI signal prior to transmission.


  • Uncompressed optical transmission of HDMI content up to 24Gbps:
    • 2K (2560 x 1440p) 4:4:4 8-bit at 144Hz
    • 4K (4096 x 2160p) 4:4:4 10-bit HDR at 60Hz
    • 5K (5120 x 2880p) 4:4:4 10-bit HDR at 30Hz
  • Compatible with all current and emerging HDR standards at up to 60Hz:
    • HLG (Hybrid Log Gamma)
    • HDR-10 and HDR-10+
    • Dolby Vision
    • PQ (Perceptual Quantizer)
    • SL-HDR-1
  • Ready for future HDCP 2.3 content encryption
  • True native HDMI communication ensures CEC and ARC communication between compatible devices
  • Supports emerging HDMI technologies such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
  • Perfect for use in environments with excessive EM or RF interference
  • Kevlar protected communication cores
  • High quality aluminum construction with low-profile 20mm/0.79” TX head
  • Supplied coiled on cardboard spool in box, with RX head out first.
  • No single use plastic included* #SUPFree


  • Transmission Encoding: Uncompressed AOC
  • End to End Latency: 10µs
  • Maximum Transmission Bit Rate: 24 Gbps (4-core, 6Gbps per lane)
  • HDMI
    • (v2.0b) TMDS | 600MHz Maximum
    • (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding
  • Input: 1x HDMI: 19-pin Type A Male
  • Output: 1x HDMI: 19-pin Type A Male
  • Maximum Data Rate: 22.8 Gbps
  • Video Resolutions (Max):
    • 1920x1080p @120Hz
    • 2560x1440p @144Hz
    • 3840x2160p @60Hz 10bit HDR 4:2:0
    • 3840x2160p @60Hz 12bit HDR 4:2:2
    • 3840x2160p @60Hz 10bit HDR 4:4:4
    • 3840x2160p @60Hz 10bit HDR RGB
    • 5120x2880p @30Hz 10bit HDR 4:4:4
  • Supported Standards: DCI | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100
  • Audio Formats:
    • 2ch PCM
    • Multichannel LPCM
    • DTS-X
    • Dolby Atmos
  • Maximum Sampling Rate: 192KHz
  • Maximum Audio Channels: 32
  • Audio Return Channel (ARC): Supported

Communication and Control
  • HDCP: Pass-Through, 2.3 Supported
  • EDID: Pass-Through, RX > TX
  • Ethernet: 100Mbps Supported
  • Consumer Electronics Control (CEC): Supported
  • Auto Low Latency Mode (ALLM): Supported
  • Variable Refresh Rate (VRR): Supported

Installation Restrictions
  • Max Bend Radius: 2cm
  • Max Pull Tension: 15kg/33lbs
  • Orientation: Uni-directional - Observe signal flow direction prior to installation
  • Power Supply: Passive 4.5v~5.5v VCC (From Connected Source)
  • Max Power Consumption: 250mW
  • Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
  • Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
  • Maximum BTU: 0.85 BTU/hr
  • Impact: Low, free from single use plastic
Dimensions & Weight (Connector Housing)
  • Height: 9mm/0.36in
  • Width: 19.8mm/0.78in
  • Depth: 39.5mm/1.56in
  • Weight: NA

  • Safety and Emission All Lengths: CE | FCC | RoHS | CL3 | FT4
