Speakers

2-Way Full Range 12 Passive TX121 Renkus Heinz

Product Code: RH-TX121

Brand
Renkus Heinz
RRP $4,500.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Renkus Heinz
Product Category Speakers
Series T Series
Size 12"
Speaker Type Stage / Stadium
  • Details
  • Downloads
  • Where to Buy
  • Ordering

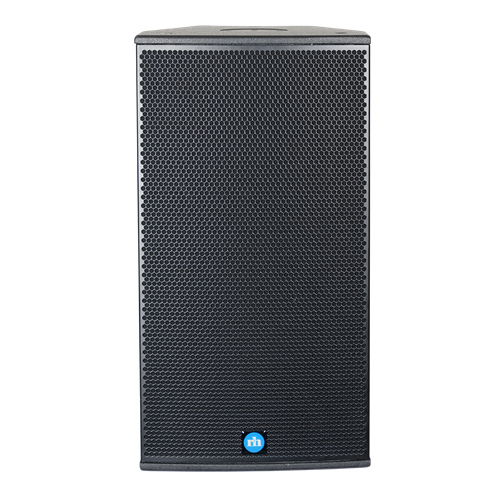

TX121

2-Way, Full Range Loudspeaker 12" LF, 1" HF Non-Powered, 600W Pgm @ 8 Ohms; Sensitivity 97dB 1W/1m, whole space


12-Inch Heavy Duty Woofer + 2-inch Titanium HF Driver
Sound that makes performances and audiences truly come alive doesn't come easy. But T Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The T121 features a 12-inch heavy duty woofer and a 2-inch titanium HF driver.

TX121 Non-Powered Loudspeakers
For use with external amplification

Key Features

  • Compact Design
    Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.
  • Exclusive 90° x 40° Complex Conic Design
    Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
  • 2-inch Extended Range Titanium HF Driver
    Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
  • Heavy-Duty 12-inch Woofer
    Easily handles 600 Watts of program power.
  • Built-in Crossover
    Includes EQ and high frequency protection; in the T121 eliminates need for a separate electronic crossover and bi-amplification.

If you need an outstanding high-power 12-inch 2-way system, order the T121.

Applications

  • Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

  • Ideal compact main PA for music and speech or as part of a high output distributed system in larger venues.
  • Houses of worship, schools, performing art centers, night clubs, stadiums and arenas.

Portable Applications

  • Ideal main PA for unobtrusive live music and speech reinforcement or as fill coverage in larger systems.
  • Rental A/V, DJ systems, churches, schools, etc.

Technical Information

  • Sensitivity: All Models 97 dB (1W/1m)
  • Max SPL: 128 dB, Peak
  • Dispersion: 60° H x 40° V or 90° H x 40° V Rotatable
  • Freq. Response: ± 3 dB, 60 Hz to 20 kHz
  • HF Driver: SSD1747-8 driver, 60 W AES @ 8 ohms
  • LF Driver: SSL12-26, 350 W AES @ 8 ohms
  • Power Handling:
    • 350 W AES @ 8 Ohms
    • 700 W Pgm @ 8 Ohms

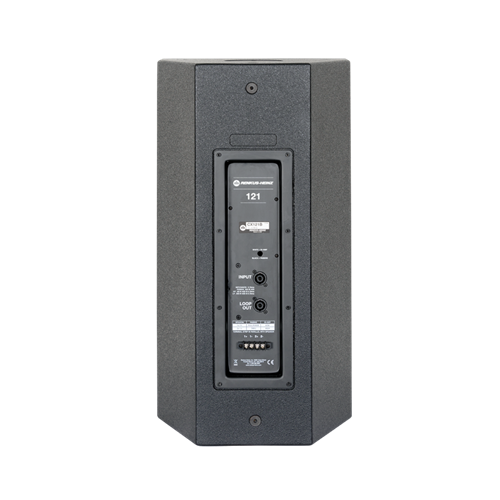

  • Connectors: Screw terminals & looping 4-pin Neutrik Speakon style connectors
  • Enclosure: 19 mm Lite Ply, perforated metal grille
  • Hardware:
    • 12-point Universal Mounting Hardware (Metric M10 threads)
    • M10 U-bracket attachment points
  • Finish: Black or White Paint, standard. Custom Color, Weather Resistant, optional.
  • Dimensions: 686 x mm H x 365 mm W x 362 mm D
  • Weight: 45 lbs / 20.4 kg, Net

Product Documents
