Products

Cables and Connectors

This is a Special Order Item

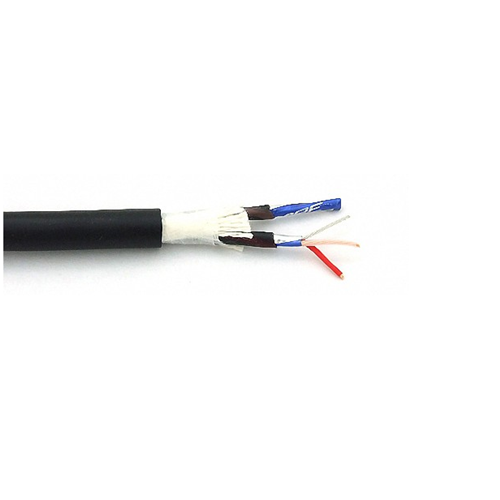

2-WAY M/CHANNEL AUDIO CABLE ALUMINIUM FOIL SHIELD, 200M (FOR STUDIO APPLICATIONS)

Product Code: CA-MR202-2AT-200

Brand
Canare
RRP $840.00


Quantity In Cart:
Unit of Measure
R200



1 Year
Technical Specifications
Brands Canare
Bulk Cable Type MR202
  • Details
  • Downloads
  • Where to Buy
  • Ordering
A practical, 100% foil shielded multichannel audio snake cable for general purpose studio applications. Each individually isolated channel consists of 2 twisted conductors under an easy-to-strip PVC jacket extruded over a foil shield and drain wire.  The color striped PVC channel jacket alleviates the need to use costly shrink tubing.  Surprisingly flexible, this multichannel cable is perfect for control room layout and interfacing between equipment racks, audio patchbays, mixers and tape decks.
?  Microphones.
?  Audio Rack Wiring.
?  Recording Suites.
?  Post Production.
?  Foil Shield with Drain Wire.
?  Variety Channels.
MECHANICAL SPECIFICATIONS
Model Std. Lng.

ft.
(m)
No. of
Channels
(Pairs)

No. of
Cond.
(2 Per
Channel)
Wt
Std. Lng.

lbs
(kgs)
Nom.
O.D.

in.
PVC
Jacket
Nom.
Thick.
in.
(mm)
Brittle
Point


(C°)
MR202-2AT 328
(100)

656
(200)

2 4 12
(5)
.264
(6.7)
.032
(0.8)
-4
(-20)
MR202-4AT 4 8 17
(8)
.299
(7.6)
.032
(0.8)
MR202-8AT 8 16 35
(16)
.433
(11.0)
.039
(1.0)
MR202-12AT 12 24 46
(21)
.500
(12.7)
.047
(1.2)
MR202-16AT 16 32 57
(26)
.551
(14.0)
.047
(1.2)
MR202-24AT 24 48 86
(39)
.685
(17.4)
.051
(1.3)
MR202-32AT 32 64 88
(40)
.752
(19.1)
.059
(1.5)

(contd.) MECHANICAL SPECIFICATIONS
Model Channel
O.D.

in.
(mm)
Channel
Jacket
Nom.
Thick.
mil
Insul.
Type*
Thick

mil
Cond-AWG
(Qty./mil)
Cross Sec. Area

mil.2
Pitch
of
Pairs
in.
(mm)
Shield
Coverage
MR202-AT
Series
.106
(2.7)
11.8 IPE
9.1
AC - #25
(7/7.09)
279
<.99
(<25)
100%
Alum.
Tape
Drain Wire #25 AWG
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.


ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.

ohm/1000ft
(ohm/
100m)
Shield
D.C.R.

ohm/1000ft
(ohm/
100m)
Nom.
Cap.
***


pF/m
Nom.
Cap.



pF/m
Nom.
Imp.

ohm
Nom.
Atten.


V/1000ft
(V/100m)
Group
Delay
Time

nS/ft
(nS/m)
X-Talk
Input
3.31V
mV/1000ft
(mV/
100m)
MR202-AT
Series
<32.5
(<10.7)
- 76 142 - - - -
***Capacitance between conductors.
†Capacitance between conductors to shield.


COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
MR202-AT
Series
[+] - - - - - - - - - - - - - - - - - -
[+]=Standard Color, [o]=Available Color, "- -"=n/a



Cross Section
Individual Channel


MR202-AT Cross Section Multichannel Bundle

Channel Color Code
Ch. No. 1 2 3 4 5 6 7 8 9 10 11 12
Insulator Color* BRN RED ORN YEL GRN BLU PPL GRY WHT BLK BRN RED
Spiral Markers BRN RED ORN YEL GRN BLU PPL GRY WHT BLK ~ RED
Inner Jacket BLK BRN

Channel Color Code
Ch. No. 13 14 15 16 17 18 19 20 21 22 23 24
Insulator Color* ORN YEL GRN BLU PPL GRY WHT BLK BRN RED ORN YEL
Spiral Markers ORN YEL GRN BLU PPL GRY WHT BLK BRN ~ ORN YEL
Inner Jacket BRN RED

Channel Color Code
Ch. No. 25 26 27 28 29 30 31 32
Insulator Color* GRN BLU PPL GRY WHT BLK BRN RED
Spiral Markers GRN BLU PPL GRY WHT BLK BRN RED
Inner Jacket RED ORN

*Insulator in the unit: one is same color as Spiral Marker and other is clear.
