Stage And Studio

This is a Special Order Item

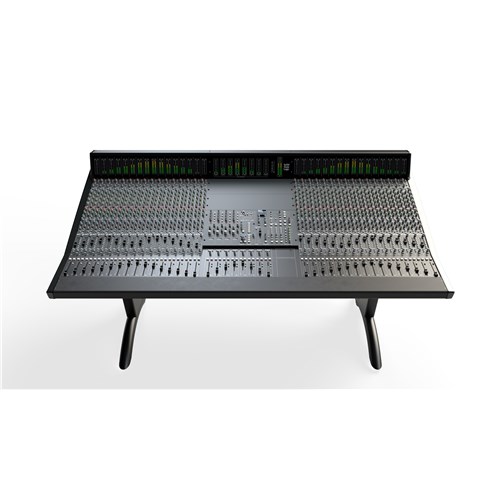

SSL Origin - 32 Channel Analogue In-Line Console

Product Code: SS-ORIGIN

Brand
Solid State Logic
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Solid State Logic
Product Category Stage And Studio
Product type Console
  • Details
  • Downloads
  • Where to Buy
  • Ordering

This is our ORIGIN

As the latest in a long heritage of SSL studio mixing consoles, ORIGIN has traditional analogue studio workflow at its heart whilst providing the perfect partner for a modern DAW-driven hybrid production studio. ORIGIN takes a fresh look at what a large format console needs to do to work in harmony with a modern DAW driven production studio.

The functional design looks back at the origin of in-line consoles for signal flow inspiration, but its circuits are at the cutting edge of SSL’s latest analogue developments. These new analogue designs deliver huge dynamic range and bandwidth yet still have the characterful, pleasing qualities of space and depth that analogue breathes on digital audio.


Overview
Technical Innovation

ORIGIN is more than just the culmination of four decades of technical innovation. With our deep knowledge of workflow and studio integration, we understand that a console has to provide the immediacy and well-executed ergonomics that will inspire and engage a modern studio environment.

ORIGIN takes these principles and combines them with a modern feature-set that bridges the gap between digital production and analogue console workflow.


Overview
Analogue Layout Hybrid Workflow

A unique and innovative modular centre section allow ORIGIN to adapt to different applications and priorities, whether being used as a purely tracking console with additional boutique analogue additions to the 19” rack centre section, or a very digital/analogue hybrid approach with screens and controllers easily reached from the centre of the console.


Overview
E-Series '242' EQ

The E-Series '242' EQ was probably the most popular EQ from the SL 4000 series console range, and it's back for ORIGIN, which uses this iconic SSL design for it's channel EQ.

ORIGIN features the acclaimed E-Series four-band parametric EQ on each of its 32-channels, with variable Cut/Boost per band, HF and LF Bell/Shelf switches, independent sweepable HPF on every channel and unmistakable '242' style growl and deep low end.


Overview
PureDrive™

ORIGIN features a completely new microphone pre-amplifier design that inherits the clarity and purity of previous SSL mic pre's, with the added flexibility of switching character to a warm, harmonically-rich and driven tone that varies with gain. The ideal solution to 'perfect' digital system and hybrid workflow.

PureDrive™ is a new discrete transistor mic-pre based around modern FET components. The result is an ultra-clean, ultra-low noise pre amp, that is fast and offers stunning resolution when in 'Pure' mode. Hit the switch and the 'Drive' circuit is engaged, adding gain dependent non-linear harmonic saturation.

Key Features

  • 32-channel analogue in-line design
  • High quality 100mm large and 60mm small fader on every channel
  • 16+2 buses
  • 4x Monitor outputs
  • 3x Foldback outputs
  • Acclaimed SSL E-Series four band parametric channel EQ
  • Sweepable HPF on every channel
  • Classic SSL Bus Compressor with side-chain access, HP filter and insert point
  • Dedicated channel direct outputs
  • New PureDrive Mic pre & drive circuit
  • New mix bus and mix amp architecture - delivers ultra-low noise floor and huge headroom
  • Balanced Insert Point per Large Fader and Small Fader Channel Paths.
  • Stem-ready 0dB fader bypass switch
  • Unique power management tools deliver ultimate reliability and low running costs
  • Freelance engineer friendly
  • Adjustable centre section features 12U of rack space for:
    • Software controllers
    • Computer keyboard and accessories
    • Additional hardware processing
    • Drop down meter bridge
