Products

WyreStorm

4 input 4K30 40M Presentation switcher Wireless casting

Product Code: WY-SW540TXW

Brand
Wyrestorm
RRP $2,299.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
5 Year
GTIN
814303015827
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
Input/output type HDMI
Input/output type Wi-Fi
Product type Switchers
  • Details
  • Downloads
  • Where to Buy
  • Ordering

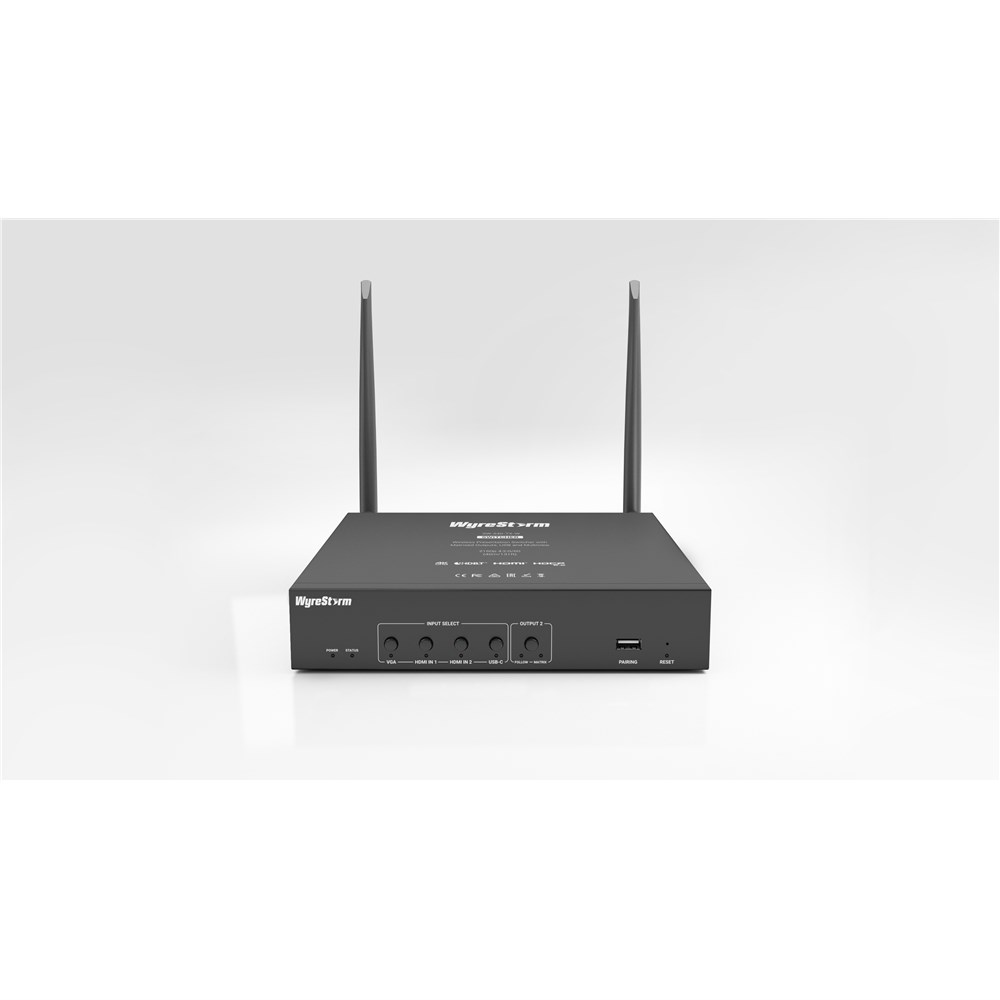

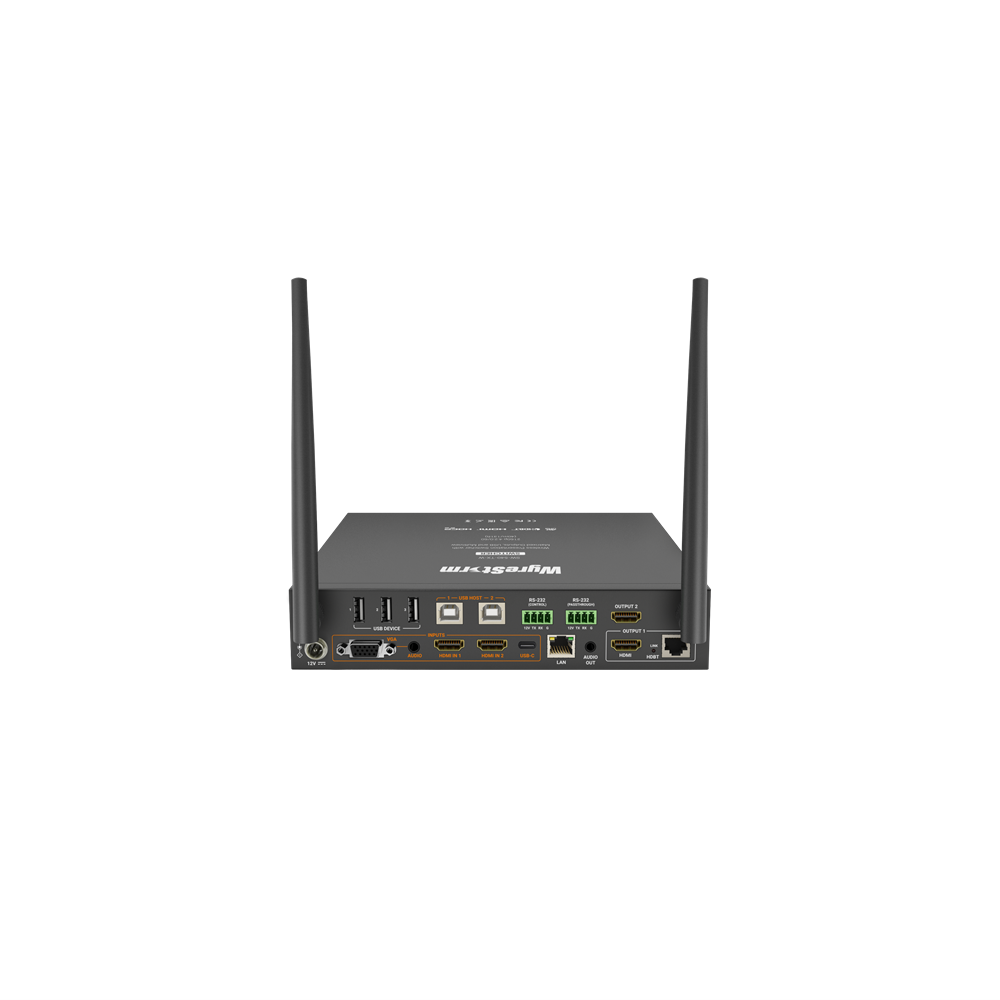

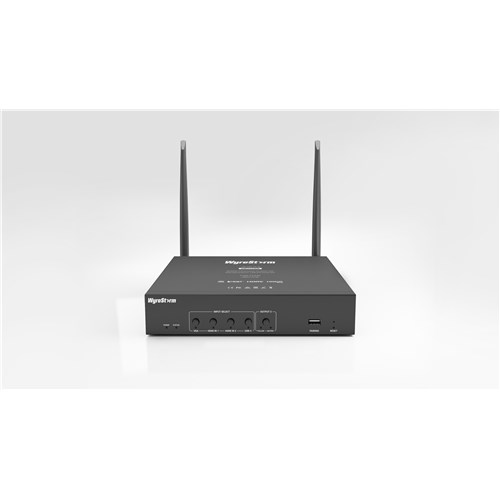

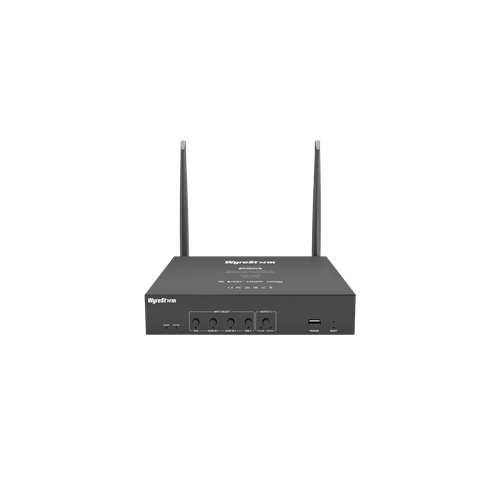

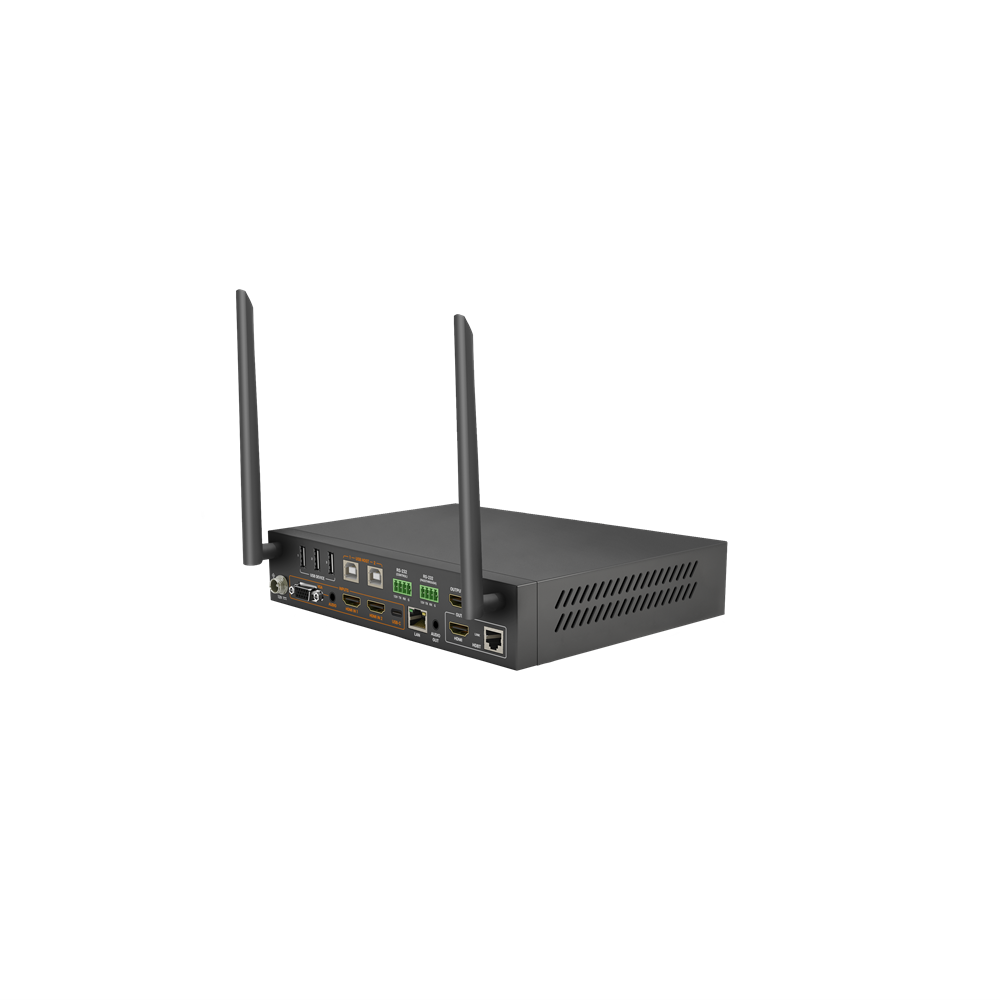

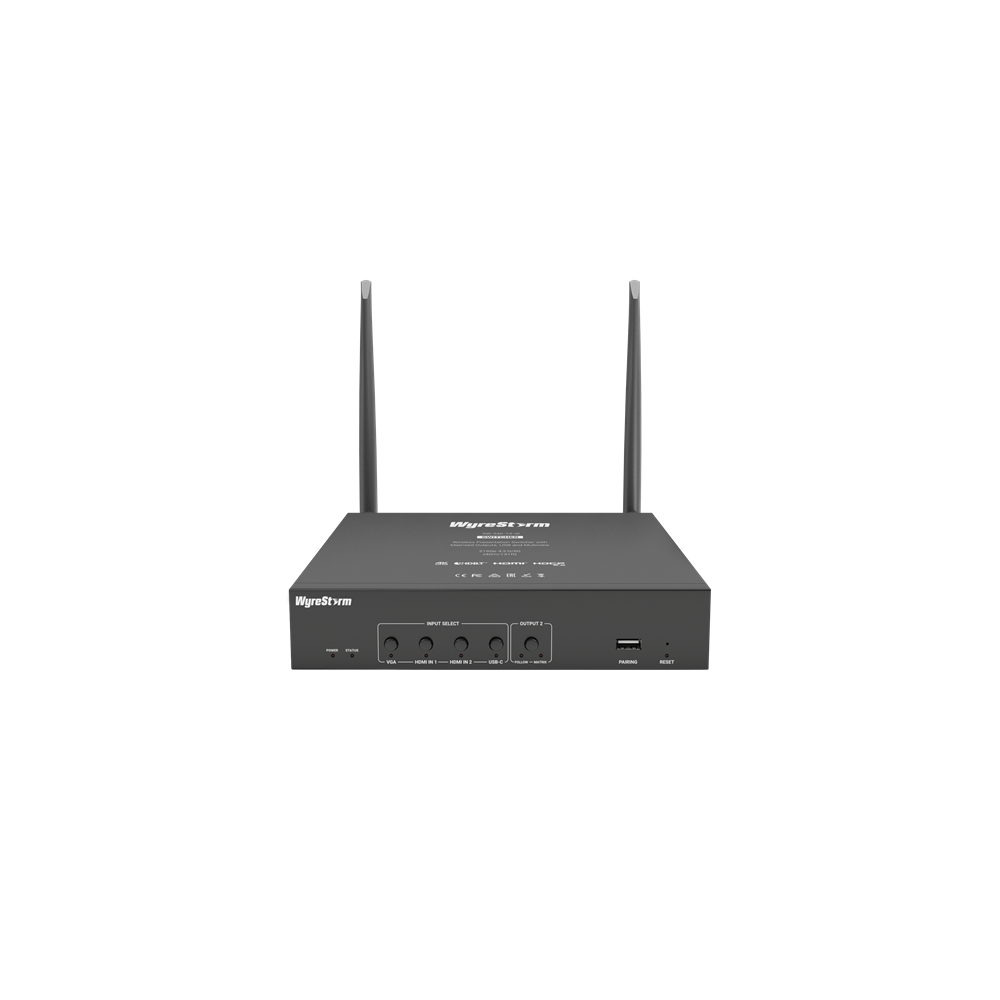

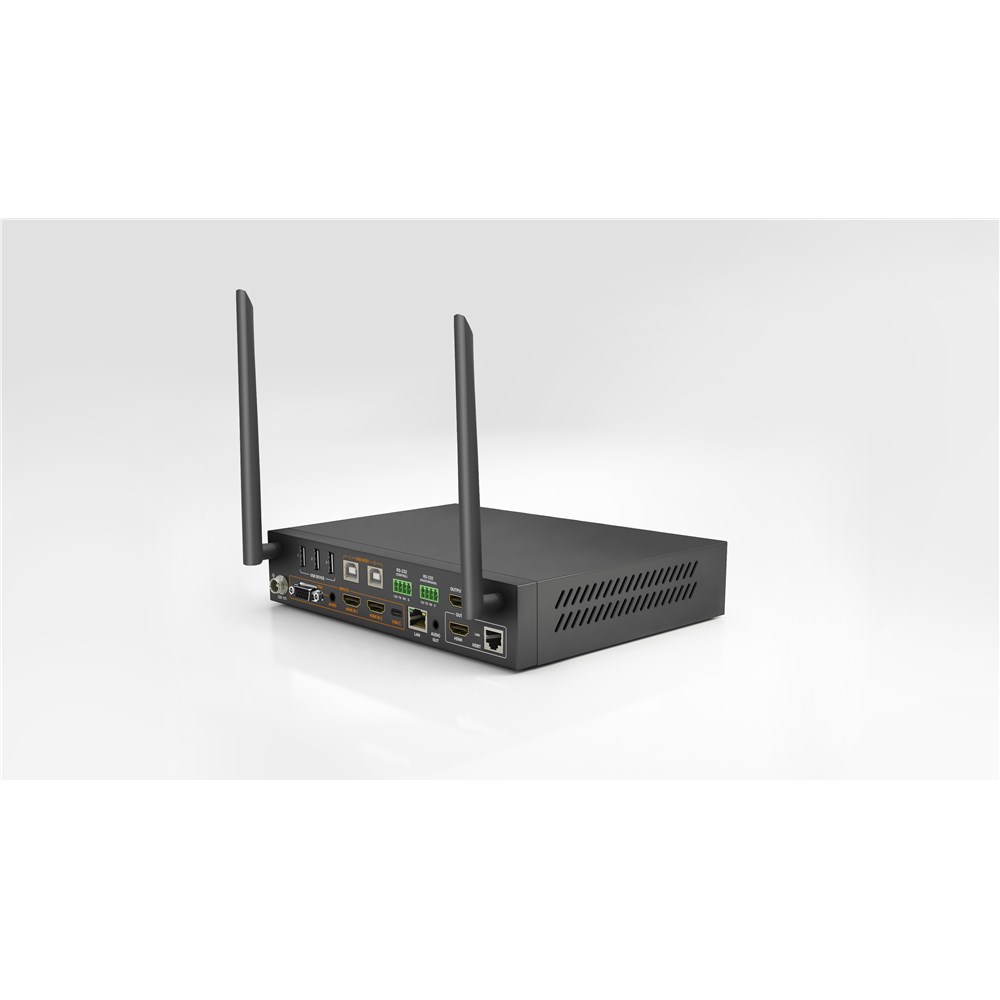

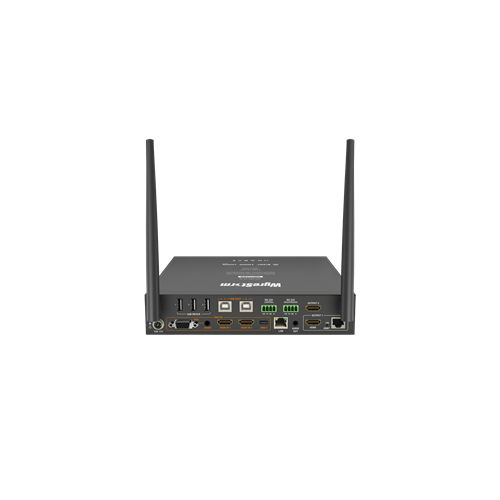

4×2 4K HDBaseT Switcher with Wireless Casting


SKU: SW-540-TX-W

The SW-540-TX-W is the perfect presentation switcher that meets the demanding requirements for today’s meeting spaces and conference rooms. The SW-540-TX-W is fully loaded with connectivity options, including VGA, HDMI and USB-C to ensure every laptop is compatible. In addition to the wired inputs, built-in support for Apple Airplay and Miracast allows devices to screenshare wirelessly by connecting the switcher to an existing LAN or by utilizing the integrated wireless access point. Dual outputs via HDBaseT and HDMI promote connectivity in multi-screen rooms along with the ability to show up to 4 sources simultaneously via multiview. Of course, the package wouldn’t be complete without the ability to connect USB peripherals such as speakerphones and cameras directly to the switcher or over HDBaseT.

  • WIRELESS CASTING
    Wirelessly screenshare from your laptop, phone or tablet by using Apple Airplay or Miracast. Up to 4 wireless devices can be connected at the same time and shown on connected screens in a picture-in-picture layout.
  • MULTIVIEW
    Display up to 4 source devices at the same time. Any combination of wired and wireless devices can be displayed, creating a supportive environment for collaboration between colleagues and teams.
  • DUAL OUTPUT
    Dual switching outputs promote connectivity of multi-screen conference rooms. The HDBaseT and HDMI outputs can mirror content when in multiview mode or can show two separate sources when in full screen mode.
  • USB
    A built-in USB hub on the switcher allows local connection of peripherals devices such as a conference speakerphone. USB over HDBaseT allows remote connection of a webcam or PTZ camera.

Features

  • Automatic or manual switching of 4 connected sources (VGA, 2 HDMI & USB-C) with assignable USB host connection
  • Supports input resolutions up to 4K30 4:4:4 via USB-C or HDMI
  • Wireless screensharing via Apple Airplay or Miracast
  • Dual output via HDBaseT and HDMI with additional mirrored HDMI
  • Multiview processing up to 4 simultaneous sources between wired and wireless devices
  • Compatible with all major conference software including Zoom, Microsoft Teams, Cisco WebEx and more
  • Built-in USB 2.0 hub with support for USB over HDBaseT for connection of peripheral devices such as speakerphones or cameras
  • Automatic or manual CEC & RS232 triggering of connected display through HDMI or HDBaseT output.
  • USB-C input supports alt-mode for both A/V and data communication over a single cable
  • API uses Telnet over TLS for secure and encrypted communication
  • Integrated webserver for control and configuration via HTTPS
  • Easily mountable under a table or desk with included mounting brackets
  • Built-in wireless access point for secure and isolated communication to screensharing devices
  • Wireless access point supports custom SSID, password and screensharing access PIN
  • Integrated ‘Guide Screen’ used to provide end-users with simple instructions to get connected
  • Custom ‘Guide Screen’ can be uploaded to include company information, logos, or specific connection information

Specifications

AUDIO AND VIDEO
  • Inputs:
    • 1x VGA w/ separate 3.5mm TRS Stereo audio input
    • 2 x HDMI
    • 1 x USB-C
    • Wireless video from Airplay, Miracast or APO-DG1
  • Outputs:
    • 1x HDMI Out (Output 2)
    • 1x HDBT w/ 1 x mirrored HDMI
    • 1 x 3.5mm TRS stereo audio output
  • Output Video Encoding:
    • HDBaseT™ Class B
    • Encoding Data Rate: 10.2Gbps
  • Audio Formats:    2ch PCM
  • Video Resolutions (Max)
    • Video Resolutions
      • Casting: 1920x1080p @30Hz 8bit
      • HDMI & USB-C: 3840x2160p @30Hz 8bit 4:4:4
    • HDBT Output Cat6/6a
      • 40m @ 1080p
      • 70m @ 4K
  • Supported Standards:    DCI | RGB
  • Maximum Pixel Clock:    300MHz
COMMUNICATION AND CONTROL
  • HDMI:    HDMI 1.4 | HDCP 1.4 | EDID | CEC
  • HDBaseT™:    EDID | CEC | USB | RS-232
  • RS-232:
    • 1x 4-pin Phoenix (passthrough over HDBaseT) | Provides 12v power
    • 1x 4-pin Phoenix (API control) | Provides 12v power
  • Ethernet:    1x 8-pin RJ-45 (API control)
  • Wireless:    2 x Wi-Fi Antennas | IEEE 802.11 a/b/g/n/ac | Dual-band 2.4 & 5GHz | WEP, TKIP, AES, WPA, WPA2x 4-pin Phoenix (Pass-through)
  • USB:
    • 3 x USB 2.0 Type A device ports | 5v 500mA per port
    • 2 x USB 2.0 Type B host ports (assignable)
    • USB bandwidth over HDBaseT limited to 190Mbps
POWER
  • Power Supply:    12V DC 2A
  • Max Power Consumption:    24W
ENVIRONMENTAL
  • Operating Temperature:    0 ~ +45°C (32 ~ +113°F), 10% ~ 90%, non-condensing
  • Storage Temperature:    -20 ~ +70°C (32 ~ +113°F), 10% ~ 90%, non-condensing
  • Maximum BTU:    82 BTU/hr
DIMENSIONS & WEIGHT
  • Length x Width x Height:    263x149x45
  • Weight:    0.97Kg | 2.13lbs
REGULATORY
  • Safety and Emission:    CE | FCC | RoHS | EAC | RCM
