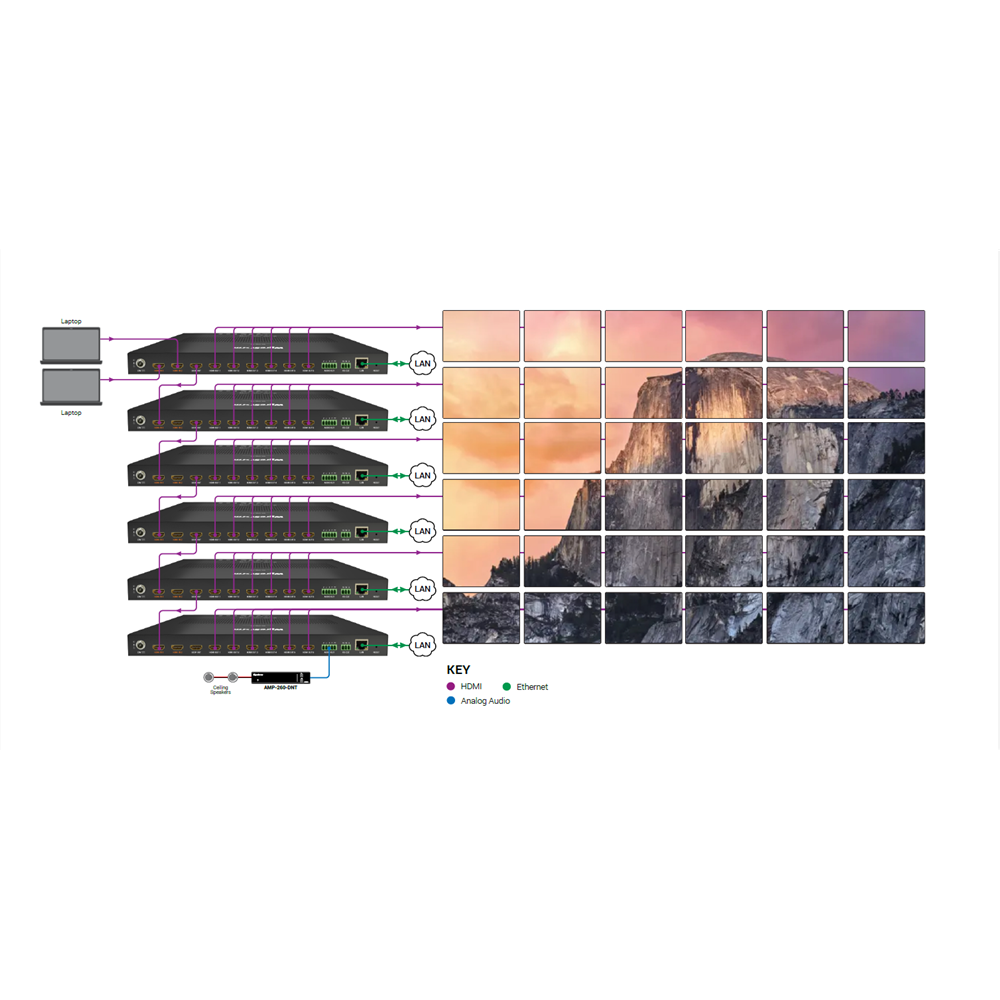

Supports a variety of video wall layouts to suit different needs:
These layouts enable seamless expansion of input video sources across multiple screens Additional features include bezel adjustment, rotation options (0°, 90°, 180°, 270°), and customizable layout adjustments for optimal flexibility.
Fully compliant with HDMI 2.0 and HDCP 2.3 standards, the SW-0206-VW supports 4K@60Hz content with rich color accuracy (4:4:4 chroma subsampling). Its built-in scaling processor ensures high-quality upscaling and downscaling for resolutions up to 4K@60Hz, delivering a truly immersive visual experience.
Designed for applications requiring expansive visuals, the SW-0206-VW supports ultra-wide resolutions, including 3840×600@60Hz and 5400×1920@30Hz. This makes it an excellent choice for digital signage, conference rooms, and large-scale presentations, where panoramic displays are essential.
To complement its visual capabilities, the SW-0206-VW features advanced audio functionalities:
These features ensure crystal-clear sound quality, making every detail audible for a cohesive and impactful audio-visual experience.
AUDIO AND VIDEO
Inputs
2x HDMI IN: 19-pin type A
Outputs
6x HDMI OUT: 19-pin type A1x 5-pin Phoenix Analog Audio with balance (de-embed from selected HDMI input)
Audio Formats
PCM 2ch Analog
Input Video Resolution
800 x 6008, 1024 x 7688, 1280x720P6,7,8 , 1280 x 7688, 1280 x 8008, 1280 x 9608, 1280 x 10248, 1360 x 7688, 1366 x 7688, 1440 x 9008, 1600 x 9008, 1600 x 12008, 1680 x 10508,1920x1080P6,7,8 , 1920 x 12008, 3840 x 6008, 3840x2160P2,3,5,8* , 4096x2160P2,3,5,8*, 5400x1920P5,
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz.
Video Resolution (Max)
Auto-Scaler (scale up and down to any resolution —up to 4K@60Hz)1920x1080p @60Hz 4:4:4 8bit3840x2160p @60Hz 4:4:4 8bit4096x2160p @60Hz 4:4:4 8bit
Maximum Pixel Clock
600MHz
COMMUNICATION & CONTROL
HDMI
HDMI 2.0 | HDCP 2.3 | EDID | CEC
RS-232
1x RS-232: 3-pin Phoenix Female | Video-Wall Processor ControlRoutable RS-232 Device Control | Telnet commands supported
Ethernet
1x LAN: 8-pin RJ-45 Female | Web UI | Video-Wall Control and Ethernet
Input Button
1x Input button | Input source selection
Lock Button
1x Lock button | Button Lock
Layout Mode Button
1x Layout mode button | Layout mode selection | (1×4, 2×2, 3×2, 2×3, 4×1, 1×4[90°], 1×3[60°], Preset)
POWER
Power Supply
DC 20V/3A
ENVIRONMENTAL
Operating Temperature
0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature
-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
DIMENSIONS & WEIGHT
Dimensions
27mm/1.06in x 320mm/12.6in x 180mm/7.09in
REGULATORY
Supported Standards
DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020
