AV matrixes

4X4 Uhd 4K Hdr Hdbt Matrix Kit MXV0404H2AKIT Wyrestorm

Product Code: WY-MXV0404H2AKIT

Brand
Wyrestorm
RRP $6,159.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
  • Details
  • Downloads
  • Where to Buy
  • Ordering

4K HDR 4:4:4 60Hz HDBaseT™ 4x4 Matrix Kit with Audio De-Embed & CEC Triggering (4K: 35m/114ft, 1080p: 70m/230ft)

MXV-0404-H2A-KIT
Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0404-H2A-KIT brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses a lossless compression technology to ensure signal integrity.

With 4 HDBaseT zone outputs and a mirrored HDMI output offering CEC triggering for all 5 connected screens, this kit enhances the offering for the modern home or commercial installation. Internal audio switching allows audio breakout from source or zone output via S/PDIF and analog stereo ports.

HDMI MAXED OUT
Bringing our lossless compression technology from our flagship H2XC matrix platform to the other end of the range, the MXV-0404-H2A can handle both current & future video content technologies up to 4K/60 4:4:4 and high framerate HDR. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent over HDBaseT using the latest in lossless compression technology.

DE-EMBEDDING AUDIO
With audio functionality to match its video capability, the MXV 4x4 has the ability to extract audio signals from either source devices or from the HDBaseT™ output, following the zone. Having S/PDIF and analogue connectivity means having the flexibility to use multi-channel 5.1 or stereo audio signals.

MIRRORED HDMI OUTPUT
In addition to the audio breakout ports, the H2A-KIT also features a single HDMI output port which can be used to connect an AVR for zone 1 or - via a WyreStorm H2 extender or hybrid optical cable - send a mirrored 18Gbps HDMI signal to a 5th screen.

CEC TRIGGERING
Working automatically or triggered via the API, the MXV-0404-H2A can send power commands to all connected screens or projectors compatible with CEC meaning an integrated autonomous control solution.


FEATURES

  • 4x4 HDBaseT 4K matrix switcher supporting:
  • Content up to 4K/60 4:4:4 & RGB 8-bit
  • The latest HDR standards, including HDR-10, HLG and Dolby Vision™
  • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • HD Multichannel audio up to DTS:X and Dolby Atmos™ to all outputs
  • HDMI Inputs HDBaseT™ outputs and mirrored HDMI port supports bandwidths of up to 18Gbps
  • Capable of transmitting content to 35m/115ft over Cat6 cable or 1080p/60Hz to 70m/230ft over HDBaseT using light compression
  • Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
  • Assignable audio outputs allow audio to be de-embedded from sources or HDBaseT output via mirrored stereo RCA and S/PDIF ports
  • A/V Mute mode allows the routing of a signal to an output to be deactivated
  • API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
  • Mirrored HDMI output allows connection of a local AVR, local screen or additional display over distance via an HDBaseT extender or hybrid optical HDMI cable
  • API triggered A/V mute allows a signal to be deactivated to any zone
  • 4x PoH receivers included – a complete kit for quicker, easier and more reliable installation and AV distribution straight out of the box
  • HDBaseT technology handles video, audio, bidirectional IR and PoH to display zones along a single Cat6 cable
  • Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
  • SmartEDID™ removes conflict when mixing 1080p & 4K displays by dynamically detecting display/source capabilities and automatically requesting the highest possible resolution for all displays
  • Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
  • Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
  • Central RS-232 control compatible major third party control systems with full integration protocols available for Crestron, AMX, RTI & Control4
  • Embedded WebUI allows installer setup and configuration and provides switching interface
  • Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
  • IR 3.5mm mini-jack ports for each output for IR emitters and IR receivers
  • Compact 1U chassis with adjustable depth rack mounting brackets included

ADDITIONAL FEATURES ON RECEIVERS
  • Low profile chassis for quick, easy and flush installations
  • Multichannel audio supports 7.1 DTS:X and Dolby Atmos
  • Additional power connectivity via threaded bushings for both standard and locking DC power plugs
  • LED indication for visual power supply to receiver via PoH or mains, signal status to show established connection to display, HDBaseT link to matrix and HDCP confirmation to illustrate the presence of encryption within a signal

SPECIFICATIONS

Audio and Video
  • Matrix

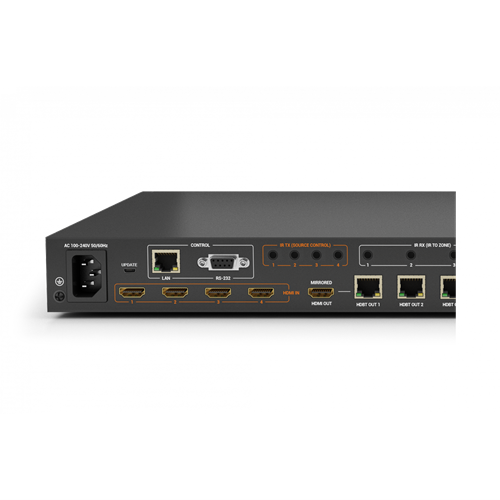

    • Inputs:
    • 4x HDMI In: 19-pin type A

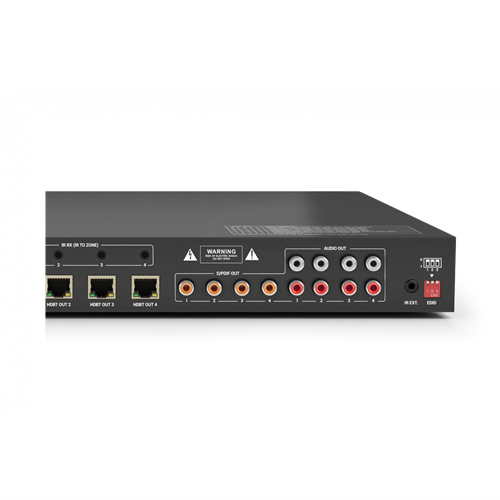

    • Outputs:
    • 4x Audio Out: RCA Female Stereo (L/R)
    • 4x S/PDIF Out: RCA Female
    • 4x HDBT Out: 8-pin RJ-45 Female 1x HDMI Out: 19-pin type A
  • Receivers
    • Inputs: 1x HDBT In: 8-pin RJ-45 Female
    • Outputs: 1x HDMI Out: 19-pin type A
  • Output Video Encoding: HDBaseT™ Class B
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency: 10μs (micro seconds)
  • Audio Formats
    • Analog: 2ch Analog
    • S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
    • HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
  • Video Resolutions (Max)Video ResolutionsHDMICat6Cat6a/7
    1920x1080p @60Hz 12bit15m/49ft60m/197ft70m/230ft
    1920x1080p @60Hz 16bit7m/23ft35m/115ft40m/131ft
    3840x2160p @24Hz 10bit 4:2:0 HDR3m/10ft35m/115ft40m/131ft
    3840x2160p @30Hz 8bit 4:4:47m/23ft Input |15m/49ft Output35m/115ft40m/131ft
    3840x2160p @60Hz 10bit 4:2:0 HDR3m/10ft35m/115ft40m/131ft
    4096x2160p @60Hz 8bit 4:2:07m/23ft35m/115ft40m/131ft
    4096x2160p @60Hz 8bit 4:4:43m/10ft35m/115ft40m/131ft
  • Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
  • HDMI: HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)
  • HDBaseT: HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
  • CEC: CEC power triggering for connected screens – Requires CEC compatibility
  •  IR:
    • Matrix
    • 1x IR Ext: 3.5mm (1/8in) TRS Stereo
    • 4x IR RX: 3.5mm (1/8in) TRS Stereo
    • 4x IR TX: 3.5mm (1/8in) TS Mono
    • Bidirectional over HDBaseT
    • Receivers
    • 1x IR TX: 3.5mm (1/8in) TS Mono
    • 1x IR RX: 3.5mm (1/8in) TRS Stereo
    • Bidirectional over HDBaseT
  • RS-232
    • Matrix:1x RS-232: 9-pin DB9 Female
    • Receivers: 1x RS-232: 3-pin Terminal Block - 3.5mm
  • Ethernet (Matrix) 1x LAN: 8-pin RJ-45 Female
Power
  • Power Supply
    • Matrix:100~240V AC 50/60Hz
    • Receivers:18V DC (Optional)
  • PoH (Matrix):1-way Matrix to Receiver
  • Max Power Consumption
    • Matrix:
      • 85W with 4 RXs Connected via PoH
    • Receivers:
      • 8W with External PSU each receiver
      • 12.5W via PoH each receiver
Environmental
  • Operating Temperature (Matrix)
    • 32°F ~ 113°F (0°C ~ 45°C)
    • 10% ~ 90%, non-condensing
  • StorageTemperature (Matrix)
    • -4°F to ~ 158°F (-20°C ~ +70°C)
    • 10% ~ 90%, non-condensing
  • Maximum BTU:
    • Matrix:
      • 290 BTU/hr
    • Receivers:
      • 28 BTU/hr with External PSU each receiver
      • 43 BTU/hr via PoH each receiver
Dimensions & Weight
  1. Matrix:
    • Rack Units:1U
    • Height: 43.5mm/1.72in
    • Width: 440mm/17.33in
    • Depth: 300mm/11.82in
    • Weight: 4.06kg/8.93lbs
  2. Receivers:
    1. Rack Units:<1U
    2. Height: 15.2mm/0.6in
    3. Width: 136.4mm/5.38in
    4. Depth: 74.2mm/2.93in
    5. Weight: 0.24kg/0.53lbs
Regulatory
  • Safety and Emission CE | FCC | RoHS | RCM
