MZ-223
5-Channel Rackmount Multizone Mixer

Professional mixer that can assign BGM and announcements to 3 zones

3 Interest-Free Payments Available with Affirm Learn more
for orders $199 and up.
Key Features
SPECS
What's in the box
CAD
CAD
Documents
MZ-223
A powerful multi-channel, multi-zone mixer housed in a compact 2U desgn, The TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

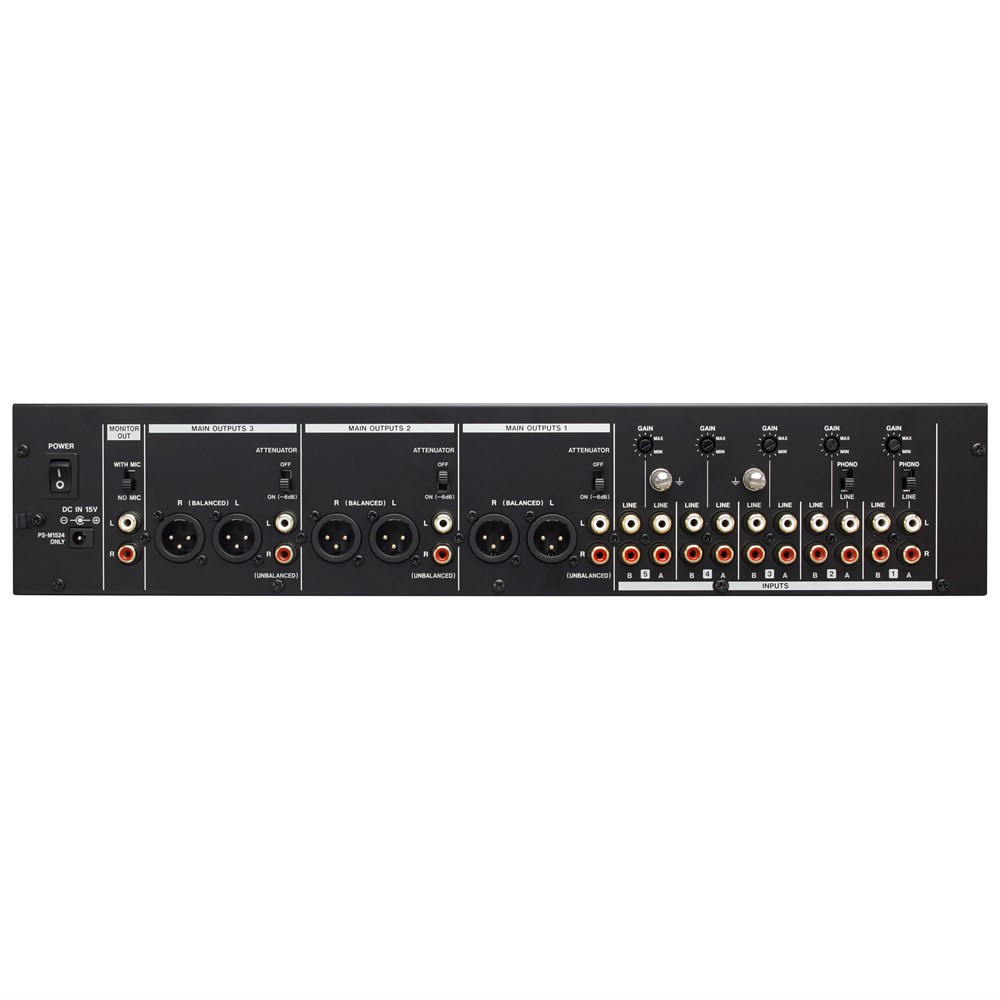

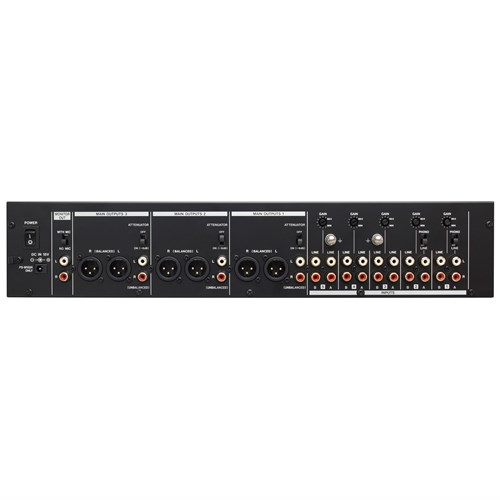

Flexible I/O
The MZ-223 allows multiple audio sources to be mixed, segregated, and routed to 3 independent zones or destinations using familiar volume sliders and assignment buttons. Input signals can be inserted via 5 audio channels, each consisting of 2 sets of unbalanced RCA stereo pairs. A total of 10 sets of RCA inputs are provided. Channels 1 and 2 can be set to accommodate phono-level signals for use with a turntable. In addition located conveniently on the front panel, 2 mic-compatible XLR inputs are available.

MZ-223
MZ-223

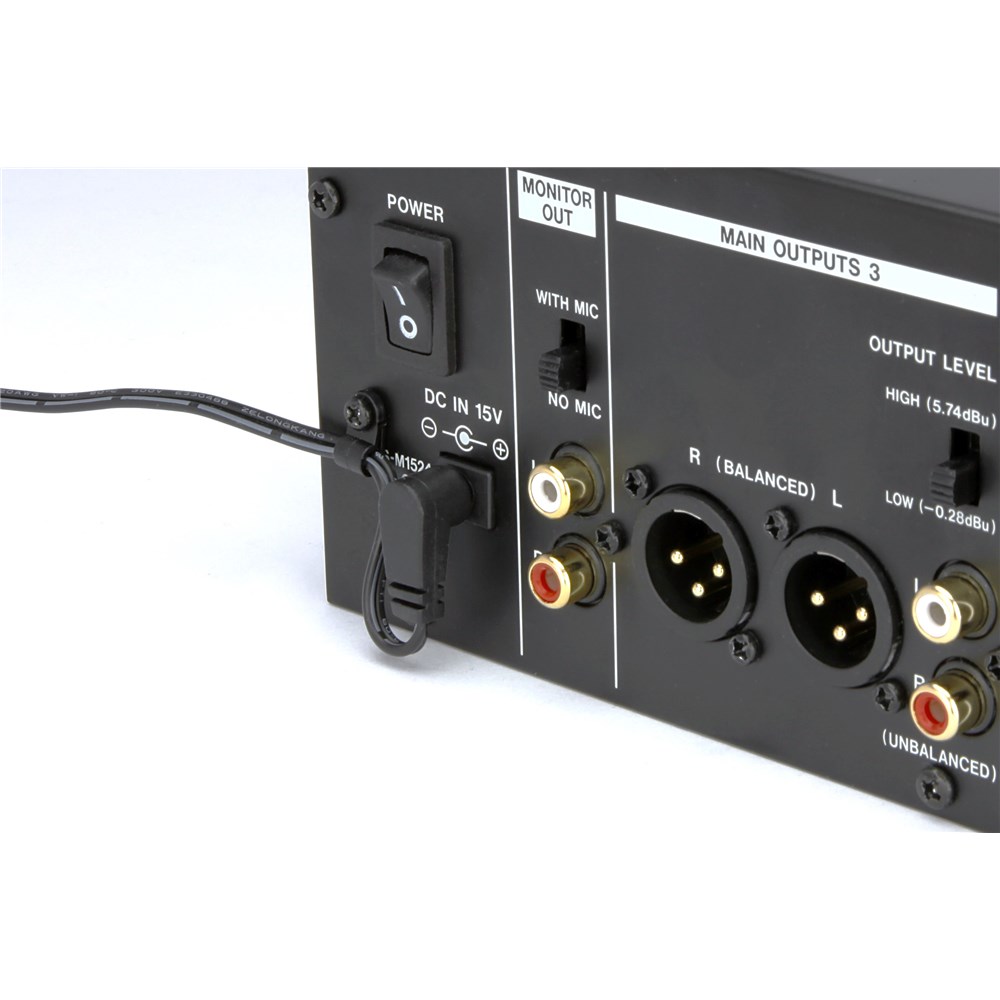

Multiple Zone Outputs
The independent 3-zone outputs each have a combination of balanced professional XLR or RCA unbalanced configurations for long runs or connection to common residential power amplifiers or speakers. This flexibility, for example, allows music to be routed to ZONE1, ambient noise or natural sounds to ZONE2, a separate music track or a voice announcement can be routed to ZONE3, while the convenient “Talkover” function will automatically lower any mixed channel source so the microphone can be heard while speaking.

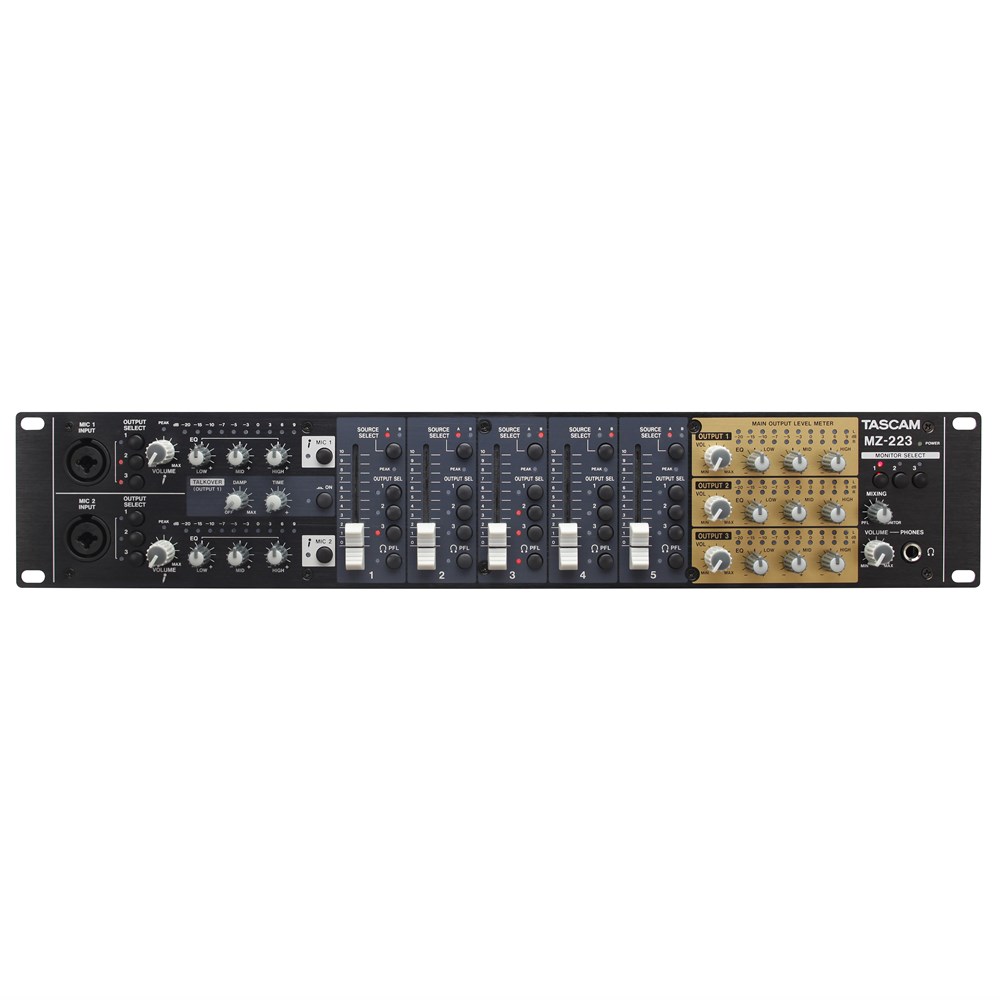

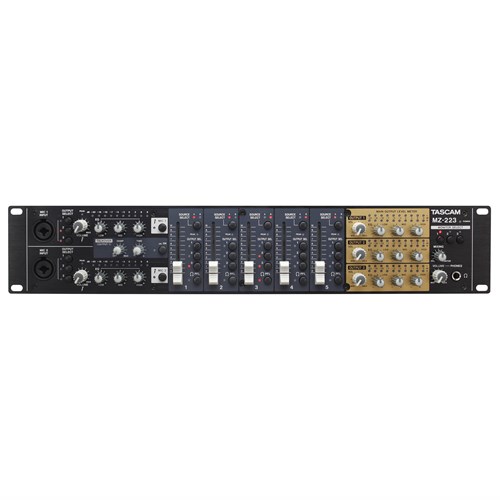

Easy, Immediate Control
Familiar volume sliders, routing switches/buttons, EQ knobs, and mute buttons for the microphones make the MZ-223 simple and fast to operate and set up. There is even a master recording stereo output, which can send audio to an external recorder which makes event capturing easy. The MZ-223 delivers simple operation and maximum audio routing flexibility, all in a compact, affordable package.

MZ-223
MZ-223
Simple Output Adjustment
The volume can be adjusted individually for the three output lines. When installing multiple speakers in each area such as at a shop, public facility, or office, the volume for each can be controlled from a single unit. Each output has a stereo LED level meter. This allows you to check the volume balance of the entire system. You can also use the 3-band equalizer to adjust the tone for each area.

Additional Features


Features at a Glance
Easy operation and routing via familiar volume sliders, toggle switches/buttons, and knobs
3 Independent Zone outputs with stereo XLR balanced and unbalanced RCA connectors per channel
5 separate input channels, each with two sets of stereo RCA inputs
2 additional mic-compatible XLR inputs on the front panel
All audio can be mixed or segregated per channel, and routed to the 3 separate Zones/Outputs
“Talkover” function automatically lowers other source content while microphones are in use
Independent 3-band EQ per output channel and per microphone input
Compact 2U rack mount design
