Radial SIXPACK - 6 slot power-rack, desktop format,1600mA power supply

Product Code: RA-SIXPACK

Brand
Radial Engineering
RRP $1,049.00
*Recommended Retail Price may not be a true representation of the market price

Unit of Measure
EACH



3 Year
Features
UPC EAN 6761010 4087 2
Technical Specifications
Brands Radial Engineering
  • Details
  • Downloads
  • Where to Buy
  • Ordering

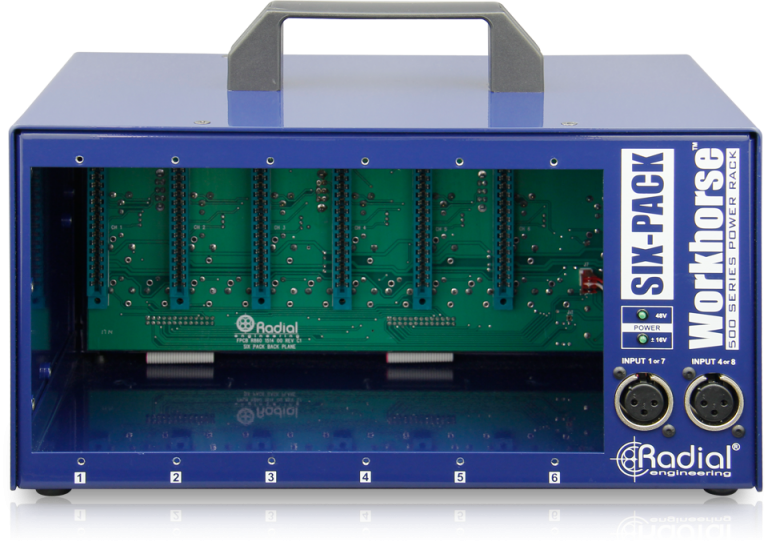

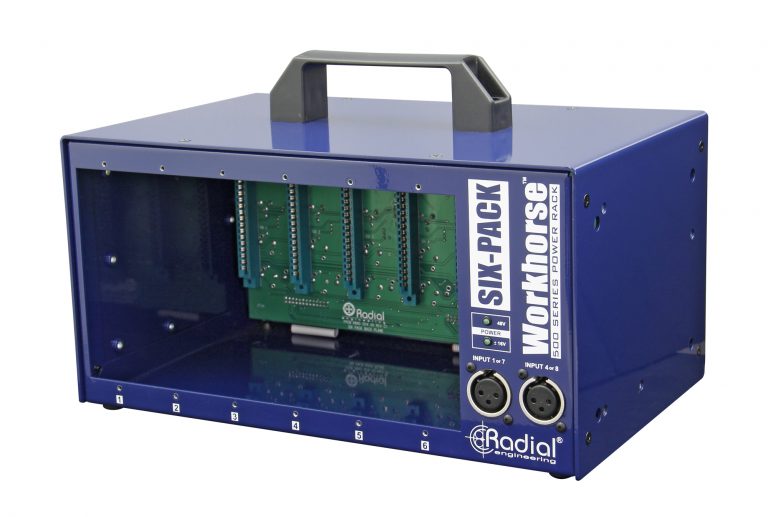

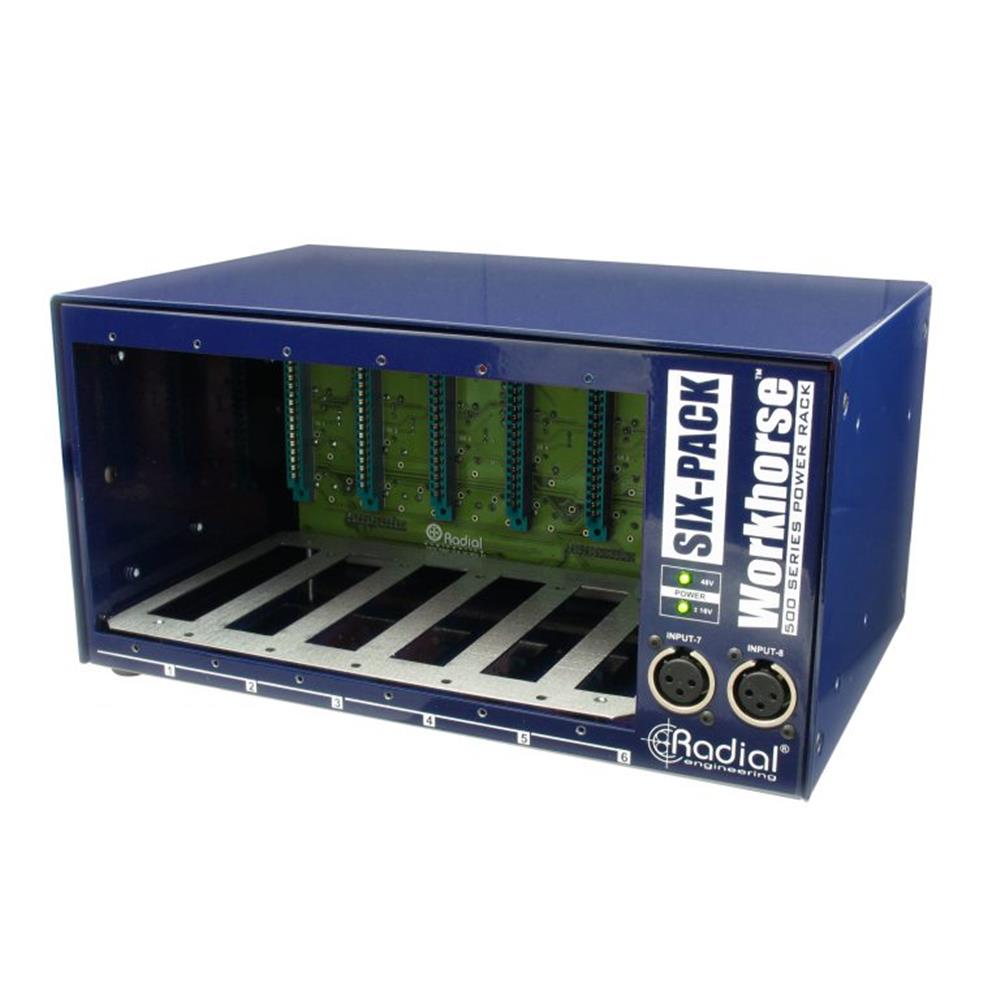

6-Slot Power Rack for 500 Series

The SixPack is a desktop power rack for 500 series modules that lets you mix and match up to six modules and safely power them to create a stereo channel strip or unique signal chain.

Photos
  • Portable 6 slot power rack with carry handle
  • Perfect for stereo channels or as a studio side car
  • Powerful 1600 milliamp supply will not sag when loaded

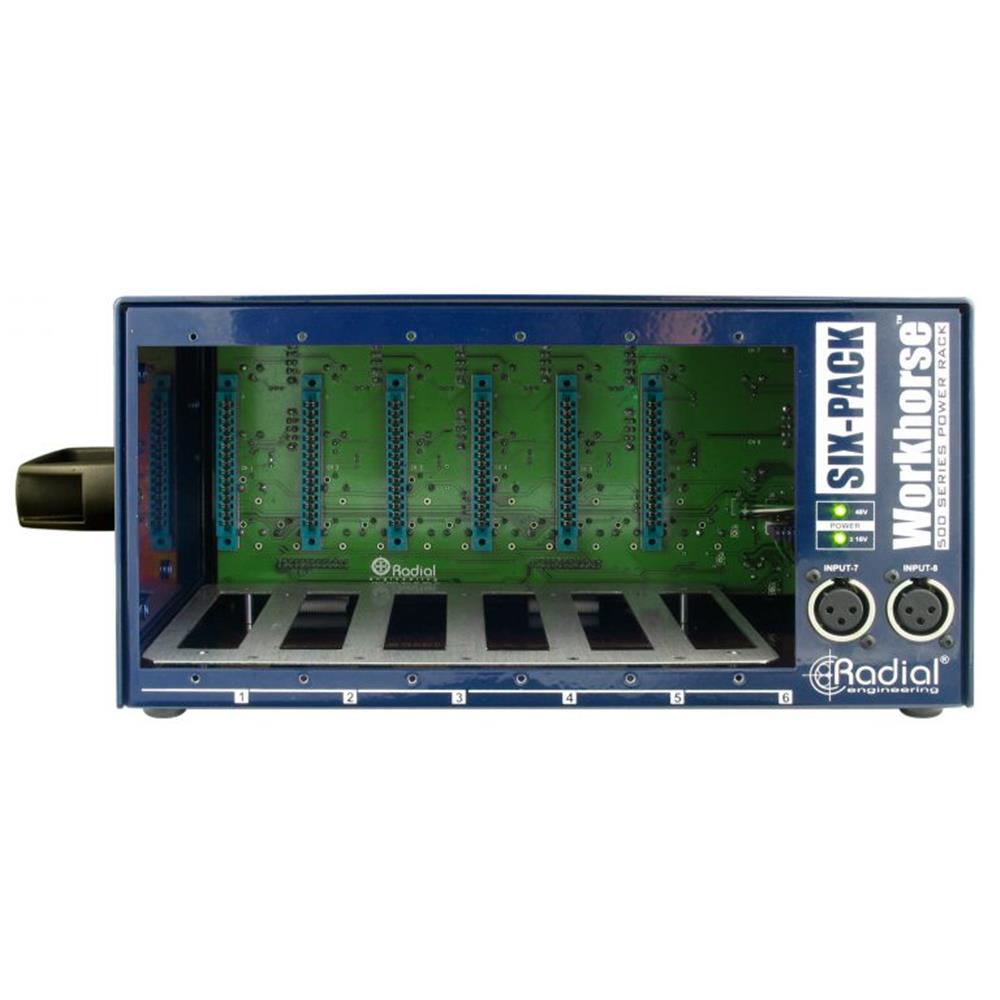

  • Workstation ready with front panel convenience XLRs

Serious power

The design begins with a heavy 14-gauge steel construction and durable powder coat finish. This provides extra durability when moving the SixPack around the studio while also providing better shielding against stray magnetic fields. To reduce induced noise, the power supply is external and connects using a 5-pin locking XLR. To ensure positive contact, the module card-edge connector is mated to a double sided EDAC 15-pin receptacle that is 100% compatible with the old API pin format. Extra safety is built-in to ensure malfunctioning modules will not harm the SixPack or other modules that may already be connected. And with 1600 milliamps of shared current, the SixPack exceeds all others with an average of over 265 milliamps per slot to ensure even the most power hungry tube modules will be satisfied.

Connections

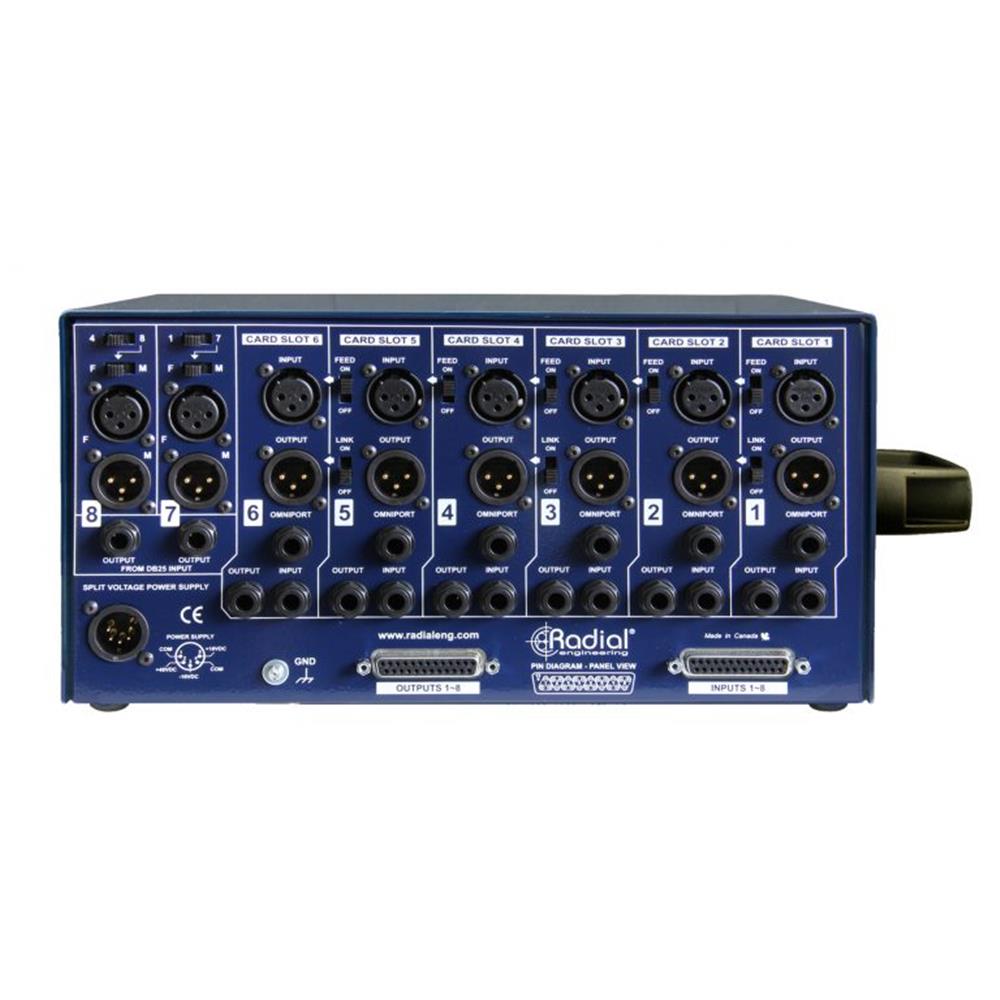

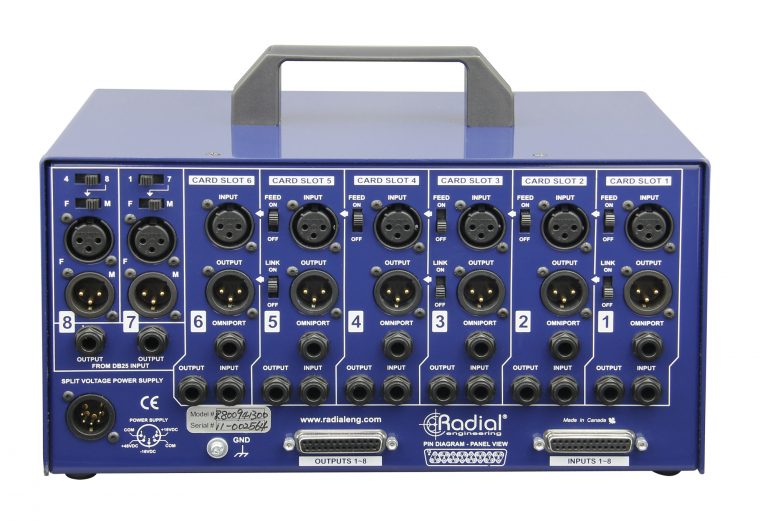

Rear panel connectivity includes individual XLR input and output connectors wired in parallel to ¼" TRS connectors. These may be used as mults or for cross-patching various modules together to create innovative sounding signal paths. A set of 25-pin D-Sub connectors enable the SixPack to easily integrate with a Workstation. Two XLR connectors are front mounted and may be routed to the D-Sub or to inputs 1 and 4 to make patching in a microphone more expedient. Extra features include a feed switch that patches one module into the next, a link switch to combine stereo-ready modules and Omniport, a ¼" TRS jack that adds extra functionality.

SixPack Applications

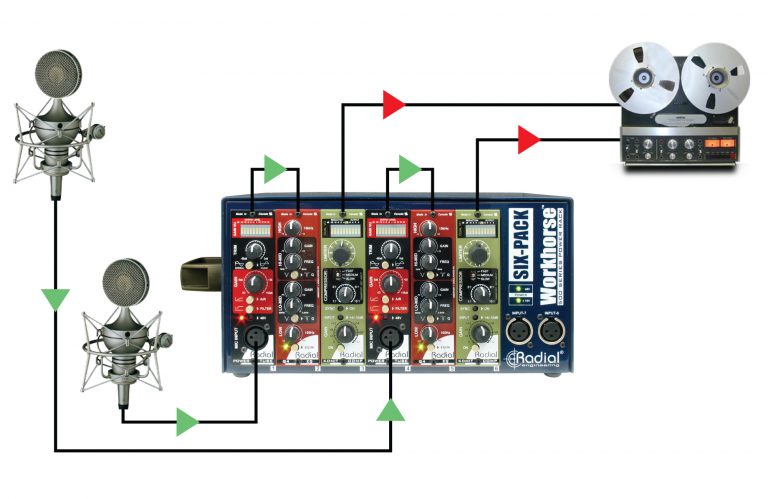

Using the Six pack to build a stereo channel

Use the SixPack's six slots in a 3 + 3 format to create the ultimate stereo channel strip. Combine a PowerTube preamp with a Q4 class-A EQ and a Komit compressor and you have everything you need to get the job done.

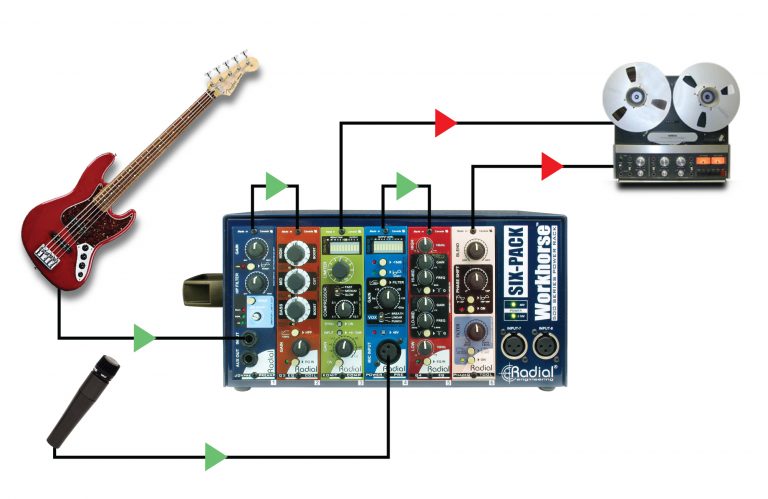

Using the SixPack on the road

Fill the SixPack for your next session by recording direct using a JDV instrument preamp Q3 coil EQ and Komit compressor. Combine this with a microphone using a PowerPre mic preamp, Q4 parametric EQ and a PhazeQ to phase-align both channels.

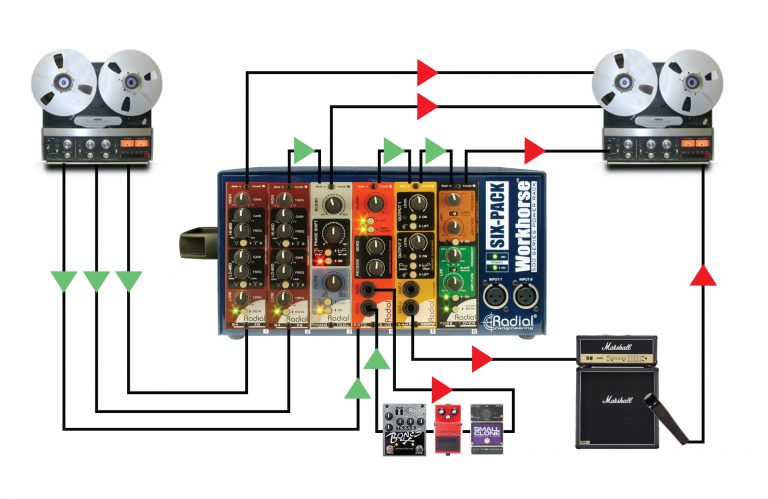

Using the SixPack as a side car

Build the ultimate analog side car to warm up those digital tracks. Start with two Q4 class-A semi parametric EQs and then phase align the two channels with the PhazeQ. Add an EXTC to bring in a guitar pedal, Reamp out using the EXTC, frequency divide a track using the Tossover.

Reviews


"I am quite impressed with the amount of thought that went into the design and specifications of this unit. As you can see from the limited amount of "limitations" I commented on, there really aren't any significant flaws to it. It's solidly-built and has thoughtful features nearly everywhere you look that make the unit easier or more flexible to use. It's a marvel of excellent design and engineering."

By Phil O'Keefe

SixPack Resources

Part no: R700 0108 00

Ordering from Amber Technology

Logging in

New to Amber Technology?

You can place an order using guest checkout, and we’ll email your order details when we ship.

You can register by following this link. When you register, we will retain your order history and checkout information for future transactions. Registration is quick and free. We’ll never share your registration details outside Amber Technology.

Are you an Amber Technology account customer?

Your user id is the email address that’s recorded for your account. If you don’t know or have forgotten your password, please reset it using this link.

If you need help with any login or site-related issues, please contact us here.

Shipping

Orders placed though the Amber Technology website are despatched from our Sydney warehouse. Orders placed before 1.00pm Sydney time (for items in stock) will generally be shipped on the same day.

We ship using Australia Post and Startrack Express. We deliver Australia-wide to residential, business and PO box addresses.

Shipping is free for all orders over $275 including GST (effective 1 March 2018). There is a $22 (including GST) shipping and handling charge for all orders under $275 including GST.

Tracking

You can track your shipment through the web sites of our couriers:

Australia Post

Star Track Express

We will email the tracking number for your shipment shortly after it’s been despatched. If you have any questions regarding shipping, please contact us.

Warranty

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

All items purchased from Amber Technology will be covered under warranty. The duration and terms of this warranty are specified by the manufacturer unless otherwise stated. Warranty information is available on the individual product listings on this site.

Refurbished items will include a 12 month warranty unless otherwise stated.

Please contact us if you have received an item which has been damaged in transit or is otherwise not working correctly when you receive it. Subject to availability, we will arrange for a replacement item to be despatched and for the faulty item to be returned to us.

Amber Technology maintains a nation-wide network of carefully selected Authorised Service Agents to ensure that you are never far from convenient, expert technical and service support. If your item develops a problem and requires servicing under warranty, please contact your local Authorised Service Agent.

Stock Availability

The availability of stock is communicated via the indicator of each product listing page. "Available" means that reasonable stock is in our warehouse, ready for immediate shipment. "Limited Stock" means that we have only a small number of items in stock. "Out of Stock" means this item is currently unavailable for immediate shipment - orders placed for ‘Out of Stock’ items will be fulfilled as soon as replacement stock arrives.

"Special Order” items are products that are not generally kept in stock in Australia. Lead times for Special Order items vary depending on country of origin, manufacturer’s stock levels, factory production schedules and/or incoming shipment transit times. Please contact us for an estimate as to the likely lead time.

Refurbished items

If refurbished stock is available, this will be shown on the summary page for the product. If a product listing only allows you to choose refurbished stock, we are not holding new stock and we can no longer obtain new stock.

Refurbished items are always in perfect working order and will include all accessories. Refurbished items are may

  • have a damaged carton
  • have been used for demonstrations
  • have been repaired
  • have minor imperfections that do not impact performance.

Refurbished items include a 12-Month warranty unless otherwise stated.

Technical Support

Please visit the Get Support page to find a service agent, log a service ticket, or ask a technical question about your product.

Returns

Please contact us if you have received an item which has been damaged in transit or is otherwise not working correctly when you receive it. Subject to availability, we will arrange for a replacement item to be despatched and for the faulty item to be returned to us.

Accessories

  inc GST
RRP $129.00
*Recommended Retail Price may not be a true representation of the market price
(Each)

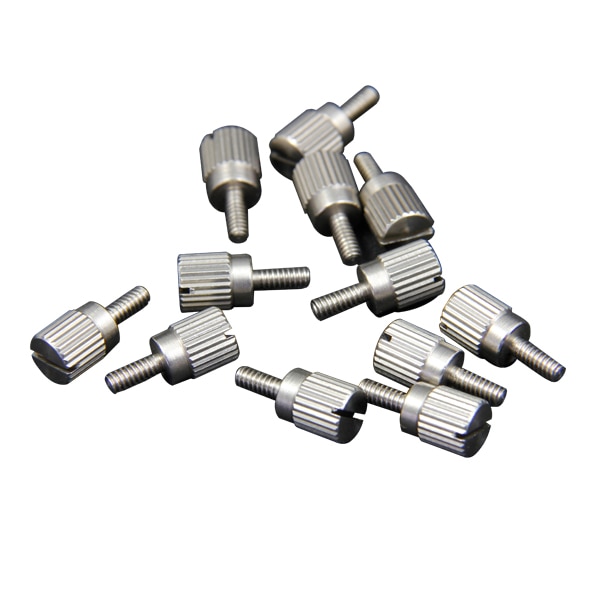

Radial THUMBSET RA-THUMBSET



  inc GST
RRP $39.00
*Recommended Retail Price may not be a true representation of the market price
(Each)

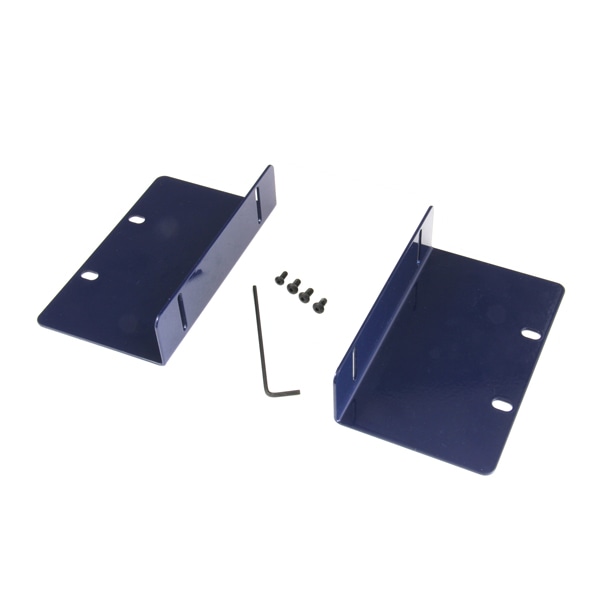

Radial SIXPACK Adaptor RA-SIXP19-RA
