64 Ch Digital Multitrack Recorder for Live/Broadcast

Product Code: TA-DA-6400DP

Brand
Tascam
RRP $9,299.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands TASCAM
  • Details
  • Downloads
  • Where to Buy
  • Ordering

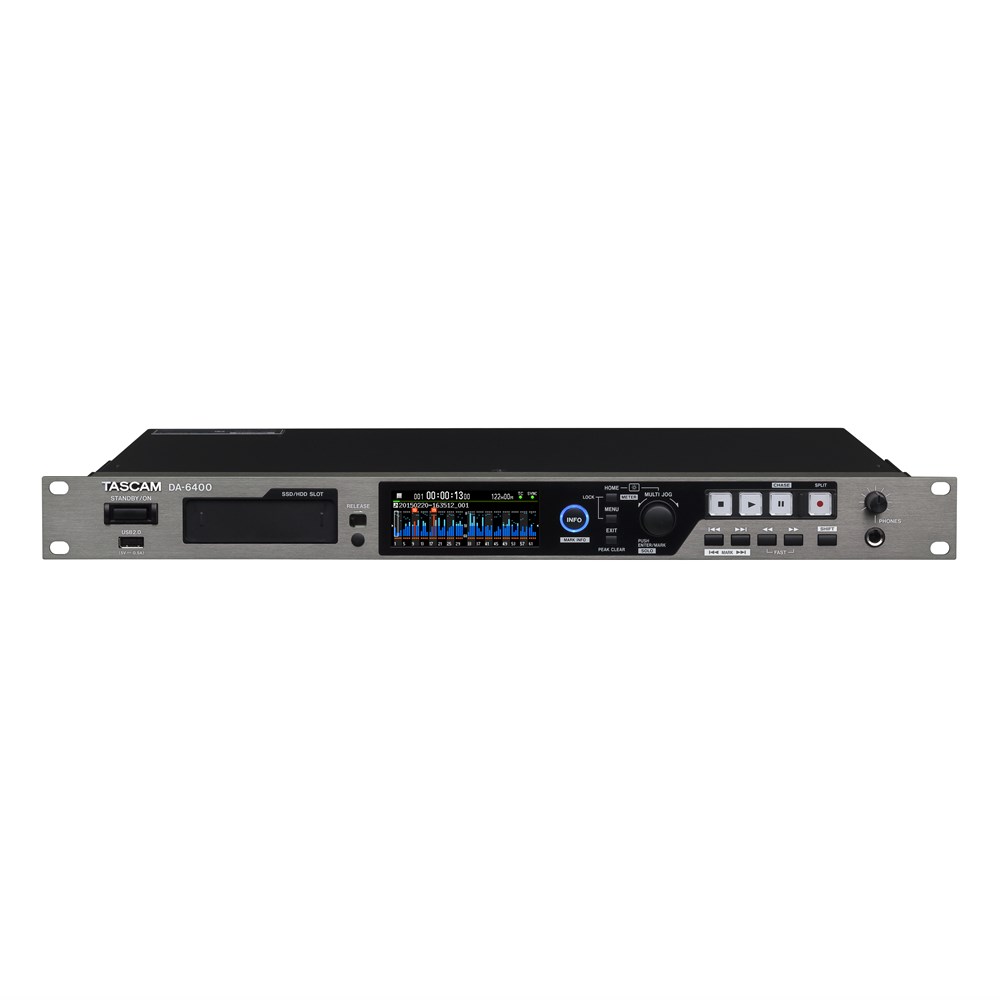

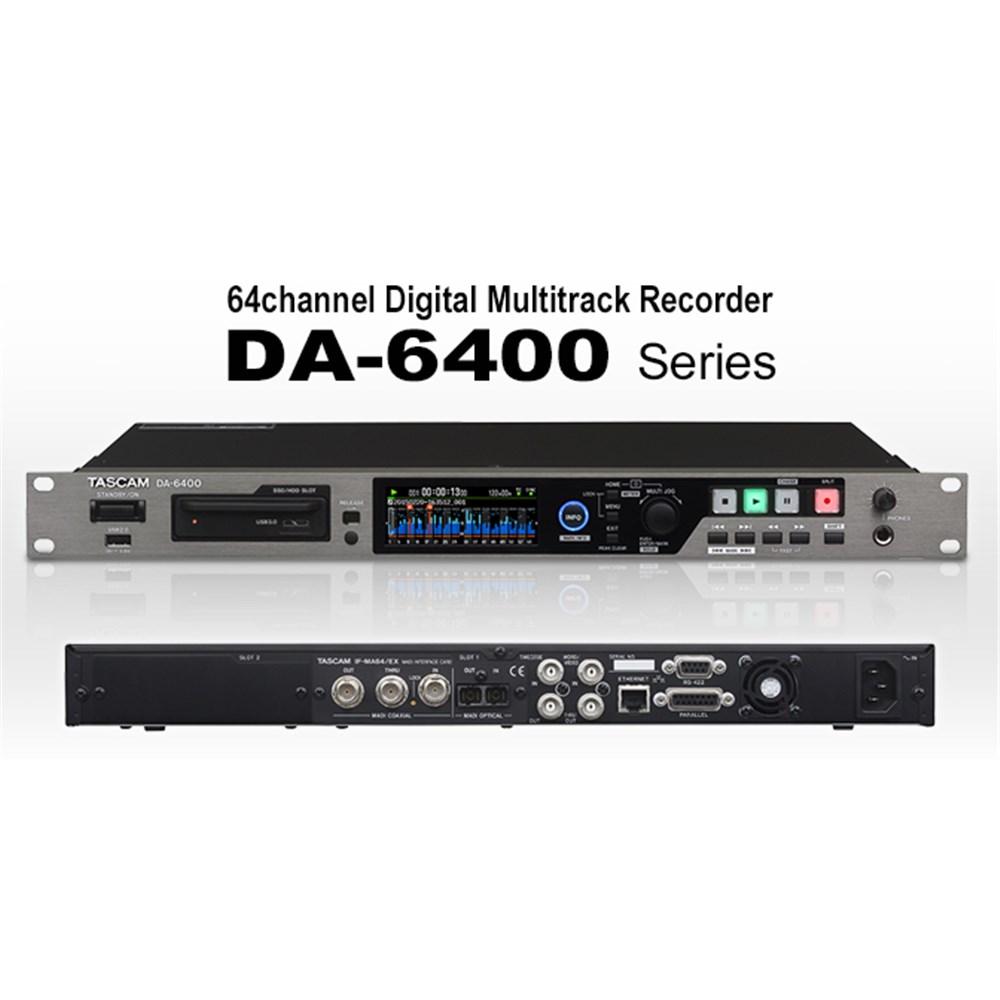

DA-6400

TASCAM's DA-6400 is an all-new 64-track recorder that records to an internal SSD drive caddy for live and event recording. Professional I/O options like MADI and DANTE make it ideal for live recording, event capture, or as a backup for critical DAW sessions. Available with a single or dual/redundant power supply, the DA-6400 is an unbeatable option for professional remote recording.
Included with the DA-6400 is an AK-CC25 hot-swappable caddy containing a high-performance 240GB TASCAM solid-state drive. The caddy includes a USB 3 jack for stand-alone use – simply hand the drive to the client to offload the BWAV files into their DAW session. The DA-6400 records 64 tracks at 48kHz/24-bit or 32 tracks at 96kHz/24-bit. Included on the rear panel are SMPTE timecode, word clock, RS-422, parallel and Ethernet connections. I/O options for the DA-6400 include the IF-MA64/EX interface card, with both coaxial and optical MADI connections.

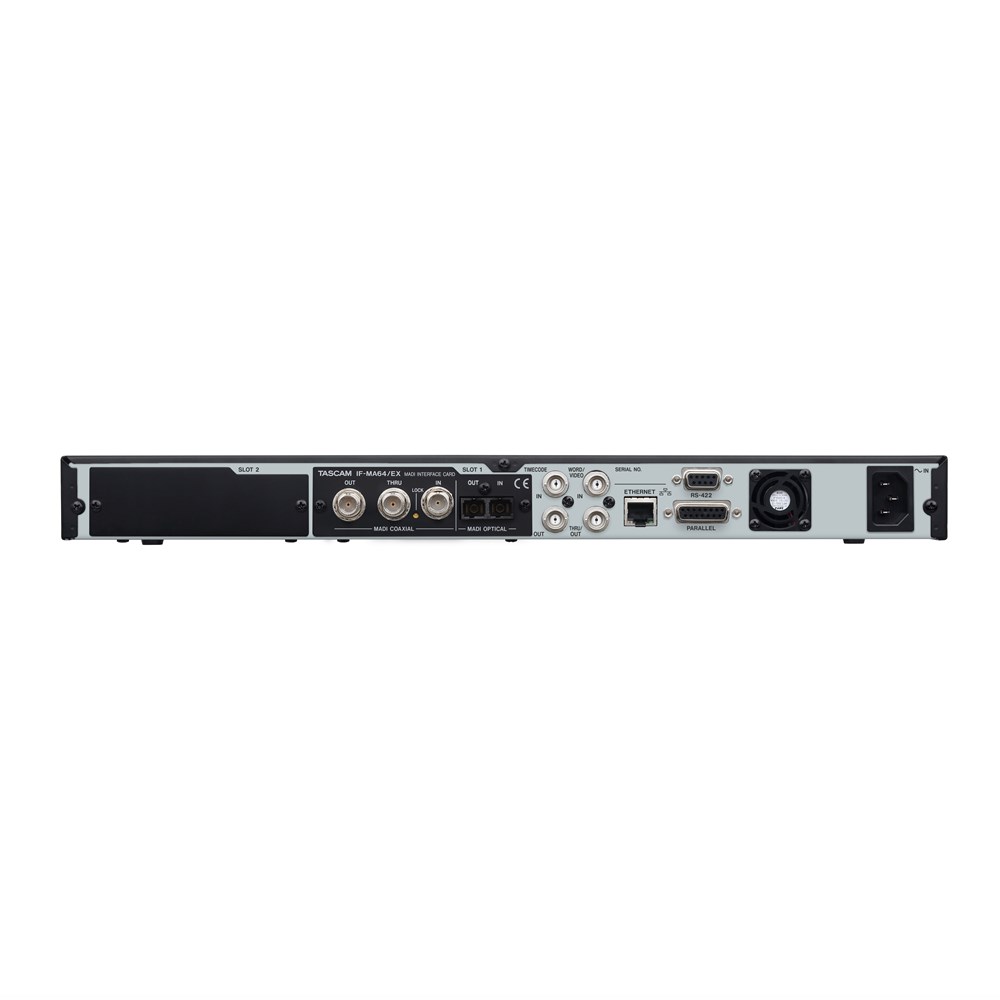

This card includes a redundant coaxial connection so that MADI is passed through even if power is lost, making it an ideal backup recorder for DAW sessions. Other I/O options include the lower-cost IF-MA64/BN coaxial MADI card, IF-DA64 Dante card, and IF-AE16 AES/EBU card, with more to come.No dedicated recorder combines the high performance, flexible operation, and complete reliability of TASCAM's DA-6400 solid-state 64-track recorder.

A stable, reliable 64-channel digital multitrack recorder

The DA-6400 uses an embedded operating system for quick startup and simple operation. The system is designed for reliable recording when using high sampling rates and large amounts of data transmission. Files are saved approximately every 20 seconds during recording, so data losses due to unexpected power supply interruptions are kept to a minimum. Recording and playback is supported at up to 96kHz/24-bit (32 tracks) for incredibly detailed master tracks.
The DA-6400 records to solid-state drives (SSD), the ideal format due to their excellent vibration protection, environmental resistance, and simple, maintenance-free operation. TASCAM has created our own SSD, designed for and thoroughly tested with DA-6400 recorders without the automatic "housekeeping" features that can cause disks to drop out of record. Internal components, including IC control elements, have been carefully selected and constantly tested lot by lot with the parts manufacturers to maintain quality specifications.

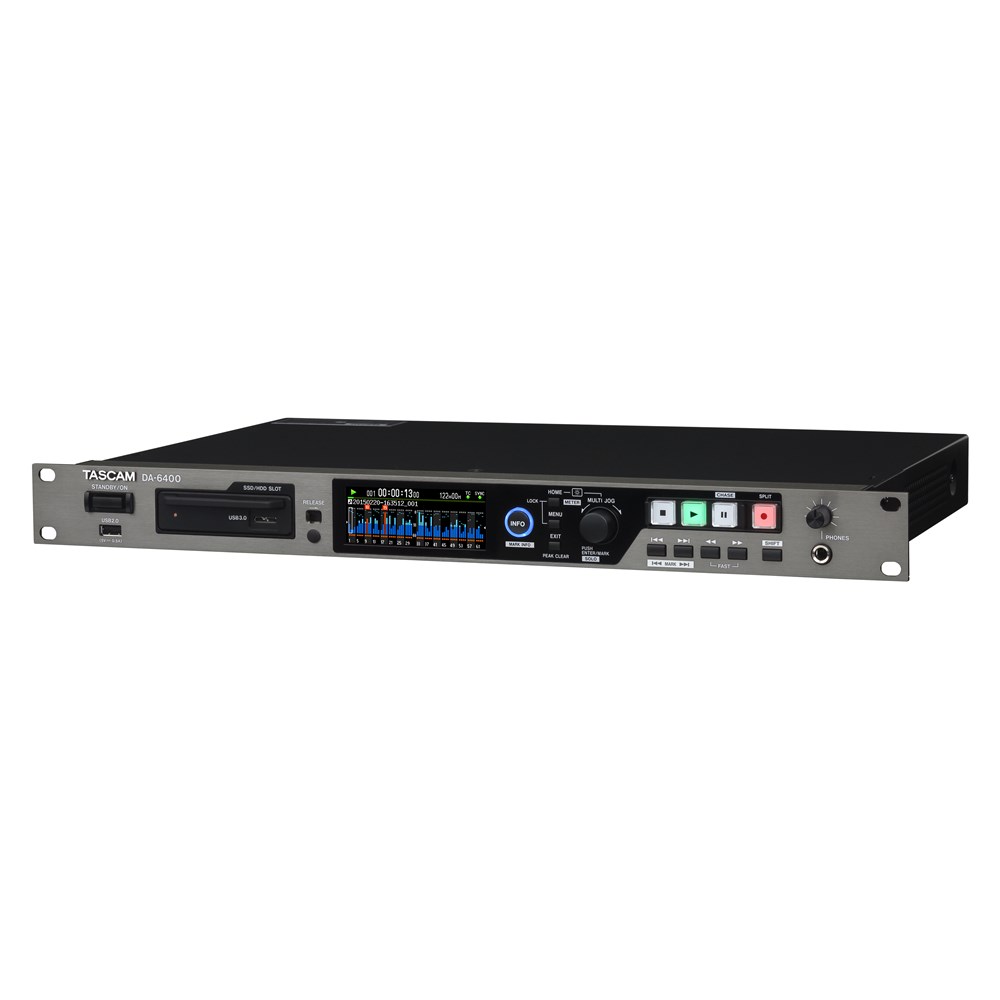

The included 240GB SSD is pre-installed into a removable AK-CC25 storage case. Using the swappable bay in the DA-6400 unit, drives can be hot-swapped and then given to clients. The AK-CC25 case includes a USB 3 jack for rapid transfer to DAW systems.
Another feature designed to maintain reliable recording is the high-precision internal sample clock, a temperature-compensated (TCXO) crystal oscillator with +/-1ppm operation. For the most critical installations, a dual power supply version (DA-6400DP) is available.

DA-6400
DA-6400

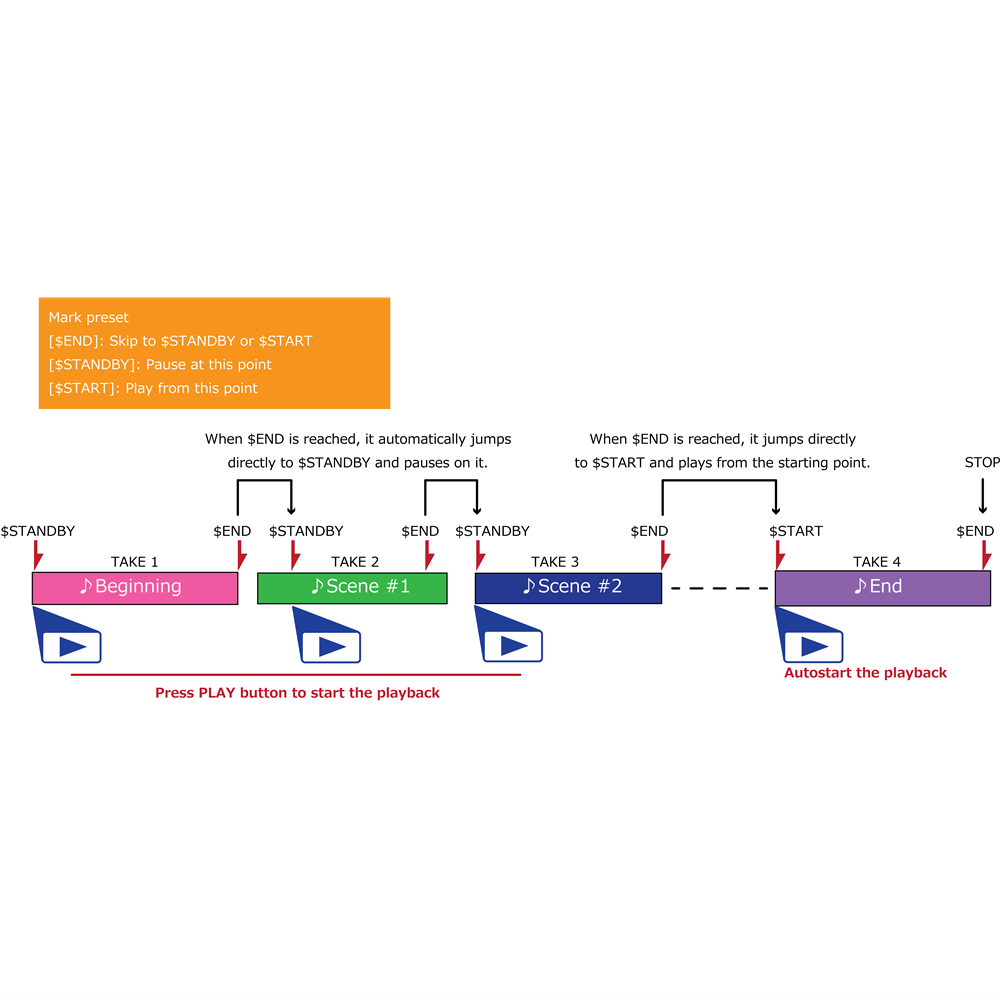

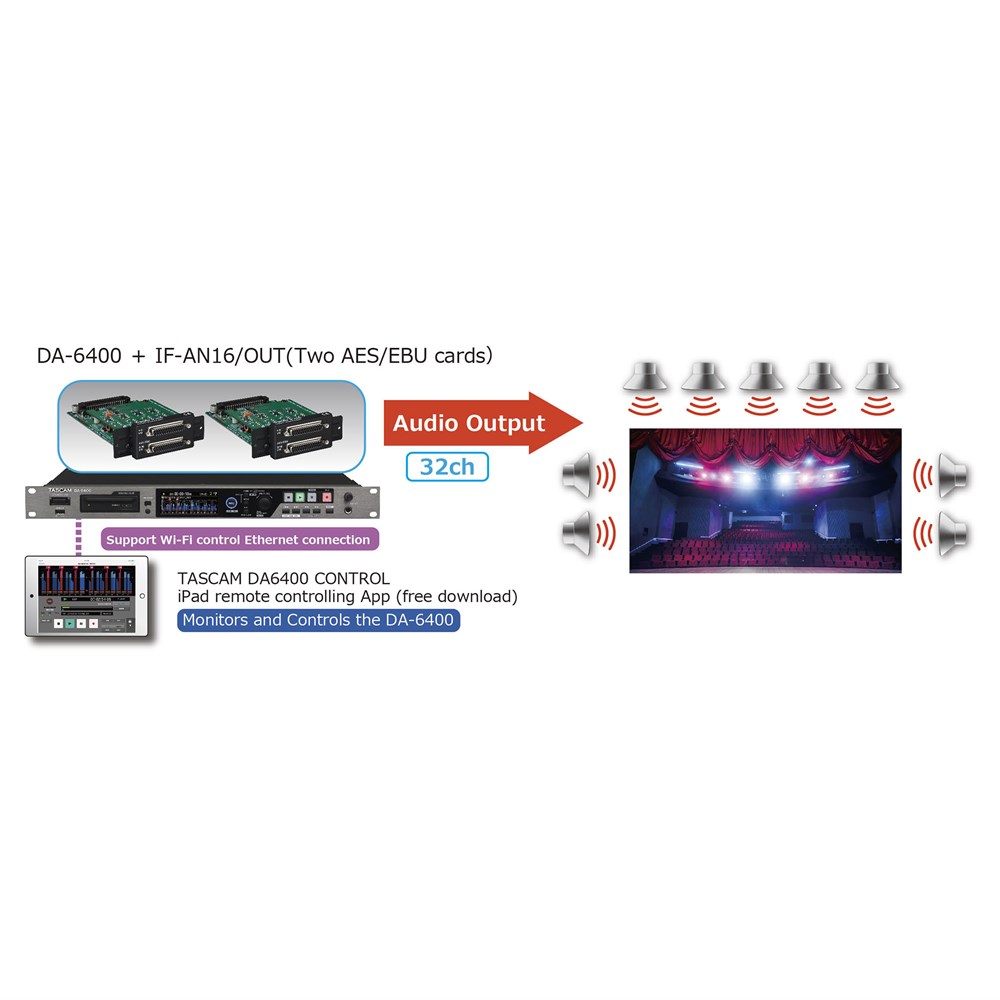

Multi-channel playback for theme parks and installations

TASCAM's DA-6400 is the ideal candidate for multi-track playback in installations. The solid-state drive won't wear out after months of use, and the unit can be controlled through serial, parallel, ethernet, or timecode. The SMPTE generator can be used as a master device at any standard frame rate – 24, 25, 29.97DF, 29.97NDF, 30DF, or 30NDF.
Gigabit ethernet is offered for remote control and file transfer. FTP can be used to push files to the device or to retrieve recordings from Mac, Windows or UNIX systems. A built-in FTP client is also included for transferring files to remote servers. SNTP support can also automatically update the clock from internet time sources.
Serial RS-422 (P2) and parallel control is also included for use in post, broadcast, or recording studio operation.

A stable, reliable 64-channel digital multitrack recorder.Embedded operating system for reliability and simplicity.

The DA-6400 uses an embedded operating system for quick startup and simple operation.The system is designed for reliable recording when using high sampling rates and large amounts of data transmission. Files are saved approximately every 20 seconds during recording, so data losses due to unexpected power supply interruptions are kept to a minimum.

DA-6400
DA-6400

Records and plays back 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM

PCM recording/playback from 48kHz to 96kHz maximum is supported for compatibility with existing recording studio systems, PA systems and other recording situations where high sampling rates are being utilized.
High-resolution recording of 96kHz/24-bit is also available.

Custom-designed Solid State Drives for maximum performance

The DA-6400 records to solid-state drives (SSD), the ideal format due to their excellent vibration protection, environmental resistance, and simple, maintenance-free operation. A TASCAM SSD is included, designed for and thoroughly tested with DA-6400 recorders. Internal components, including IC control elements, have been carefully selected and constantly tested lot by lot with the parts manufacturers to maintain quality specifications.
The included 240GB SSD is pre-installed into a removable AK-CC25 storage case. Using the swappable bay in the DA-6400 unit, drives can be hot-swapped and then given to clients. The AK-CC25 case includes a USB 3 jack for rapid transfer to DAW systems.
Note: One AK-CC25 and one TASCAM SSD are included with each DA-6400/DA-6400dp unit. Additional cases and drives can be purchased separately.

DA-6400
DA-6400

Built-in high-precision TCXO clock with 1ppm accuracy

Because the clock generator can influence drift and digital signal quality, the DA-6400 employs a temperature-compensated crystal oscillator (TCXO) with a high precision of +/-1 ppm (0.048 Hz when 48 kHz)

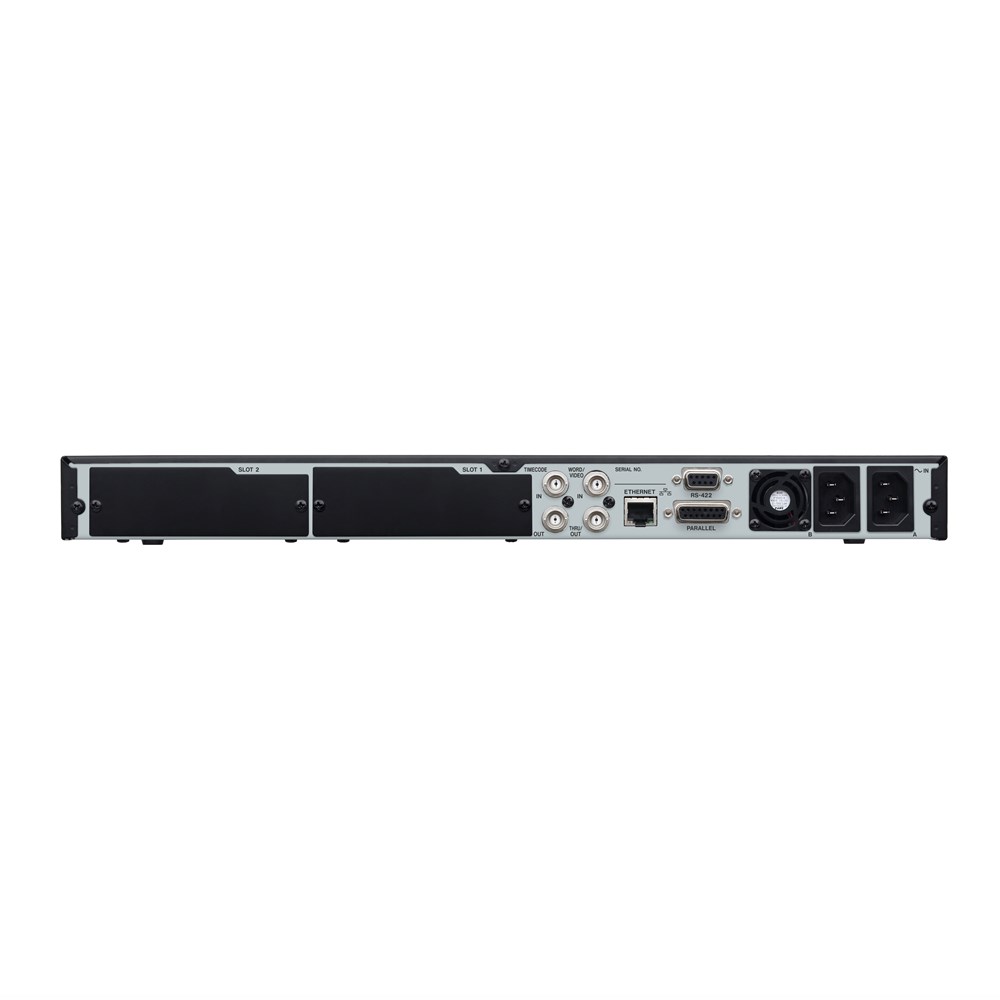

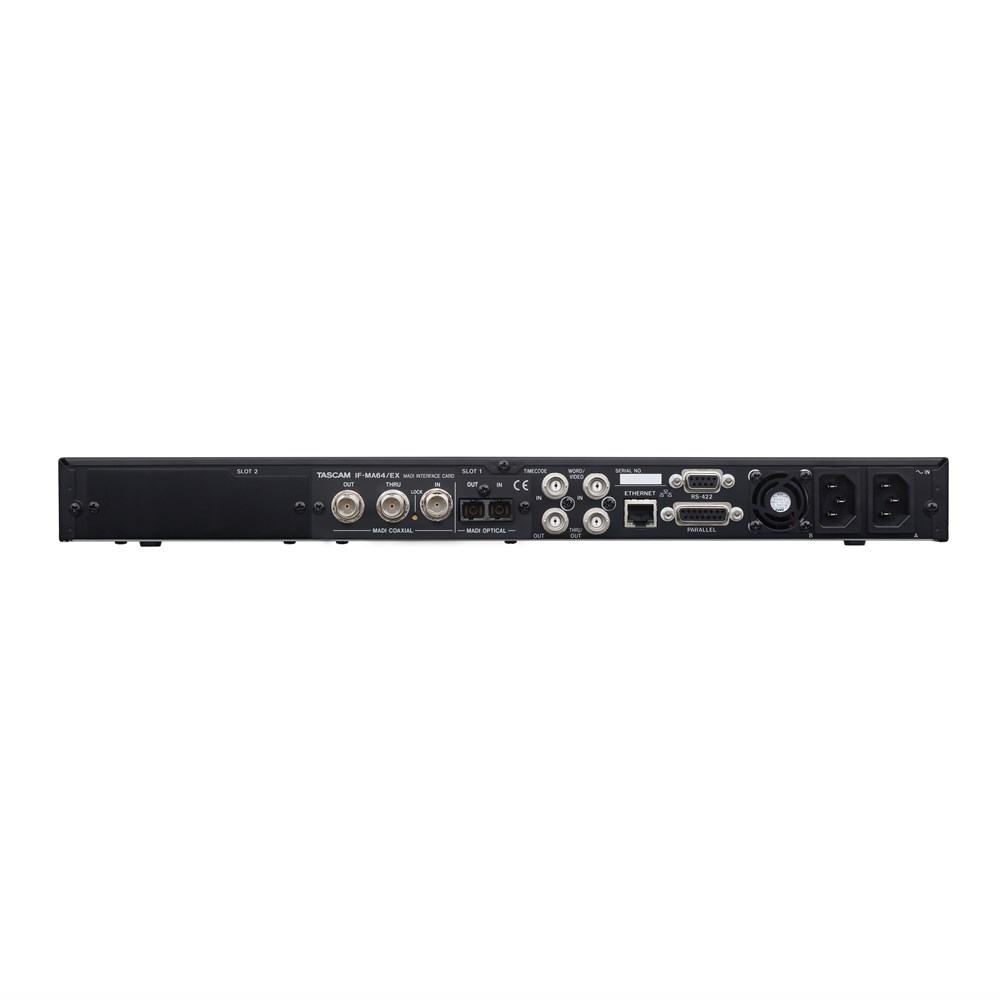

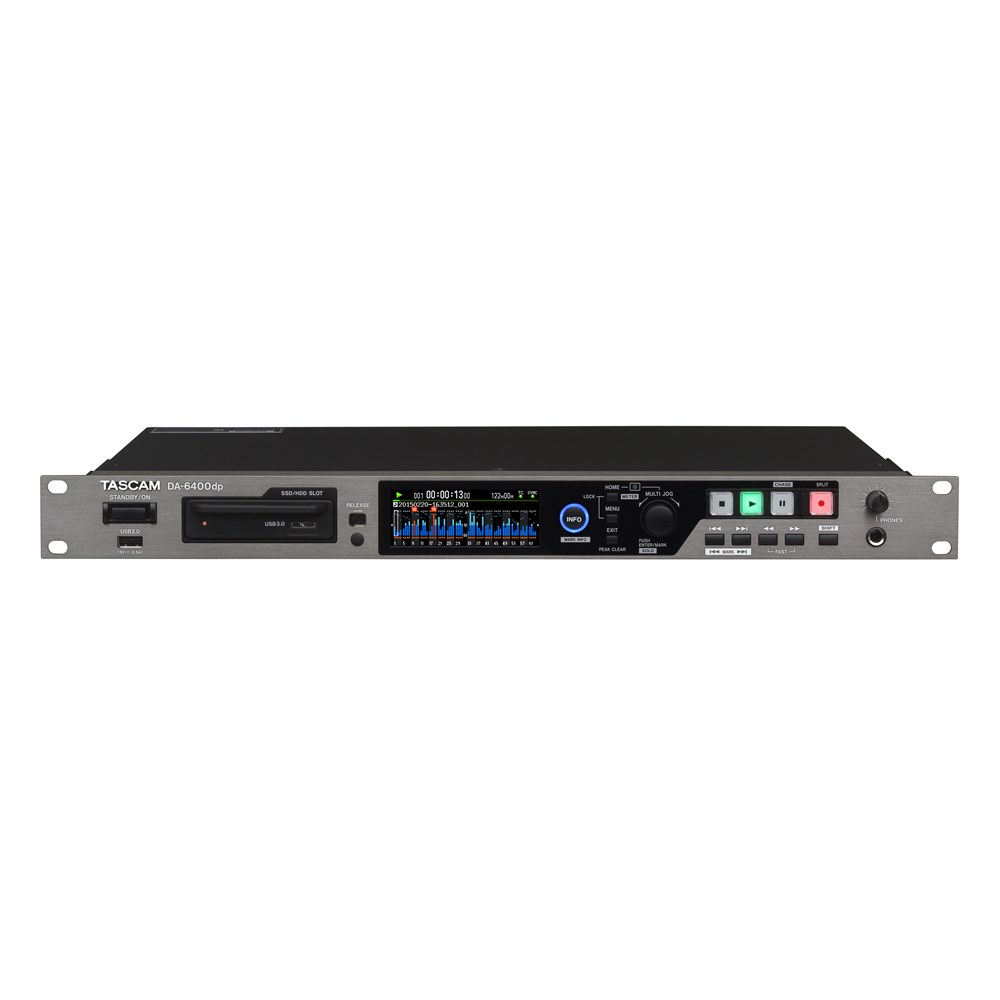

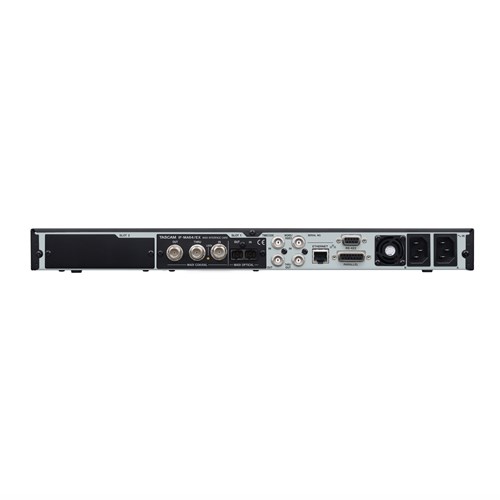

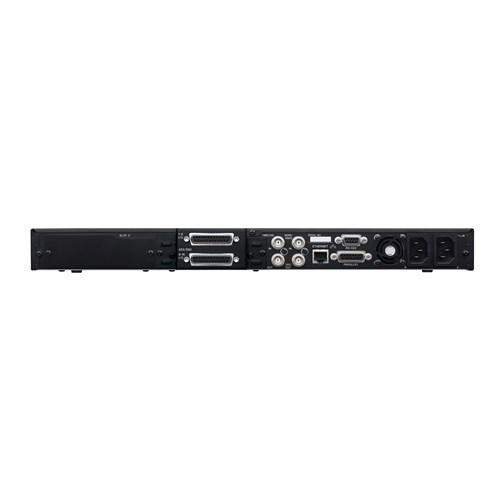

The DA-6400dp includes a redundant power supply

In addition to the DA-6400 standard model, the DA-6400dp is available with two power supply circuits to allow redundant power from another AC circuit. This provides failsafe operation in case AC power is interrupted on one of the circuits.

DA-6400
DA-6400

1U size enables installation where rack space is at a premium

A single DA-6400 can record and play back up to 64 channels in a compact 1U design. Ideal for crowded broadcast trucks and machine rooms, the DA-6400 fits into almost any installation.

Cascade connection of two units enables playback and recordings of up to 128 channels (supported with V2.10)

The cascade function allows for sample-precise synchronization on two units and recording/playback operation of up to 128 channels at 48 kHz/ up to 64 channels at 96 kHz sample frequency.

DA-6400
DA-6400

Can be used as a timecode synchronization master device

Using LTC (SMPTE timecode), the DA-6400 can be used as a timecode synchronization master device. The supported timecode frame rates are 24, 25, 29.97DF, 29.97NDF, 30DF and 30NDF.

Gigabit Ethernet for control and file transfer over FTP

1000BASE-T gigabit LAN is included for remote control and file transfer. Standard FTP (File Transfer Protocol) can be used to push files to the unit or remotely access recordings from Windows, Macintosh, or UNIX systems. A built-in FTP server is also included for file transfer between SSDs and clients.

DA-6400
DA-6400

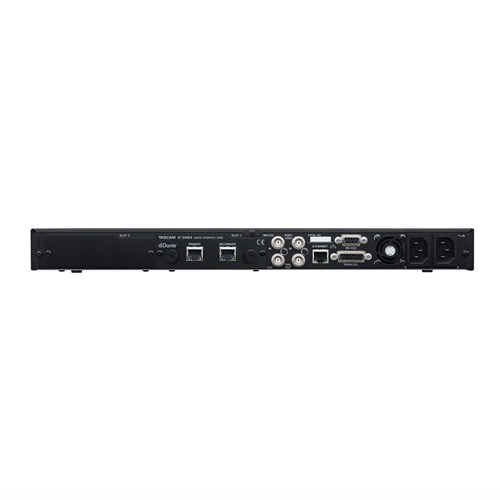

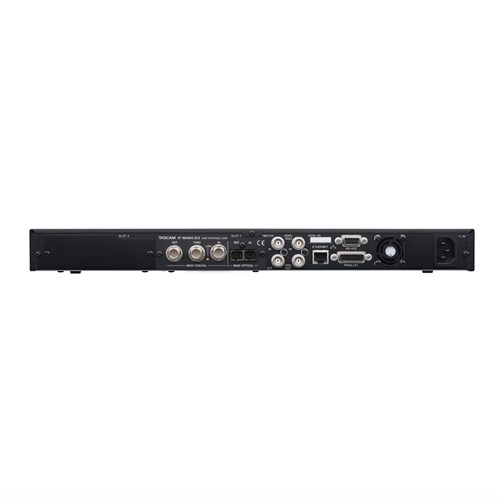

A growing selection of I/O cards for professional multichannel operation.MADI, Dante, and AES/EBU multichannel I/O cards are supported.

The DA-6400's family of I/O cards includes two MADI options, Dante, and AES/EBU multichannel digital interfaces, with more on the way. Connect with nearly any professional audio equipment using the latest digital I/O networks – either coaxial, optial, or over CAT5. The interface cards are sold separately and not included in the DA-6400/DA-6400dp.

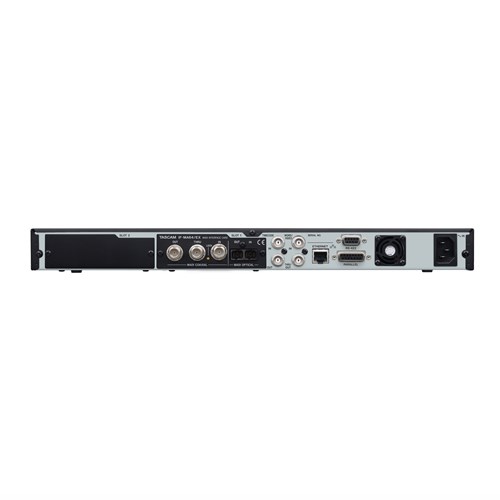

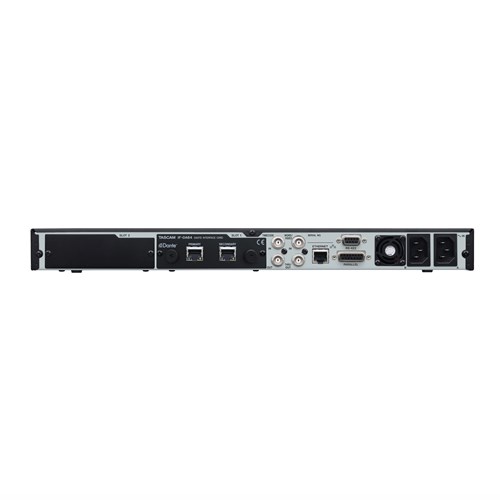

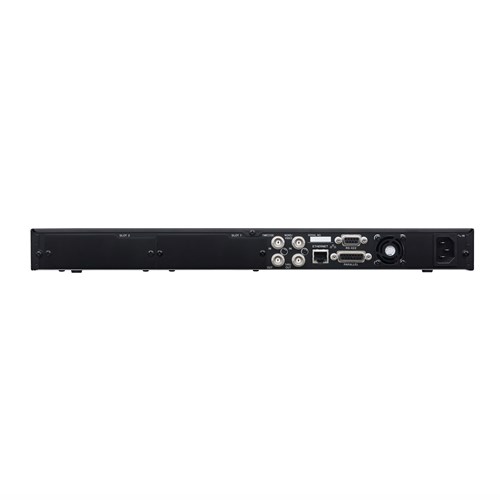

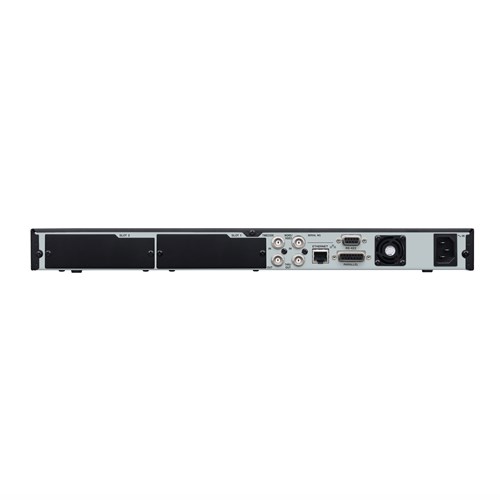

Two audio interface slots provide input and output flexibility

The DA-6400 has two rear audio interface slots. By adding interface cards (sold separately), multi-format options are now available. Convert signals from Dante input to MADI output if required.

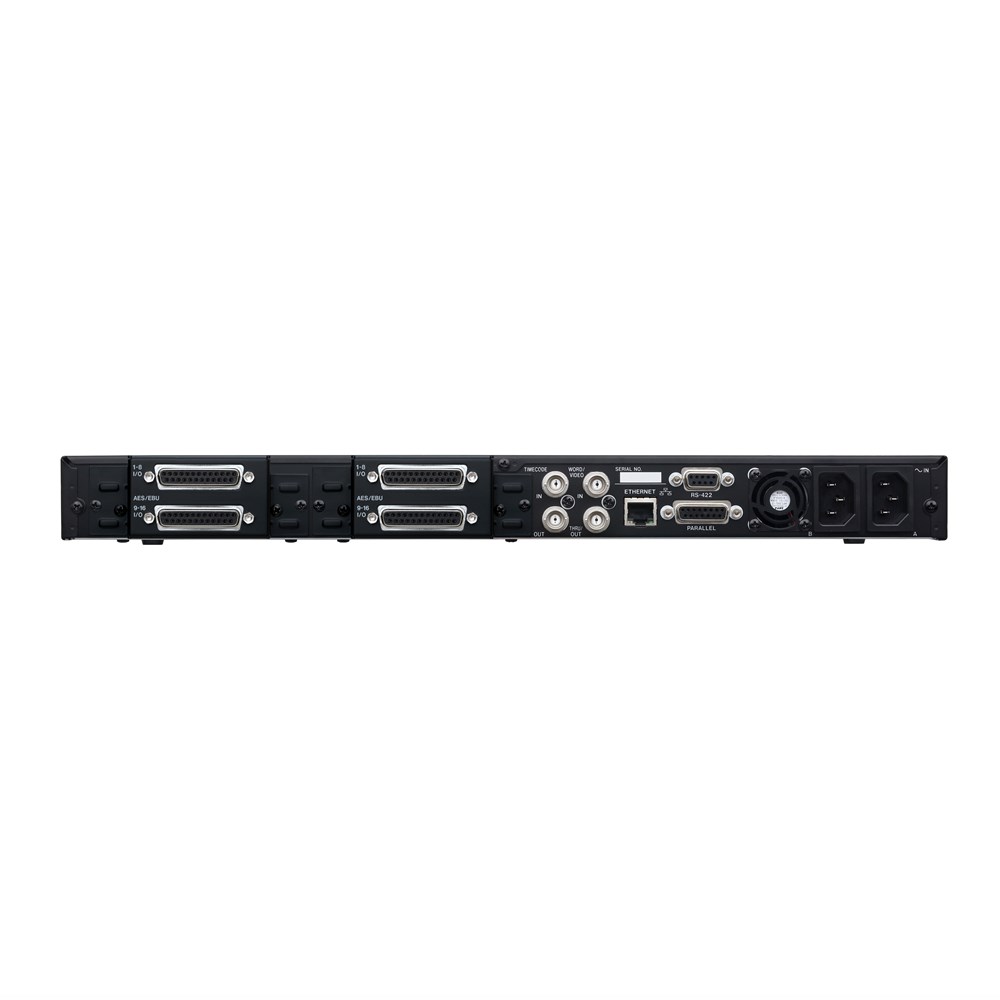

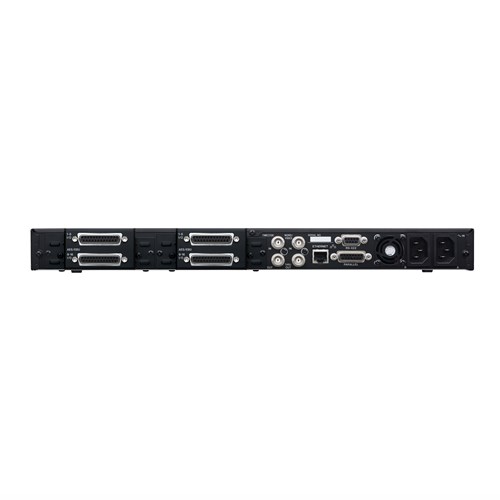

One slot can use MADI to record 56 channels from the main stage while the other slot uses AES/EBU to record 8 channels from a submixer. When installing 2 AES/EBU interface cards, the maximum number of simultaneous input and output can be increased to 32 channels – even at 96kHz/24-bit resolution.

DA-6400
DA-6400

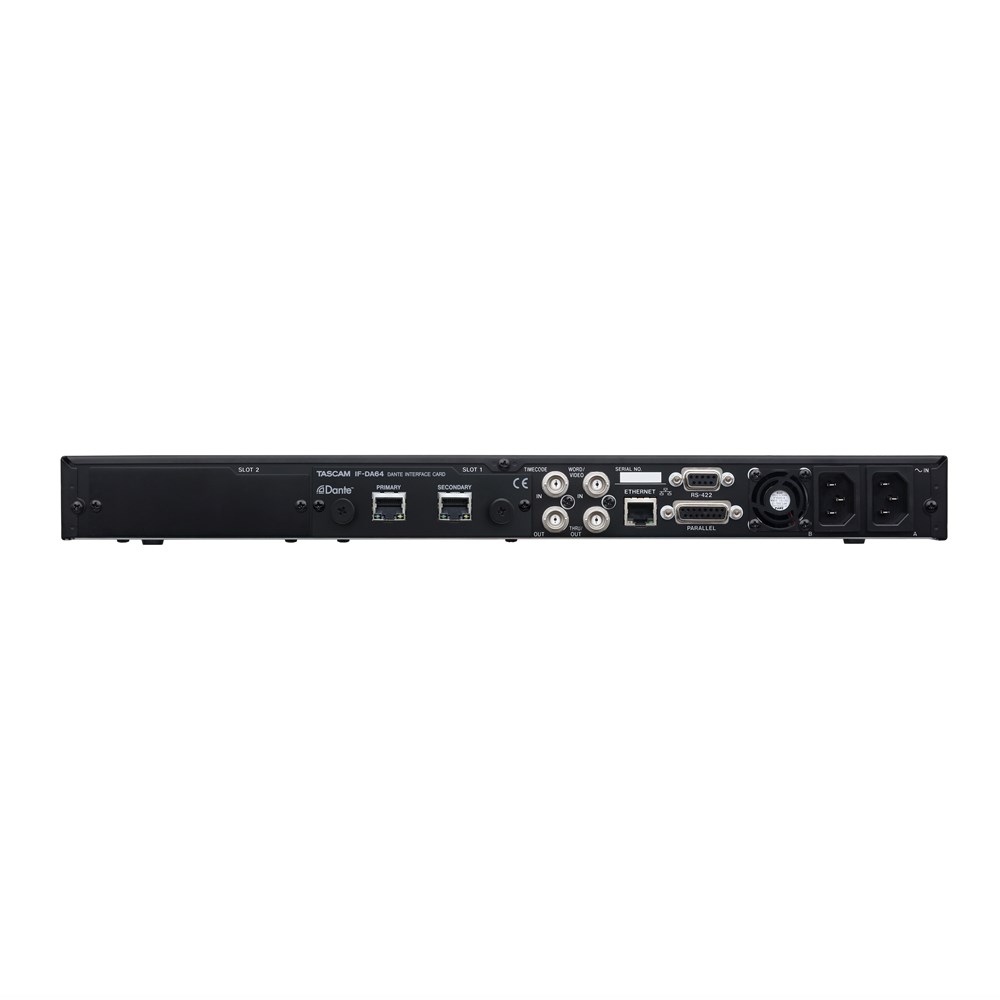

Now compatible with SMPTE ST 2110-30(added in IF-DA64 V1.2.0)

Dante module firmware V1.2.0.0 now supports SMPTE ST-2110-30, which will enable a smooth IP transmission of PCM digital audio for structuring broadcast systems.
* Audinate's provided Dante Domain Manager (DDM) v1.1 or higher is required for the operation of SMPTE ST 2110-30.
For more information about DDM, please visit Audinate's website.
