Canare

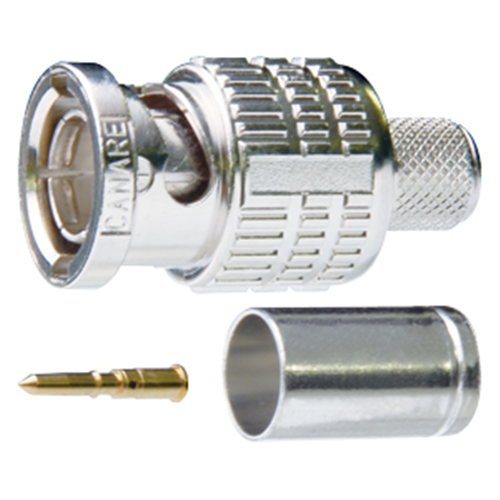

75 OHM 3G BNC CRIMP PLUG SUITS L-2.5CHD, L-2.5CHLT

Product Code: CA-BCP-B25HD

Brand
Canare
RRP $9.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Canare
  • Details
  • Downloads
  • Where to Buy
  • Ordering
?  SMPTE 424M & 292M Compliant.
?  Serial Digital Video.
?  HDTV Upgrades.
?  NTSC Analog.
?  Test Equipment.
?  Satellite Headends.
?  TELCOM.
?  True 75 ohm construction Crimp Pin & Sleeve.
?  High performance of 1.1 or less VSWR up to 3GHz.
?  Elongated Body for better finger grip.
?  Position mark on body allows the connector fit to be checked easily.
?  Superior cable pull strength.
?  Gold plated center pins 'snap' into place.
?  Connector Body has been die-cast, achieving a lower price with higher performance.
?  Easy Assembly using Canare Strip & Crimp Tools.

75 ohm BNC Connector, Straight Plug
Product Listings
Model Cable Boot Crimp Die Crimp Pin Sleeve
BCP-B25HD L-2.5CHD CB02 TCD-35CA B11015E BN7129
BCP-B26 1855A CB02 TCD-35CA B11014E BN7029C
BCP-B25HW L-2.5CHWS CB02 TCD-35CA B11015E BN7143
BCP-B3F L-3CFB CB03 TCD-35CA B11015E BN7003A
BCP-B31F L-3CFW CB04  TCD-4C
TCD-451CA
B11015E BN7015A
BCP-B4F L-4CHD
L-4CFB
1505A
CB04 TCD-4C
TCD-451CA
B11016E BN7015A
BCP-B45HW L-4.5CHWS
1694F
CB05A TCD-35CA B11020D BN7016
BCP-B53 L-4.5CHD
1694A
CB05A TCD-35CA B11020D BN7046
BCP-B5F L-5CFB CB05A TCD-5CF B11020D B75004A
BCP-B51F L-5CFW CB05A TCD-5CF B11020D B75004A


























Specifications
Items BCP-B Series

Return Loss (0-3GHz)

26dB or greater

Pull Strength

BCP-B53: 245N
for
L-4.5CHD, 1694A

Coupling Sleeve

Zinc Alloy Die Casting

Center Pin

Gold Plating

Weight

BCP-B53:
approx. 12.5g
