Canare

This is a Special Order Item

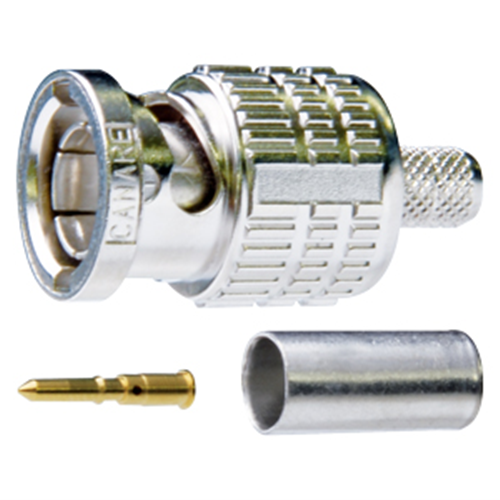

75 OHM BNC CRIMP PLUG SUITS L-2.5CFB

Product Code: CA-BCP-A25F

Brand
Canare

Unit of Measure
EACH
1 Year
Technical Specifications
Brands Canare
  • Details
  • Downloads
  • Where to Buy
  • Ordering

SMPTE 424M & 292M Compliant.
?  Serial Digital Video.
?  HDTV Upgrades.
?  NTSC Analog
?  Test Equipment.
?  Satellite Headends.
?  TELCOM.
?  True 75 ohm construction Crimp Pin & Sleeve.
?  High performance of 1.1 or less VSWR up to 2GHz. (VSWR 1.1 or less up to 1GHz for BCP-C25, BCP-C25F).
?  Mechanically mates with common 50 ohm BNC.
?  Elongated Body for better finger grip.
?  Superior cable pull strength.
?  Gold plated center pins 'snap lock' in place.
?  Beryllium copper outer contact.
?  Easy Assembly using Canare Strip & Crimp Tools.
?  Operating temperature -20 to +60 degrees Celsius.

Cable/Connector Cross-Reference
SMPTE 424M Standard


75 ohm BNC Connector, Straight Plug
See reference chart for part numbers, tool and cable match.
NOMINAL SPECIFICATIONS
       Model        Suitable Cable
Canare
 Suitable Cable
Others
Center Pin Sleeve Boot Die Set

   BCP-A25

    L-2.5C2V

- BN1018A BN7029C CB02

 TCD-35CA

   BCP-A25F

    L-2.5CFB

         1855A
           8218
         1417B
         1418B

B11014E BN7029C CB02

 TCD-35CA

   BCP-A3

    L-3C2VS
    L-3C2V
    V*-3C

- B11014E BN7003A CB03

 TCD-35CA

   BCP-A31

    L-3C2W

- B11014E BN7011 CB04

 TCD-31C

   BCP-A32

-

         1506A
         1824A
         1825A
         1826A
        643948

B11016E BN7026A CB03

 TCD-35CA

   BCP-A3F

    L-3CFB
    V*-3CFB

- B11015E BN7003A CB03

 TCD-35CA

   BCP-A4

    LV-61S

          8241
          8279
      RG-59B/U

B11015E BN7015A CB04

 TCD-4CA
 TCD-451CA

   BCP-A42

-

          1505F

B11016E BN7011 CB04

 TCD-31C

   BCP-A4F

    L-4CHD
    L-4CFB
    V*-4CFB

         1505A
      1505ANH
         8212
          8241F
          9167
          9259
          9659
      VPM2000
HD PRO 0.8/3.7 AF

B11016E BN7015A CB04

 TCD-4CA
 TCD-451CA

   BCP-A5

    L-5C2VS
    L-5C2V
    V*-5C

- B11016E BN7016 CB05A

 TCD-35CA

   BCP-A52

    L-5C2W

- B11016E BN7014 -

 TCD-451CA

   BCP-A55

-

          1695A
     VSD2001TS

B11020D BN7045A CB04

 TCD-35CA

   BCP-A5F

    L-5CFB
    V*-5CFB

- B11020D B75004A CB05A

 TCD-35CA

   BCP-A77

    LV-77S

          8281F

B11016E B75004A CB05A TCD-5CF
-
TCD-55FA

   BCP-VA3

      V*-3C

- B11014E BN7052A CB03 TCD-35CA

   BCP-VA5

      V*-5C

- B11016E BN7045A CB05A TCD-35CA



BCP-C Series Dimensions

Note: All of Canare crimp plugs, BCP-A,-B,-C, RCAP-C and FP-C, are the same procedure.
