Tascam

8 I/O Ch Matrix Mixer

Product Code: TA-MX-8A

Brand
Tascam
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Tascam
  • Details
  • Downloads
  • Where to Buy
  • Ordering

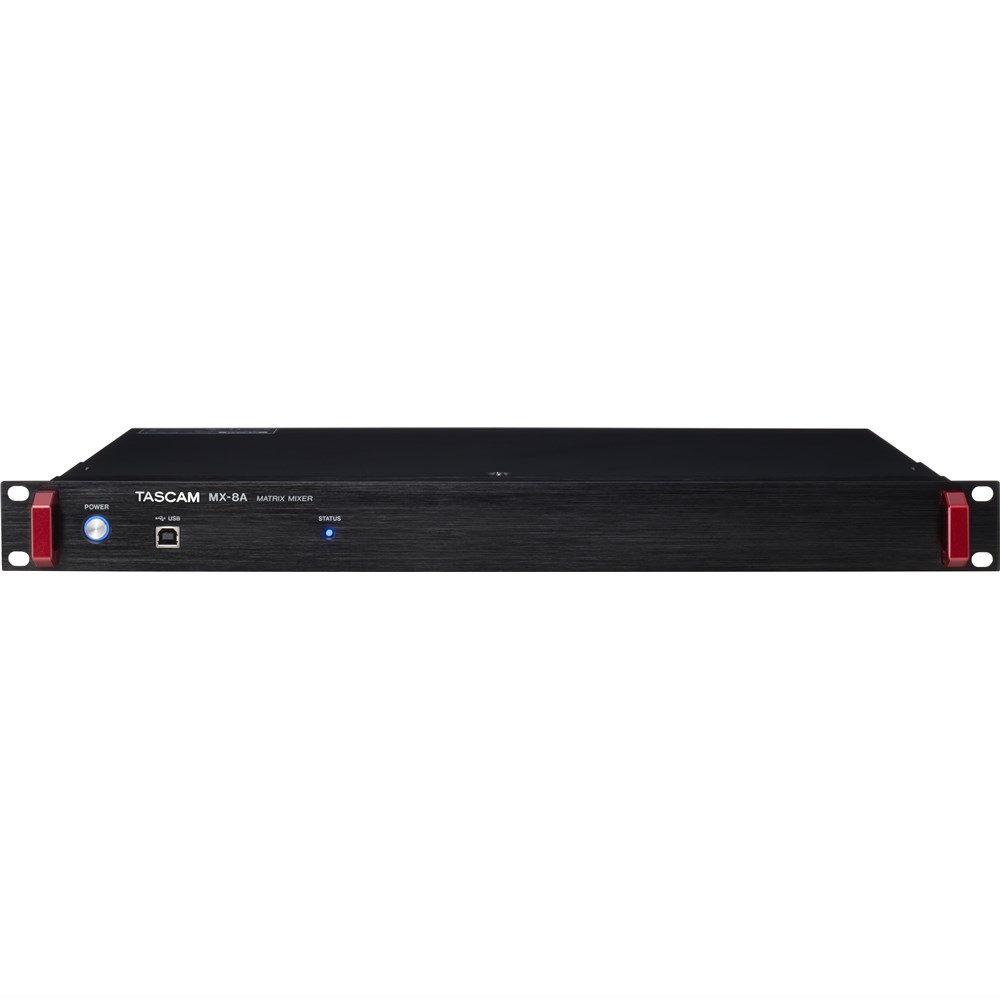

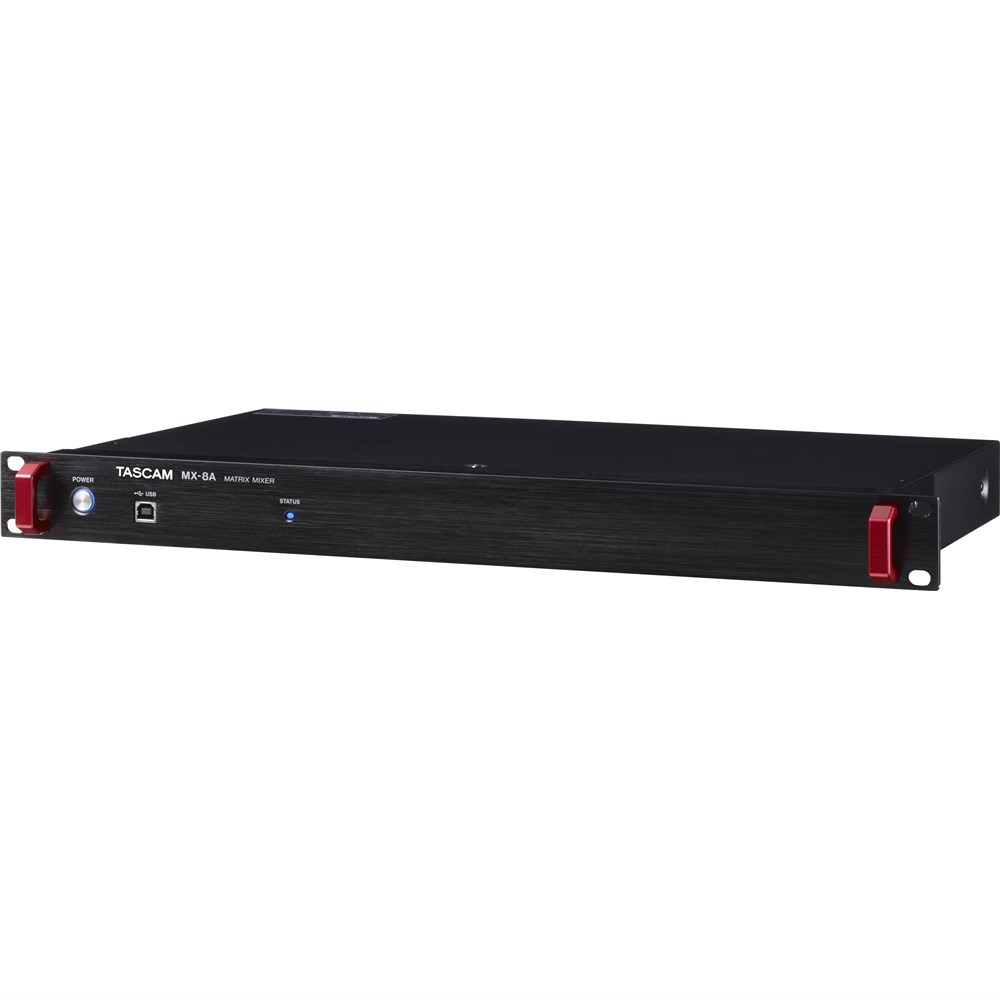

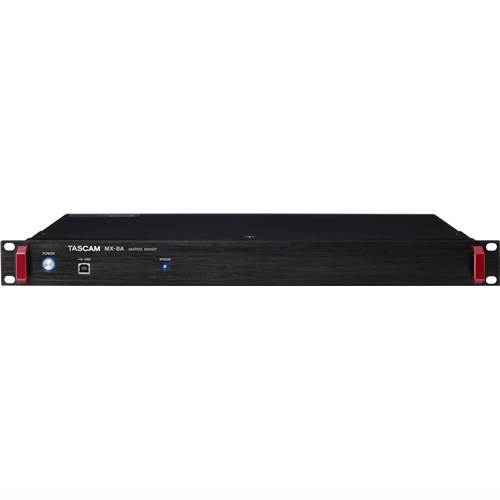

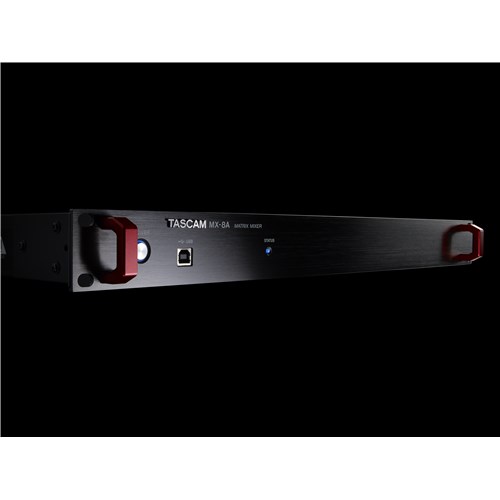

MX-8A
8 -in/ 8-out Matrix Mixer

Brand Name    TASCAM
Model No.    MX-8A

EAN code     4907034130672
UPC code    043774033645
Overall dimensions/
W x H x D     483 x 45 x 304.1 / 3.0(mm/ kg)
19.2 x 1.78 x 11.97 / 6.62(inch/ lb)
Package dimensions/
W x H x D    552 x 149 x 433/ 5.0(mm/ kg)
21.74 x 5.87 x 17.05/ 11.03 (inch/ lb)

■    Product Description
MATRIX MIXER

■    Marketing Name/ Product Outline
8 -in/ 8-out Matrix Mixer


■    Features

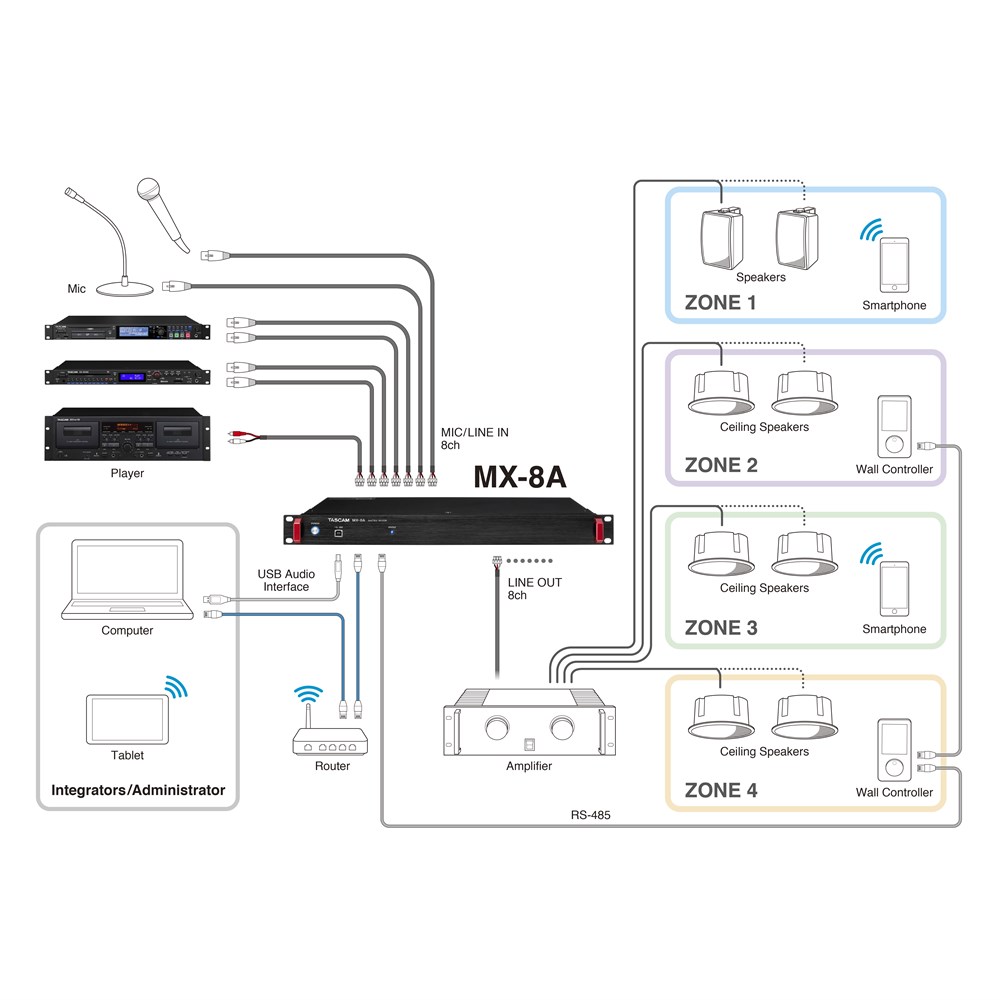

    8-channel Mic/Line input with phantom power (+48v) support
    Supports remote mic gain control
    8 line output

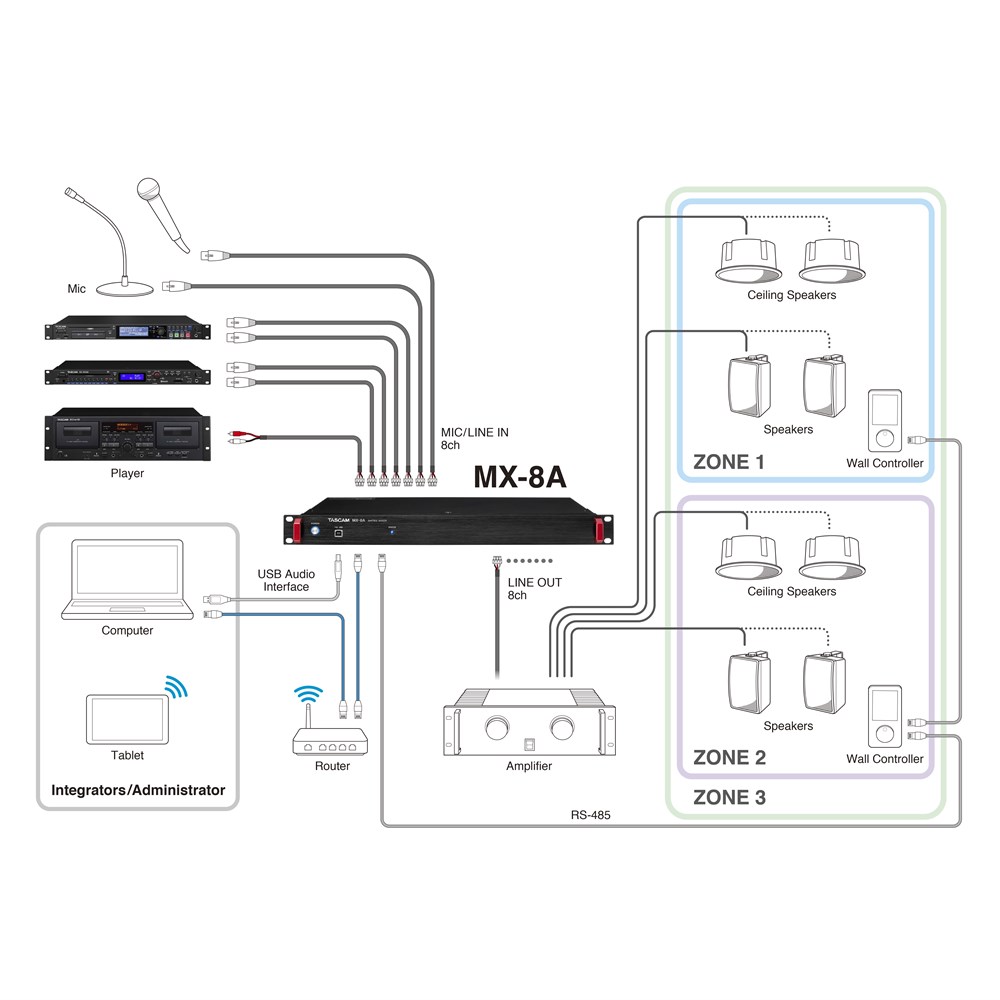

    Analog input / output adopting Euro block terminal suitable for Contractor

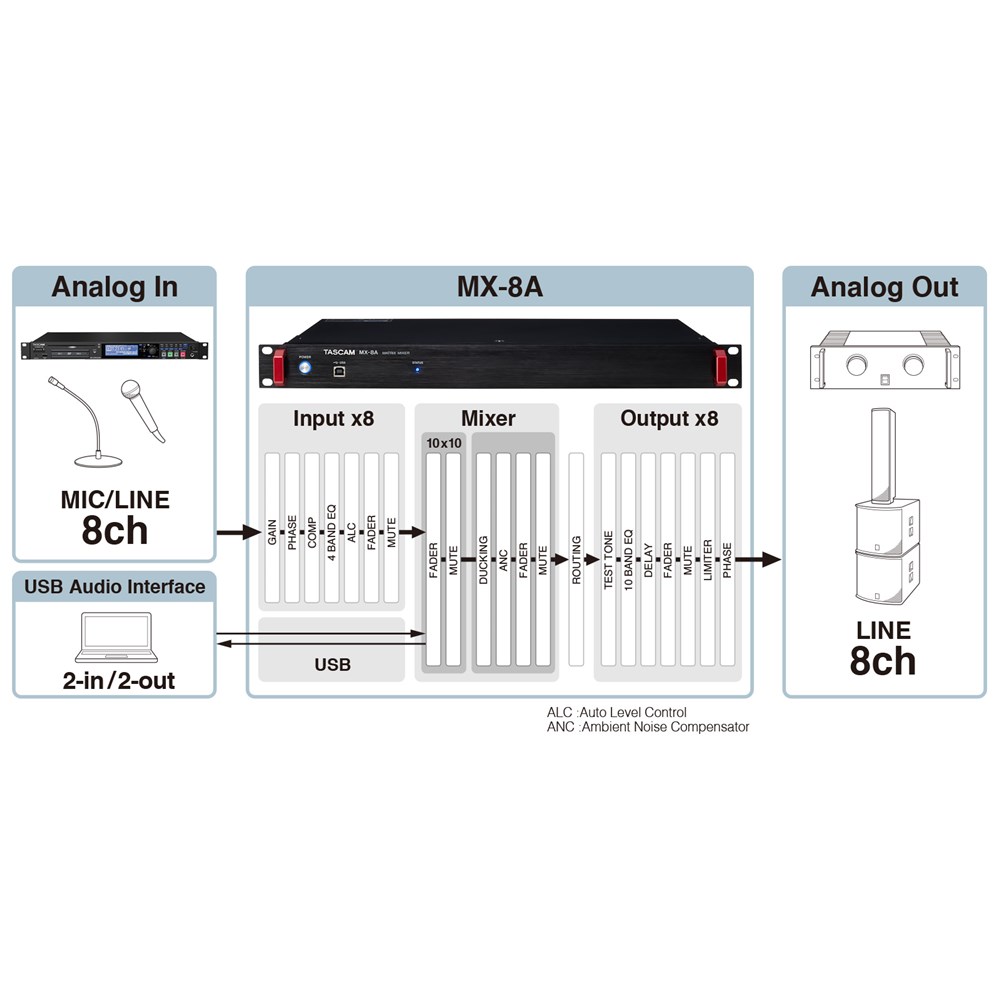

    Built-in a variety of DSP functions for optimal use in different scenes/environments

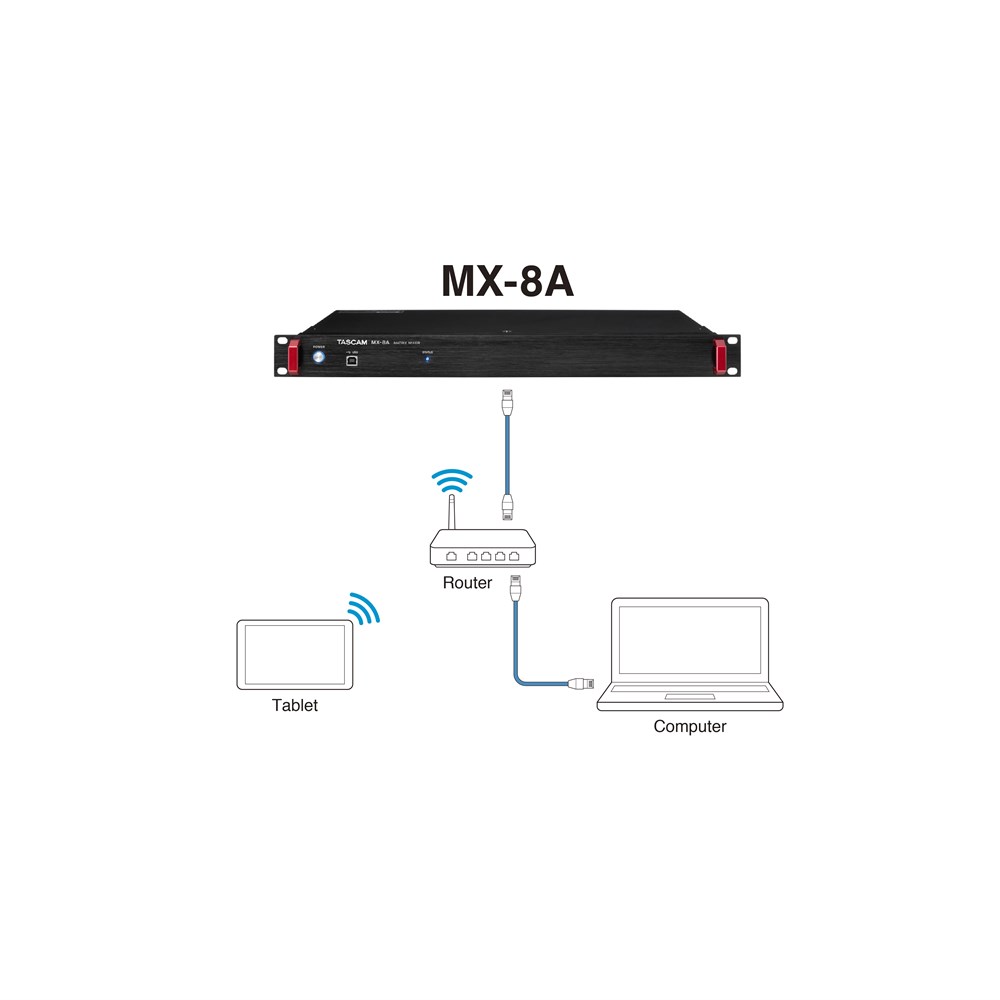

    Remote control via Ethernet
    2 types of user control software available for Windows/Mac/iOS/Android devices

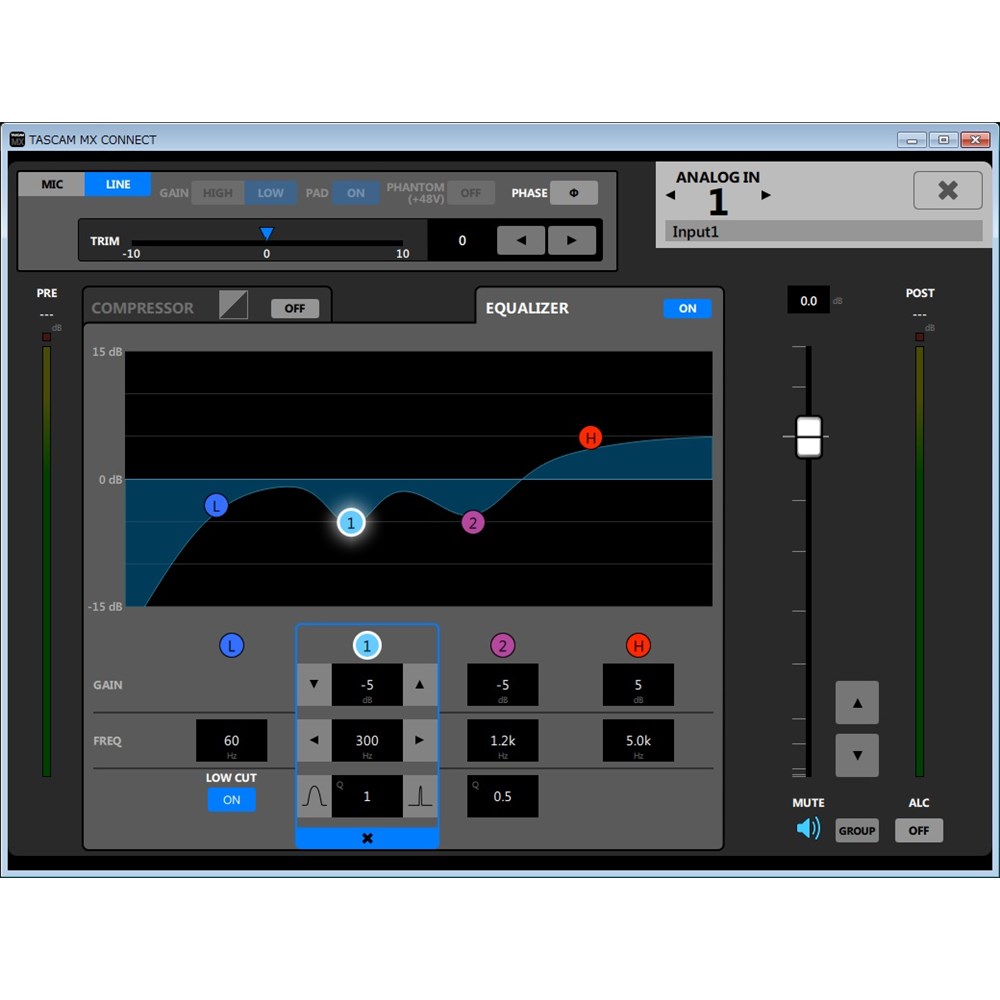

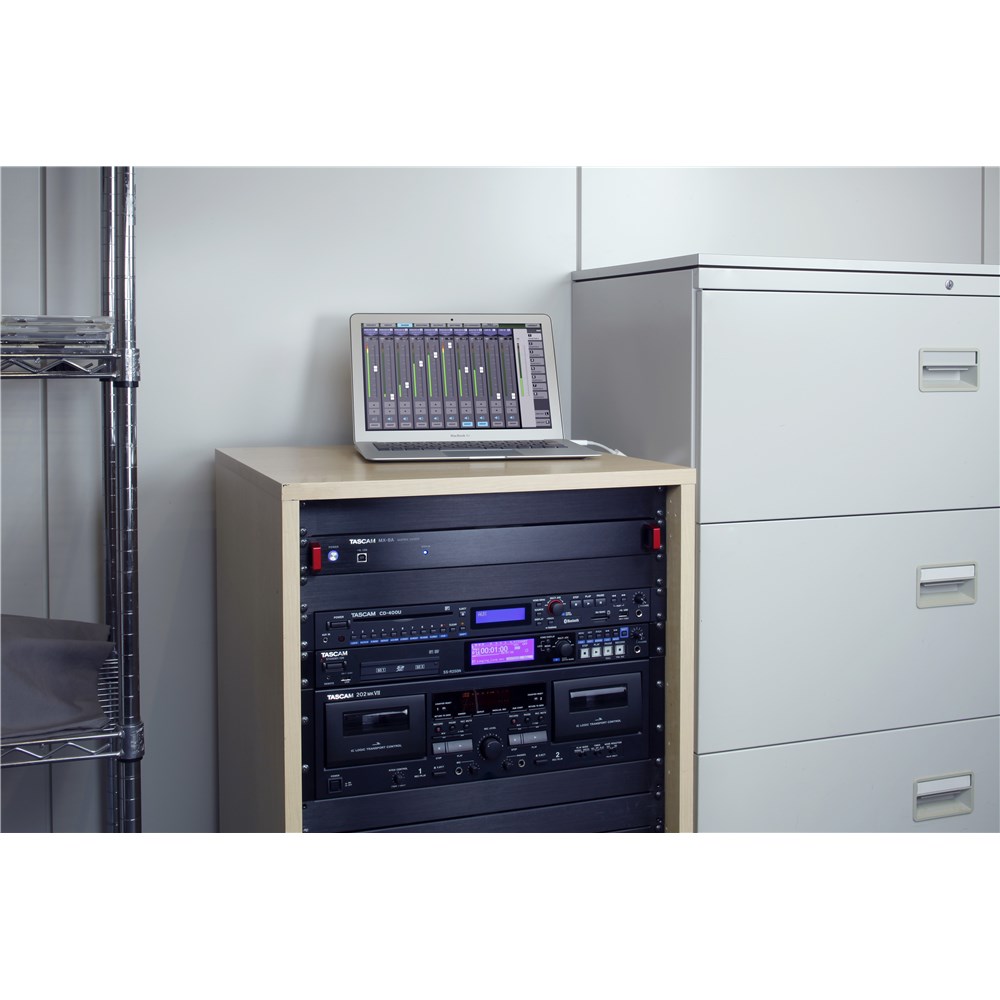

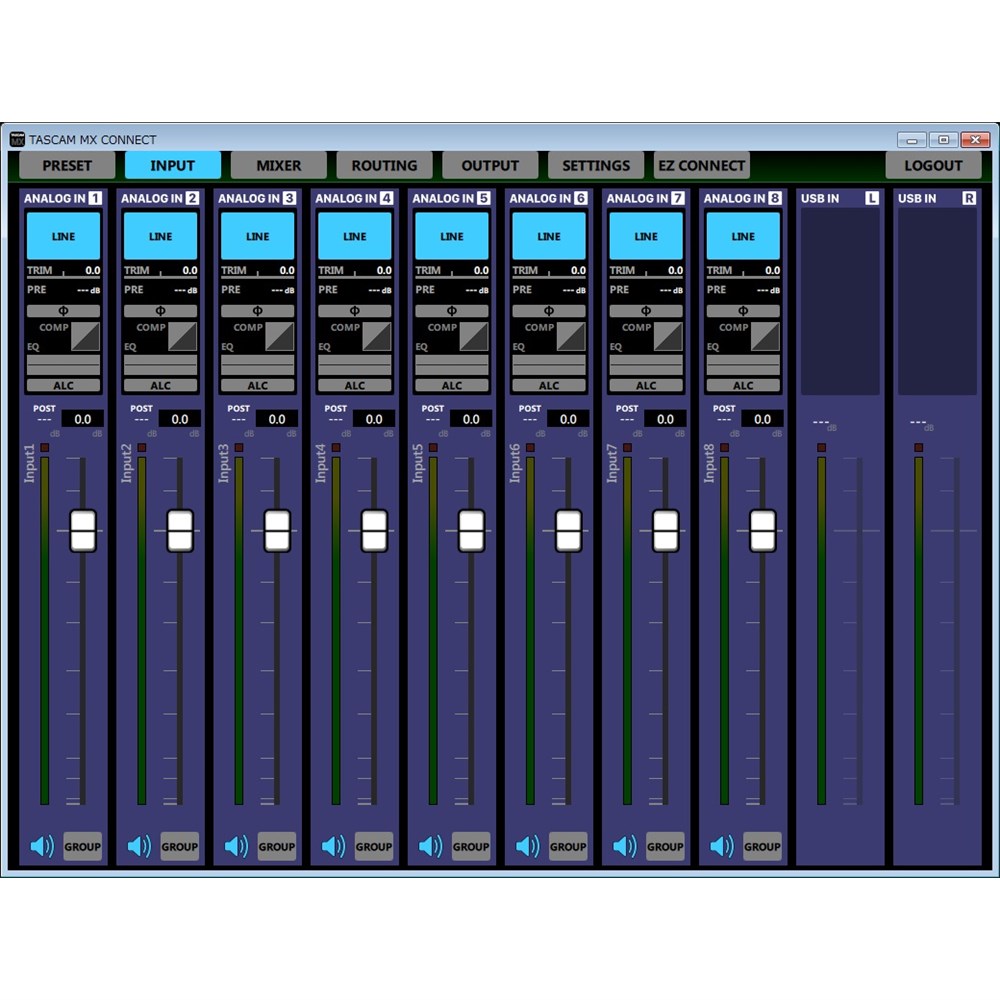

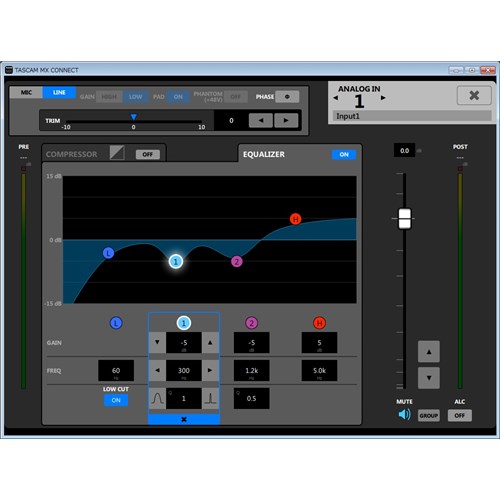

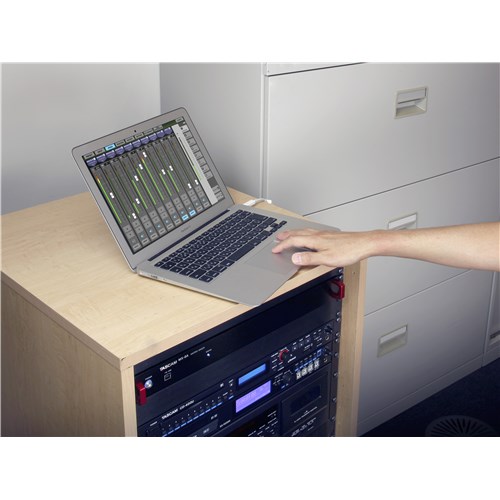

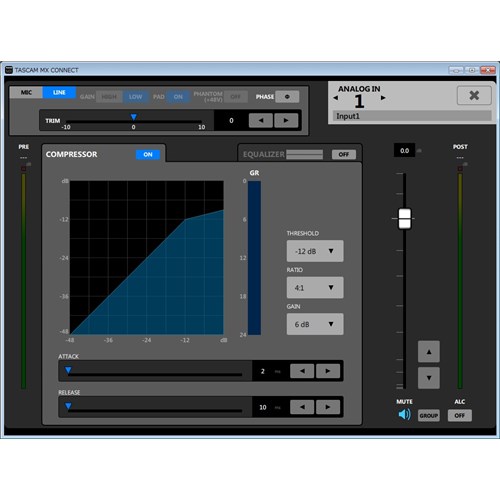

    TASCAM MX CONNECT (For Integrator)
    Designed for integrators that handle the configuration and settings of an entire system
    Routing selection, DSP/design/scene settings of the complete system, etc.

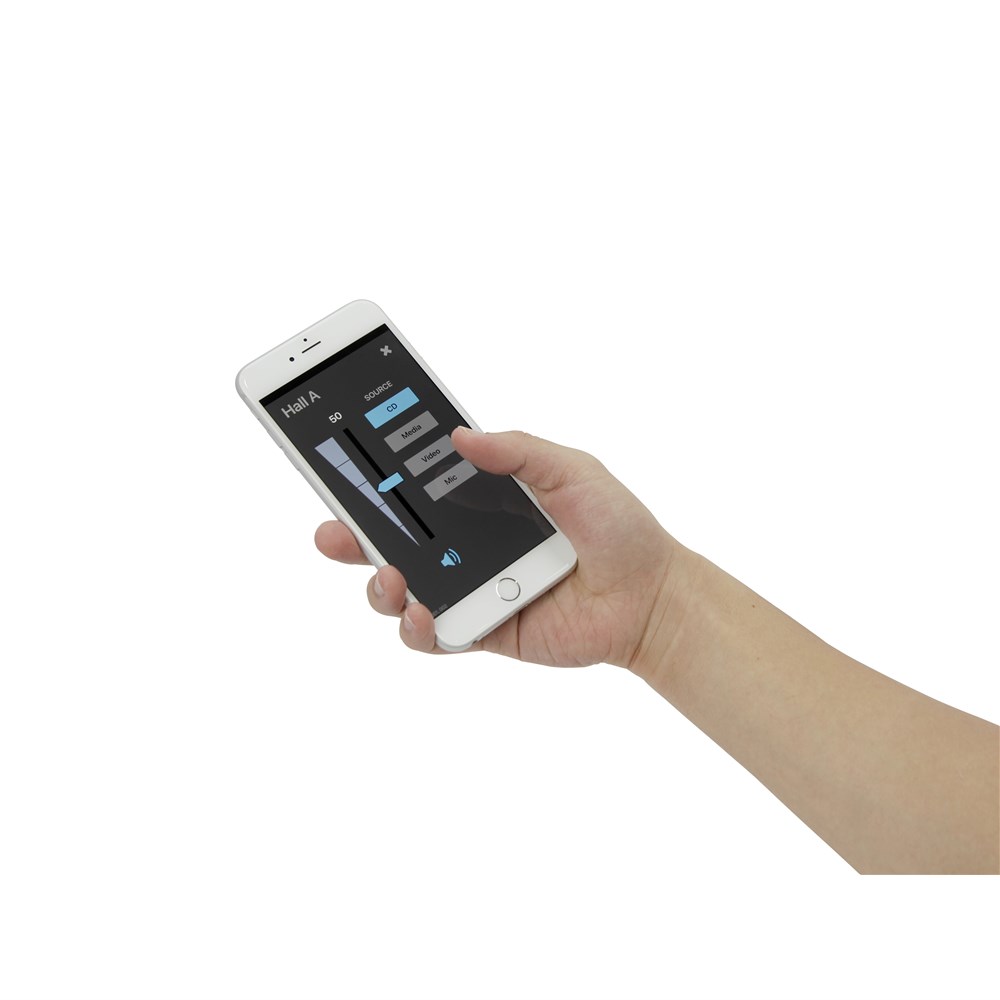

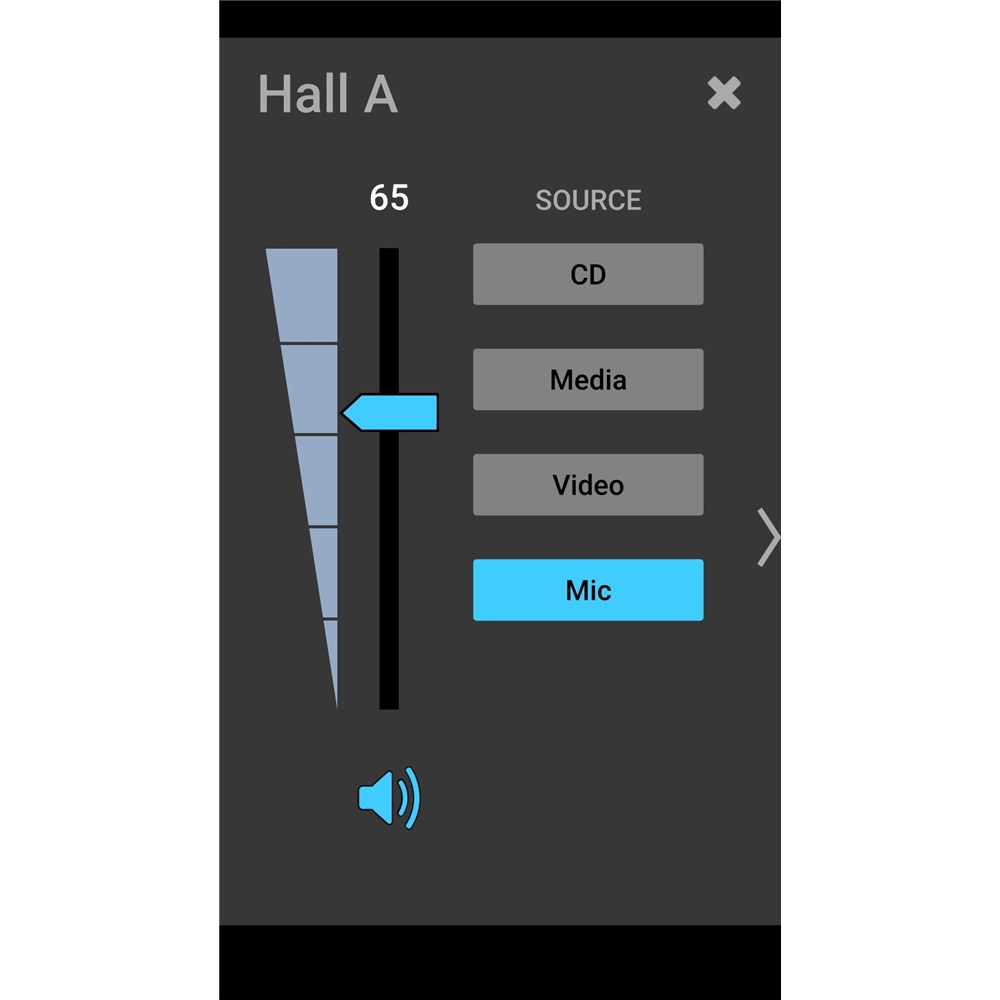

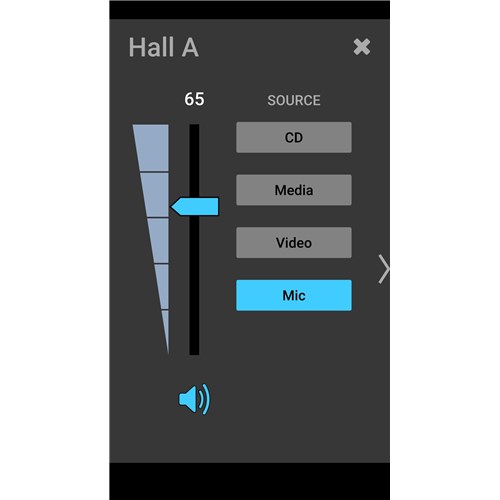

    TASCAM EZ CONNECT (For end users)
    Designed for end-users and allowing them to use simple controls
    Simple app design for only the necessary functions such as area volume settings, etc.

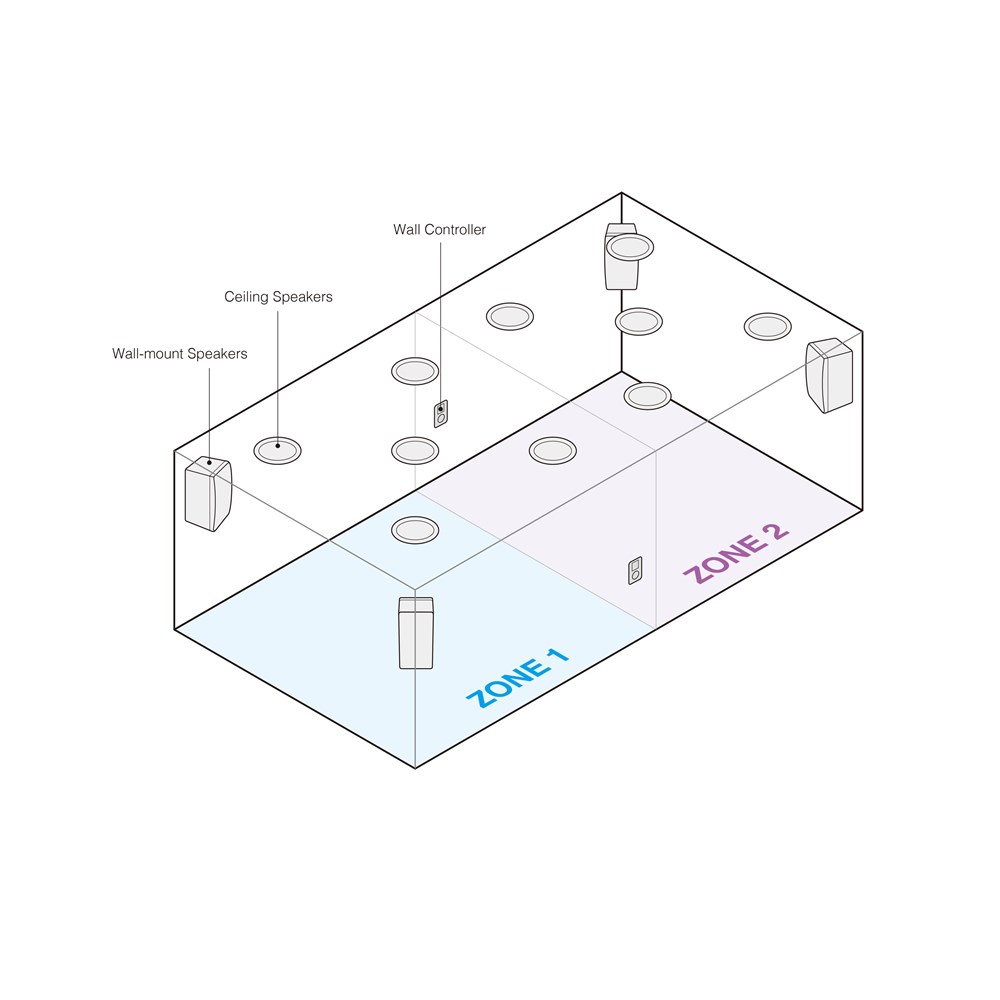

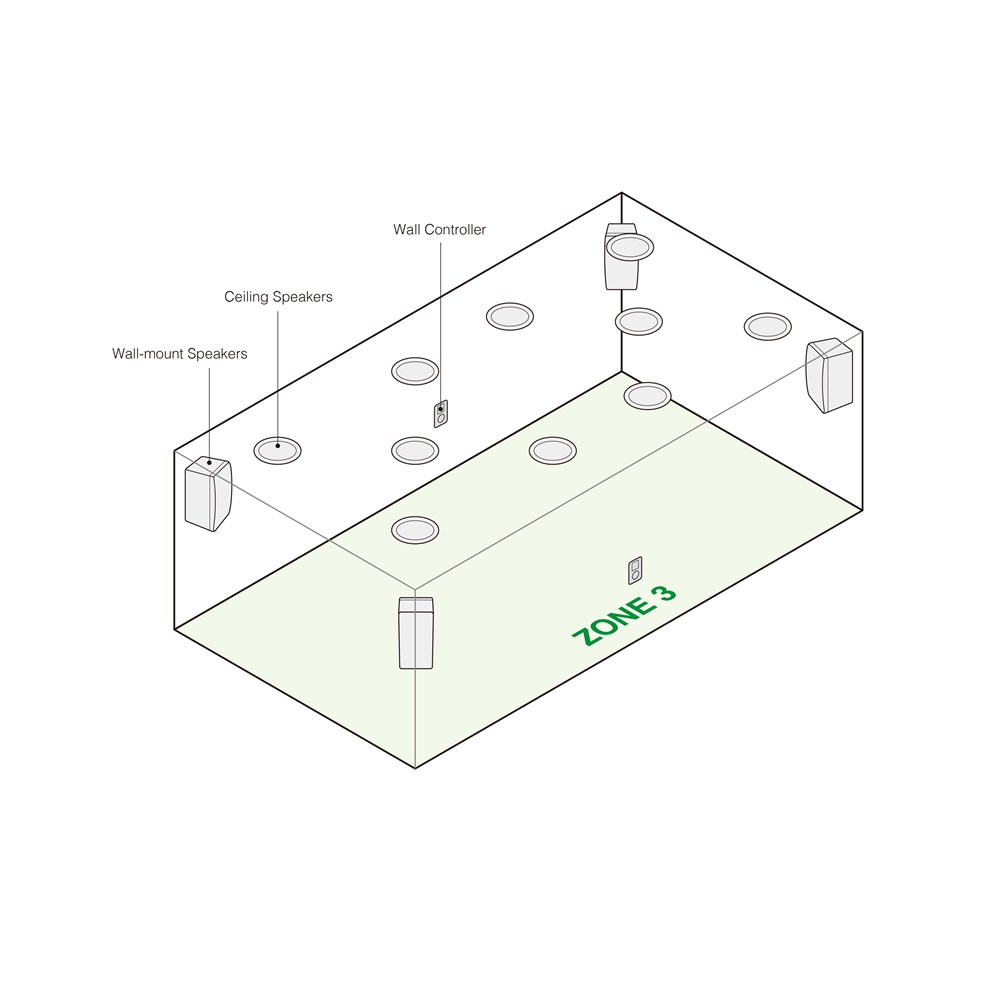

    Flexible scene preset function allows to work in different area situations (Up to 50 presets)
    Timer event function allows to automatically switch scenes at a specified time (Planned to be compatible on a future version update)

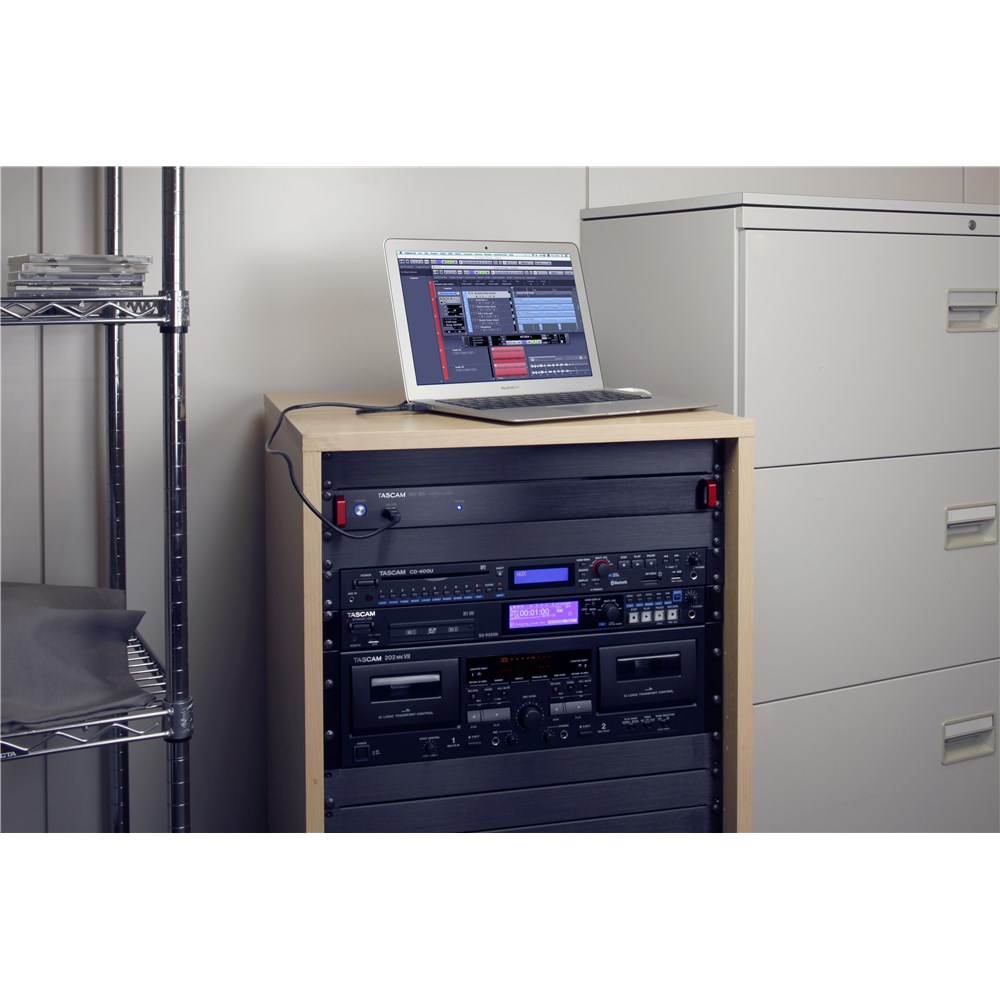

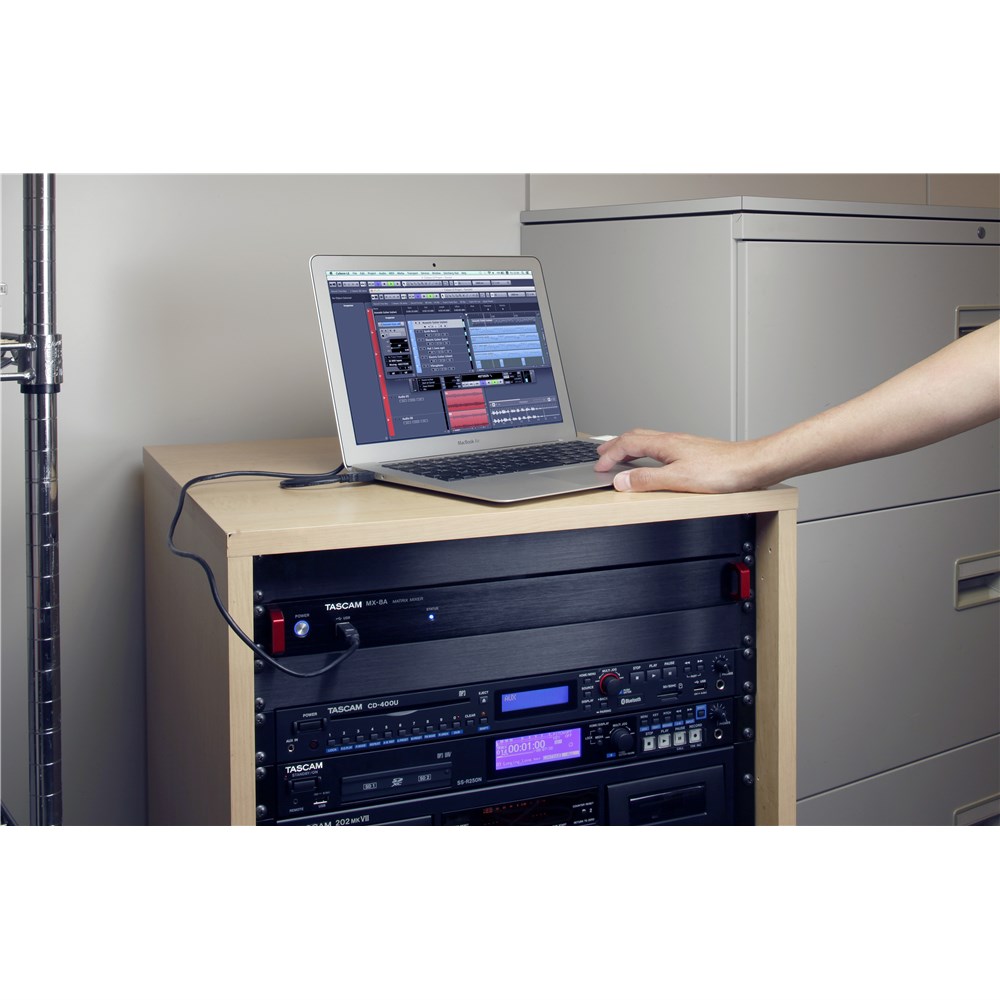

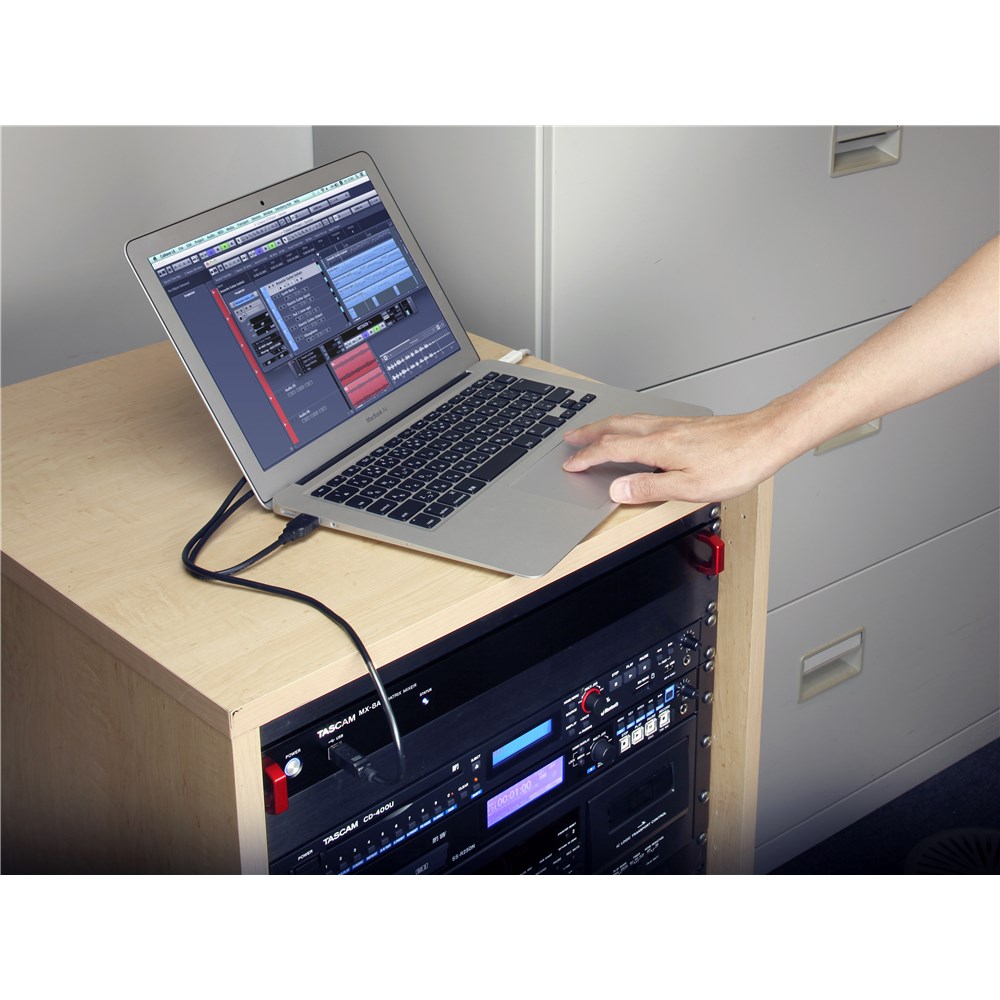

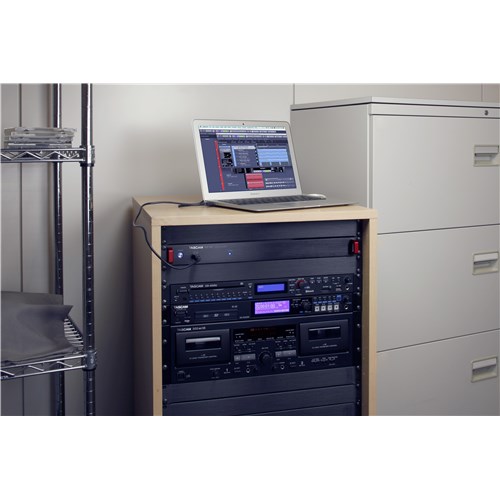

    2 in / 2 out USB audio interface
(Enable playback and recording of external software (WMP, iTunes, DAW) by connecting with computer, tablet and smartphone)
    Equipped with RS-232C serial terminal for external control, you can have a flexible system
    1U mountable size
    Optional product
    Wall mount controller* that can adjust the volume etc. via RS-485.
(Planned to be released in the future)

■    Specifications
General
FORMAT                44.1k/48kHz, 16bit/24bit
Input/output ratings
USB port                4-pin USB B-type
Transfer rate        USB 2.0 High Speed (480 Mbps)

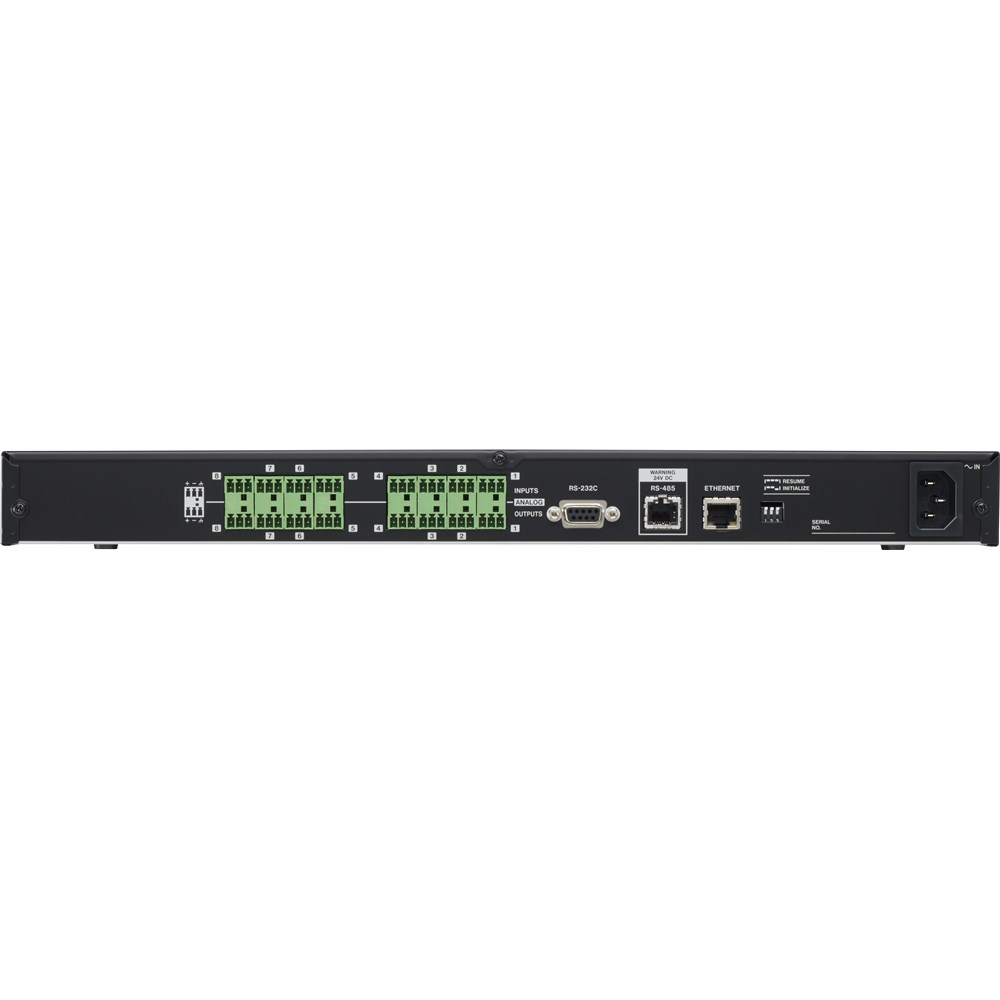

ANALOG IN connectors        Euroblock (balanced) 3.81mm pitch
Minimum input level        −70 dBu
Maximum input level        +26 dBu
Input impedance        2.2 kΩ or higher
ANALOG OUT connectors        Euroblock (balanced) 3.81mm pitch
Nominal output level        +4dBu (when Ref.Level set to other than -9dBFS), +6dBu (when Ref.Level set to -9dBFS)
Maximum output level (switchable)    +15dBu (Ref.Level: -9dBFS), +18dBu (Ref.Level: -14dBFS), +20dBu (Ref.Level: -16dBFS)
+22dBu (Ref.Level: -18dBFS), +24dBu (Ref.Level: -20dBFS)
Output impedance        200 Ω or lower
RS-232C connector            D-sub 9-pin (female, inch-standard)
RS-485 connector            RJ-45
Cables            Category 5e or faster STP cables
Ethernet connector            RJ-45
Transmission protocol        TCP/IP
Ethernet standard        100BASE-TX
Cables            Category 5e or faster STP cables
Note: 0dBu=0.775Vrms
Audio performance
Mic amp EIN (equivalent input noise)    -126 dBu or less (MIC IN → LINE OUT, Input impedance: 150 Ω, 22 kHz LPF, A-weighted, JEITA)
Frequency response            ±0.5 dB: 20 Hz – 20 kHz(+24 dBu input, MIC IN → LINE OUT, GAIN MIN, JEITA)
Distortion (THD+N)            0.005 % or less(+24 dBu input, 1 kHz, MIC IN → LINE OUT, GAIN MIN, JEITA)
S/N ratio                106 dB or higher(+24 dBu input, 44.1 k/48 kHz sampling frequency, MIC IN → LINE OUT, GAIN MIN, JEITA)
Crosstalk                106 dB or higher(+24 dBu input, 1 kHz, MIC IN → LINE OUT, GAIN MIN, JEITA)
Dynamic range            106 dB or higher(MIC IN → LINE OUT, GAIN MIN, JEITA)
Note: JEITA indicates compliance with JEITA CP-2150
Supported audio drivers
Windows                 UAC2.0, WDM
macOS/iOS            UAC2.0
Android                UAC2.0
Other
Power                AC100-240 V, 50/60 Hz
Power consumption            21W
Dimensions            483 x 45 x 304.1mm (W x H x D, including protrusions)
Weight                3.0kg
Operating temperature range        0°C–40°C
Included items            Power cord x 1, Euroblock plug x 16, Cable band kit x 1, Rackmount screw kit x 1,
Owner's Manual (including warranty) x 1
