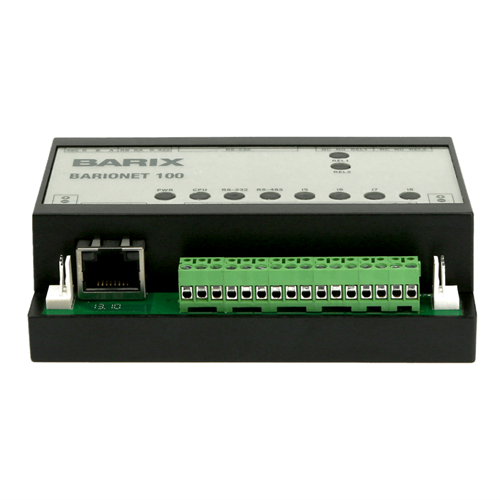

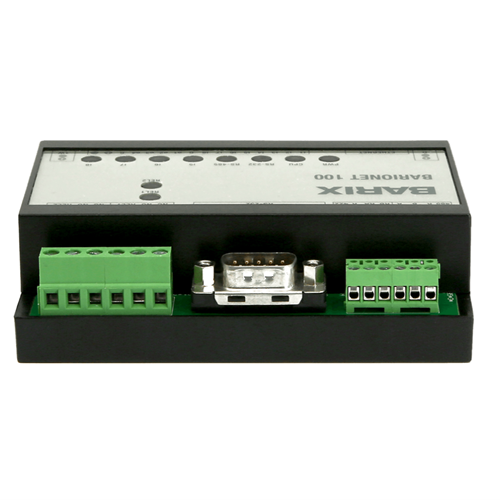

Barix Barionet 100 BAR20039014 BARIX

Product Code: BX-BAR20039014

RRP $800.00
Quantity In Cart:
Unit of Measure


2 Year
Technical Specifications
Brands Barix
Product type I/O device
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Barionet Barionet 100

Two serial ports, 2 relay and 4 digital outputs, 4 digital and 4 digital + analog inputs and Dallas 1-wire support, UL listed.

  • I/O device server with web server, Modbus/TCP and SNMP support
  • Web server
  • Modbus/TCP and SNMP support
  • Serial ports
  • Digital and analog IO
  • Dallas 1-wire
  • UL listed
  • Wiegand Interface Input

The Barionet 100 is a low cost, flexible and multiprotocol capable I/O device server which bridges the physical world of sensors and activators with IP Automation and IT management systems.

Speaking both SNMP and Modbus/TCP as well as universal ASCII protocols, the Barionet devices are easily integrated into monitoring and management systems.

The Barionet is a programable network controller, via BCL (Barix Control Language) programming the functionality of the device can be expanded/customized. The development kit is available for free, downloadable with the firmware.


  • Environmental monitoring, logging and alarming
  • Access Control/Door control
  • Temperature monitoring, logging and HVAC control
  • Contact closure monitoring
  • PV power management
  • Automation and remote control via network


  • Relay Output (2x250VAC, 5A max)
  • Digital Inputs (4)
  • Open Collector (digital) Outputs (4x24VDC)
  • Analog (0..5VDC) Input (4
  • RS-232 Serial Port (1)
  • RS-422/485 Serial Port (1)
  • Supply Voltage (9-30VDC)
  • One Dallas 1-wire interface with support for up to 50 temperature sensors or one RTC chip
  • Wiegand Interface Input (2)
  • Control interfaces: HTTP/CGI, TCP, UDP, SNMP, Modbus/TCP
  • IO capabilities extendable via Barionet extension units


I/O Interfaces

  • 2 relay outputs (250 VAC, max. 5 A)
  • 4 digital inputs (0..12 V), configurable pullups
  • 4 universal inputs (analog 0..5/10 V or digital 0..12 V) with configurable pullups
  • 4 digital outputs (open collector, 24 V 0.1 A)
  • 2 Wiegand interfaces
  • 1 Dallas 1-Wire® capability

Serial Interfaces

  • 1 RS-232 * (DSub-9 male, RX/TX only)
  • 1 RS-422/485 * (2/4-wire)
  • 300..19’200 Baud, 7/8 bit, Odd/Even/No par

Network Interface

  • RJ45 10/100 Mbit Ethernet (Autodetect)
  • TCP/IP, UDP, ICMP, DHCP, AutoIP, IPzatorTM, XML, SOAP, Modbus/TCP, SNMP, CGI, HTTP web server for control, status and configuration


  • 8+2 LED status indicators

Power input

  • 9..30 VDC or 12..24VAC
  • 4 Watt max.


  • high quality plastic, 160 g, , DIN-rail mount.
  • Dimensions: 105 mm x 85 mm x 31 mm (4.13“ x 3.34“ x 1.1”)


  • Min. 850 000h acc. to MIL217F at 25°C
  • ambient temperature

User Interface

  • browser based (integrated webserver),
  • network control API
