Barionet 50 BAR20089091 BARIX

Product Code: BX-BAR20089091

RRP $595.00
Quantity In Cart:
Unit of Measure


2 Year
Technical Specifications
Brands Barix
Product Category Control
Product type I/O device
  • Details
  • Downloads
  • Where to Buy
  • Ordering

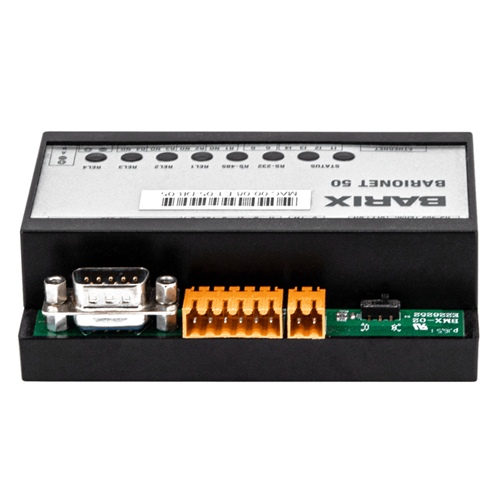

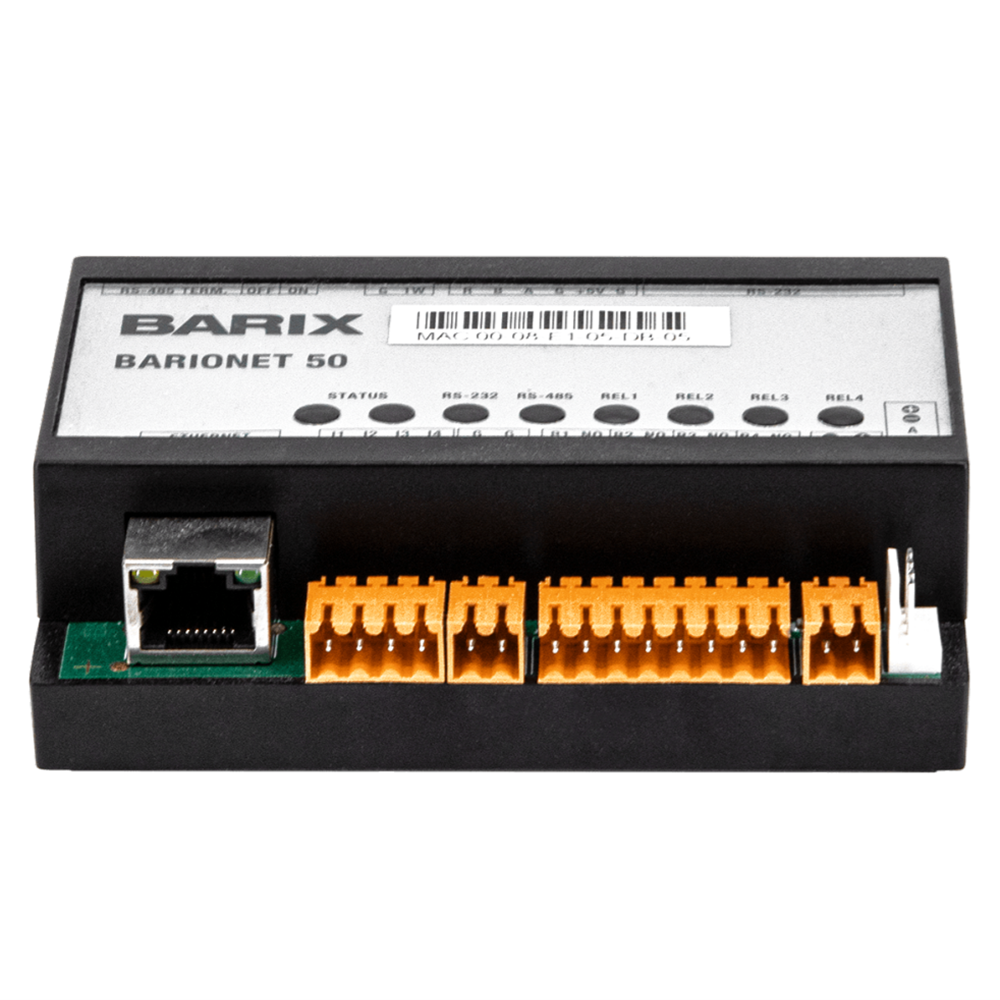

Barionet Barionet 50

Two serial ports, 4 digital inputs, 4 relay outputs and Dallas 1-wire support.

  • I/O device server with web server, Modbus/TCP and SNMP support
  • Web server
  • Modbus/TCP and SNMP support
  • Serial ports
  • Digital IO
  • Dallas 1-wire

The Barionet 50 is a low cost, flexible and multiprotocol capable I/O device server which bridges the physical world of sensors and activators with IP Automation and IT management systems.

Speaking both SNMP and Modbus/TCP as well as universal ASCII protocols, the Barionet devices are easily integrated into monitoring and management systems.

The Barionet50 is a programable network controller, via BCL (Barix Control Language) programming the functionality of the device can be expanded/customized. The development kit is available for free, downloadable with the firmware.


  • Environmental monitoring, logging and alarming
  • Access Control/Door control
  • Temperature monitoring, logging and HVAC control
  • Contact closure monitoring
  • PV power management
  • Automation and remote control via network


  • Relay Output (4)
  • Contact Closure Input (4)
  • RS-232 Serial Port (1)
  • RS-485 Serial Port (1)
  • Dallas 1-wire interface (1)
  • Supply Voltage (9-30VDC)
  • Control interfaces: HTTP/CGI, TCP, UDP, SNMP, Modbus/TCP
  • IO capabilities extendable via Barionet extension units


I/O Interfaces

  • On detachable screw terminal blocks:
  • 4 relay outputs (30 VDC, 0.5 A)
  • 4 digital inputs (dry contacts)
  • Dallas 1-Wire® interface, with support for 50*DS18B20 sensors, free programable for other 1-wire devices

Serial Interfaces

  • RS-232 (DSub-9 male, 5-wire RXD, TXD, RTS, CTS, GND)
  • RS-485 on detachable screw terminal block as well as on 4 pin extension connector, both with serial speeds from 300 bps to 230 kbps (asynchronous)


  • 8 LED status indicators
  • Extension connector (4 pin: power and RS-485)

Network Interface

  • RJ45 10/100 Mbit Ethernet (Autodetect) with 2 status LEDs

Supported protocols

  • TCP/IP, UDP, ICMP, IGMP, AutoIP, IPzatorTM, DHCP, SNMP, SYSLOG, CGI, HTTP web server for control, status and configuration
  • API/control interfaces: Modbus/TCP, SNMP, CGI, UDP/TCP based ASCII protocol

Power input

  • 9..30 VDC, 4 Watt max.


  • high quality plastic, 135 g, DIN-rail mount.
  • Dimensions: 105 mm x 85 mm x 32 mm (4.13“ x 3.34“ x 1.25“)


  • Min. 800 000h acc. to MIL217F at 25°C ambient temperature
