Challenger Pa + 1 X Uhf+Bt Band 6 650MHZ CH-CHG-U0000PB

Product Code: CH-CHG-UPB-6

RRP $2,209.00
Quantity In Cart:
Unit of Measure


5 Year
Technical Specifications
Brands Chiayo Electronics
Microphone Type Portable PA
  • Details
  • Downloads
  • Where to Buy
  • Ordering

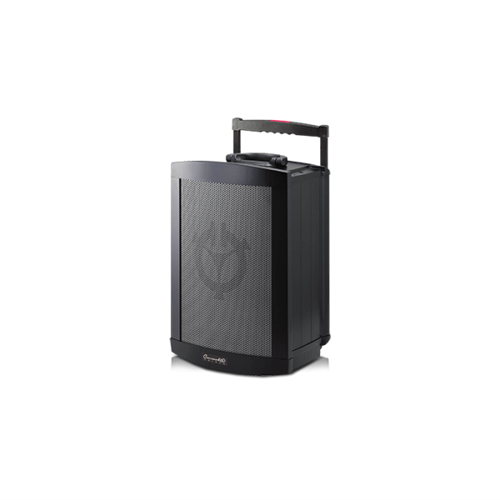

Challenger 1000 150 watt portable PA with 10 inch speaker

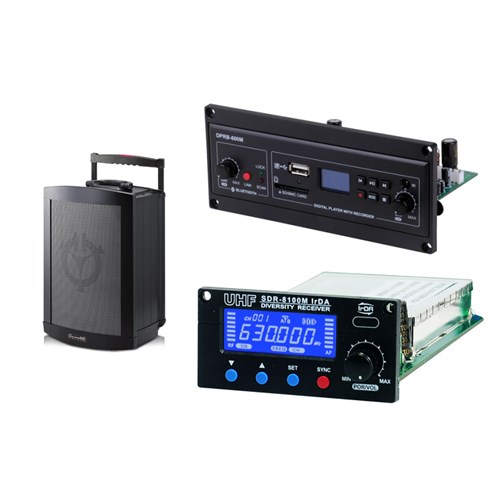

Includes DPRB600M Digital rec/play, USB/Bluetooth module and 1 x SDR8100M-6 diversity UHF 100 channel receiver module. Includes DC40 dustcover.Band 6 650 - 675 MHz. Transmitter not included

CHALLENGER 1000, CHIAYO's classic flagship PA amplifier and iF award winner, provides four module slots for installing receiver, transmitting, MP3 recorder player and Bluetooth modules, allowing you to operate multimedia and connect to active speakers for audio link that create a more powerful listening experience.

Louder and clear
Built-in 200W class-D power amplifier drives 10” 3-way  full range speaker and easily satisfies the amplification requirement of large events with a 500-1000 crowd, bringing an unprecedented quality sound experience.

Easy setup
CHIAYO’s receiver module can quickly search for an interference-free working channel and operate channel synchronization with one click, easy and quick to set up, allowing users to enjoy excellent sound quality.

Move as you wish
Ruggedly aluminum enclosure with integrated retractable handle, wheels and built-in batteries for easy portability, always being the focus wherever you go.

Flexible customization
The multimedia functions are flexibly expandable based on the requirement of various applications, such as the receiver module of wireless microphone, MP3 recorder player, Bluetooth receiver and interlinking transmitter module.

Far reaching
Able to connect active and passive speakers to extend the coverage. Under the wireless audio interlinking mode, 1 to many, the coverage immediately doubles and all blind spots disappear.

  • Model    CHALLENGER 1000
  • Max power output    200W, 4Ω load (class-D)
  • Speaker system    10" 3-way full range
  • T.H.D.    < 0.5%
  • Audio input    MIC in (Ø6.3mm/XLR COMBO),
  • LINE in (RCA L/R)
  • Audio output    LINE out (RCA L/R),
  • ACTIVE out (XLR)
  • External speaker    4~8Ω (Ø6.3mm)
  • Power supply    100-240V AC, 30-32V DC / 4A
  • Battery    Lead-Acid (12V / 5Ah) x2
  • Operating time    5-6 hours in music, >10 hours in speech
  • Charging time    about 6 hours
  • Dimensions (mm)    350 x 300 x 500
  • Weight (kg)    17.7

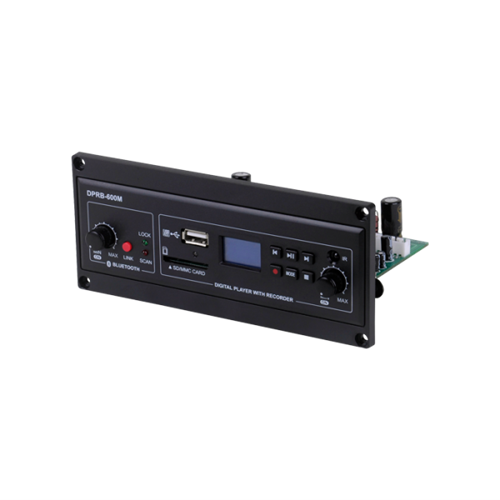

MP3 Recorder Player + Bluetooth Receiver Module

  • Model    DPRB-600M
  • Frequency range    2.4G ISM band
  • File format    Playback: MP3,WAV,WMA
  • Recording: MP3 (128 Kbps / 44 KHz)
  • Bluetooth    Version: 5.0 / Distribution profile: A2DP 1.2 / Codec: SBC
  • Audio input    USB and SD in FAT/ FAT32 format
  • Audio output    0dB±1.5dB (1KHz Sine Wave, 0dB MP3)
  • Power supply    12V DC
  • Dimensions (mm)    160 x 103 x 69
  • Weight (g)    134

SDR-8100M IrDA
UHF 2-Way Sync Diversity Receiver Module

  • Model    SDR-8100M IrDA
  • Receiving mode    Diversity
  • Bandwidth    25 MHz
  • Preset frequencies    100
  • Channel sync    2-way (RX ⇔ TX)
  • Frequency response    50 Hz - 18 KHz
  • Peak deviation    ± 40 KHz
  • Sensitivity    S/N > 80 dBm at 10 dBμV
  • S/N ratio    > 85 dB(A)
  • T.H.D.    < 0.5% @ 1 KHz
  • Receiving antenna    Built in
  • Modulation    FM
  • Squelch    Pilotone & Noise-cancelling dual-squelch circuit
  • Audio Output Adjustment    Volume knob for adjustment of output volume
  • Power supply    12V DC
  • Dimensions (mm)    74 × 138 × 36
  • Weight (g)    102
