Neutrik

This is a Special Order Item

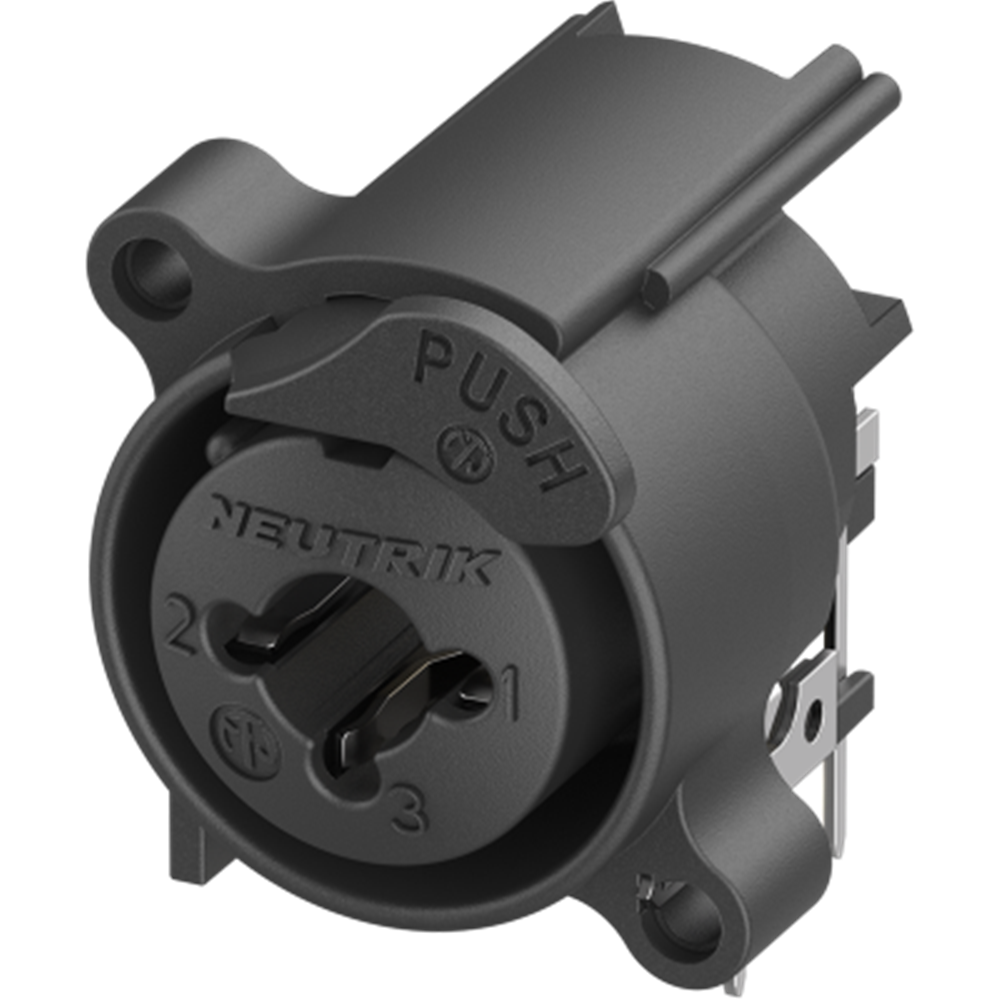

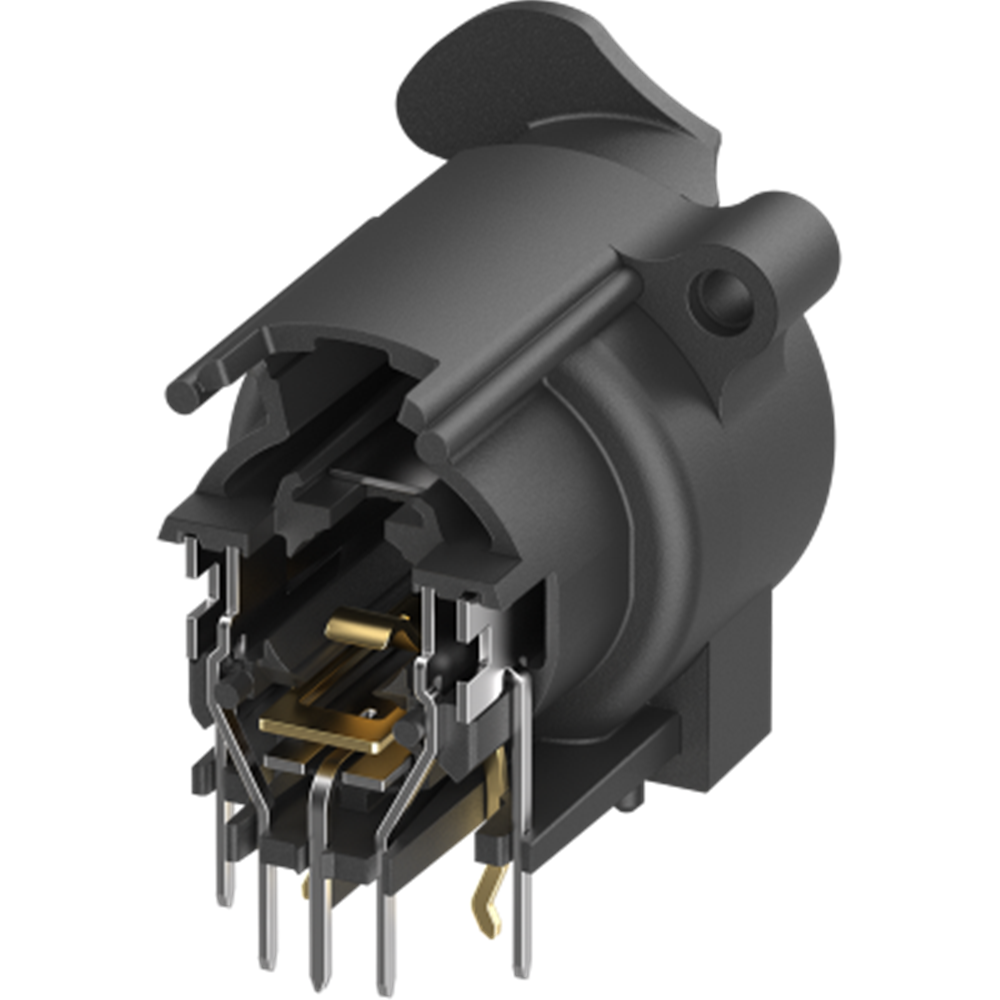

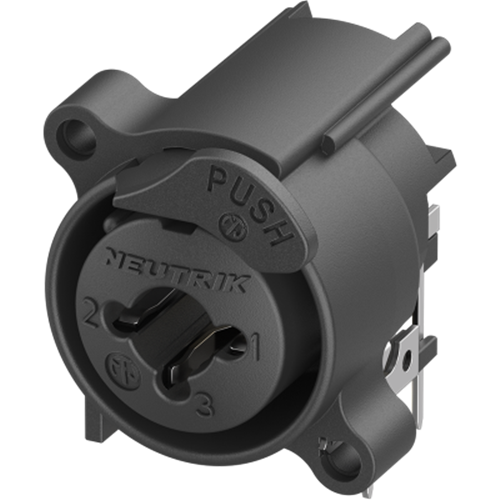

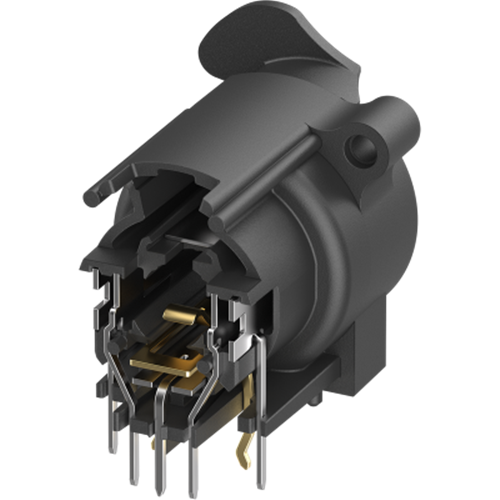

Combo ESD series horizontal PCB mount

Product Code: NU-NCJ6FA-H-AE

Brand
Neutrik
RRP $560.00


Quantity In Cart:
Unit of Measure
B100



1 Year
Technical Specifications
Brands Neutrik
  • Details
  • Downloads
  • Where to Buy
  • Ordering

XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack in the smallest available XLR housing. Improved ESD performance with asymmetric non-metallic push. The all plastic A-Series offers the most space saving and cost effective design.

Features & Benefits
  • Protection against electrostatic discharge and components due to compound material of the push tab
  • Dramatic space saving - 15% over the predecessor Combo
  • Combined 3 pole XLR receptacle and 1/4" TRS phone jack for balanced mic and line or instrument inputs in one XLR housing
  • Very low conductor capacitance - ideal for digital audio
  • Two connectors in one housing - substantial cost, material and labour saving
  • Front panel cut-out compatible with Neutrik XLR A Series

Technical Information
Product
  • Title - NCJ6FA-H-AE
  • Connection Type - Combo
  • Gender - female
Electrical
  • Contact resistance - < 10 mΩ (XLR)
  • Contact resistance - < 10 mΩ (jack)
  • Dielectric strength - 1,5 kVdc
  • Insulation resistance  - > 10 GΩ (initial)
  • Rated current per contact - 3 A (XLR)
  • Rated current per contact - 3 A (Jack)
  • Rated voltage - < 50 V
Mechanical
  • Insertion force  - ≤ 20 N
  • Withdrawal force  - ≤ 20 N
  • Lifetime - > 1000 mating cycles
  • Panel thickness - max. 3 mm (0.12'')
  • Wiring - Horizontal PCB mount
  • Locking device - Latch lock
  • Mounting direction - Rear mounting
  • Mounting screw - A-screw
Material
  • Contact plating - gal 0.2 µm AuCo (XLR), gal 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP
  • Contacts - Bronze (CuSn6)
  • Insert  - Polyamide (PA66)
  • Locking element - Reinforced Polyamide
  • Flammability - UL 94 V-0
  • Solderability - Complies with IEC 68-2-20
  • Temperature range - -30 °C to +80 °C
