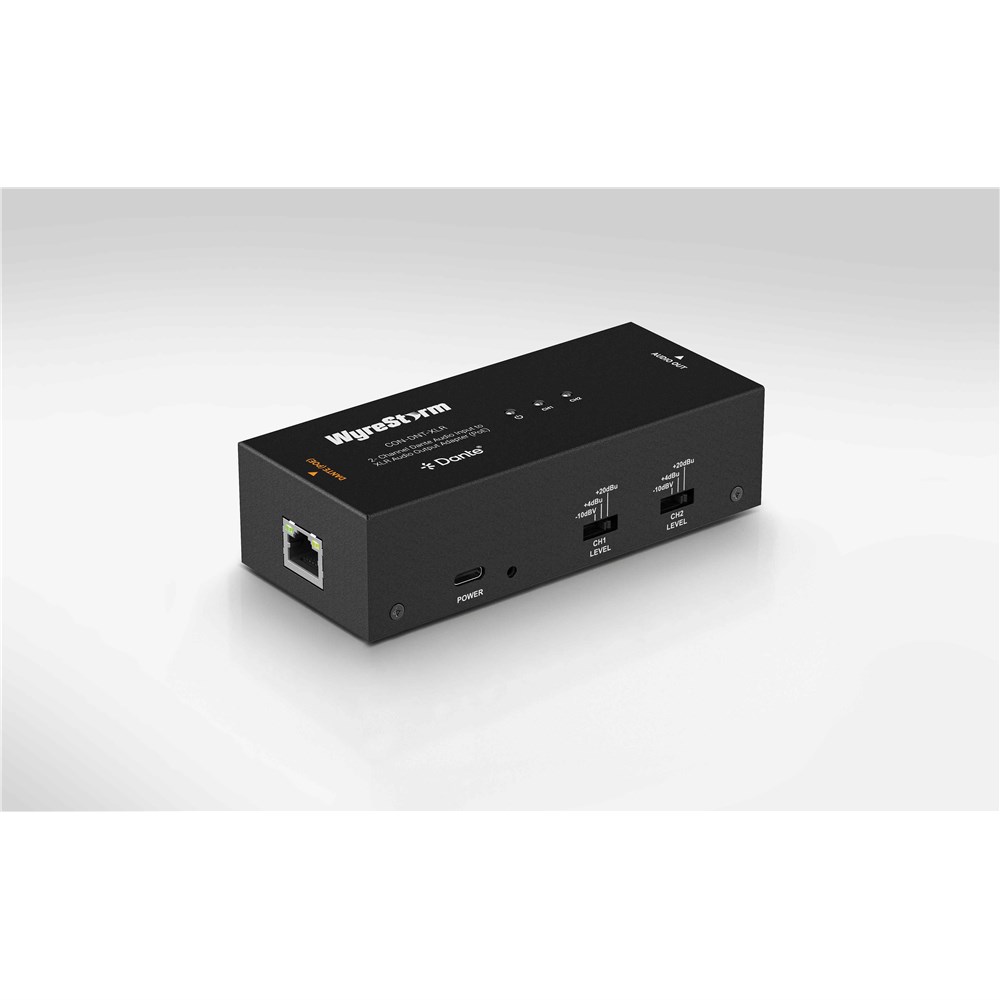

2-Channel Dante/AES67 Audio Input to XLR Output Adapter

The WyreStorm CON-DNT-XLR is a 2-channel Dante/AES67 audio-to-analog converter designed for professional AV and sound reinforcement environments. Supporting 44.1kHz, 48kHz, and 96kHz sampling at 24-bit audio resolution, this compact adapter outputs balanced or
unbalanced analog audio through XLR connectors. The unit is fully managed through Dante Controller for stream routing, naming, and audio configuration. With PoE support (802.3af, Class 1), selectable output gain settings (-10dBV, +4dBu, +20dBu), and signal-status LEDs for each channel, the CON-DNT-XLR provides a powerful, easy-to-deploy solution for integrating networked audio into traditional sound systems.


Dante/AES67 Network Audio Integration

Supports 2-channel Dante/AES67 audio input for seamless integration with modern
audio networks, DSPs, and digital mixing systems. Compatible with standard Dante
Controller for setup and routing.

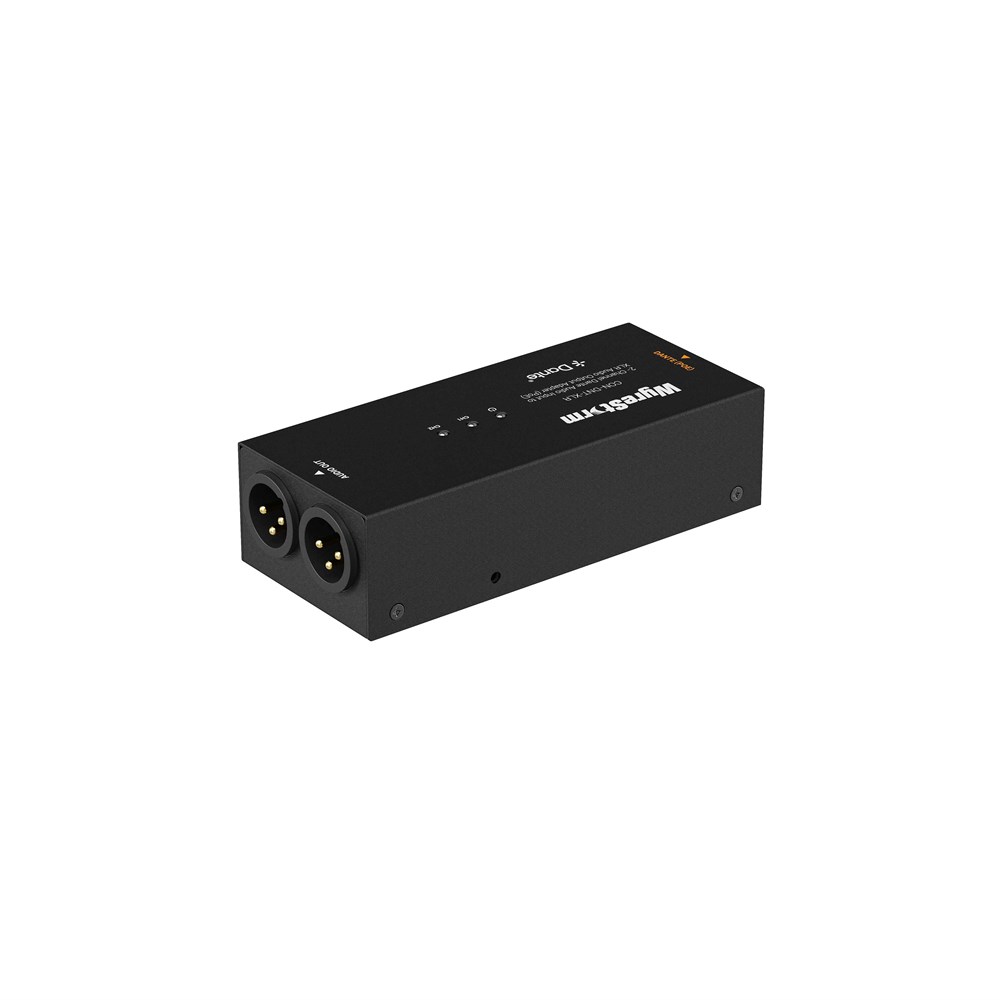

Professional Balanced XLR Outputs

Delivers high-quality analog audio via dual XLR outputs, supporting balanced and unbalanced operation with excellent performance:

  • Frequency Response: 20Hz–20kHz (±1dB)
  • SNR: >100dB
  • THD+N: <0.01%

Selectable Output Gain Levels

Three selectable output levels (-10dBV, +4dBu, +20dBu) allow optimized integration with amplifiers, mixers, or powered speakers regardless of input sensitivity.

PoE-Powered for Easy Installation

Supports LAN (TCP/IP), TelnPowered directly through 802.3af PoE from a supported network switch for simplified wiring and deployment. USB-C 5V input is also available as an alternative power method.

Technical Specifications

AUDIO & VIDEO

Inputs

1× RJ45 Dante/AES67 with PoE

Outputs

2× XLR (Balanced/Unbalanced)

Audio Formats

PCM 24-bit, 44.1/48/88.2/96kHz

PERFORMANCE

Frequency Response

20Hz–20kHz (±1dB)

SNR

>90dB at 1kHz, +4dBu

THD+N

<0.01% at 1kHz, +4dBu

Output Impedance

300Ω balanced / 150Ω unbalanced

COMMUNICATION AND CONTROL

Firmware Update

Via Dante Controller

POWER

Power

PoE:802.3af Class 1
USB-C: Optional DC 5V input

ENVIRONMENTAL

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

DIMENSIONS

Height

125mm/4.92″

Width

54.4mm/2.14″

Depth

33.4mm/1.31″

In the Box

  • 1 x CON-DNT-XLR
  • 2× Mounting Ears
  • 1× Documentation QR Card
