TASCAM

Dante Stagebox for Sonicview 16

Product Code: TA-SB-16D

Brand
Tascam
RRP $5,799.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands TASCAM
  • Details
  • Downloads
  • Where to Buy
  • Ordering
SB-16D

Top Quality Audio I/O for Dante Networks

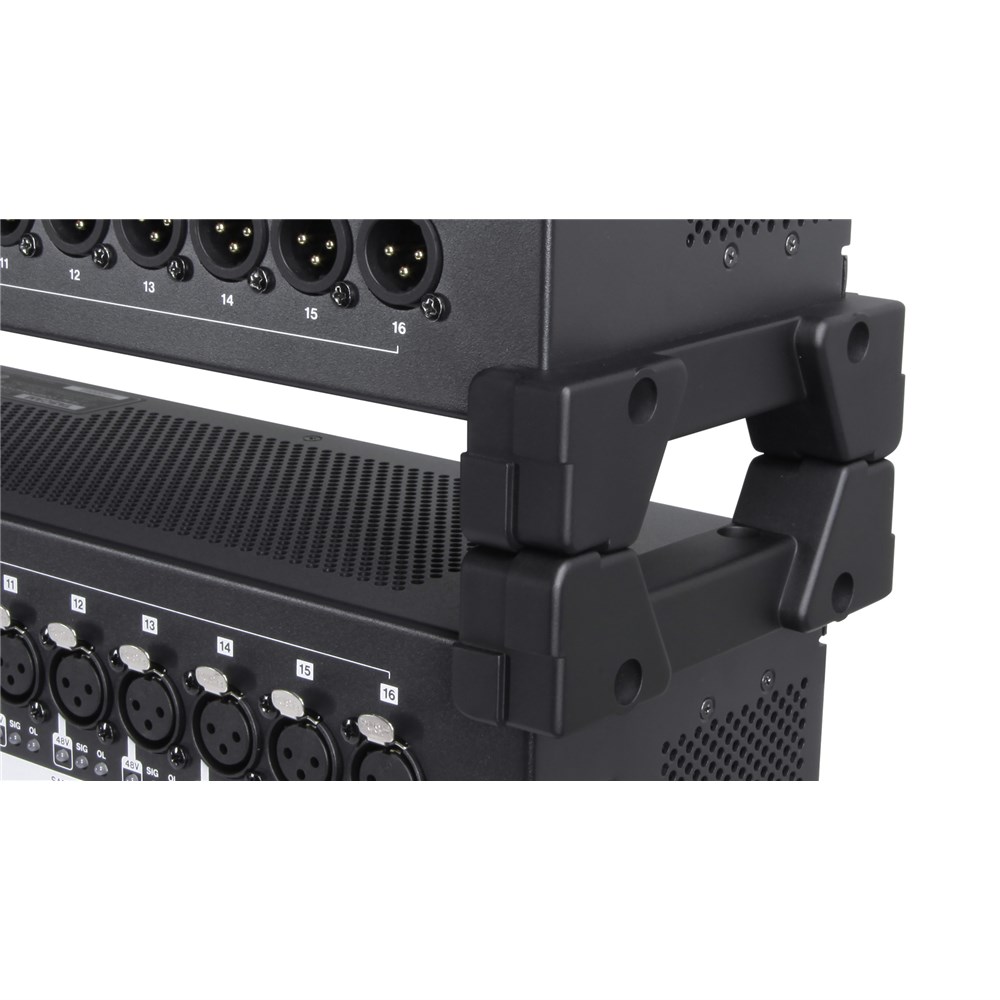

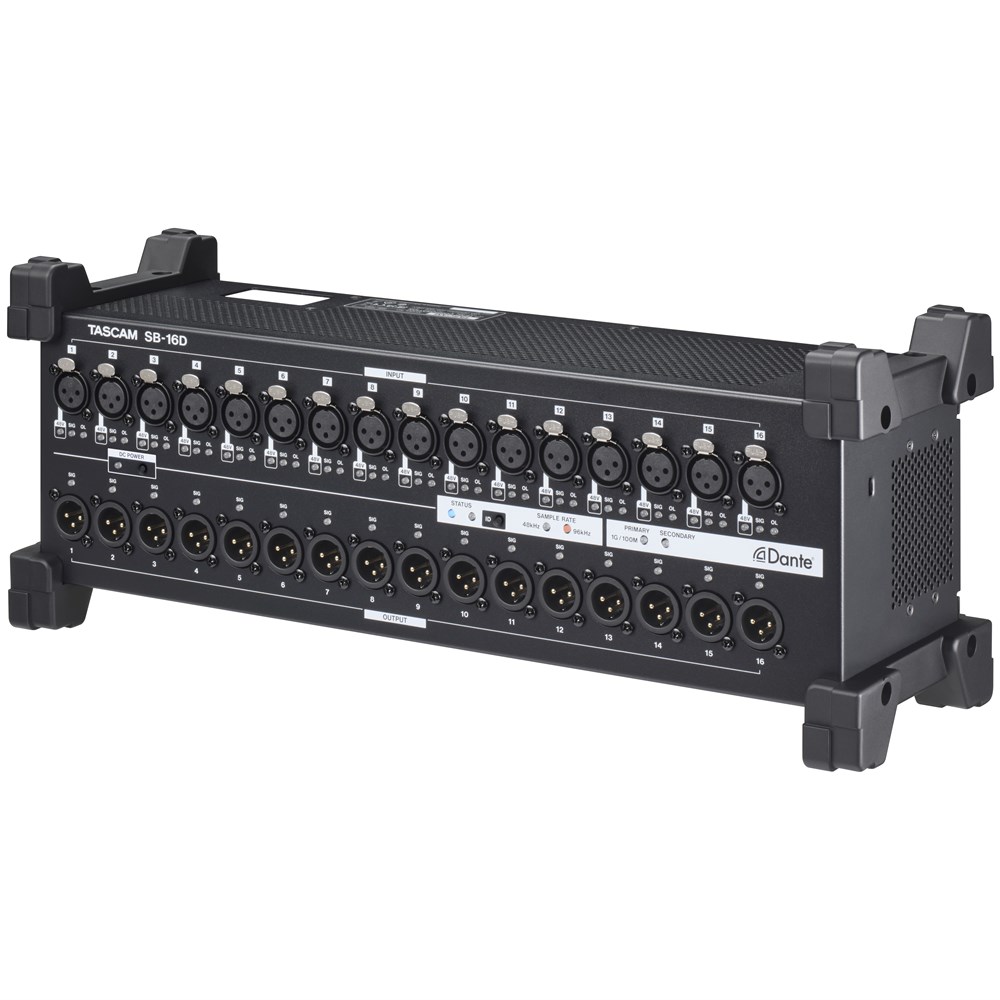

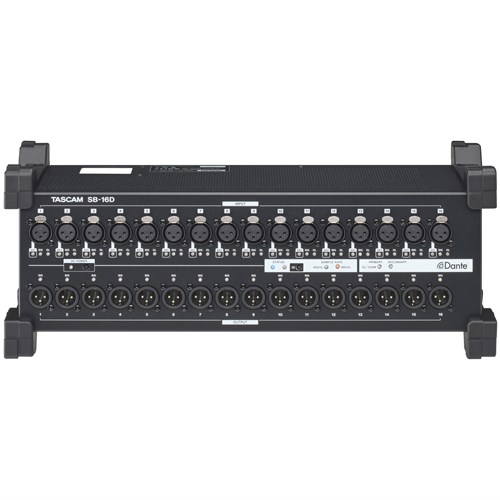

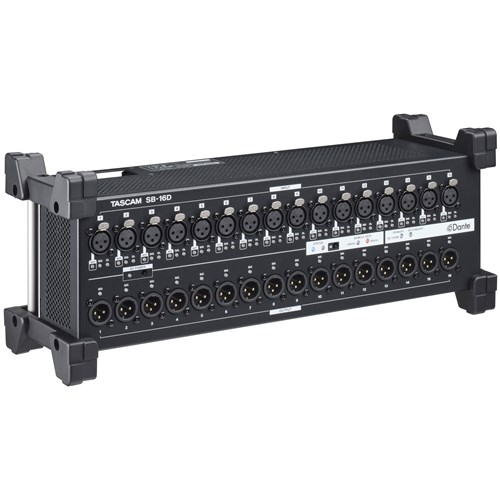

Offering the same performance and hardware quality as TASCAM Sonicview recording and live mixers, TASCAM SB-16D Dante-networked 16-in/16-out stage boxes offer all the advantages of Dante networking, combined with seamless integration with TASCAM Sonicview recording mixers. The stage boxes can be used as a floor stage box or rack mounted, and multiple stage boxes can be used simultaneously in a Dante network.

Seamless integration : Remote Gain Control

When a SB-16D stage box is connected to a TASCAM Sonicview 16XP or 24XP recording mixer, microphone gain can be remotely controlled from the mixing console, and all SB-16D I/O comes up on the TASCAM Sonicview VIEW touch screens for hassle-free ease of use.

SB-16D
A Full Complement of I/O with the Features You Need

A Full Complement of I/O with the Features You Need

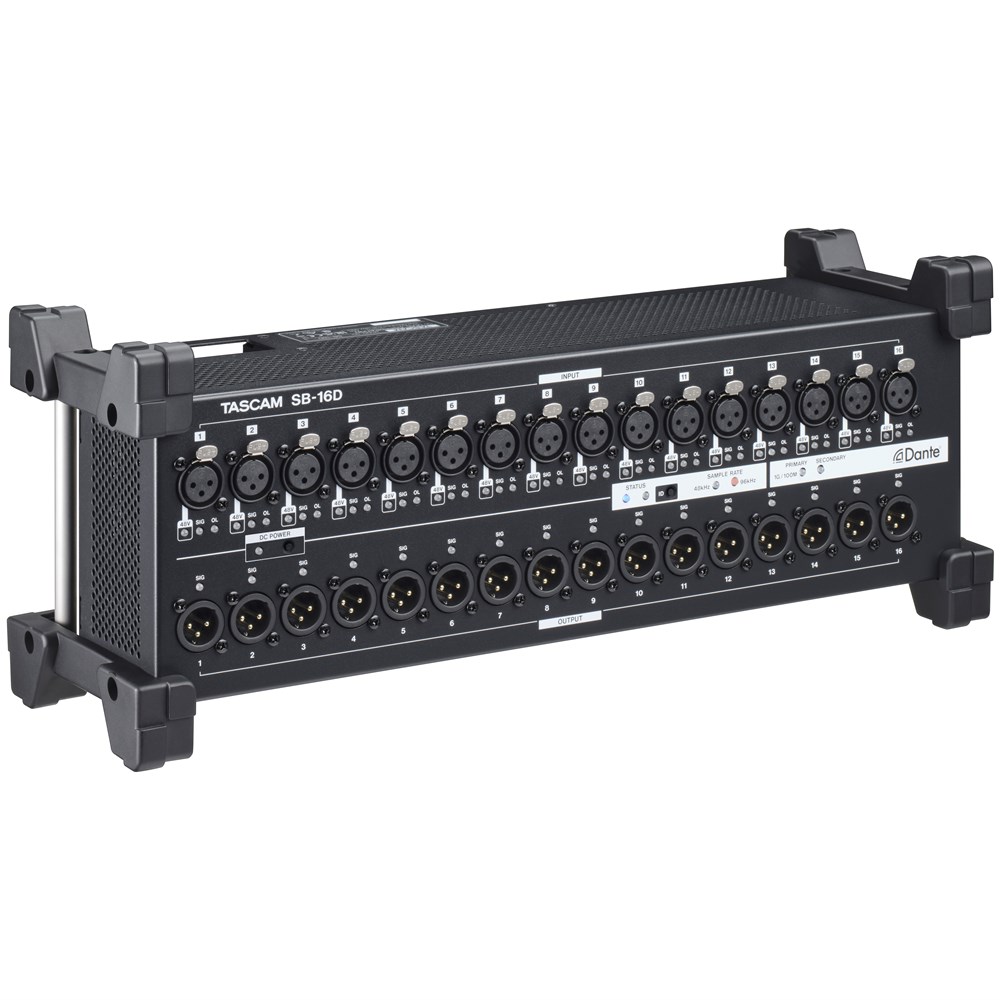

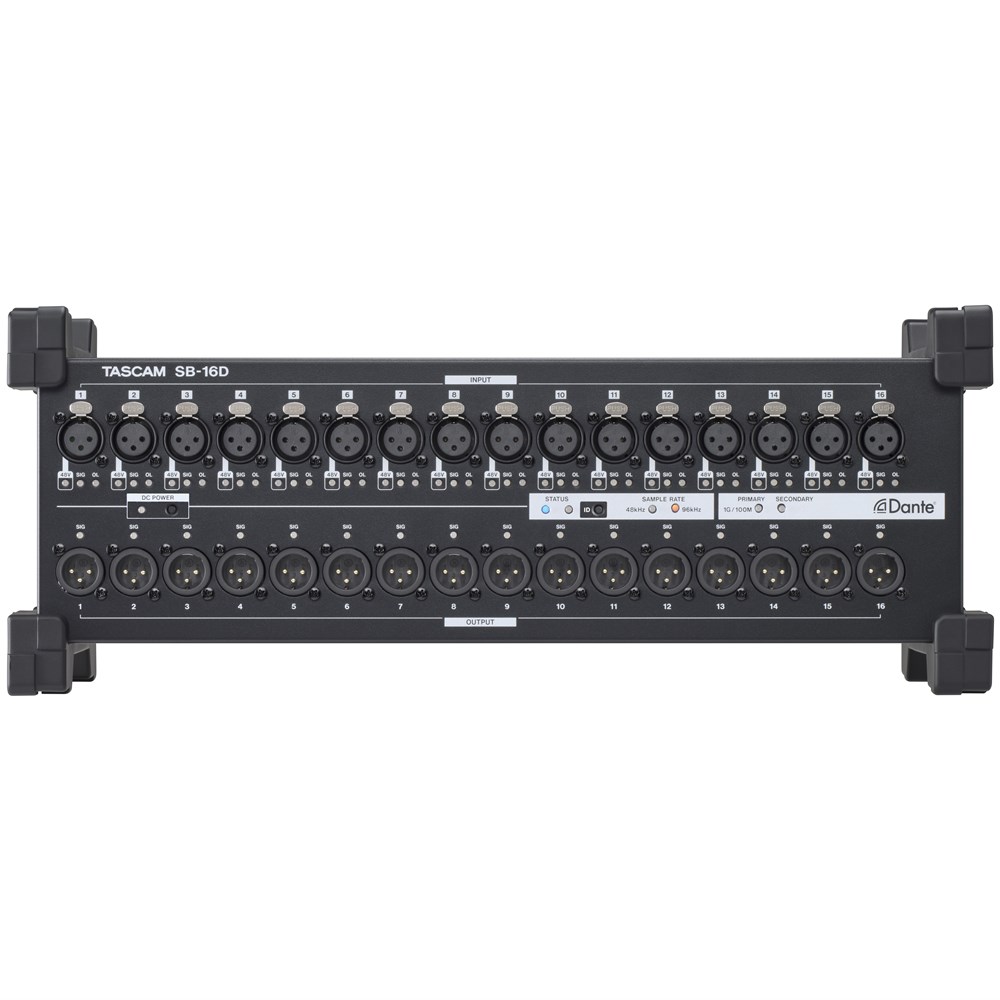

Easily accommodate large ensembles and extensive installed Dante systems using the SB-16D's 16 XLR mic/line inputs and 16 XLR line outputs. Need more I/O? Simply network multiple SB-16Ds.
The mic/line inputs are extremely quiet, achieving a -128 dBu EIN with a +32 dBu maximum input level. Each input channel has +48V phantom power and an SIG OL LED for input-level monitoring. Each line output also is equipped with SIG OL LEDs.

Class 1 HDIA Mic Preamps and 32-bit ADCs for Best-in-Class Sound

As in TASCAM Sonicview recording mixers, each SB-16D microphone input feeds a TASCAM Class 1 HDIA (High Definition Instrumentation Architecture) preamp—the finest mic preamp TASCAM has ever made. Thanks to an instrumentation amplifier with extremely good noise characteristics in the first stage, Class 1 HDIA microphone preamps exhibit excellent EIN, signal-to-noise ratio, distortion ratio, and frequency response. The mic inputs can accept up to +32 dBu signals, providing plenty of headroom for sudden level increases.
As with TASCAM Sonicview recording mixers, the SB-16D uses 32-bit analog-to-digital converters and a 96 kHz sampling frequency. Repeated internal and external evaluations were conducted to fine-tune the SB-16D, ensuring best-in-class sound that will never disappoint.

Class 1 HDIA

Class 1 HDIA Mic Preamps and 32-bit ADCs for Best-in-Class Sound

Additional Features



Features at a Glance

Key Features
  • 16 in/16 out Dante enabled stage box with redundancy
  • 16 XLR mic/line inputs with +48 phantom power and SIG OL LED input signal/overload indicators
  • 16 XLR line outputs with SIG OL LED output signal indicators
  • Up to 96 kHz sampling and 32-bit precision

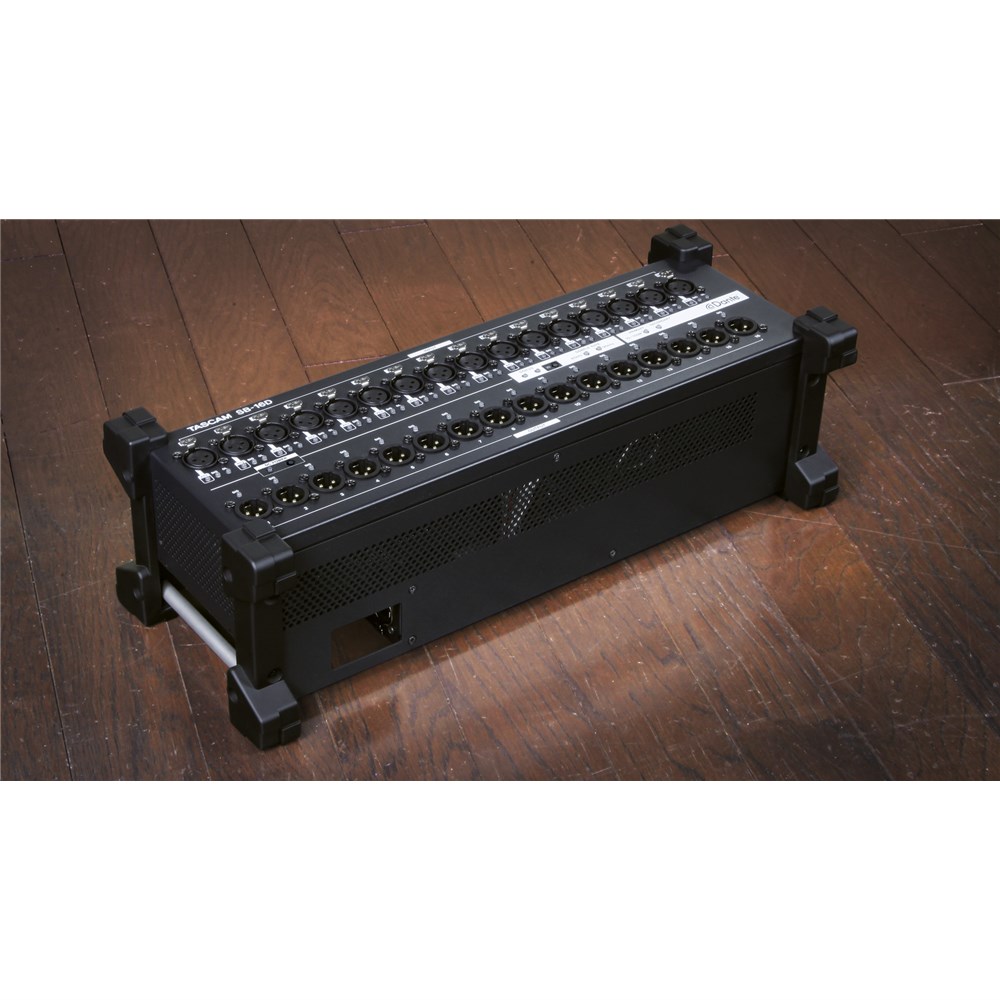

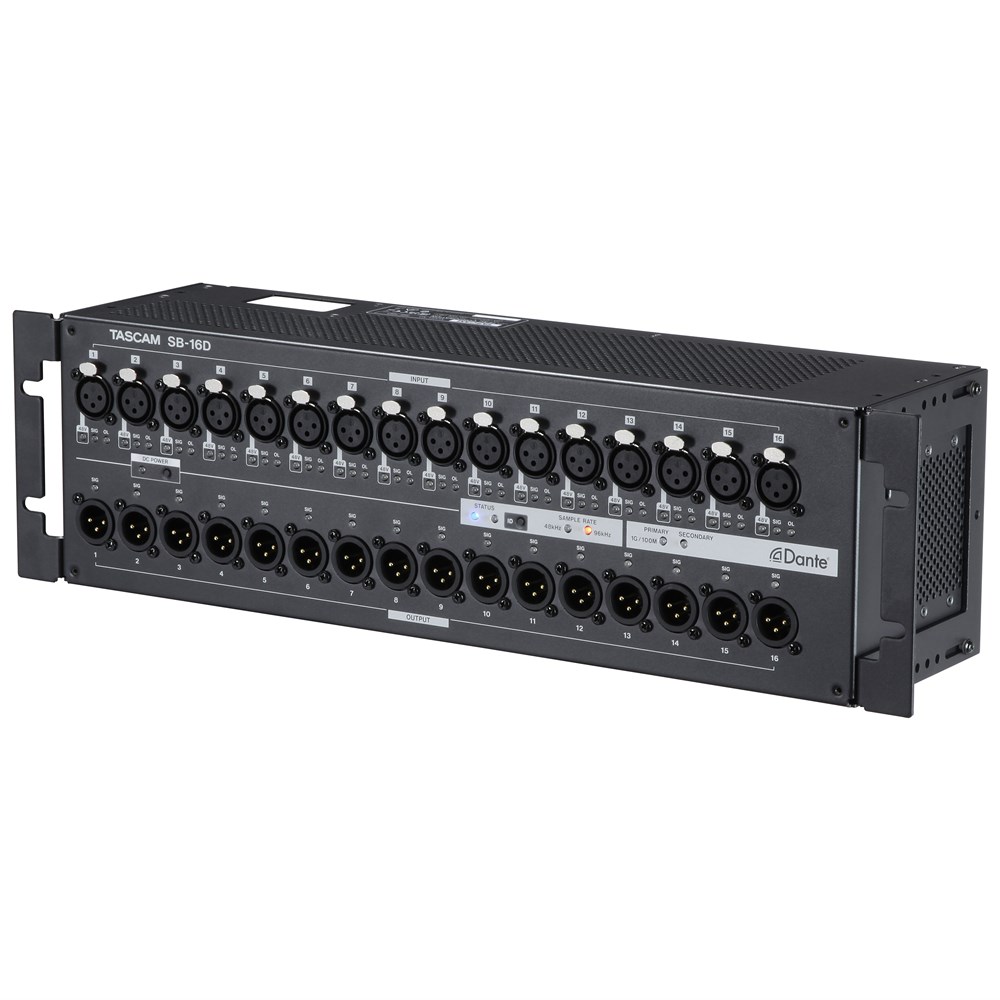

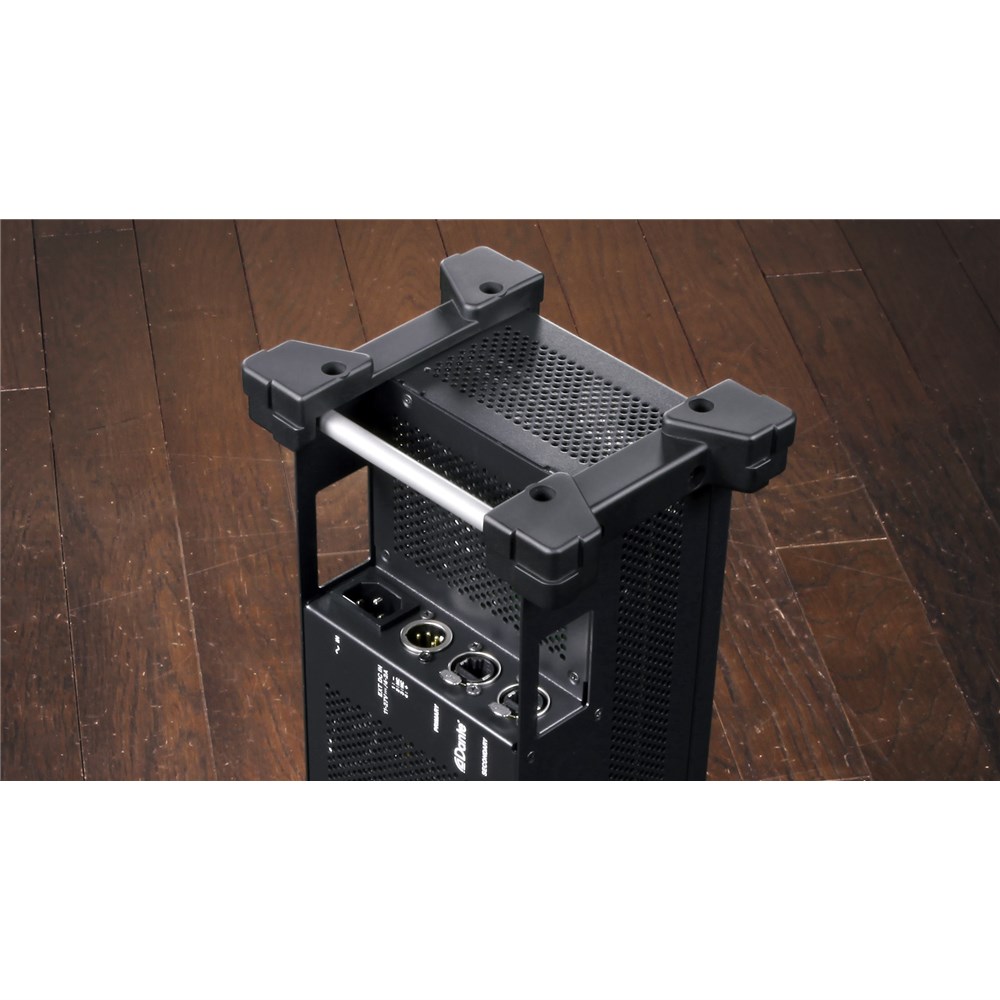

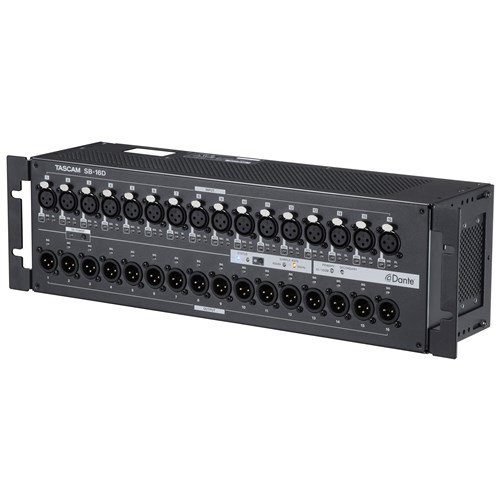

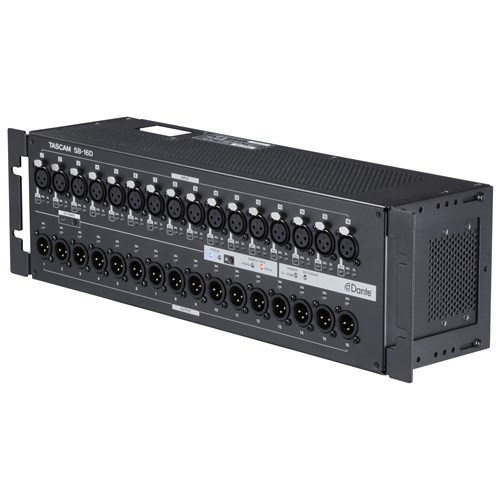

  • Supports both floor installation and 3U rack mounting
  • Fully controllable from connected TASCAM Sonicview mixers
  • Remote control and offline editing using TASCAM IO Control app for macOS, Windows, and iPadOS
Other Features

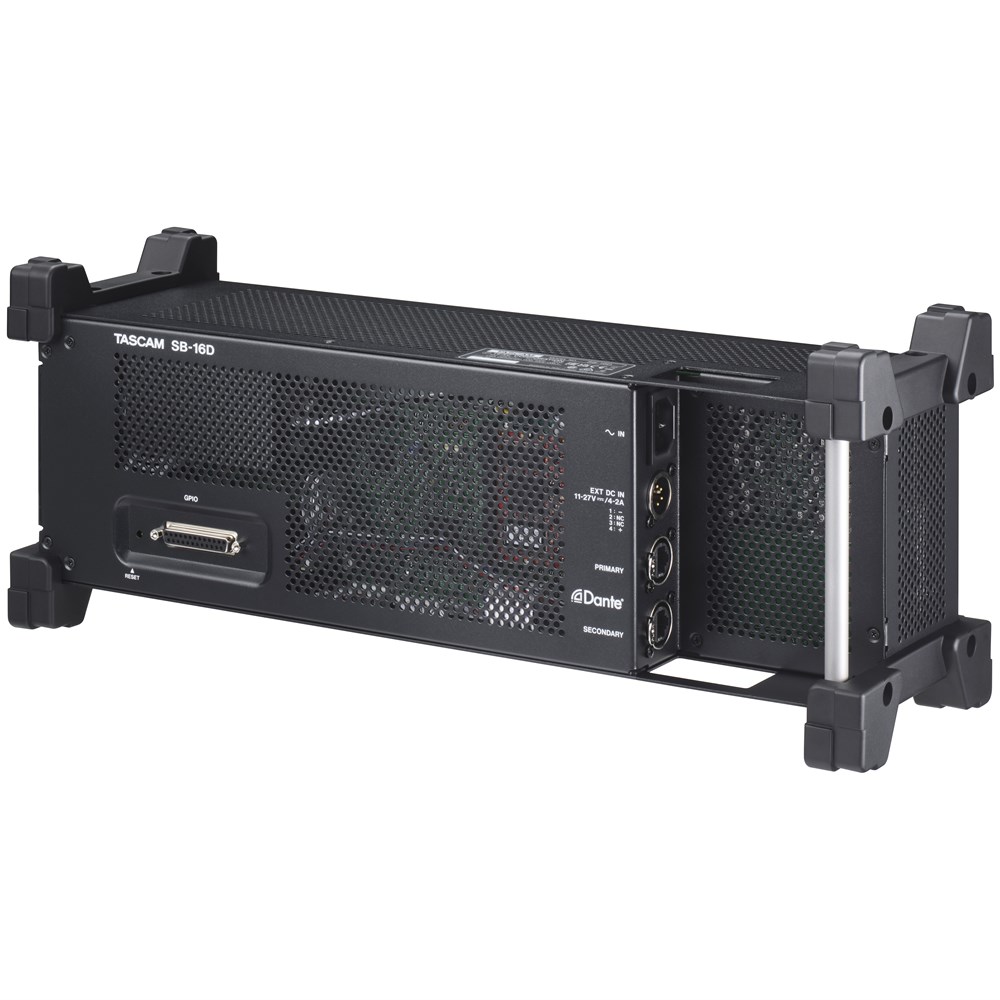

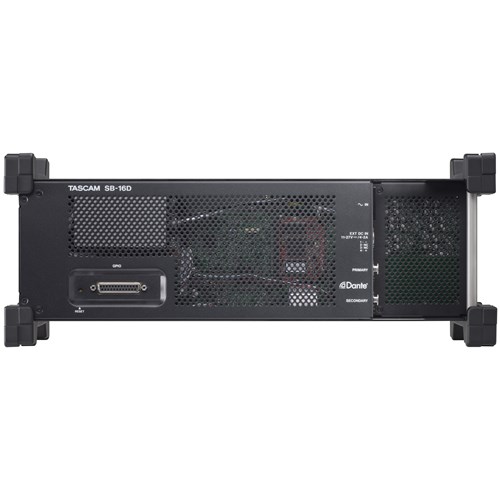

  • Equipped with DC input and supports redundant power supply (DC power supply not included)

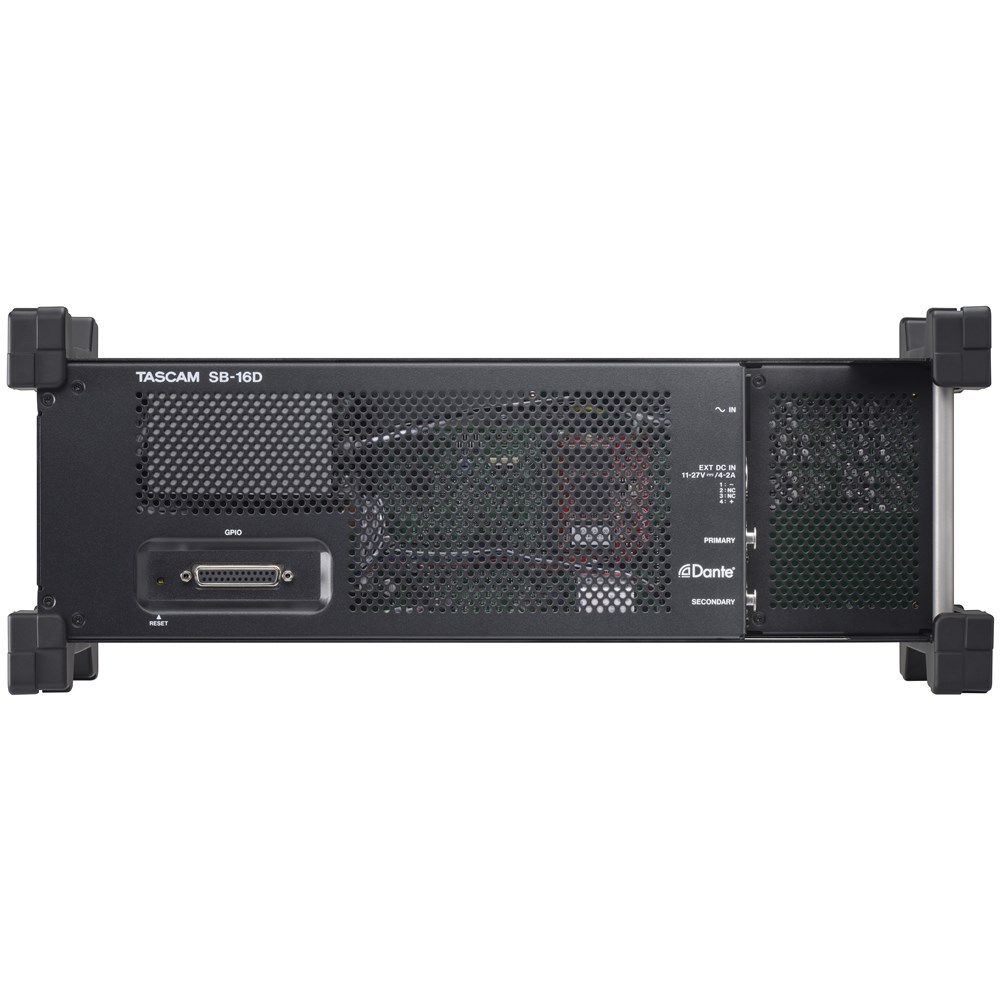

  • Equipped with 8 in/8 out expansion GPIO terminals, expandable to 16 in/16 out when connected to a TASCAM Sonicview mixer
  • Switchable reference level

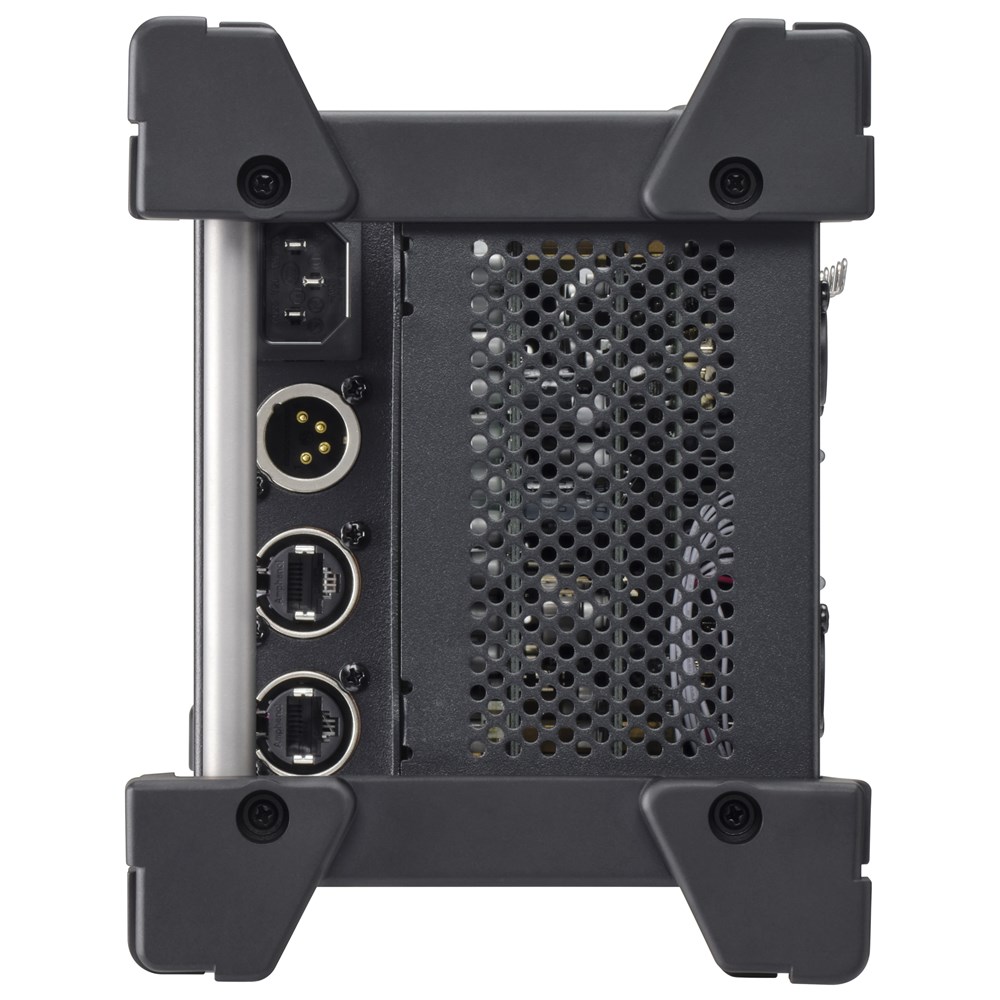

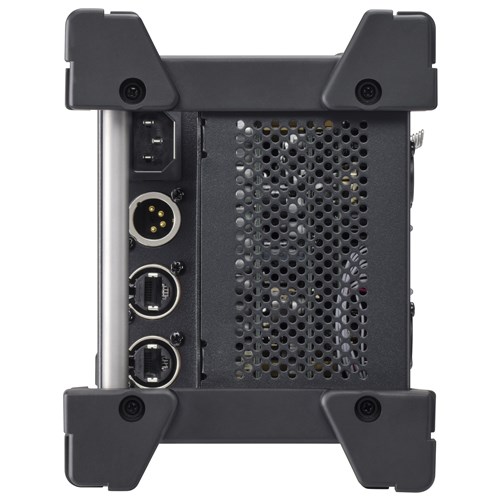

  • Equipped with etherCON compatible connectors as Dante connection
  • Dante Domain Manager support
  • AES67 interoperability
  • SMPTE ST 2110 interoperability
