Products

Tascam

Desktop 24 Ch Multitrack Recorder

Product Code: TA-STUDIOBRIDGE

Brand
Tascam
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Tascam
  • Details
  • Downloads
  • Where to Buy
  • Ordering

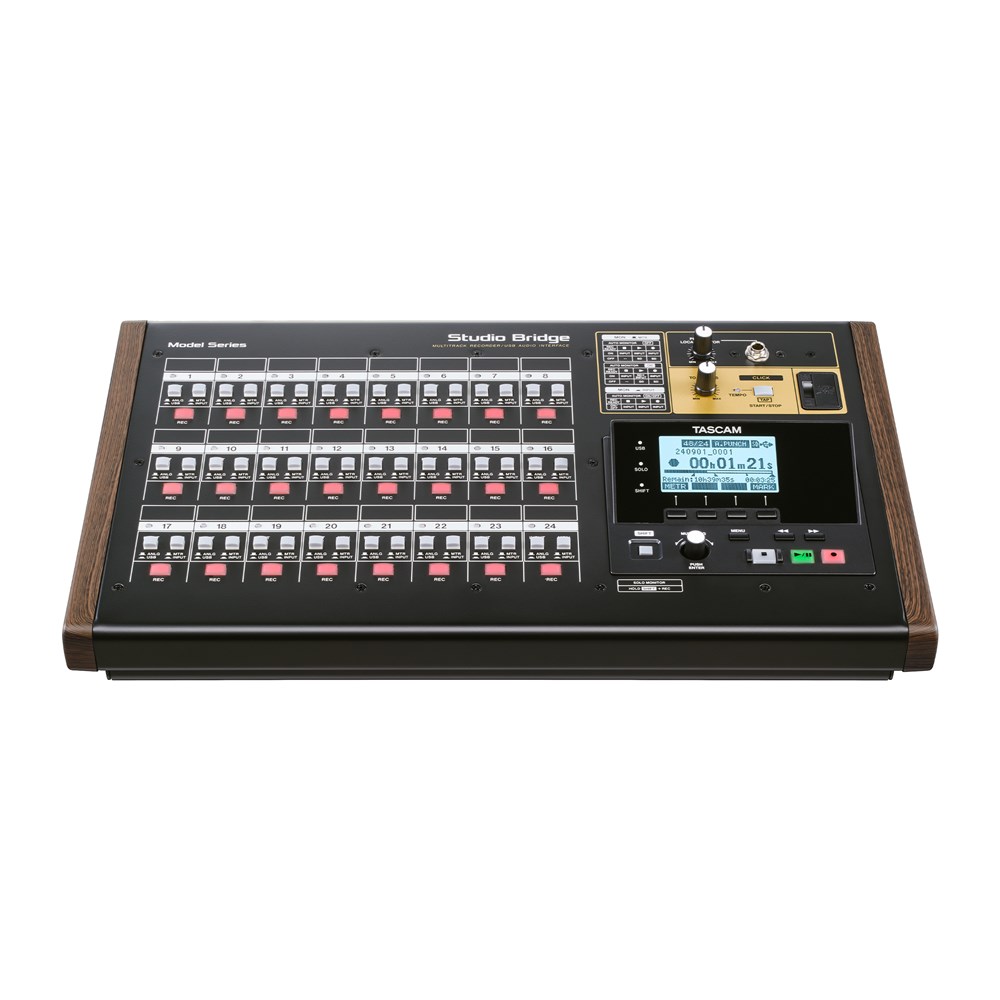

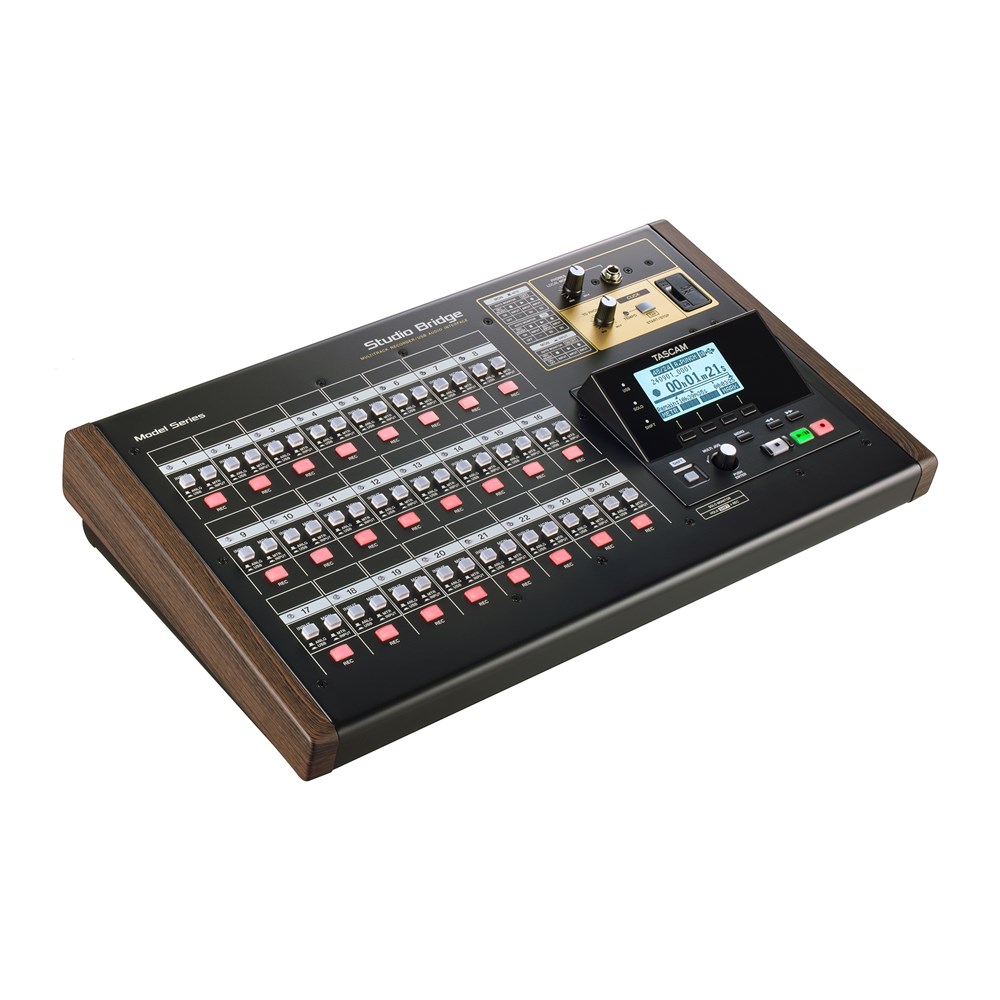

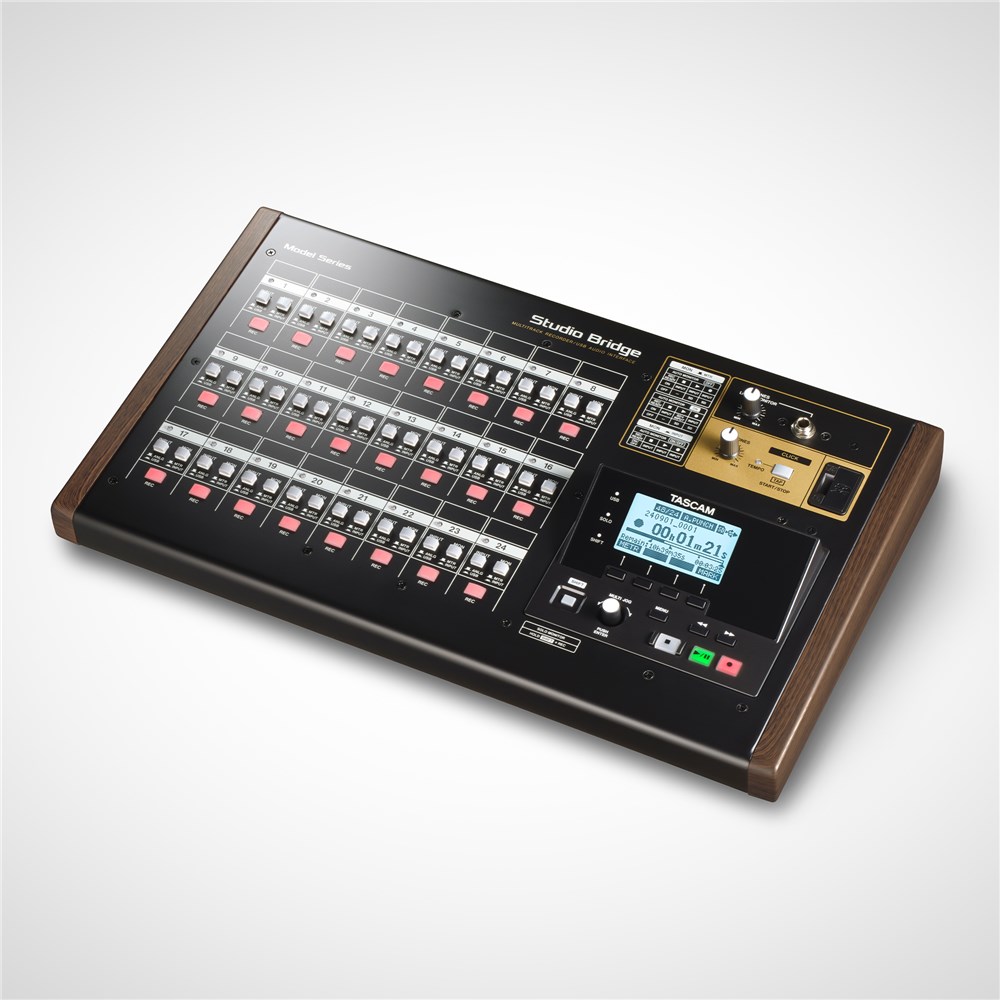

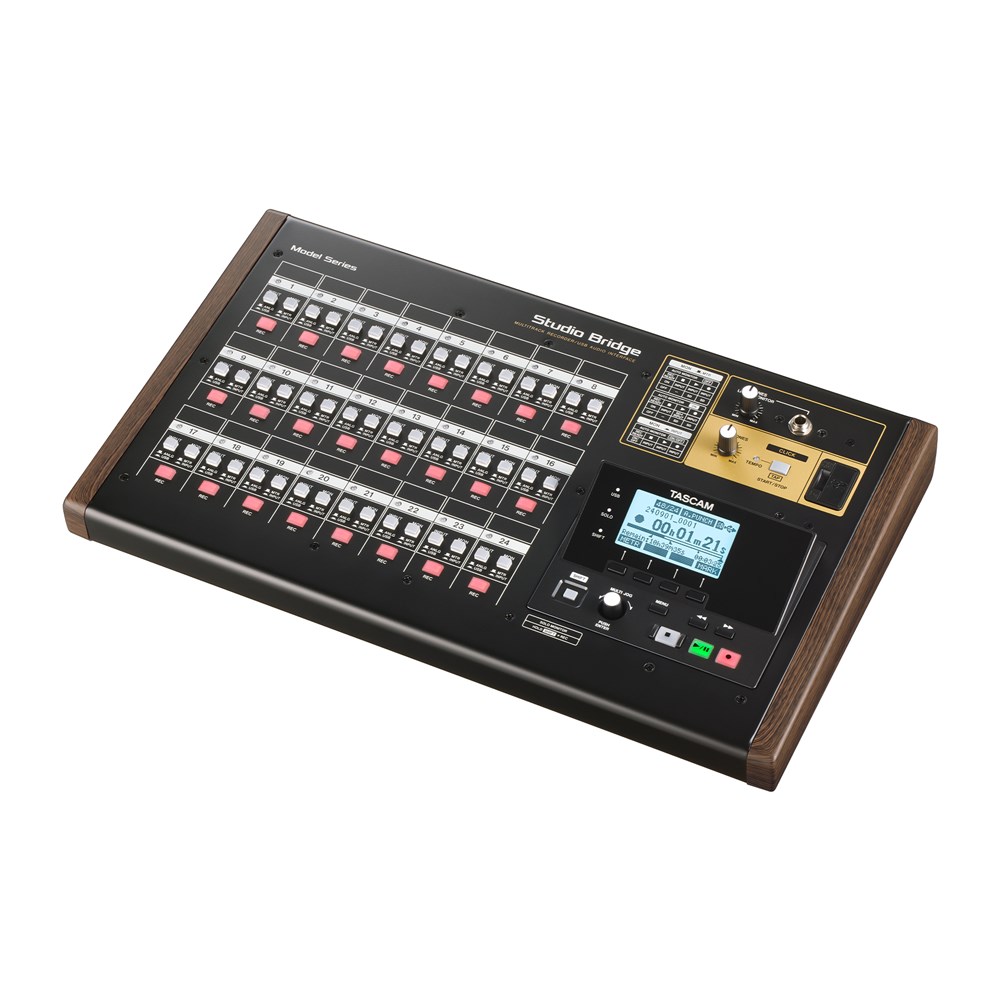

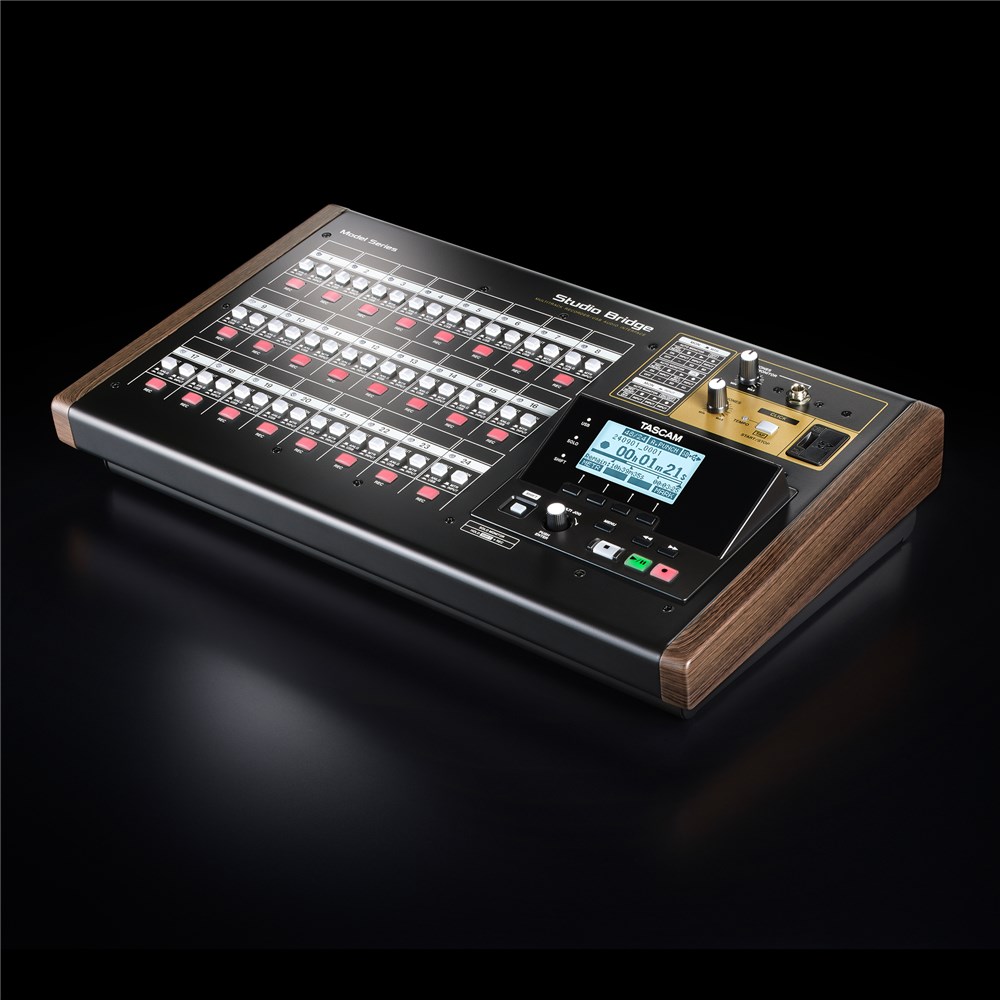

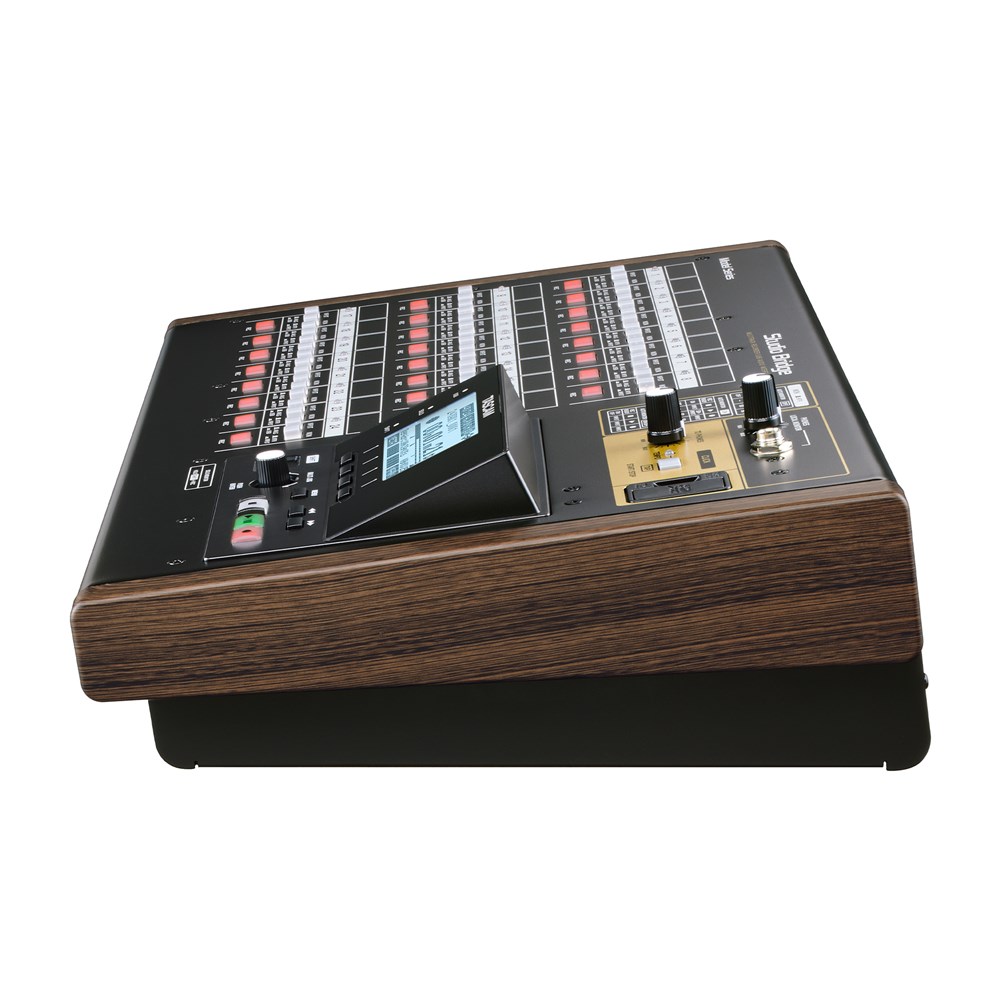

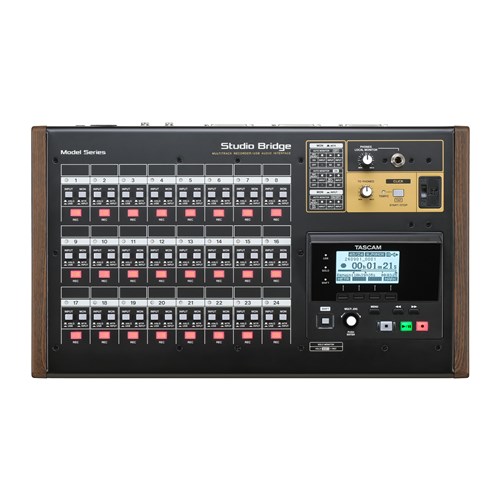

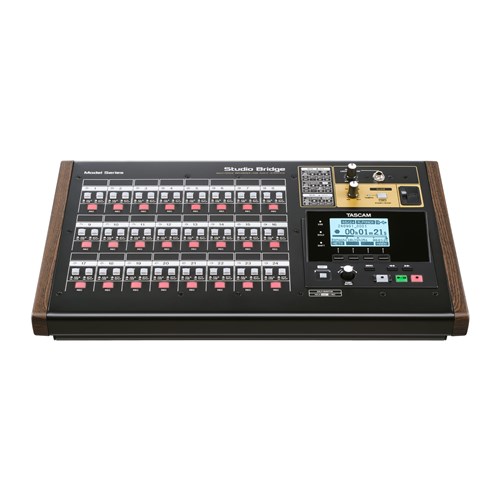

Studio Bridge
24-Track Recorder and USB Audio Interface with MIDI
- Recording and Mixing with Analog Gear Made Easy -

The Model Series Studio Bridge is quite literally the bridge between analog mixers and digital recording devices whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease.


24-Channel Modular Multitrack Recorder DAWLess solution.
24-Channel Modular Multitrack Recorder DAWLess solution.
Your analog mixer can connect to the Studio Bridge as a modular recorder with 24 channels. Easily record and mix 24 tracks with the Studio Bridge - no computer required. You can even sum your mixes to the onboard recorder and export stereo mix .wav files for release-ready productions.

24-IN/24-OUT Audio/MIDI Interface for DAWs
TASCAM knows you want true analog flavor on your DAW recordings, and we’re here to help. Your analog mixer can easily connect to your DAW using the Studio Bridge as a 24-IN/24-OUT audio interface. You can record directly into any DAW and even create a summed mix using your console and outboard gear with audio returns.

24-IN/24-OUT Audio/MIDI Interface for DAWs
DAW Transport Controller and Dedicated Meter Bridge Software
DAW Transport Controller and Dedicated Meter Bridge Software
Studio Bridge also works as a DAW transport controller. Rec/Play/Stop and Rec Ready buttons link directly to your DAW for ease of use. The control software includes a digital meter bridge which is available for PC /Mac to monitor audio levels on each channel, including the stereo master bus.

* DAW control operation has been confirmed with the following DAW software:
・Avid Pro Tools
・Apple Logic Pro
・MOTU Digital Performer
・Steinberg Cubase
・Ableton Live
・Cakewalk by BandLab
・PreSonus Studio One
・Cockos REAPER
・Steinberg Cubasis 3.3

MIDI Synchronization for Your Sequencers
With MIDI In/Out ports, your favorite drum machines, sequencers, synths, and controllers can easily be integrated into any production.

Unlock your creativity with your go-to analog hardware and the Studio Bridge.

MIDI Synchronization for Your Sequencers
Live Recording Applications
Live Recording Applications
In live environments the Studio Bridge becomes your mobile recording studio when connected to your mixing console. Just one piece of gear - no complex system, no computer required.

Additional Features


Features at a Glance
Key Features
On-board 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
24-IN/24-OUT USB audio interface

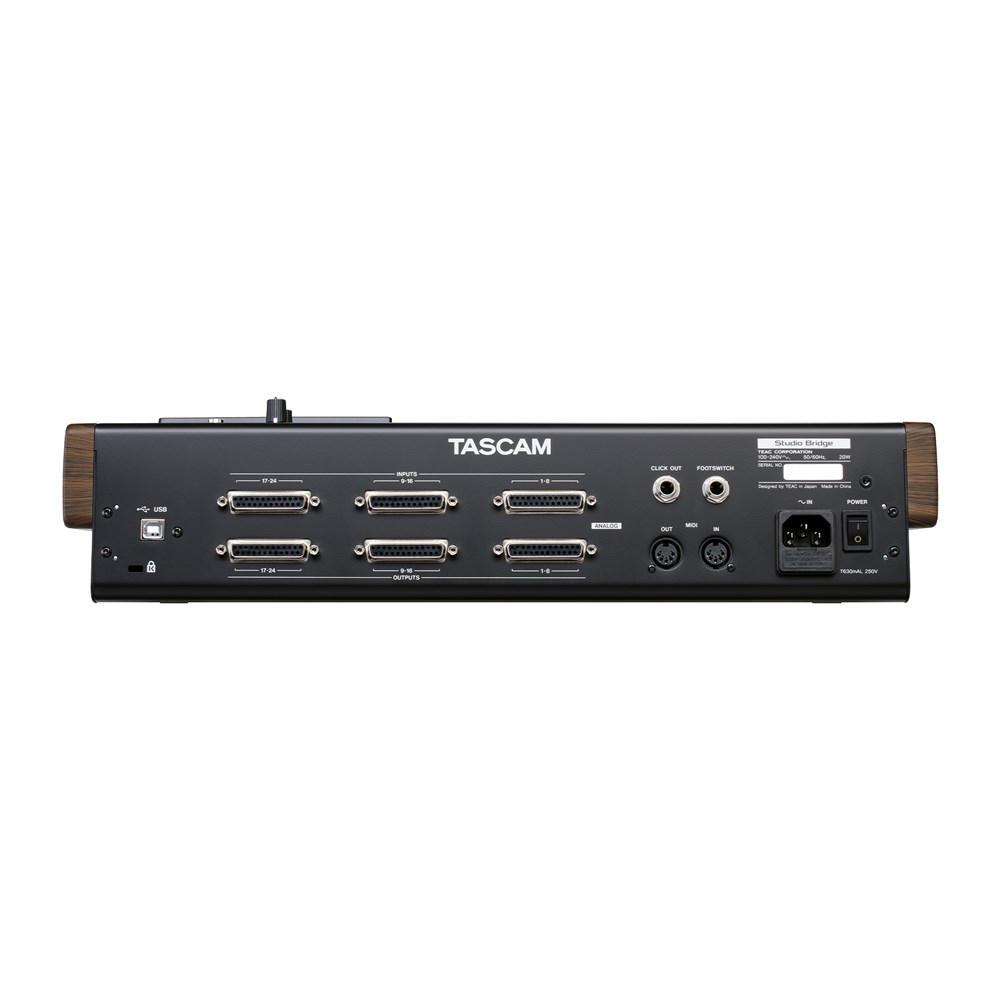

24 DB25 analog line level input and output
DAW transport control and REC READY control via HUI/MCU
Dedicated Settings Panel application with Meter Bridge MIDI IN/OUT allows USB MIDI interface and MIDI sync, 1/4" audio click output with tempo control


Additional Features
Headphone and Local Monitor Output
Dual Footswitch control
44.1k/48kHz 16/24bit WAV(BWF) format
Recording media SD card up to 512GB
MTC output and MIDI clock with Song Position Pointer
Built in Metronome and Click Out
19-inch Rack-mountable with optional AK-RMSTBG
