Products

Projectors

This is a Special Order Item

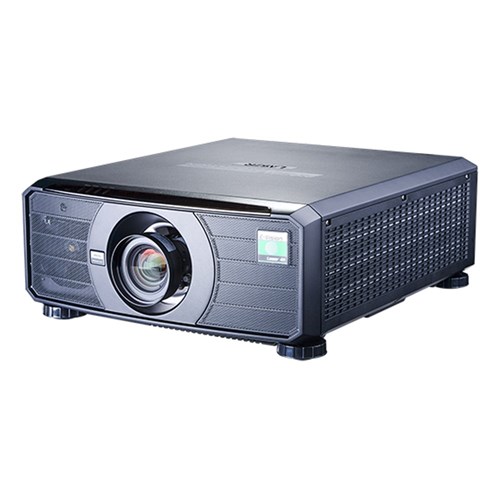

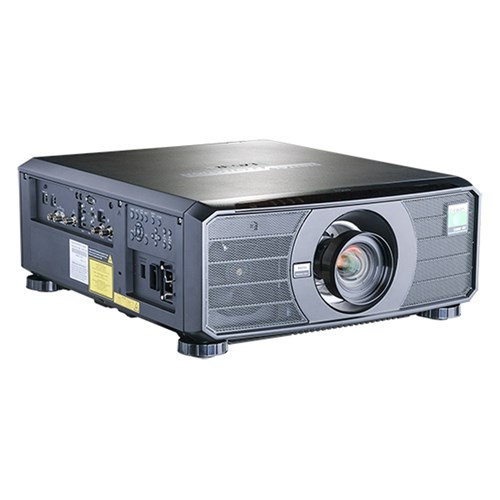

E-Vision Laser 4K HB 7500 Lumens

Product Code: DA-118-150

Brand
Digital Projection
RRP P.O.A.


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Digital Projection
Aspect Ratio 16:9
Native Resolution 4K
Projector Category Large Venue
Series E-Vision
  • Details
  • Downloads
  • Where to Buy
  • Ordering

E-Vision Laser 4K-UHD Black

7,000 ANSI / 7,500 ISO Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) 1,000:1 native | Part Number: 118-150



Colour System: DMD Specification:

  • Laser Phosphor with colourwheel

Display Type:

  • 1 x 0.67" WQXGA+ TRP UHD DMD™

Display resolutions

  • 4K-UHD (3840 x 2160) or WQXGA+ (2716 x 1528)
  • 8.3 megapixels on screen at 4K-UHD
  • Fast transit pixels for smooth greyscale and improved contrast.

Aspect Ratio:

  • 16:9

Fill Factor

  • Not applicable: Smooth Picture DMD™



Key Features

  • Video & Graphics Processing
  • Two projectors in one - 4K-UHD and WQXGA+.
  • DisplayPort 1.2.
  • 2 x HDMI 2.0.
  • 2 x HDMI 1.4b for Dual Pipe processing and Frame Sequential 3D format.
  • Sequential Processing: 3D via single HDMI 1.4b input.
  • Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs.
  • Synchronisation of active glasses.
  • 3G-SDI with loop-through.
  • DICOM simulation mode.




Geometry Correction

  • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.
  • Non-linear warp.
  • Digital zoom, pan and scan.
  • Blanking control for custom input window sizing.
  • Scaling available for fixed aspect ratio screens.
  • Unscaled processing for pixel mapped display.


Edge Blending

  • Blending control available for all sides with width control.
  • Correction for non-active pixels at the edge of the display.


Picture in Picture

  • Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained.


HDBaseT® Interface

  • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows projector to be placed up to 100m from source with low cost cabling.
  • Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4


Colour Processing

  • Four colour modes available.
  • Powerful seven point colour correction for accurate colour matching with presets.
  • Easy colour temperature selection.
  • Manual seven point colour adjustment.
  • Traditional lifts and gains.


Projector Controller Software

  • Intuitive user interface for network control.
  • Simultaneous control of user-defined groups of projectors.
  • At-a-glance monitoring of projector status.


Projector Automation

  • Real-time clock provides daily on/off automation.
  • E-mail alerts for system status.

Source Compatibility:

  • 2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs.
  • 3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs.
  • 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.

WQXGA+ mode

  • 2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+.
  • 3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+.

4K-UHD mode

  • 2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD.

Auto mode

  • Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD.
  • Sources up to WQXGA+ will be displayed scaled to fit WQXGA+.



Inputs/Outputs

Video & Computer

DisplayPort 1.2 (2D) x1
HDMI 1.4b (3D) x2
HDMI 2.0 (2D) x2
3G-SDI in (2D) x1
3G-SDI out x1
HDBaseT (see LAN) (2D) x1

Communication & Control

3D Sync Out x1
3D Sync In x1
LAN x2
RS232 x1
Wired Remote x1
12V Trigger x2
3D Sync IR Out x1

NOTE: One of the LAN ports is shared with HDBase-T.

3D Formats Supported

  • Frame Sequential
  • Dual-Pipe

HDTV Formats Supported

  • 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz)
  • 1080i (50Hz, 60Hz)
  • 720p (50, 60Hz)
  • 2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
  • 4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)

Computer Compatibility

2D

  • 4K-UHD up to 60Hz.
  • WQXGA+ up to 120Hz.

3D

  • Supported formats will be displayed within WQXGA+.

Bandwidth

  • 498 megapixels per second via DisplayPort and HDMI 2.0.

Remote Control

  • Addressable IR remote control, wireless and wired.
  • On-Board keypad

Automation Control

  • Crestron RoomView® Connected
  • PJLink Class 1
  • LAN
  • RS232
  • AMX (Device Discovery)
  • Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display)

Colour Temperature

  • 3200K to 9300K

illumination Type

  • Laser Light Source

Typical illumination Life

  • 20,000 hours



Lenses

Lens

Part No.

Focus Range

Lens Shift

0.38 :1 fixed 117-341 0.68m - 2.44m none
0.76 :1 fixed 112-499 0.81m - 5.08m none
0.74 - 0.93 :1 zoom 115-339 1.02m - 12.7m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.24 - 1.78 :1 zoom 112-500 1.33m - 11.73m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.71 - 2.25 :1 zoom 112-501 1.83m - 14.9m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
2.20 - 3.67 :1 zoom 112-502 2.36m - 24.2m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
3.54 - 5.36 :1 zoom 112-503 3.8m - 35.35m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
5.24 - 8.27 :1 zoom 112-504 5.59m - 54.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame



Lens Mount

  • Motorised and programmable shift, zoom and focus.
  • Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).

Mechanical Mounting

  • Front/Rear Table
  • Front/Rear Ceiling
  • Adjustable Front/Rear Feet

Orientation

  • Table Top or Inverted: Yes
  • Pointing Up: Yes
  • Pointing Down: Yes
  • Roll (Portrait): Yes


Weight (Chassis Only)

  • 28.15 kg

Dimensions

  • L: 58.0 cm W: 50.0 cm H: 21.1 cm
  • L: 22.8 in W: 19.7 in H: 8.3 in

Safety & EMC Regulations

  • CE, FCC Class A, CCC, UL/cUL, FDA CB, KC, EAC, CEL, CECP
