The EX-100-KVM-H2 is a professional 4K60 HDMI and USB 2.0 KVM extender designed to transmit video, USB peripherals, audio, and control signals up to 100 meters over a single Cat6 cable. Supporting HDMI 2.0, HDCP 2.3, HDR10, and bi-directional PoC, the system enables reliable remote workstation control with zero compromise in video quality.Ideal for conference rooms, education environments, and control systems, the extender simplifies installation while delivering seamless keyboard, mouse, and peripheral extension alongside ultra-high-definition video.
True 4K60 4:4:4 HDBaseT PerformanceThe EX-100-KVM-H2 delivers uncompromised HDMI 2.0 signal extension supporting resolutions up to 4K@60Hz with full 4:4:4 chroma sampling and HDCP 2.3 compliance. Unlike compressed extension solutions, the system preserves image clarity, color accuracy, and motion performance, ensuring content appears exactly as intended on remote displays. This makes it ideal forenvironments where visual fidelity matters, including corporate presentation spaces, digital signage control rooms, and professional collaboration environments.
Extended Reach with Dual Operating ModesDesigned for real-world commercial installations, the extender supports two transmission modes:
HDBaseT Mode: Up to 100m (328ft) with full 4K60 video and USB 2.0 performanceLong-Reach Mode (LRM): Up to 150m (492ft) for extended infrastructure flexibilityInstallers can adapt performance based on cable quality and project requirements without additional hardware.

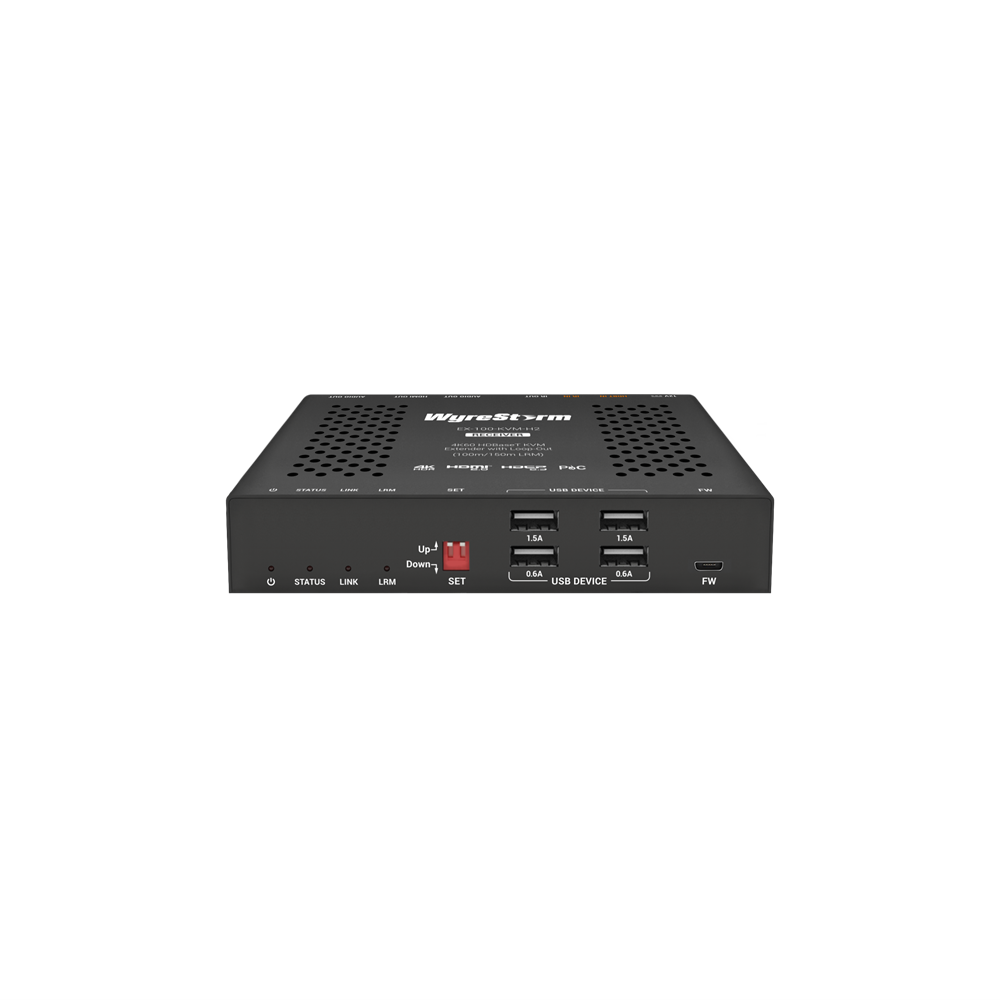

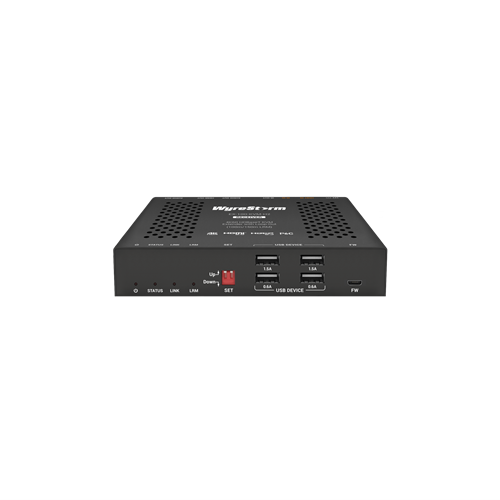

Integrated USB 2.0 KVM ExtensionThe EX-100-KVM-H2 extends USB devices alongside video, enabling complete remote control of PCs and media systems. Supporting keyboards, mice, touch displays, conferencing peripherals, and HID devices, the system transforms remote displays into fully interactive workstations. With up to four USB device connections at the receiver, users experience seamless operation as if the source computer were locally connected.

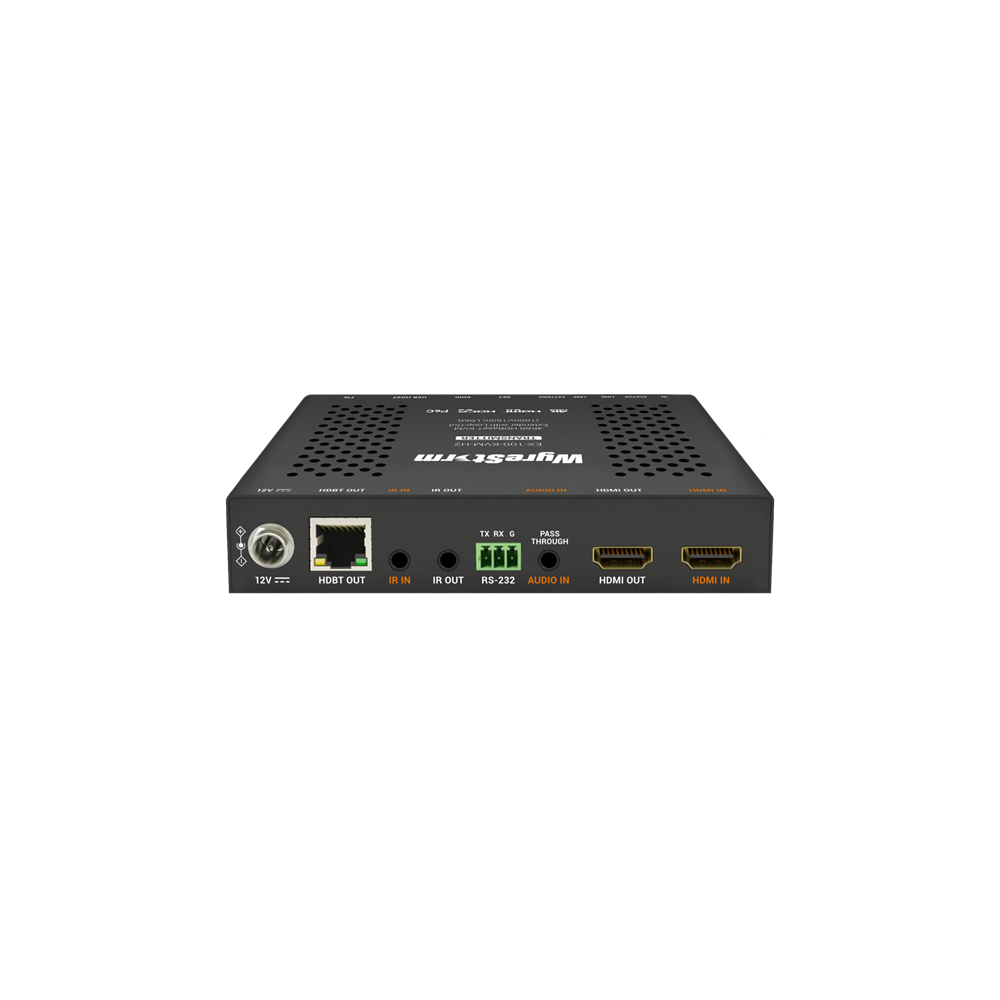

HDMI Loop-Out for Local MonitoringA built-in HDMI loop-out on the transmitter provides simultaneous local video output while extending the signal remotely. This allows integrators to add confidence monitoring, rack displays, or local operator screens without requiring external splitters or distribution amplifiers. This feature simplifies system design while reducing cost and rack complexity.
Technical Specifications
AUDIO AND VIDEO
Outputs

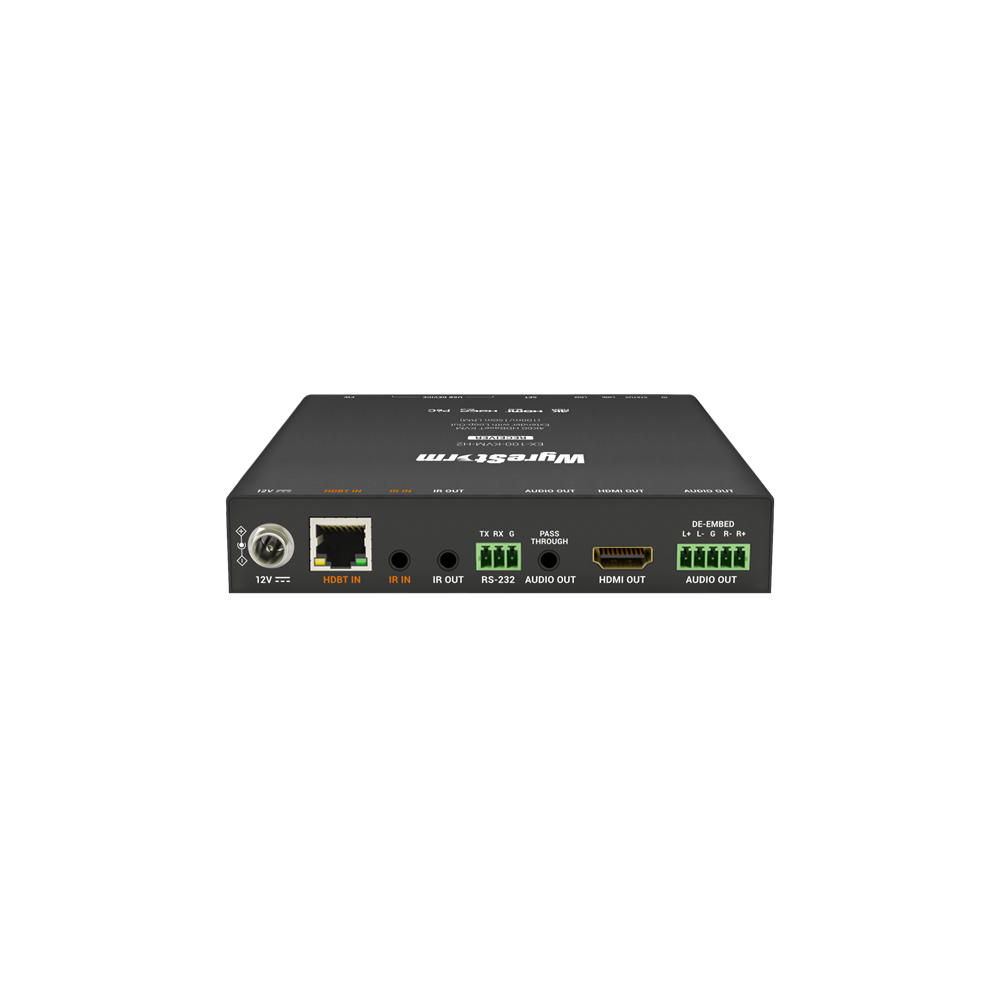

TX:1x HDMI 2.0 Loop Out (Type-A female), 1x HDBaseT RJ-45, 1x IR 3.5mmRX:1x HDMI 2.0 (Type-A female), 1x Audio Out (Passthrough), 1x Balanced Analog Audio Out, 4x USB-A, 1x IR 3.5mm
Inputs

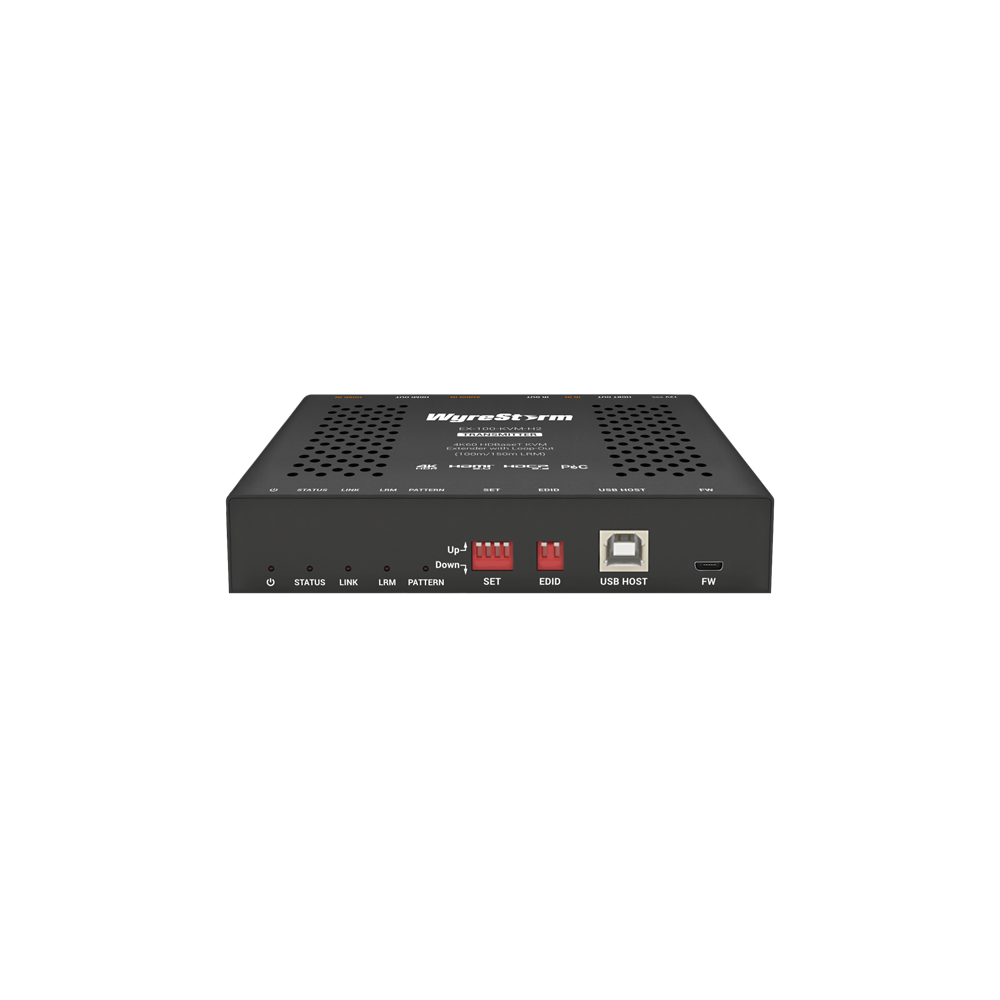

TX: 1x HDMI 2.0 (Type-A female), 1x USB-B, 1x Audio In (Passthrough), 1x IR 3.5mmRX:1x HDBaseT RJ-45 , 1x IR 3.5mm
Video Encoding
HDMI 2.0
Audio Formats
HDMI IN/OUT: Up to 7.1ch, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:XAUDIO OUT: PCM 2.0
Video Resolution (Max)
3840×2160@60Hz 4:4:4
Supported Standards
HDMI 2.0, HDCP 2.3
Performance
HDMI bandwidth: 18GbpsUSB bandwidth: 255 MbpsHDBaseT Mode: 4K60 + USB2.0 up to 100mLong-Reach Mode: 4K60 + USB1.1 up to 150m
COMMUNICATION & CONTROL
HDMI
HDMI 2.0 | HDCP 2.3 | EDID | CEC Pass-through
HDBaseT
HDMI | HDCP 2.3 | EDID | Line Audio | 1-way PoH (RX powers TX) | Bidirectional IR | Bidirectional RS-232 | CEC
RS-232
1x RS-232: 3-pin Phoenix (Transmitter and Receiver)
USB
1x Type B (host) | 4x Type A (device) Maximum uplink speed: 255Mbps
EDID Setting
DIP Switch copy and fix
Firmware Update
Micro USB port
POWER
Power Supply
12V DC 3A
ENVIRONMENTAL
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
10% to 90%, non-condensing
ESD Protection
Human-body Model:±8kV (Air-gap discharge) / ±4kV (Contact discharge)
DIMENSIONS
Height
25mm / 0.98”
Width
140mm / 5.51”
Depth
100mm / 3.94”
Weight
TX: 0.33kg / 0.73lbRX: 0.34kg / 0.75lb
REGULATORY
Safety and Emission
CE | FCC | RoHS | RCM | EAC | UKCA
In the Box1× EX-100-KVM-H2 Transmitter1× EX-100-KVM-H2 Receiver1× 12V 3A Locking PSU (multi-region)8× Mounting ears2× 3-pin Phoenix connectors1× 5-pin Phoenix connector1× IR Receiver1× IR Transmitter1× Quick Start Guide
