The EX-60D-KVM is a dual-display HDMI KVM extender designed to transmit two 1080p video signals and USB peripherals over a single category cable up to 80 meters. Using visually lossless compression, the extender allows dual HDMI displays and USB devices to operate remotely from a central computer while maintaining reliable performance and simplified installation. Ideal for dual-monitor workstations, training environments, and light commercial control applications, the EX-60D-KVM delivers efficient workstation extension using a single-cable infrastructure.
Dual HDMI 1080p ExtensionThe EX-60D-KVM simultaneously transmits two independent HDMI video streams at up to 1080p60 4:4:4 over a single category cable. This capability makes the extender ideal for dual-monitor workstations, allowing users to maintain their full desktop workspace remotely without compromising performance or requiring additional infrastructure.
Integrated USB 2.0 KVM Extension for Full Workstation ControlThe extender includes a USB 2.0 host connection on the transmitter and four USB device ports on the receiver, enabling remote connection of keyboards, mice, touchscreens, cameras, storage devices, and other peripherals. Supporting USB data rates up to 480 Mbps, the EX-60D-KVM ensures responsive operation of USB devices and seamless remote workstation control, making it well suited for professional computing environments and operator workstations.
Long-Distance Transmission up to 80mDesigned for flexible deployment, the EX-60D-KVM extends video and USB signals over standard Cat5e/6/6a/7 cabling.
The system supports:
Up to 60m (197 ft) when using full USB 2.0 bandwidth devicesUp to 80m (262 ft) when using USB HID peripherals such as keyboards and miceThis flexibility allows integrators to adapt installations based on the required USB devices while maintaining reliable dual-display operation.
Single Power Supply with Integrated Power over Cable (PoC)The receiver unit powers the transmitter through one-way Power over Cable (PoC), allowing both units to operate from a single power adapter installed at the receiver side. This design simplifies installation, reduces the number of power supplies required in a system, and enables cleaner deployments in equipment racks, workstations, and control environments.
AUDIO AND VIDEO
Inputs

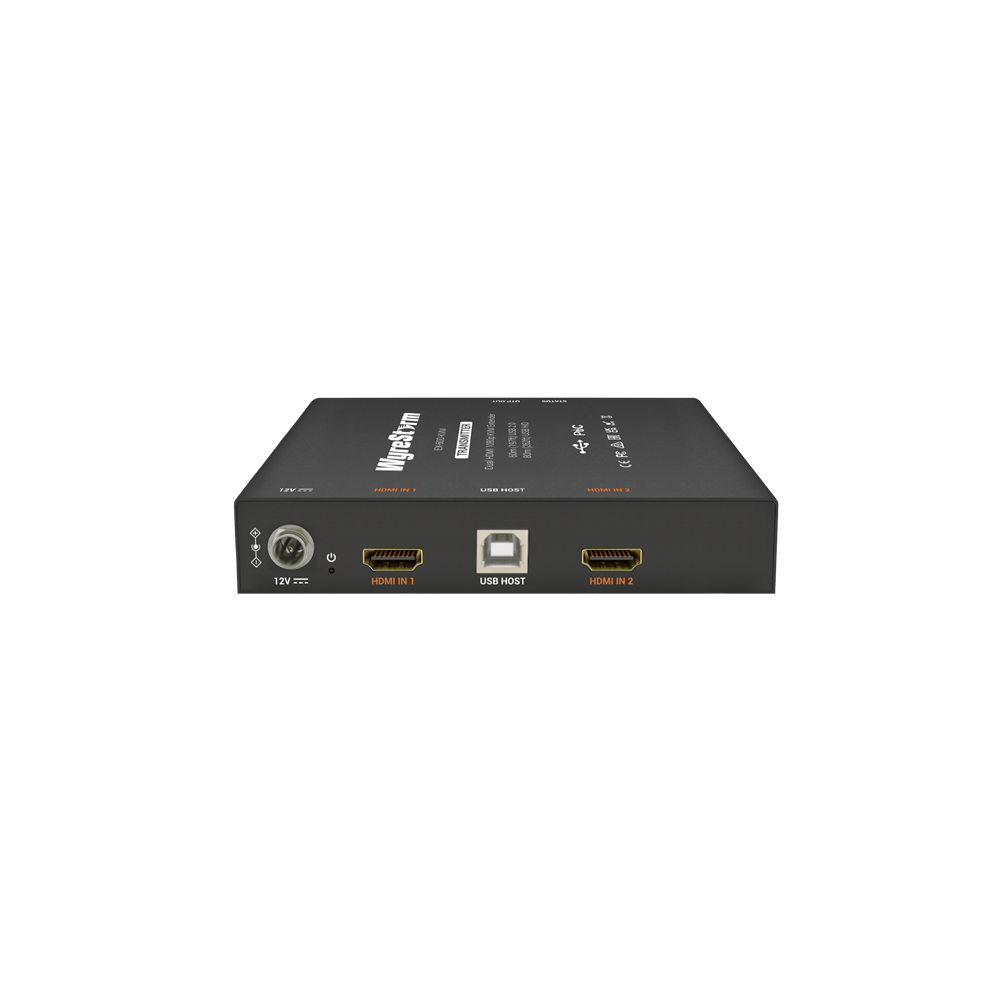

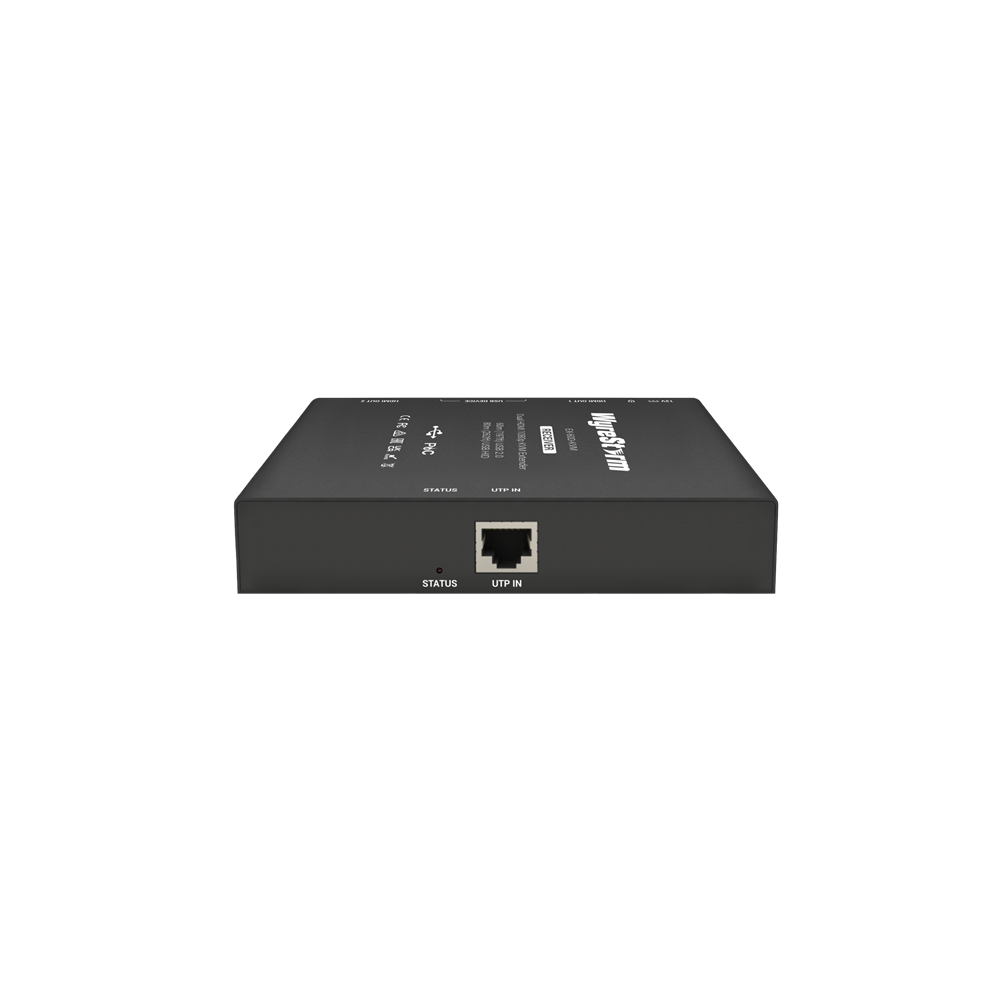

Transmitter: 2x HDMI IN, 1x USB Host (Type-B)Receiver: 1x UTP Input (RJ45)
Outputs

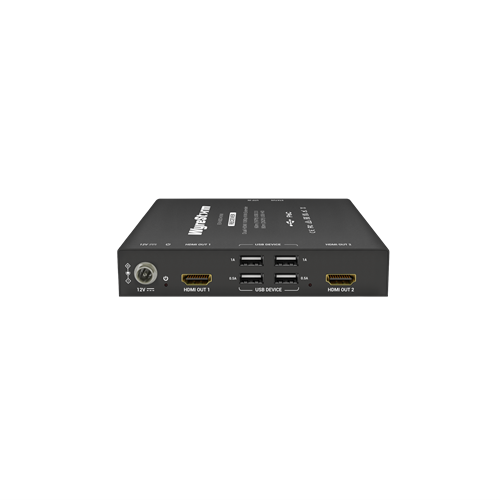

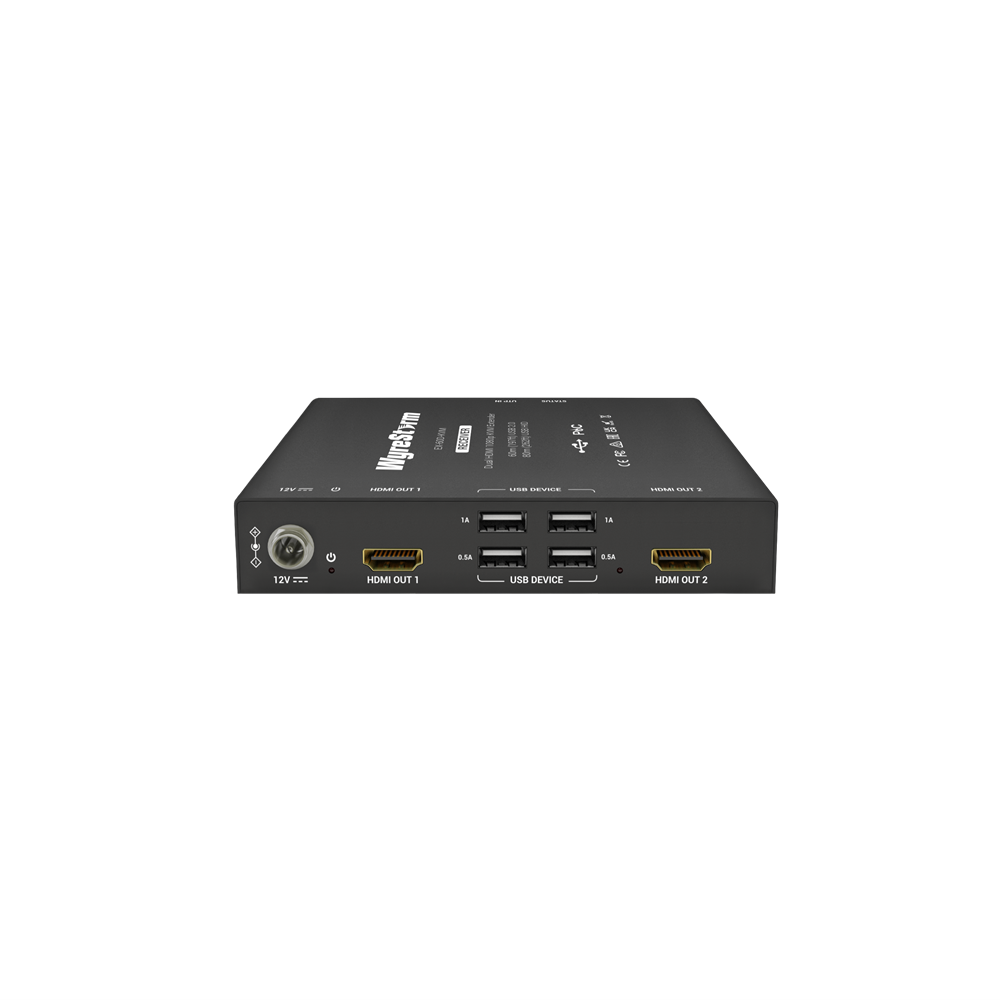

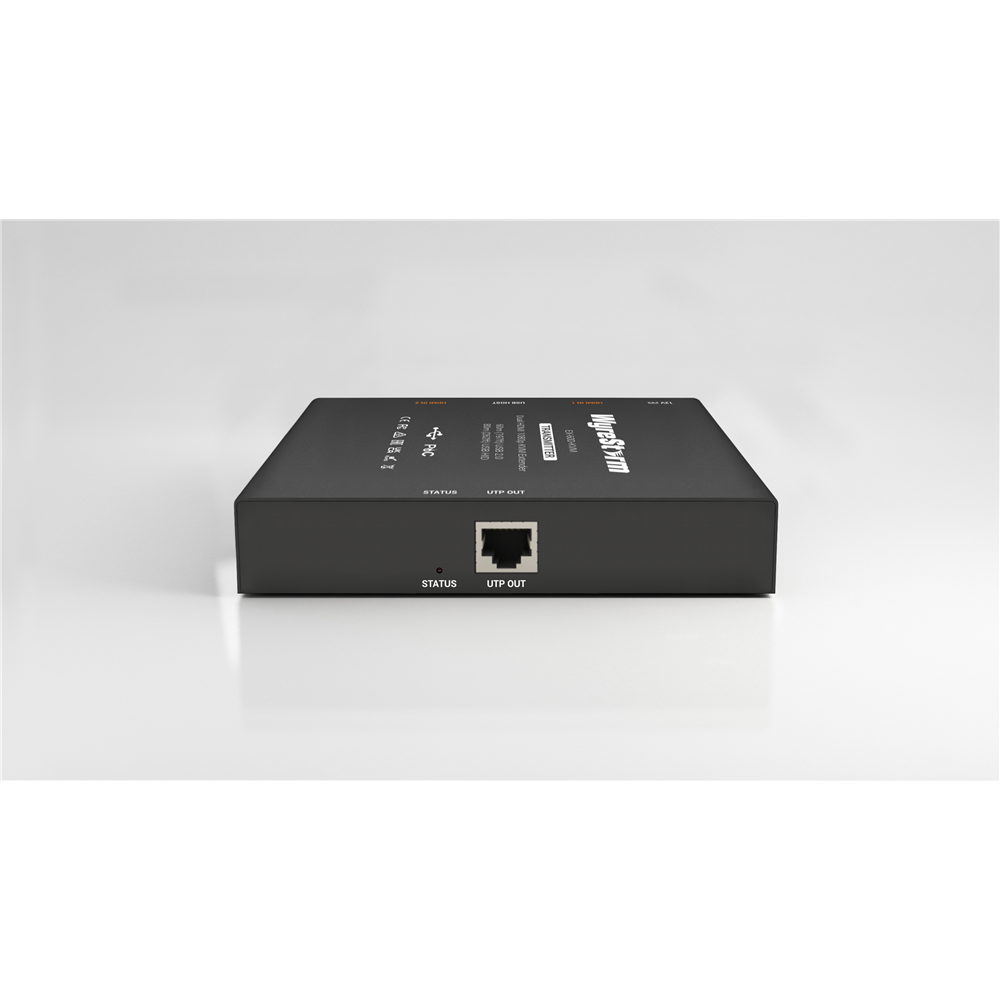

Transmitter: 1x UTP out (RJ45)Receiver: 2x HDMI OUT, 4x USB 2.0 Type-A out
Supported Standards
HDMI 1.4
EDID
Fixed 1080p60
Data Rate
HDMI: 4.455GbpsUSB: 480Mbps
Transmission Distance
USB-HID Device: Up to 263ft (80m)USB 2.0 Storage Device: Up to 197ft (60m)
POWER
Power Supply
DC 12V
PoC
One-way PoC supporting, Tx -> Rx
ENVIRONMENTAL
Operating Temperature
0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature
-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
DIMENSIONS AND WEIGHT
Height
25mm/0.98in
Width
215mm/8.46in
Depth
120mm/4.72in
SAFETY AND EMISSION
CE | FCC | RoHS | RCM | EAC | UKCA
