Exstreamer M400 Package (**Same Firmware as IP Former) Barix

Product Code: BX-BAR20209294

Brand
Barix
RRP $589.00


Unit of Measure
EACH



2 Year
Technical Specifications
Brands Barix
  • Details
  • Downloads
  • Where to Buy
  • Ordering

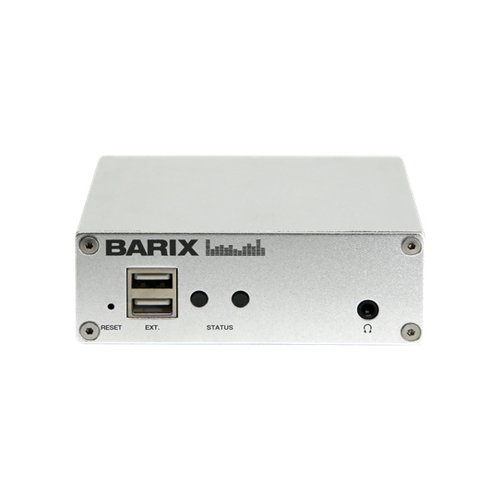

EXSTREAMER M400


Multiformat IP Audio Decoder
The Exstreamer M400 feeds your PA and turns it into a rich Audio over IP system. A wide variety of audio environments, such as SIP, InformaCast and Syn-Apps and are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTPS and S/RTP. Audio files can be stored on the internal memory and their playback can be trigger ed via a simple UDP command.

Thanks to the priority handler, the Exstreamer M400 can be configured to switch between sources according to on of the five priority settings and therefore eliminates the need for an audio matrix device. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.


Specifications

  • OPERATION SYSTEM: Embedded Linux based on Yocto
  • NETWORK INTERFACES:
    • 1 x Ethernet (RJ45) Interface
    • IPv4, IPv6 capable
    • 10/100 fdx/hdx, auto negotiation
  • PROTOCOLS:
    • TCP/IP, UDP, RTP, SIP, CGI, HTTP, DHCP
    • Singlewire InformaCast compatibility
    • Syn-Apps Revolution compatibility
  • AUDIO INTERFACE:
    • balanced mono Line level output on screw terminal
      connectors
    • Headphone connector on the front panel
  • AUDIO FORMATS:
    • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
    • AAC-HE (AAC, AAC plus, AAC plus V2)
    • PCM linear 16bit @44.1 kHz
    • 711
    • Opus, WAV, OGG Vorbis
  • RS-232 INTERFACE: Serial Port
    CPU / MEMORY:
    • Barix IPAM400 Processor Module
    • Quad-Core ARM Cortex™ -A7
    • 2GB DDR3 SDRAM
    • 16MB SPI Flash
    • 8GB SD-Card Flash

  • USER INTERFACE
    • Flexa portal for configuration
    • 2 x Multicolor LED Status indicators
    • Reset & Factory Defaults Button
  • POWER REQUIREMENTS:
    • PoE or
    • 5VDC, 10W maximum on screw terminal connector (positive polarity)
  • MTBF: > 200’000h
  • MEASUREMENT: 7mm (4.25x1.5x3.1 inch
  • WEIGHT: 250g
  • WARRANTY: Two years
