Chiayo Electronics

This is a Special Order Item

Focus Port Pa & 1 X Uhf+Bt Band 6 650MHZ old part CH-FOCUS-U0PB

Product Code: CH-FOCUS-UPB-6

Brand
Chiayo
RRP $969.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Chiayo Electronics
  • Details
  • Downloads
  • Where to Buy
  • Ordering

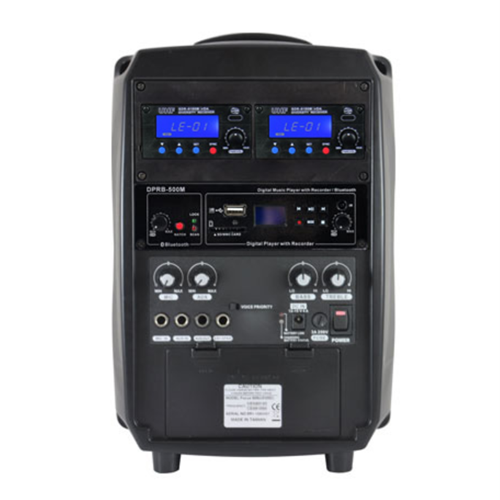

Focus 505 40 watt portable PA with 6.5 inch speaker.

Includes DPRB500M Digital rec/play, USB/Bluetooth module only, no receiver modules and 1 x SDR8100M-6 diversity UHF 100 channel receiver module.

Lead acid batteries.Band 6 650 - 675 MHz.

Transmitter not included

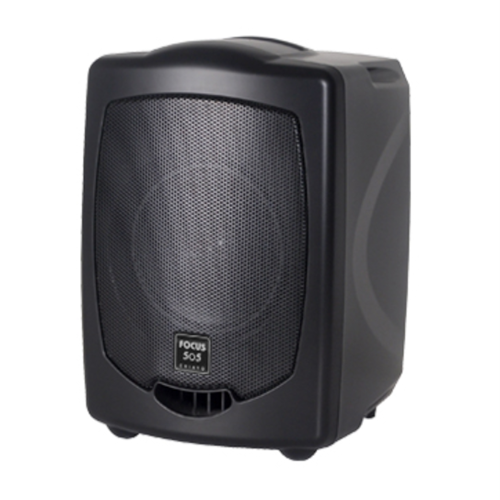

Focus 505

Features
  • 50W Class-D amplifier to power a 6" full-range driver.
  • MIC IN (Φ6.3mm jack) for microphone with volume control.
  • AUX IN (Φ6.3mm jack) with volume control.
  • Up to 2 diversity receiver modules with 100 frequencies.(optional)
  • Scan and Sync button for quick and simple mic channel set-up.
  • SPEAKER OUT (Φ6.3mm jack) for an external 4Ω passive speaker.
  • VOICE PRIORITY automatically ducks music when a microphone is used (switchable).
  • 2-band equalizer (BASS / TREBLE) for all audio inputs.
  • Smart charging circuit with battery indicator LED and charging LED.
  • User friendly battery compartment design for simple battery replacement.
  • Tripod stand mountable with ST-40.
  • Up to 12 hours operating time per charge with Lead-Acid battery.
  • 2 power modes: Internal Rechargeable battery & DC jack.


DPRB-500M

MP3 Recorder + Bluetooth Receiver Module

Features
  • MP3 recorder player with Bluetooth receiver function.
  • Able to record and read MP3 files in the USB and SD card.
  • Clear and intuitive LCD display for easy operation and quick set-up.
  • Selectable repeat and play modes.
  • Remote control for more setting convenience.
  • Individual power / volume control for MP3 and Bluetooth.

SDR-8100M IrDA

UHF 2-Way Sync Diversity Receiver Module


Features
  • World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • 100 factory preset user-selectable UHF channels.
  • Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts.
  • Clear and intuitive LCD display for easy operation and quick set-up.
  • Balanced and unbalanced audio output.
  • 20-pin golden finger for easy installation.

Product Documents

No documents available
