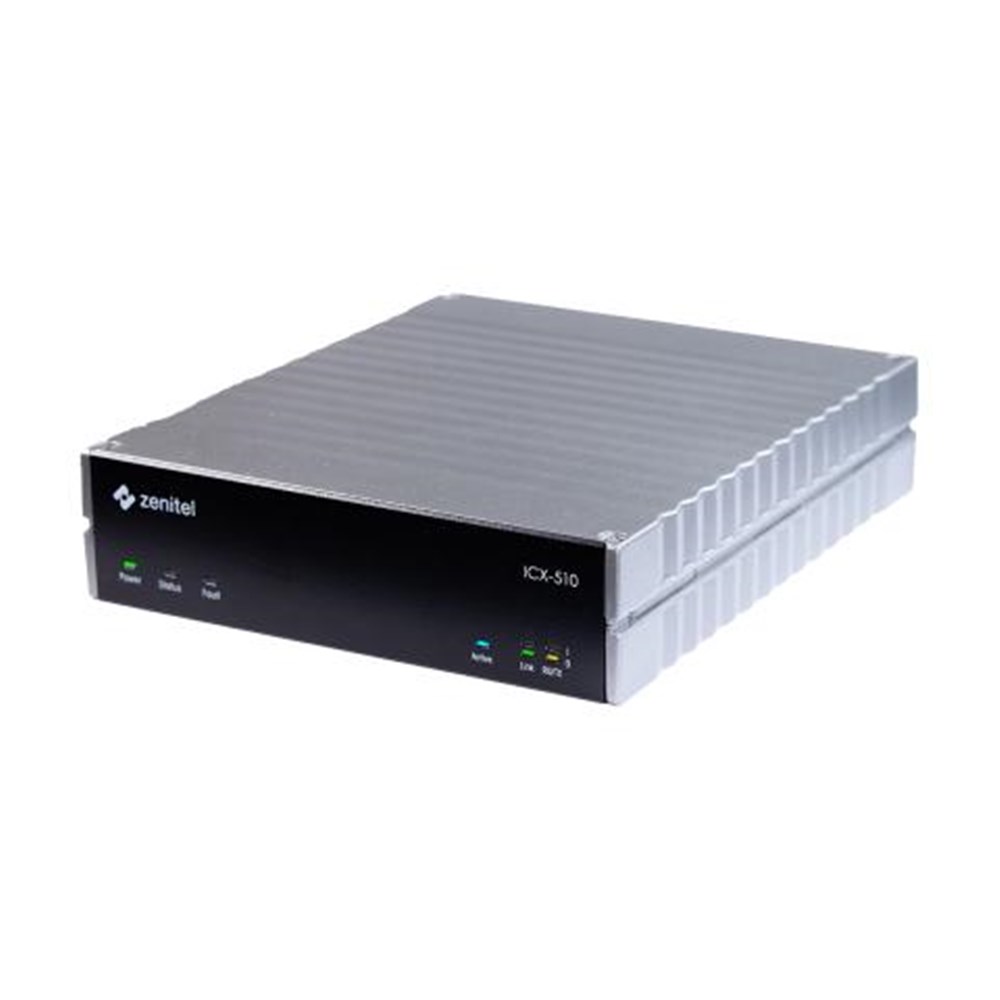

ICX-510 Gateway incl ICX- Core ICX-510-IA Zenitel

Product Code: ZE-ICX-510-IA

Brand
Zenitel
$5,300.00 inc GST
RRP $5,300.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

The ICX-510-IA Intelligent Communication Gateway connects people, devices, and systems at unprecedented levels of manageability, scalability, robustness, and interoperability. ICX-510-IA will provide your site with all your communication needs as it is easy to extend in functionality and system size, and is designed to be future-proof. The system can be tailored to support applications of almost unlimited specificity and complexity.

Zenitel’s ICX (Intelligent Communications X) implies the deployment of VoIP applications required in critical situations. ICX-510-IA provides carrier-class system availability and protects resources in an IP environment by using embedded security mechanisms. The main security mechanisms used are hardware Root of Trust, software integrity check (SHA256), restricted management access, separate management interface, and internal firewall.

ICX-510 incl ICX-AlphaCom Core

  • Made to provide critical communication in any environment
  • Supports 552 IP stations
  • Environmentally friendly and energy saving - max. 15 W
  • Global networking and integration
  • Dual software images for system robustness and low downtime during software upgrades
  • Secure boot, hardware Root of Trust - RoT
  • High quality professional PA broadcasting and messaging services
  • Security voice guidance for public safety and building security
  • 1U high, fanless design, vibration proof

MECHANICAL & ENVIRONMENTAL
  • Dimensions (WxHxD)    162 x 44.5 x 200 mm / 6.38 x 1.75 x 7.87 inches
  • Weight    1 kg / 2.2 lbs
  • Power    Nominal 24VDC - 48VDC, 15 W (min/max: 20VDC-63VDC)
  • Mounting    Wallmount or 19” rack
  • Processor subsystem    NXP LS1043
  • Storage subsystem    Solid state (4048 MB Flash). MicroSD, USB
  • Temperature Range    -15°C to +55°C / 5°F to 131°F
  • Relative Humidity    95%
FEATURES
  • Memory    4048 MB SDRAM, 4048 MB NAND Flash, 128 MB NOR Flash
  • Subscriber Capacity    552 intercom stations per server
  • Busy Hour Call    60 000 BHCA
  • Network ports    High speed, up to 1 gigabit per second
  • Software Integrity Check    SHA256
  • IP Priority    DiffServ, IP TOS
  • IP Security    Hardware root of trust, SSH, HTTPS, firewall
  • SIP    RFC 3261, SIP INFO, RE-Invite. RFC 2833, RFC 4733,
  • VoIP Internal Networking    64 channels
  • VoIP External Networking    64 channels
  • ISDN Trunk    ISDN PRI (30 channels); VoIP external networking + gateway
  • Analog Trunk    FXO (4 & 8 channels); VoIP external networking + gateway
  • GSM Trunk    Quad band GSM; VoIP external networking + gateway
  • Other    Vingtor-Stentofon Data scripting engine (EDIO)
  • VoIP Audio    HD Audio - 16 kHz (background music, see additional information on the Zenitel wiki), HD Voice - G.722 (7 KHz), Telephone Audio - G.711 (3.4 KHz)
  • Configuration    AlphaPro over IP, Web
  • Monitoring and Logging    SNMP trap, SNMP MIB, syslog, Web, e-mail, SqLite
  • SW Upgrade    System recovery upgrade via SD-card, Web, Automatic upgrade of IP station
  • Open Duplex Conference    20 open duplex conferences can be configured. A maximum of 16 subscribers can participate in 1 conference but maximum 64 subscribers can participate divided over multiple channels simultaneously.
  • Push-to-Talk Conference    50 conference channels. Unlimited number of participants. Priority features
  • Group Call    250 groups. Unlimited number of participants. Priority features
  • Call Modes    Open mode. Ringing mode. Call request mode. Priority features
  • Audio Messaging    PA broadcasting. Auto-attendant, Voice guidance (doors, elevators), Security voice response
  • Compliance    CE, FCC Part 15
  • Certifications    IEC/UL62368-1, EN61000-6-X, EN60945, EN 50121-4; In order to comply with UL safety requirements, the unit has to be supplied by a power supply specified as a Limited Power Source (LPS) or PS2 (cased on IEC/UL 62368-1 definition) or NEC Class 2 source of supply
CERTIFICATIONS
  • EMC    IEC/EN 61000-6-2 Industrial Immunity
  • IEC/EN 61000-6-4 Industrial Emissions
  • IEC/EN 61000-6-1 Light Industrial Immunity
  • IEC/EN 61000-6-3 Light Industrial Emission
  • EN 55032 class B Multimedia equipment
  • Maritime    IEC/EN 60533 Maritime
  • IEC/EN 60945
  • Vibration    2Hz-100Hz (IEC/EN 60068-2-6)
  • Dry heat    55°C (131°F) (IEC/EN 60068-2-2)
  • Low Temperature    -15°C (5°F) (IEC/EN 60068-2-2)
  • Damp Heat, Cyclic    40°C (104°F) / 93%RH (IEC/EN 60068-2-2)
  • Safety    UL62368-1 certification
  • CB certification to IEC62368-1
