Infinium Auracast System Kit - 4 Receivers

Williams AV (WI-BASYS2)

Brand
Williams AV
$8,599.00 inc GST
RRP $8,599.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Williams AV
  • Details
  • Downloads
  • Where to Buy
  • Ordering

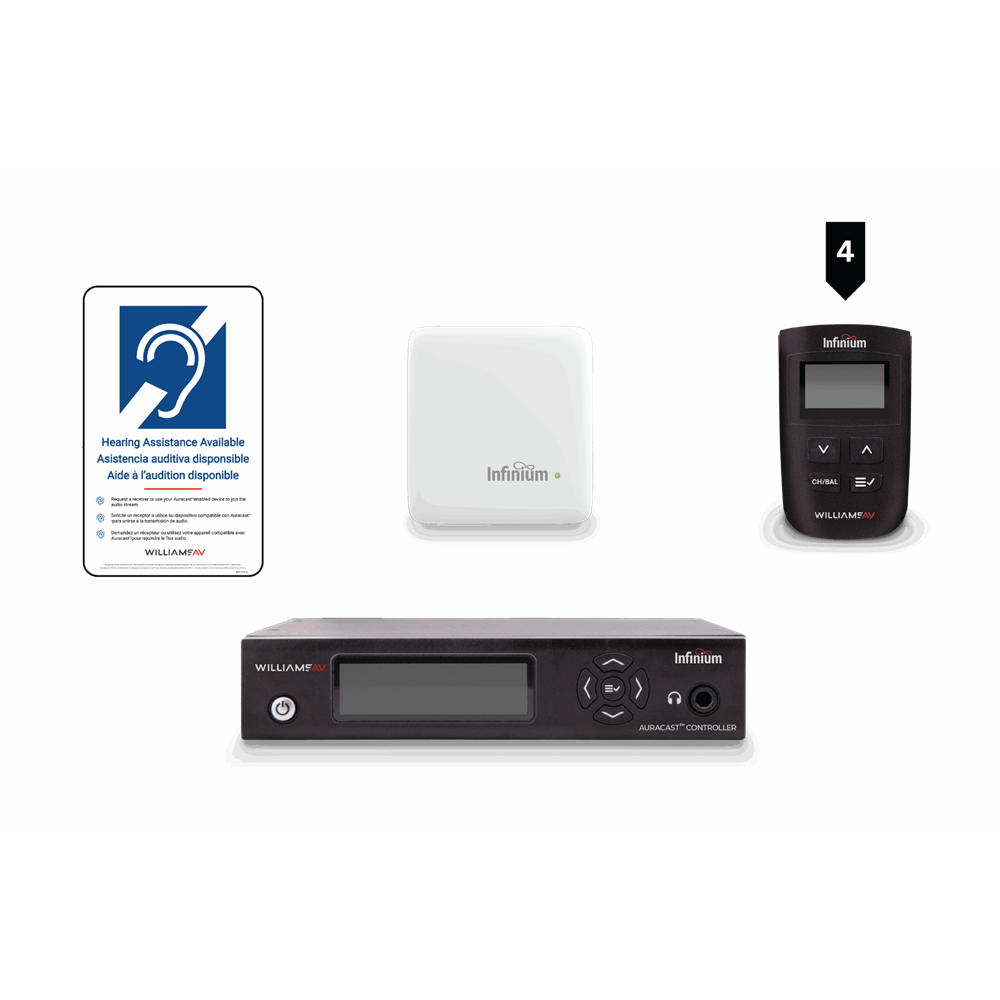

System Includes

(1) BA CT1 (Infinium™ Controller and Transmitter package)
(4) BA R1 Infinium™ receivers
(1) CHG 004 6 bay charger
(1) IDP 018 Auracast® ADA wall plaque
(2) NKL 001s Neckloops
(4) HED 024 headphones
(1) RPK 005 Rack mount kit

Infinium™ Modular Broadcast Audio System – Auracast™ Assistive Listening for Pro AV

Designed specifically for commercial AV environments, Infinium™ by Williams AV is a modular Auracast™ broadcast audio solution delivering real-time, high-fidelity audio for assistive listening, multilingual events, and audio description. Supporting unlimited Auracast™ enabled devices—from hearing aids and cochlear implants to headphones and Infinium™ receivers—Infinium™ provides inclusive audio coverage for venues aiming to meet ADA and accessibility standards.


Product Highlights

  • Professional AV Controller – Rack-mount ready with both analogue and Dante® inputs. Configure and monitor via the front panel or remotely through a web interface.

  • Compact Transmitter – Quick installation with a single CAT cable for audio and power. Broadcasts up to 100 metres with 360° coverage.

  • User-Friendly Receiver – The ergonomic Infinium™ R1 receiver includes a large OLED display, user-adjustable audio balance, and an all-day lithium-ion battery.

  • System Includes: 4-bay charger, rack-mount kit, and accessories (see full product details for complete list).


Infinium™ System Features & Benefits

  • Modular Architecture – Controller and transmitter are separate for flexible AV integration and placement.

  • Simple Setup – Transmitter installs easily via a single CAT cable, streamlining deployment for AV professionals.

  • Remote System Management – Configure, monitor and troubleshoot onsite or remotely, with live audio monitoring outside the broadcast zone.

  • Comfort-Focused Receivers – Infinium™ R1 receivers offer a high-contrast display, intuitive controls, and charging via USB or docking station.

  • Auracast™ Compatibility – Seamless audio delivery to both venue-provided receivers and personal Auracast-enabled hearing devices.

  • Dante® Integration – Fully compatible with Dante® AV networks, enabling efficient, scalable audio distribution.


Perfect For Use In:

  • Theatres and performing arts centres

  • Lecture halls and classrooms

  • Airports and transport terminals

  • Gyms and fitness studios


Infinium™ sets a new benchmark for assistive listening systems, delivering exceptional clarity, flexibility, and ease of integration across modern venues prioritising accessibility and inclusion.

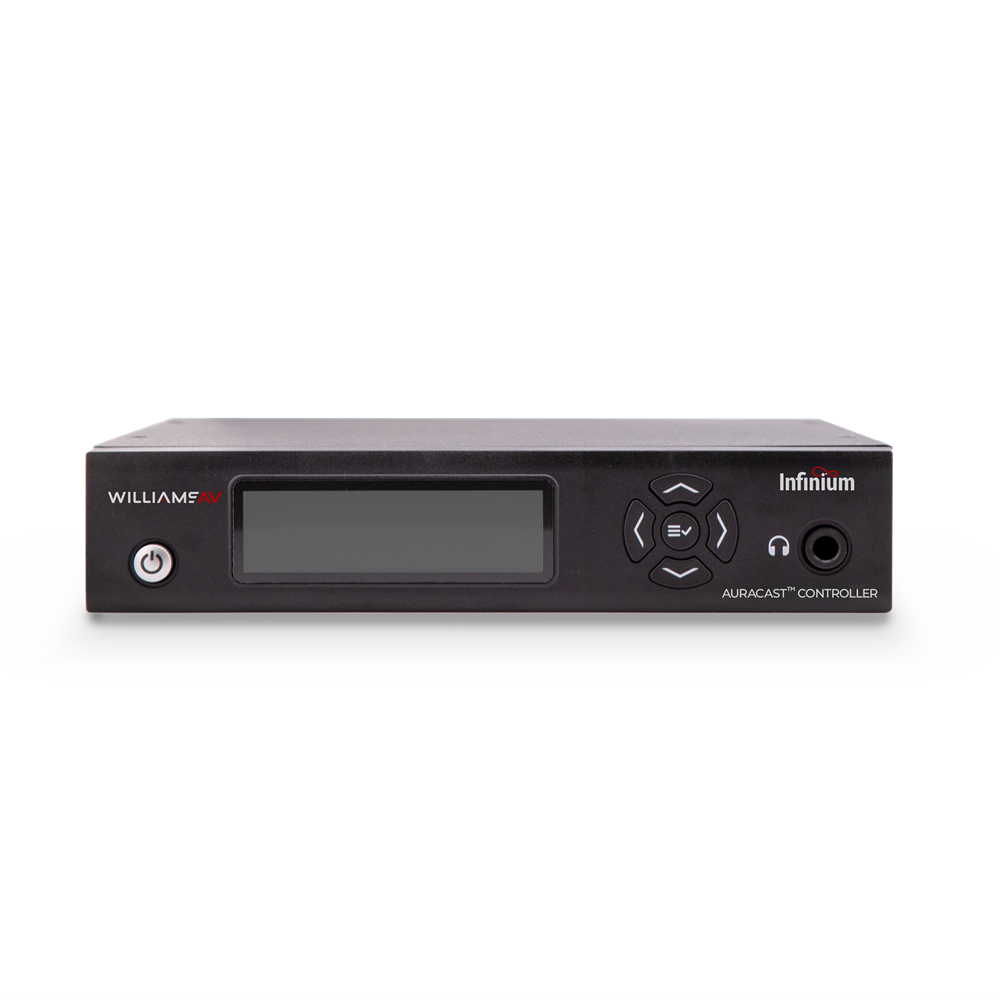

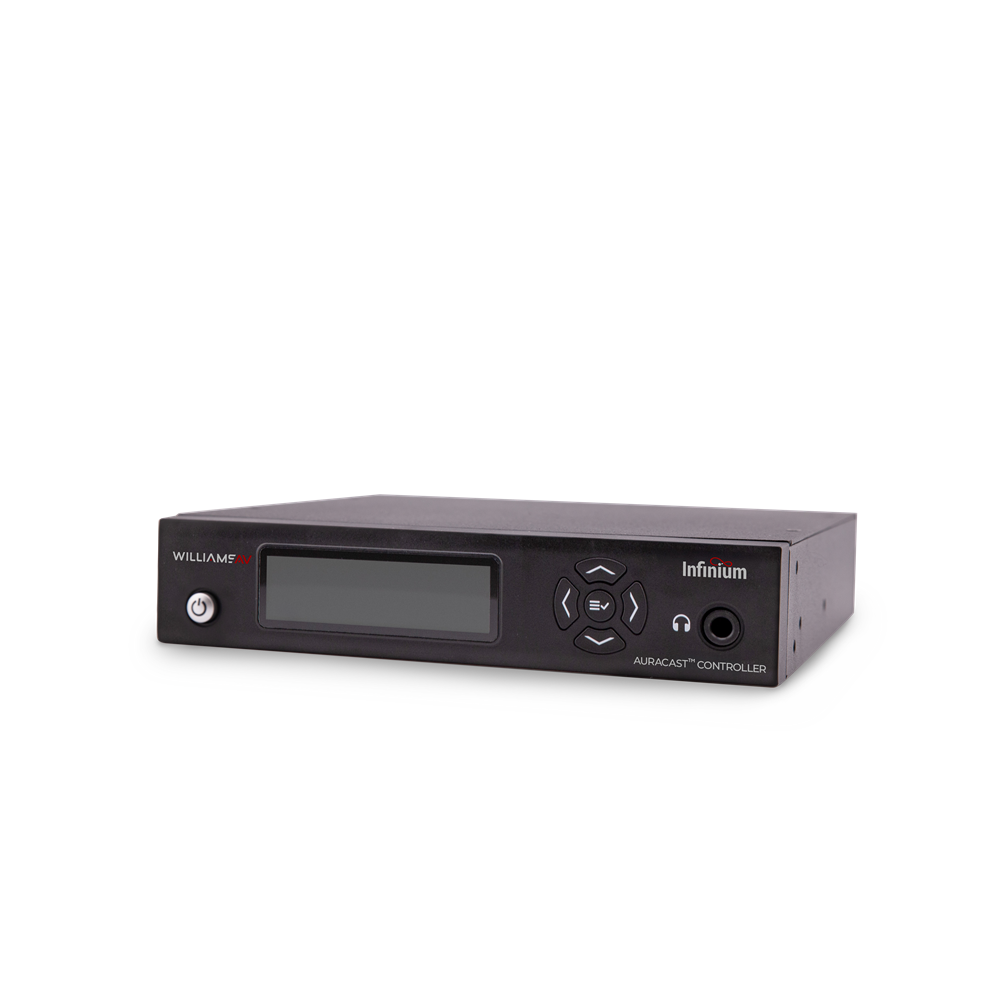

Controller

Dimensions 8.45″ W x 8.25″ D x 1.72″H (21.5 cm x 21 cm x 4.4 cm)
Weight 2.3 lbs (1.04 kg)
Color Black
Installation Configurations Rack Mount: Standard 19” Rack, one EIA rack space high, 1/2 space wide
1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Shelf:
 Can sit on shelf, table, podium, etc.
Temperature Range – Operating +32° F to +122° F (0° C to 50° C)
Temperature Range – Storage -4° F to +158° F (-20° C to 70° C)
Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
Power Button Push On/Push Off latching power button.
Ethernet Control Port (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T
Front Panel Display 3.12” High Resolution OLED Direct Entry UI with button entry programming and status indicator selections.
Dante (1x) RJ-45 jack.
Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
PoE Power Out PoE
Compliance Approvals FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme
Warranty 2-year parts and labor

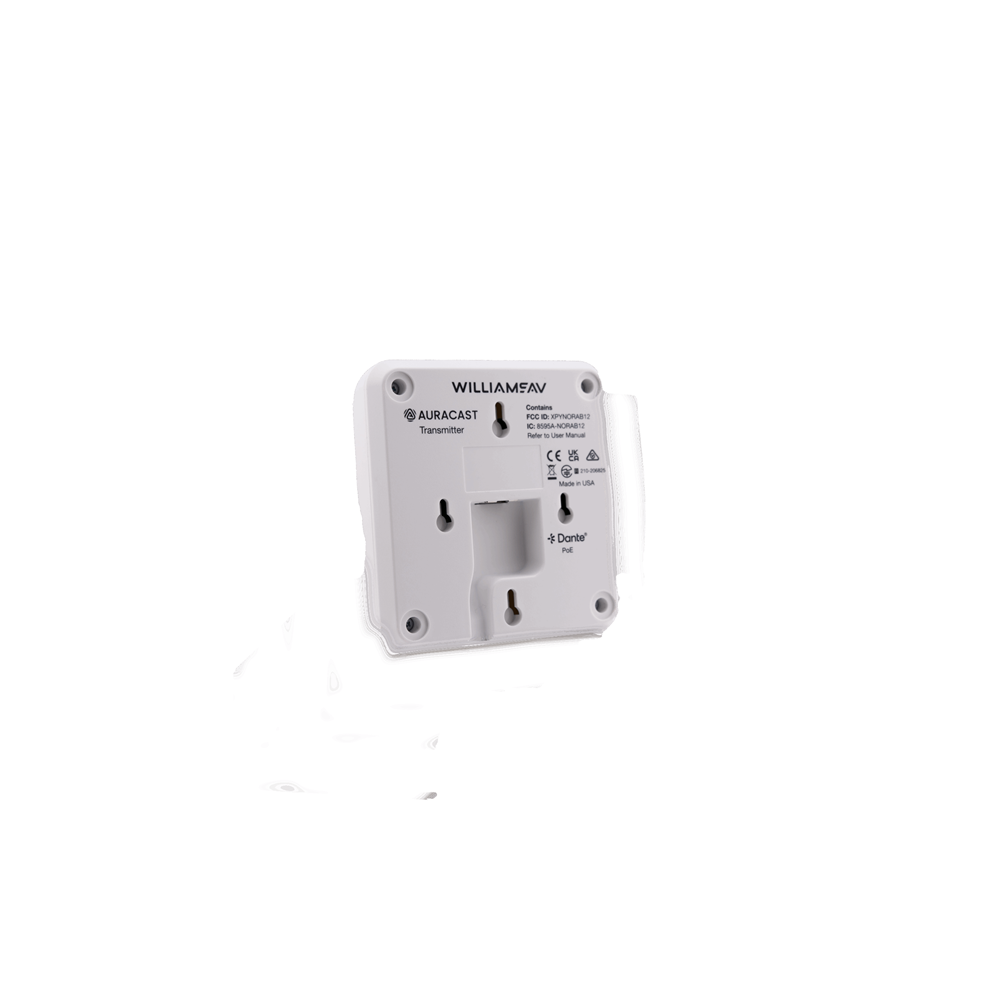

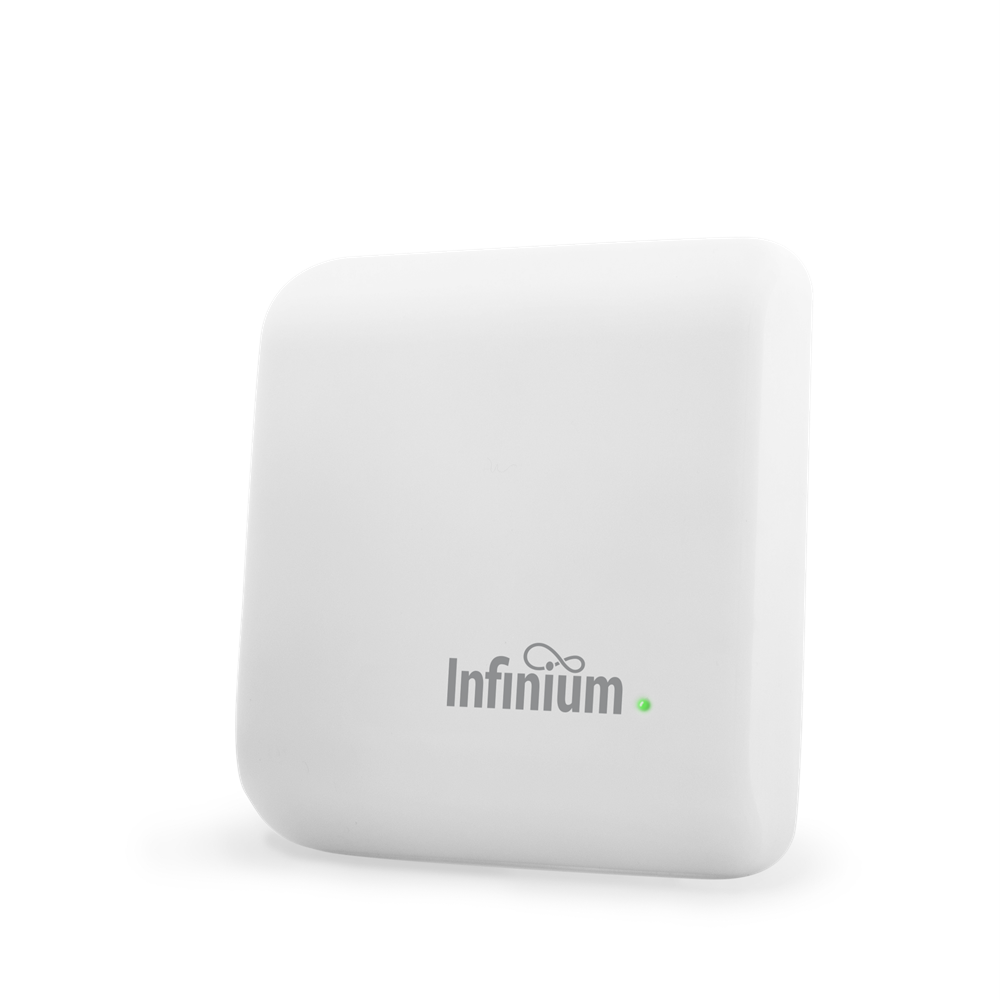

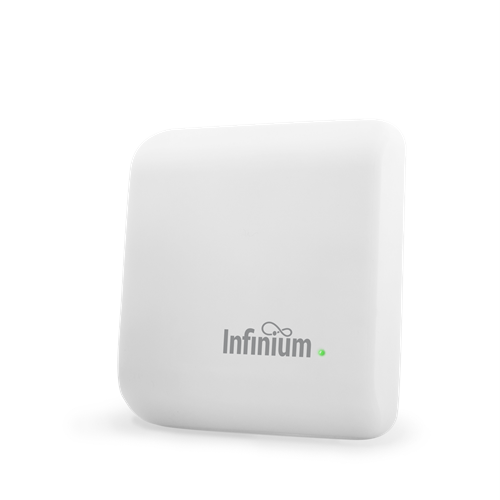

Transmitter

Dimensions 4.7″ W x 5.0″ D x 1.19″H (11.9 cm x 12.7 cm x 3 cm)
Weight 0.4 lbs (0.18 kg)
Color White
Installation Configurations Ceiling Mount, Wall Mount, Shelf
Temperature Range – Operating

+32° F to +122° F (0° C to 50° C)

Temperature Range – Storage -4° F to +158° F (-20° C to 70° C)
Power PoE (Input)
Connection RJ45 (1x) with audio, control and PoE
Power ON Indicator Programmable LED
Transmitter Power Output Programmable
Compliance Approvals FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan)
Warranty 2-year parts and labor

Cable

Ethernet Cable 10′ – CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant

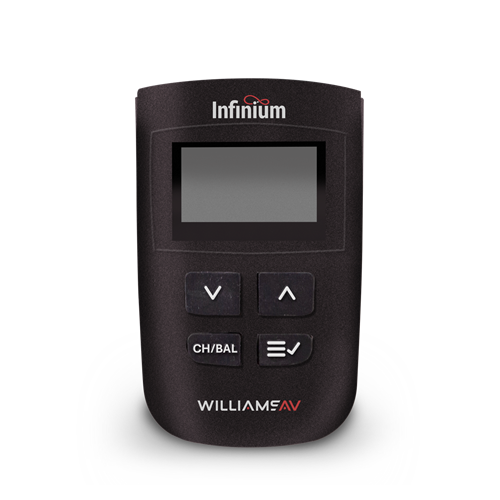

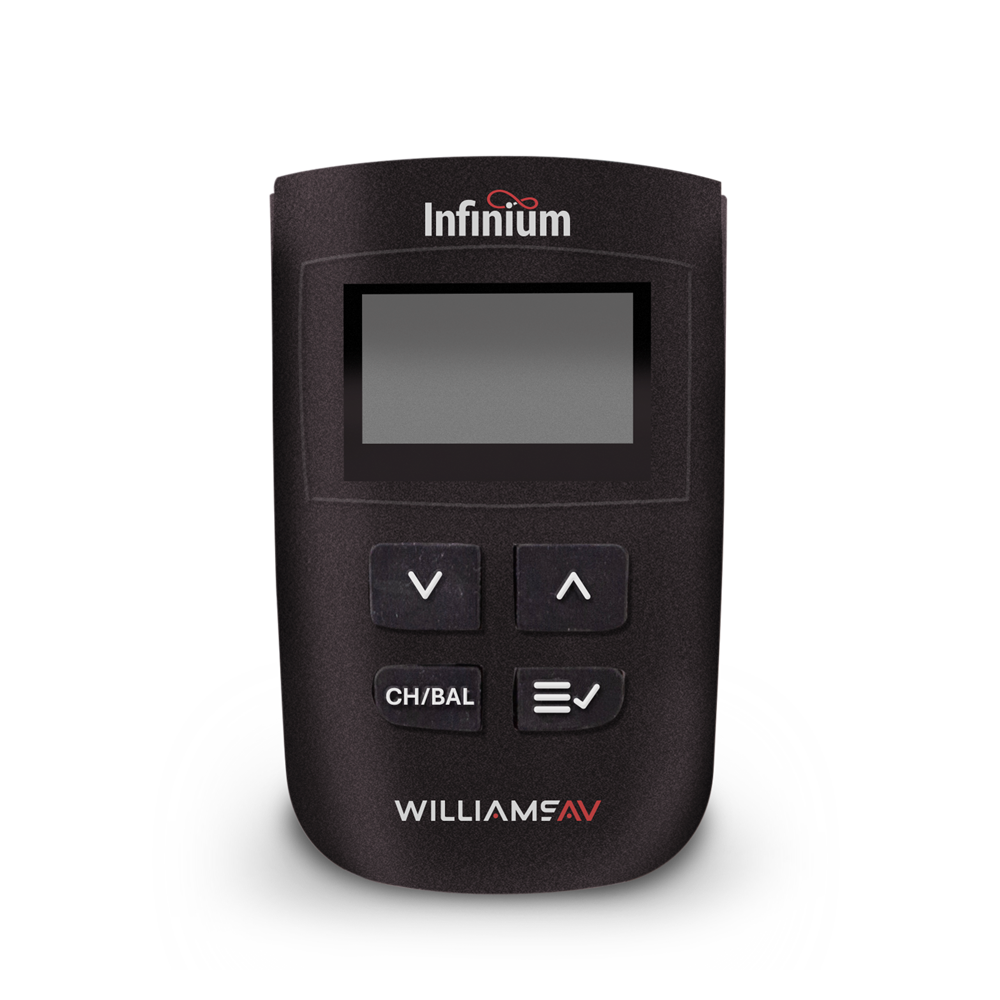

Receiver

Dimensions 3.9″ x 2.48″ x 0.85″
99 x 63 x 21.6 mm
Dimensions with Belt Clip 3.9″ x 2.48″ x 1.19″
99 x 63 x 30.2 mm
Weight 3.8 oz (107.7 g)
Shipping Weight 4.5 oz (127.6 g)
Color Black
Battery Type Lithium Ion (Li-ion) Camera Style Rechargeable Battery; Field Replaceable
Battery Size 3.7 Vdc, 1200 mAh
Battery Life > 20 hours
Temperature Range – Operating +14° F to +104° F (-10° C to 40° C)
Temperature Range – Storage -4° F to +122° F (-20° C to +50° C)
Temperature Range – Charging +41° F to +114° F (+5° C to 40° C)
Charging Connections Dual contacts for use with Infinium Drop In Chargers or USB-C Connector
Button Controls Power, Increment, Decrement, CH/BAL, Menu/Select
Display OLED display 1.38 x o.69 in (35.1 x 17.5 mm), Diagonal 1.54″ (39.2 mm)
Belt Clip Removable
Audio Output Connector 3.5 mm stereo jack for wired stereo or mono headphones, earphones or neckloops
Approvals FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme
Warranty 2-years parts and labor
USB-C Connection Power/Charge (5V @~500 mA)
