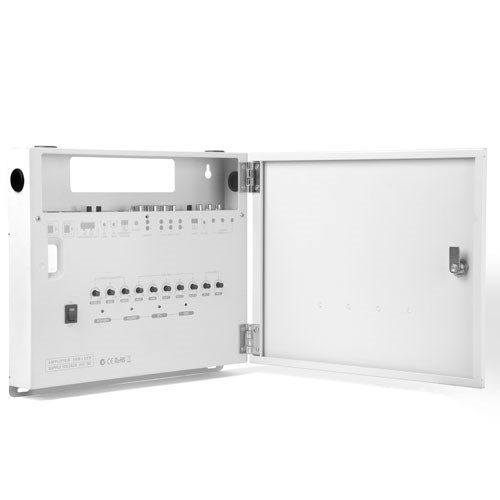

Infrared wallmount amplifier Dual channel IRX2

Product Code: CH-IRX2-I2

Brand
Chiayo
RRP $789.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands Chiayo Electronics
  • Details
  • Downloads
  • Where to Buy
  • Ordering

IRX2 - I2

Single/Dual Channel Infrared Wall-Mount Receiver Amplifier

Features

  • License free, interference free & eavesdrop free!
  • Easily transferrable between rooms with the same transmitter.
  • Ideal for multiple adjacent rooms, e.g. classrooms and conference rooms.
  • EMERGENCY OVERRIDE broadcast system automatically mutes all other audio outputs.
  • ALD OUT (Assistive Listening Devices) for the hearing-impaired.
  • Low impedance wired microphone input with volume control.
  • 3 BAND EQUALIZER for Individual High/Mid/Bass adjustment.
  • Audio inputs: Low impedance MIC (3P PHOENIX), AUX (RCA L/R) x3, EMERGENCY OVERRIDE (3P PHOENIX).
  • Audio outputs: LINE (RCA L/R), ALD (Assistive Listening Device, Φ3.5mm), External speaker (4P PHOENIX).
  • Individual volume controls: ALD, LINE, AUX1, AUX2, AUX3, IR1, IR2, wired MIC and EO level.
  • LED signal indicators for POWER, AUDIO, IR1 and IR2.
  • COMPANDER audio circuit improves signal to noise ratio and reduces background noise.
  • PILOTONE squelch mutes receiver in standby mode.
  • Reception can be boosted with up to 3 external sensors.
  • Suitable for up to 2 pairs of 4Ω or 8Ω speakers.
  • DC connection for an external charger.
  • Lockable cabinet provides system security.

Model IRX2(I1) IRX2(I2)
Channel Single Dual
Receiving method Infrared Superhet Receiving
Frequency 2.08 MHz or 2.54MHz CH1 : 2.08MHz, CH2 : 2.54MHz
Wavelength 850nm
Modulation FM
Peak Deviation ±25KHz
S/N Ratio > 60dB
T.H.D. < 1% (at 1KHz)
Frequency Response 100Hz-10KHz±3dB
Output power (RMS) 50W+50W at 4Ω load, 25W+25W at 8Ω load
Charger out 1
Equalizer 3 bands (High/Middle/Low)
External sensor inputs 3
Audio input MIC (3P PHOENIX), AUX (RCA L/R) x3, EMERGENCY OVERRIDE (3P PHOENIX)
Audio output LINE (RCA L/R), ALD (Assistive Listening Device, Φ3.5mm), External speaker (4P PHOENIX)
Power Supply 24V DC, 2.5A
Dimensions (mm) 280x309x55
Weight (g) 3150 3200
