CW9000H UHF Microphone kit IrDA9000 / SQ9000C with condenser capsule.

Brand
Chiayo
RRP $819.00


Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



5 Year
Kit Components
Code
Item
Qty
CH-IRDA9000-5A
IRDA9000 UHF 100 channel true diversity receiver Chiayo
1.0
CH-SQ9000C-5A
100Ch H/Held Cond Mic 520Mhz SQ9000C Chiayo
1.0
Technical Specifications
Brands Chiayo Electronics
Product Category Clearance Specials
Product Category Microphones
Microphone Type Wireless Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

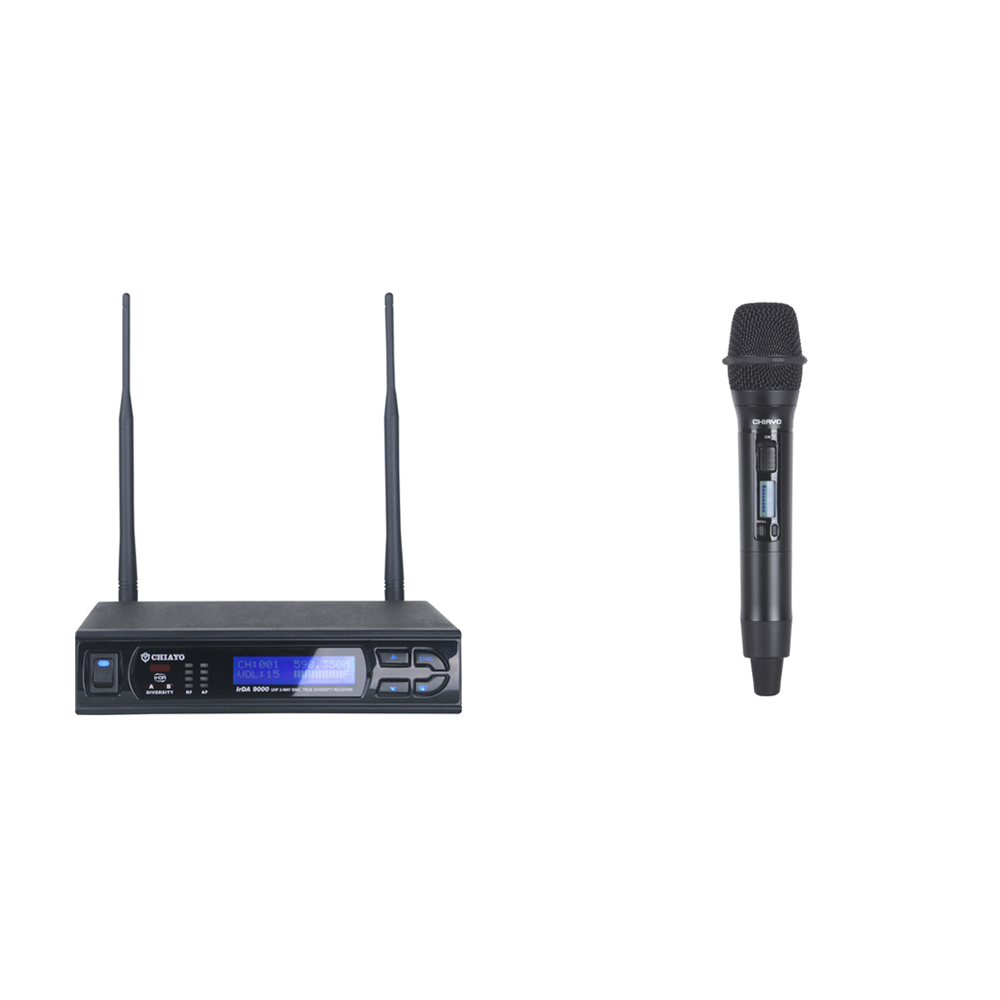

CW9000H UHF Microphone kit IrDA9000 / SQ9000C with condenser capsule.

IrDA9000 receiver with SQ9000C hand held transmitter with condenser capsule. THAT compander IC for improved dynamic range. Specify either band 5A, 5B or 6. Compatible with HC92 Charging station

IrDA-9000

UHF 2-way Synchronizing True Diversity Receiver

Features
  • EIA Standard 1/2U rack-mountable metal chassis with high contrast LCD displaying channel, frequency and menus. Indicators include RF and AF meters and antenna selection LED.
  • 100 factory preset user-selectable UHF channels.
  • Applies high performance THAT compander IC ensures best dynamic range as well as excellent sound quality.
  • True diversity reception for best performance and reliability.
  • Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts.
  • Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.
  • Auto Scan function allows quick search for an interference-free working channel from 100 presets. World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Receiver provides power for CHIAYO antenna systems to enhance reception range and signal stability.
  • Audio output jacks: balanced XLR or unbalanced 6.3mm.
Specifications
ModelIrDA-9000
ChannelSingle
ChassisEIA standard 19" 1/2U
Frequency RangeUHF 500 - 960 MHz
Bandwidth25 MHz
Receiving ModeTrue diversity
Peak Deviation± 40 kHz
Channel Sync2-way (RX ⇔ TX)
SensitivityS/N > 80 dBm at 10 dBμV
S/N Ratio> 110 dB(A)
T.H.D.< 0.5% @ 1 kHz
Frequency Response50 Hz - 18 KHz
Receiving AntennaRear Panel. Detachable.
Preset Frequencies100
Oscillation ModePLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
SquelchPilotone & Noise-cancelling dual-squelch circuit
Audio Output AdjustmentGain control circuit for adjustment of output volume
Output ConnectorBalanced XLR and unbalanced 6.3 Ø
Power Supply12V DC,1.0A
Power Consumption12 W
Dimensions (W × H × D)200 × 44 × 220 mm
Weight1.1kg

** The above specifications are subject to change without prior notice.

SQ-9000 IrDA

Rechargeable Handheld Microphone

Features
  • Sturdy metal housing in aesthetic and ergonomic style.
  • World-first IrDA function provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Interchangeable dynamic and condenser capsule modules for versatile, professional live sound.
  • High-efficiency antenna inside the bottom housing with color-coded caps for easy channel identification.
  • Clear and intuitive LCD display for easy operation and quick set-up.

Specifications

ModelSQ-9000 IrDA
Frequency RangeUHF 500 – 960 MHz
Bandwidth25 MHz
Preset Channels100
RF power output≦ 35mW
HousingMetal
Dimensions (Ø×L)53 × 256 mm
Weight298 g
Battery2 × AA
Operating time16 hours

** The above specifications are subject to change without prior notice.

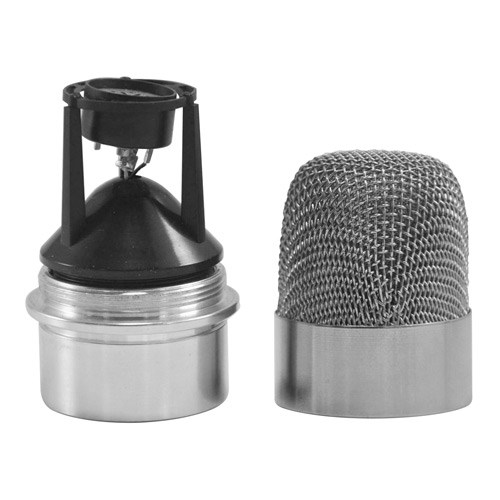

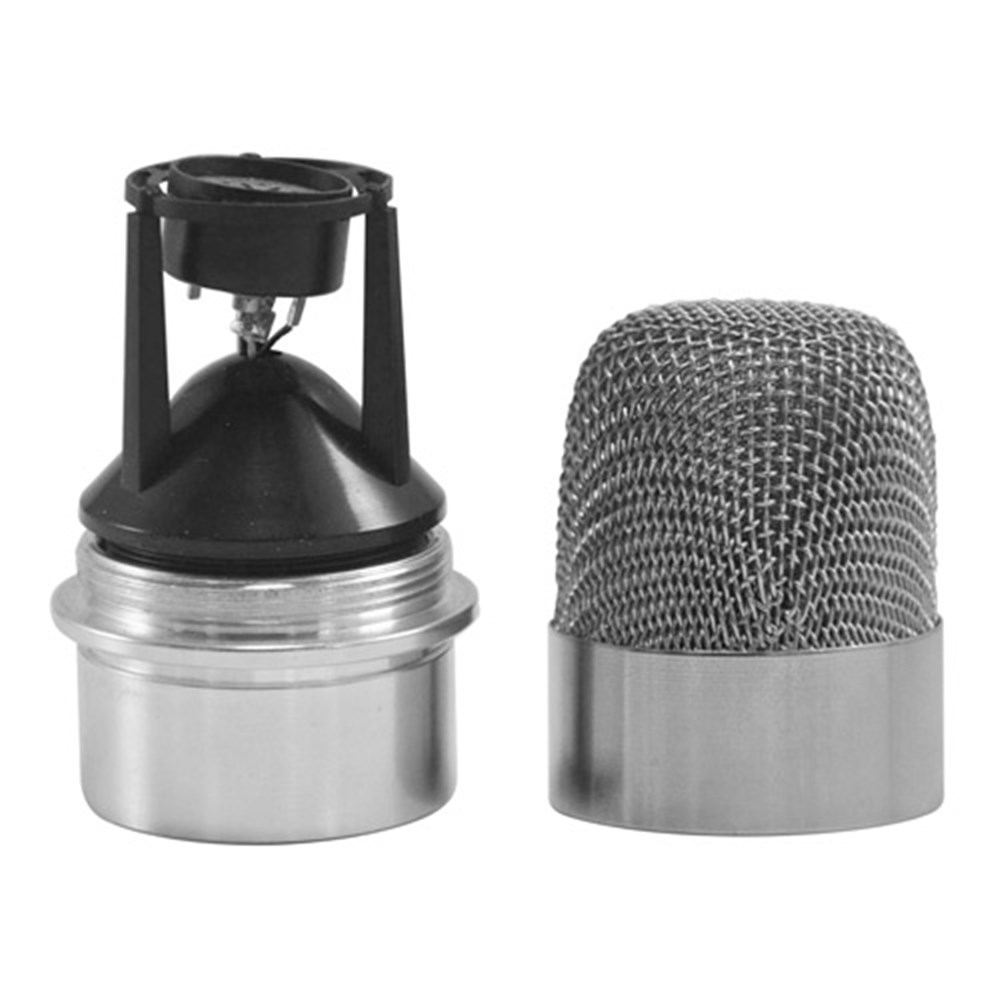

MC-85

Condenser Microphone Capsule

ModelMC-85
Microphone typeCondenser
Sensitivity-73dB±3dB (at 1KHz 0dB=1V/0.1pa)
DirectionalityUni-directional
Frequency Response50~18000Hz
Output Impedance≦2.2KΩ
Dimensions (mm)Ø9.7*5
Weight (g)42

** The above specifications are subject to change without prior notice.
