ITSV-5 HD IP Video Phone ITSV-5 Zenitel

Product Code: ZE-ITSV-5

Brand
Zenitel
$3,800.00 inc GST
RRP $3,800.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

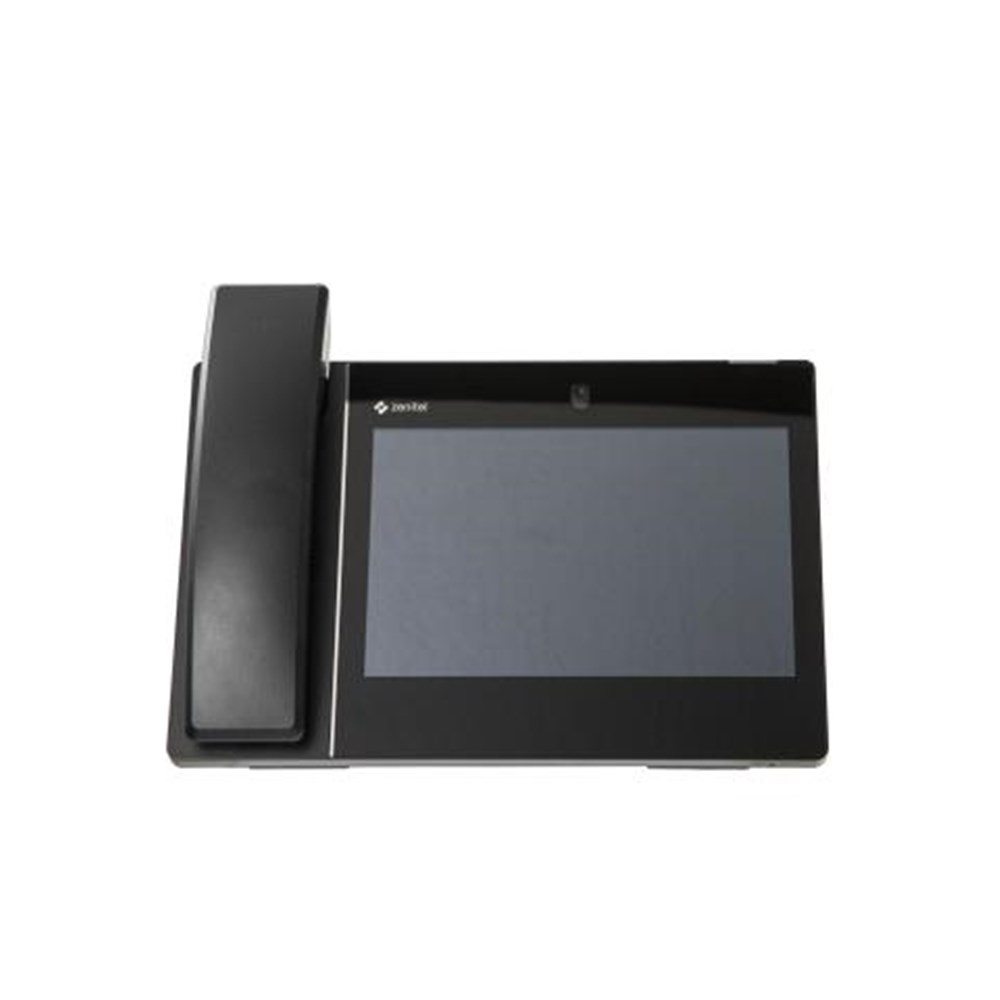

The ITSV-5 is a powerful IP video phone featuring Android 11, an 8” touch screen, real-time HD video telephony, built-in WiFi, Bluetooth, and more. The ITSV-5 delivers advanced SIP telephony features and out-of-the-box integration with our IC-EDGE and ICX-AlphaCom IP Intercom Platforms.

HD IP Video Phone with 8" Screen

  • 16 lines with up to 16 SIP accounts
  • 8” (1280×800) capacitive 10-point touch screen HD IPS LCD
  • Built-in 2 mega-pixel CMOS tiltable camera with privacy shutter
  • 12-way audio conferencing and  3-way 1080p 30fps video conferencing capability
  • Dual-mic HD speakerphone with noise reduction, advanced echo cancellation, and excellent double-talk performance
  • 4-core 2.0GHz ARM Cortex A55processor with 4GB RAM and 16GB eMMC Flash
GENERAL
  • Graphic Display    8” (1280x800) capacitive (10 points) touch screen IPS LCD
  • Camera    Tiltable 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps
  • Auxiliary Ports    RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 3.0 port, Type-C, HDMI-out, HDMI-in
  • Feature keys    2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU, and BACK
  • Video Codec    H.263, H.264 BP/MP/HP
  • Video resolution    Up to 1080p
  • Video frame rate    Up to 30 fps
  • Operating temperature range    0˚C to +40˚C
  • Storage temperature range    -10˚C to +60˚C
  • Relative humidity    10% - 90% non-condensing
  • Power options    Power over Ethernet (PoE & PoE+) or power adapter.
  • Power over Ethernet    802.3af Class 3, 802.3at Class 4
  • Power adapter    Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A
  • Network Interface    2 x RJ45 (Ethernet) 10/100/1000 Mbps with integrated PoE/PoE+
  • Bluetooth    Integrated, Bluetooth 5 + EDR
  • Wi-Fi    Integrated, dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay
  • Security    User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support, anti-hacking secure boot
  • Protocols/Standards    SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDPMED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®.
  • Audio technology    Wide-band Opus, wide-band G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0
  • Language support    English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, Czech.
  • Compliance    FCC: CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15 Subpart E; UL 60950-1 (power adapter); Part68 (HAC) CE: EN55032 Class B; EN55035;EN61000-3-2; EN61000-3-3; EN62368-1; EN300328; EN301893; EN301489-1; EN301489-17; EN62311; RoHS RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268 HDMI Source and Sink, HAC
  • Dimension (WxLxH)    263 x 174 x 48 (WxLxH) mm
  • Weight    1.08 kg
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
