JBL Synthesis - 16 Ch AV Recei HDMI 2.0b (4K Ultra HD) SDR35 Dolby ATMOS Airplay 2 MQA

Product Code: JB-SYNSDR35

Brand
JBL
RRP $14,999.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
5 Year
Technical Specifications
Brands JBL
Amplifier Type A/V Receiver
Channel count 16
Series Synthesis
  • Details
  • Downloads
  • Where to Buy
  • Ordering

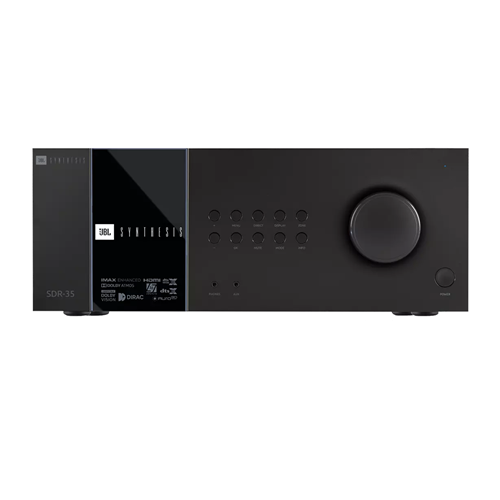

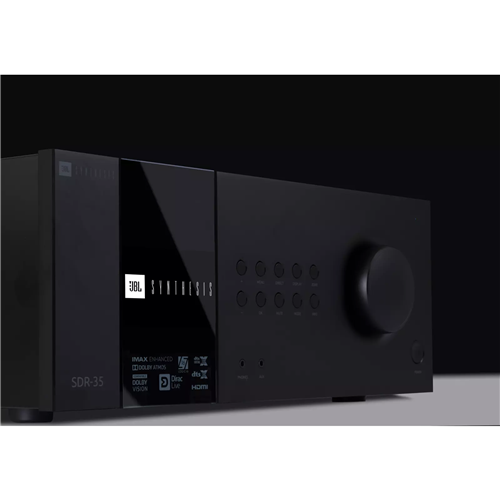

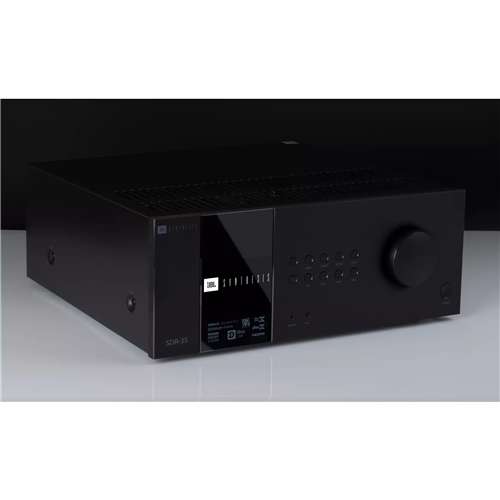

SDR-35
16-channel Class G Immersive Surround Sound AV Receiver

The JBL Synthesis SDR-35 is designed to ensure exceptional performance without compromise and offers an unparalleled feature set that puts it far ahead of the competition. It features full support for Dolby ATMOS, DTS:X, and Auro-3D immersive audio formats. DIRAC Live with Bass Control room EQ with JBL Synthesis system enhancements provides exceptionally accurate system tuning. A full suite of digital and analog connectivity is included along DANTE digital audio networking and HDMI 2.0b (4K Ultra HD) AV switching with support for Dolby Vision and HDR10+ dynamic video, plus IMAX Enhanced certification. Network and Bluetooth streaming are included with Google Chromecast built-in, Apple Airplay 2, Spotify Connect and Tidal Connect, plus it is Roon Ready with Hi-Res and MQA support. Seven channels of Class G amplification are included allowing the SDR-35 to independantly power systems up to 7.1 channels. Full external control allows for complete and easy system integration.


Features

  • Immersive High Resolution Sound
    16 channels of discrete high resolution processing with 4 user configurable channels enable a plethora of set up options for Dolby Atmos, DTS:X and Auro 3D immersive surround sound applications.
  • Dante Network Audio
    Bridge the gap between residential and commercial applications. All 16 channels of processed audio, plus Zone 2 can be routed on a single CAT5e or CAT6 cable over a standard network. Dante is easy to set up and compatible with Dante enabled JBL Synthesis amplifiers.
  • IMAX Enhanced
    IMAX Enhanced certified AV receiver, features DTS:X immersive audio decoding that is optimized to properly reproduce the full dynamic range of IMAX theatrical sound mixes available in IMAX Enhanced content.
  • Network and Bluetooth Streaming
    Control your favorite content over Ethernet or Wi-Fi, Chromecast built-in, Apple AirPlay 2, Roon, the Harman Luxury MusicLife app, play directly from a USB flash drive, or stream via Bluetooth with aptX HD.
  • Class G Amplification
    Like a hybrid car engine, Class G implements multiple power supplies. The first power supply runs in pure Class A, which has no crossover distortion. If a dynamic signal is received that goes beyond the threshold of this first power supply, the secondary supply is gradually incorporated as required.
  • Cinematic Video Experience
    Dolby Vision, HDR10+, HDR10, HLG, HDMI2b, HDMI2.0b with HDCP2.2, 4K “Ultra HD” as well as 3D video capabilities are built in.
  • Designed for the Integrator
    With an available rack mount kit, Dante, eARC and an internal configuration page, Dirac Live, IP, IR RS232 and iOS and Android App control the install, set up, and calibration has never been easier.
  • Logic 16
    Logic 16 will up-mix any input source from mono up to 15.1, including all Dolby formats with natural astonishing 3D sound. In addition, Dolby, DTS Neural:X, and Auro 3D upmixers are on board.


Specifications

  • Continuous power output, per channel, 8Ω/4Ω
    • 2 channels driven, 20Hz – 20kHz, <0.02% THD: 120W/200W
    • 2 channels driven, 1kHz, 0.2% THD: 140W/220W
    • 7 channels driven, 1kHz, 0.2% THD: 100W/180W
    • Residual noise & hum (A-wtd): <0.15mV
  • Stereo line inputs
    • Maximum input: 4.5Vrms
    • Nominal sensitivity: 1V, 2V, 4V (user adjustable)
    • Input impedance: 47kΩ
    • Signal/noise ratio (A-wtd ref 100W) normal/stereo direct: 100dB/110dB
    • Frequency response: 20Hz–20kHz ± 0.1dB
  • Preamplifier outputs
    • Nominal output level: 1V RMS (max. 5V RMS)
    • Output impedance: 560Ω
    • THD+N (20Hz–20kHz): -100dB
  • Headphone output
    • Maximum output level into 32Ω: 5Vrms
    • Output impedance: 560Ω:<100Ω
  • General
    • Mains voltage: 110–120V or 220–240V, 50–60Hz
    • Power consumption (maximum): 50W (Thermal dissipation approx. 170 BTU/hour)
    • Power consumption (idle, typical): 40W (Thermal dissipation approx. 170 BTU/hour)
    • Power consumption (standby): <0.5W
    • Dimensions: W x D (including speaker terminals) x H (including feet): 17 x 16.7 x 6.7" (433 x 425 x 171mm)
    • Weight (net): 23.4lbs
    • Weight (packed): 30.6lbs
