Cables and Connectors

LARGE RG11 CANARE L-7CFB, BELDEN 7731A

Product Code: NU-NBLC75BVZ17

Brand
Neutrik
RRP $15.40


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Neutrik
Product Category Cables and Connectors
Connector Type BNC
  • Details
  • Downloads
  • Where to Buy
  • Ordering

NBLC75BVZ17

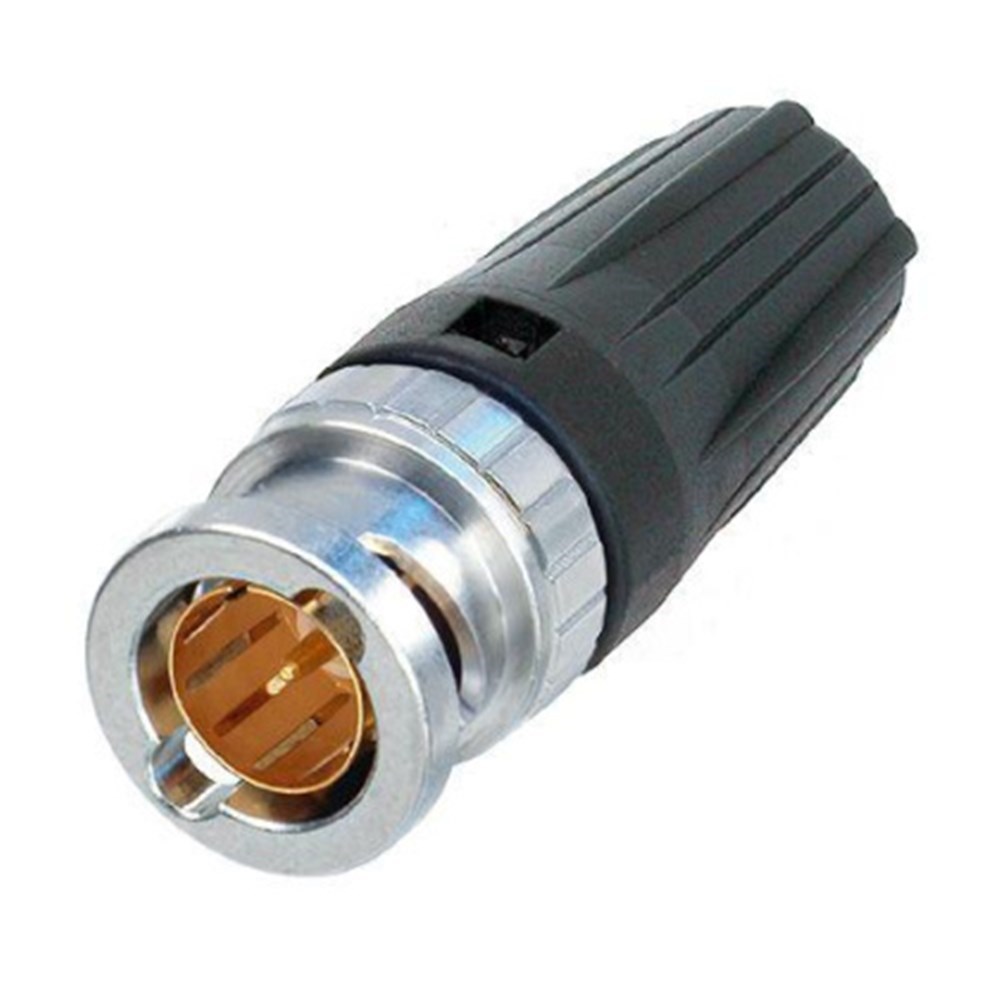

The rearTWIST HD Large BNC cable connector is designed for large cable diameters as used on long runs and high data rates (HD).

Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications.

Suitable cables:
Belden 7731A (ANH), CAE HD16720LSZH, Draka 1.6/7.3AF, RG 11, Klotz V16/72, Canford SDV-HD, Nexans HF 75 1,6/7,2 02Y(ST)C(ST)H, Percon VK9, Tesca Sphere

Crimp size:

  • Pin: 1.8 mm
  • Shield: 10.0 mm (hex)


Features & Benefits

  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include crimp tool and dies



Specifications

Product

Title

  • NBLC75BVZ17

Connection Type

  • BNC 75 Ω

Gender

  • male

Electrical

Contact resistance

  • ≤ 3 mΩ (inner)

Contact resistance

  • ≤ 2 mΩ (outer)

Dielectric strength

  • 1,5 kVdc

Impedance

  • 75 Ω

Insulation resistance

  • > 5 GΩ

Rated voltage

  • <50 V

VSWR

  • ≤1.050/>32 dB up to 1 GHz
  • ≤1.065/>30 dB up to 2 GHz
  • ≤1.100/>26 dB up to 3 Ghz

Mechanical

Cable O.D.

  • 10.4 mm

Cable retention

  • > 30 N (Center)

Crimp size

  • 10.0 mm (HEX)

Crimp size (pin)

  • 1.8 mm

Insertion force

  • < 25 N

Lifetime

  • > 1000 mating cycles

Locking device

  • Bayonett

Cable anchoring

  • Jacket crimping

Material

Contacts

  • Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)

InsertPTFE

  • ShellBrass (CuZn39Pb3)

Shell plating

  • Optalloy®

Environmental

Temperature range

  • -30 °C to +85 °C

Contact crimpability

  • Complies with IEC 60803 and IEC 60352-2
