Tour guide systems

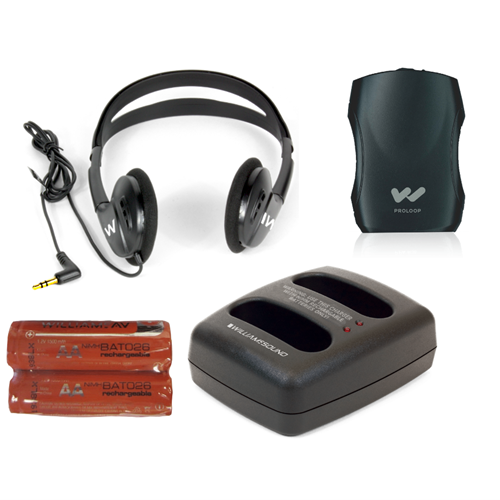

Loop Listener Kit - 1RX Receiver, CHG + BAT Williams AV

Product Code: WI-LOOPLISTENKT1

Brand
Williams AV
$849.00 inc GST
RRP $849.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



Unspecified
Kit Components
Code
Item
Qty
WI-BAT026
1.2V Aa Recharge Battery Pair BAT026 Williams AV
1.0
WI-CHG3502
2 Unit Charger *Mn* CHG3502 Williams AV
1.0
WI-HED024
Stereo Folding Headphones HED024 Williams AV
1.0
WI-PLRBP1
Induction Loop Receiver PLRBP1 Williams AV
1.0
Technical Specifications
Brands Williams AV
Product Category Tour guide systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

INDUCTION LOOP RECEIVER PLRBP1

PROLOOP BODY PACK INDUCTION LOOP RECEIVER

Simple and convenient to use, this induction loop receiver is designed for use in induction-looped areas by listeners who do not wear T-coil-equipped hearing aids. Compatible with all IEC60118-4 compliant induction loop systems. 0.2 lbs.

Features
  • Operates up to 200 hours with two AA alkaline batteries
  • Simple to use -- on/off volume control
  • Internal tone control
  • 3.5mm stereo jack
  • Compatible with Williams Sound 2- and 12-bay chargers (CHG 3502 and CHG 3512). Chargers sold separately.
  • 5-year warranty
SPECIFICATIONS
plr bp1 architectural and engineering specifications
  • The receiver shall be a body pack style Induction loop receiver. It shall operate for up to 200 hrs with two AA Alkaline batteries and be housed in a black plastic enclosure. It shall have battery recharge ability utilizing Williams Sound drop-in chargers.
  • The receiver shall have a 3.5 mm headphone jack, on/off volume control. There shall be a tone control inside the battery compartment. It shall have a green power LED which will blink when the battery is low.
  • The receiver shall be covered under a 5 years parts and labor warranty.
  • The receiver shall be the Williams Sound model PLR BP1.

plr bp1
  • Dimensions: 4.1"H x 2.85"W x 1.38"D (104 mm H x 72 mm W x 35 mm D).
  • Weight: 4.6 oz (130 g) with batteries, 2.6 oz (73 g) without batteries.
  • Color/Material: Black ABS/polycarbonate molded plastic case.
  • Battery Type: (2) AA (1.5VDC) Alkaline or NiMH (rechargeable).
  • Battery Life: Up to 200 hours with Alkaline batteries.
  • LED Indicator: Green LED indicates power on, flashes when batteries are low.
  • Headphone Jack: 3.5mm stereo TRS jack works with mono or stereo headphones.
  • Volume control: External switched thumb wheel controls power on/off and volume level.
  • Tone control: Rotary control inside battery compartment (1kHz reference at 400mA/m input with Tone at mid position)
  • Induction Coil: Maximum reception: receiver oriented vertically
  • Power Output: 35mW (max) into 33 ohms mono impedance
  • THD: <2%
  • Frequency Response: 300Hz to 10KHz, -6dB



STEREO FOLDING HEADPHONES HED024

Stereo headphones, adult size, 16 Ω. Mild to moderate hearing loss rating. For use with Pockettalker 2.0 personal amplifier

Replacement earpads: HED 023, HED 023-100.

6-1⁄4" x 5-3⁄4" x 2-1⁄2"; 0.15 lbs.

SPECIFICATIONS
  • hed 024
  • Style: Stereo Headphones
  • Plug: 3.5mm stereo
  • Cord: 39"
  • Driver Size: 30 mm
  • Nominal Impedance: 16Ω
  • Freq. Response: 20 - 20kHz
  • Weight: 60g
  • Max Power Input: 100 mW
  • Sensitivity: 108 dB @ 1kHz
  • Replacement Pads: HED 023 (one pair)



2 UNIT CHARGER CHG3502

BODY-PACK CHARGER, 2-BAY

Dual drop-in charger for body-pack style transmitters and receivers. Includes Power Supply.

  • 12.4 cm x 9.8 cm x 5.1 cm (LxWxH)
  • 0.5 kg
For use with:
  • PLR BP1 Loop receiver
  • PPA R37 FM receiver
  • PPA R37-8 FM receiver
  • PPA R38 FM receiver
  • PPA T46 FM transmitter
  • WIR RX22-4 Infrared receiver



1.2V AA RECHARGE BATTERY PAIR BAT026


Two (2) 1.2-volt AA rechargeable NiMH batteries.
Suitable for use with WIRTX22-4N and PLRBP1.

Chearger bay:CHG3502 and CHG3512.
