Splitters

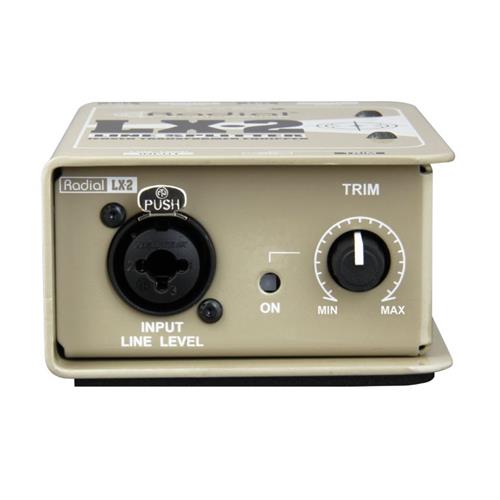

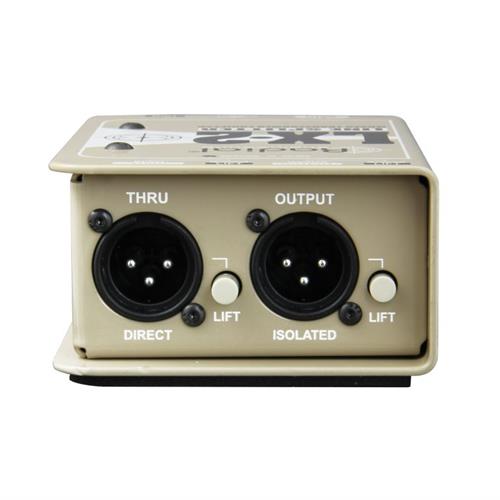

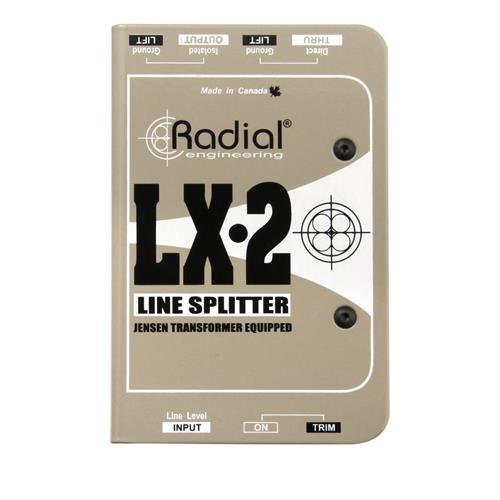

Radial LX-2 - Passive Microphone Splitter - Single Isolated Out - Jensen transformer

Product Code: RA-LX-2

Brand
Radial Engineering
RRP $489.00
*Recommended Retail Price may not be a true representation of the market price

Unit of Measure
EACH



3 years
Features
UPC EAN 06761010 3491 8 Radial Part No. R800 1033

Technical Specifications
Brands Radial Engineering
  • Details
  • Downloads
  • Where to Buy
  • Ordering

Passive Line-Level Splitter and Attenuator

The LX-2™ is a passive balanced line-level audio splitter that allows you to easily send an audio signal to two different destinations at once without noise, while also providing the ability to attenuate the signal when needed.

  • Split one audio signal to two destinations simultaneously
  • Jensen® transformer equipped for exceptional audio quality
  • Eliminates hum and buzz caused by ground loops
  • Variable trim control can be engaged for easy level adjustment

Split and attenuate audio with ease

The LX-2 performs the dual functions of splitting a line level audio signal and providing level attenuation where necessary. A premium Jensen transformer inside provides exceptional frequency response and phase coherency to ensure that the highest audio quality is maintained, while isolating the two outputs from each other to eliminate hum and buzz from ground loops. For situations where a level adjustment is required, the trim control on the LX-2 allows you to attenuate overly hot signals. This gives you the ability to drive your mic preamps hard to achieve coloration, while trimming the level at the LX-2 to avoid clipping the inputs of your recording interface. This trim control is activated by a recessed ‘set & forget’ switch; if attenuation is not needed, simply disengage this switch to prevent accidental and unwanted level adjustments.

LX-2 Applications

Splitting line outputs on stage

Send the output of a mic pre or line level device to a recording interface as well as the PA system

Split the output of a mic preamp in the studio

Send the output of a single preamp to two compressors simultaneously. Use the level trim to push your preamp harder for coloration without distorting the compressor inputs.

Using the LX-2 for parallel effects processing

Split the output of a preamp to feed an outboard effects device while also sending a clean signal to your recording interface. Blend the signals together in your DAW for parallel processing.
