PTZ Cameras

Medical Grade PTZ Cam MD330U Aver

Product Code: AF-MD330U

RRP $5,389.00
Quantity In Cart:
Unit of Measure


3 Year
Technical Specifications
Brands AVer
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering


Medical Grade PTZ Camera

AVer MD330U is specially designed and medically certified for Telemedicine with the IEC 60601 Medical Certification. The 30X optical zoom lens with 4K output resolution delivers superb image quality. AI Noise Reduction offers a face-to-face communication experience for patients and doctors. A first in the industry, the removable camera head makes 360-degree angle close-up shooting and snapshots possible.

  • 30X Optical Zoom
  • 4K Output Resolution
  • Speedy Focus
  • Wide Angle PTZ
  • Handheld Camera Head
  • Short Working Distance
  • One-Click Pan-Tilt
  • One-Button Snapshot
  • One-Button Fill Light
  • Medical Certifications

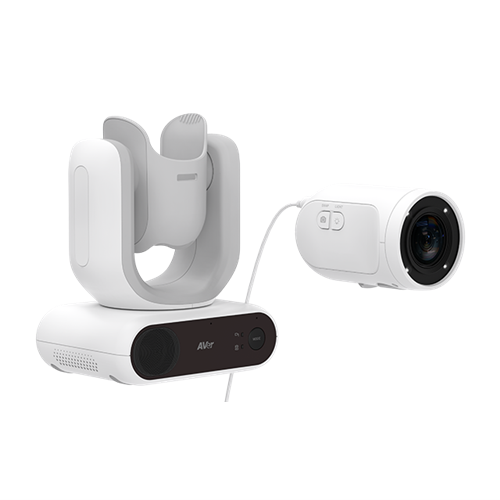

Revolutionary Removable Head Design

The removable camera head design is a true revolution in telemedicine - the doctor can not only make use of the motorized remote controlled PTZ functionality, the near-site medical assistant can also simply remove the camera from the base and easily give the doctor a clear view of any difficult to capture area of interest.

Unparalleled 30X Optical Zoom Capability

The 30X optical zoom lens picks up even the smallest of details for the doctor to precisely diagnose, thanks to a superior autofocus, zoom speed and speedy camera movements.

Outstanding 4K Resolution

The MD330U delivers ultra-clear 4K resolution imagery of the patient to the doctor and works together with the excellent 30X optical zoom to allow doctors to make accurate remote diagnoses.

AI Acoustics

With an integrated speakerphone and microphone, the MD330U is equipped with an all-in-one audio system. AVer’s in-house AI Noise Deduction technology makes communication smooth and telemedicine sessions stress free.

Medical Grade Certification

The IEC 60601 medical certification not only ensures stability and safety of the MD330U, but also guarantees the compatibility of other medical grade devices with the MD330U.



  • Image Sensor: 1/2.8" 4K Exmor CMOS
  • Effective Picture Elements: 8 Megapixels
  • Output Resolutions: 4K/30 (IP / UVC), 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination: 0.7 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: ≥ 50 dB
  • Gain: Auto, Manual
  • Shutter Speed: 1/1 to 1/10,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance: Auto, Manual
  • Optical Zoom: 30X
  • Viewing Angles:
    • DFOV: 75.5° (Wide) to 3.1° (Tele)
    • HFOV: 68.0° (Wide) to 2.7° (Tele)
    • VFOV: 41.7° (Wide) to 1.5° (Tele)
  • Focal Length: f = 4.3 mm (Wide) to 129 mm (Tele)
  • Aperture (Iris): F = 1.6 (Wide) to 4.7 (Tele)
  • Minimum Working Distance: 0.01 m (Wide), 1.2 m (Tele)
  • Pan / Tilt Angles: Pan: ±170°, Tilt: +90° / -35°
  • Pan / Tilt Speed (Manual): Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
  • Preset Speed: Pan: 200° / sec, Tilt: 200° / sec
  • Preset Positions: 10 (IR), 256 (RS-232 / IP)
  • Camera Control - Protocols: VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)
  • Image Processing: Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
  • Power Frequencies: 50 Hz, 60 Hz


  • Embedded Speaker: Yes
  • Microphone: Yes, Array Microphone
  • AI Noise Reduction: Yes


  • Video Outputs: HDMI, IP, USB
  • Audio Outputs: HDMI, IP, USB


  • Power Requirement: AC 100 - 240V to DC 12V/3.34A
  • Power Consumption: 36W
  • Dimensions (W x H x D): 168.0 x 203.0 x 124.0 mm
  • Net Weight: 1.95 kg
  • Application: Indoor
  • Tally Lamp: N/A
  • Security: Kensington Slot
  • Remote Control: Infrared
  • Operating Conditions:
    • Temperature: 0 °C to +35 °C
    • Humidity: 20% to 80%
  • Storage Conditions:
    • Temperature: -20 °C to +60 °C
    • Humidity: 20% to 95%

IP Streaming

  • Resolution: 4K 30fps
  • Network Video Compress Formats: H.264, H.265
  • Maximum Frame Rate: 4K 30fps
  • Network Interface: 10 / 100 / 1000 Base-T
  • Multi-Stream Capability: 2 (RTSP / Web Page), 4K 30fps (max.)
  • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP


  • Connector: USB 3.0
  • Video Format: MJPEG, YUY2
  • Audio Format: PCM
  • USB Video Class (UVC): UVC 1.1
  • USB Audio Class (UAC): UAC 1.0

Software Tools

  • IP Search and Configuration Tool: Support Windows® 7 or later


  • Camera: 3 Years
  • Accessories: 1 Year

Package Contents

  • Camera, Remote Control, Power Adapter, Power Cord, Screws (x2), USB Cable, Quick Start Guide
