Cooling

  • Multifan S7 Spot cooler 2 x 120mm 102CFM 2 26dBA AC Infinity

Multifan S7 Spot cooler 2 x 120mm 102CFM 2 26dBA AC Infinity

Product Code: AI-MPF120A2

Brand
AC Infinity
$78.00 inc GST
In Stock
Increase value Decrease value
Unit of Measure
EACH
1 Year
Technical Specifications
Brands AC Infinity
Cooler type Spot Cooling
  • Details
  • Downloads
  • Where to Buy
  • Ordering

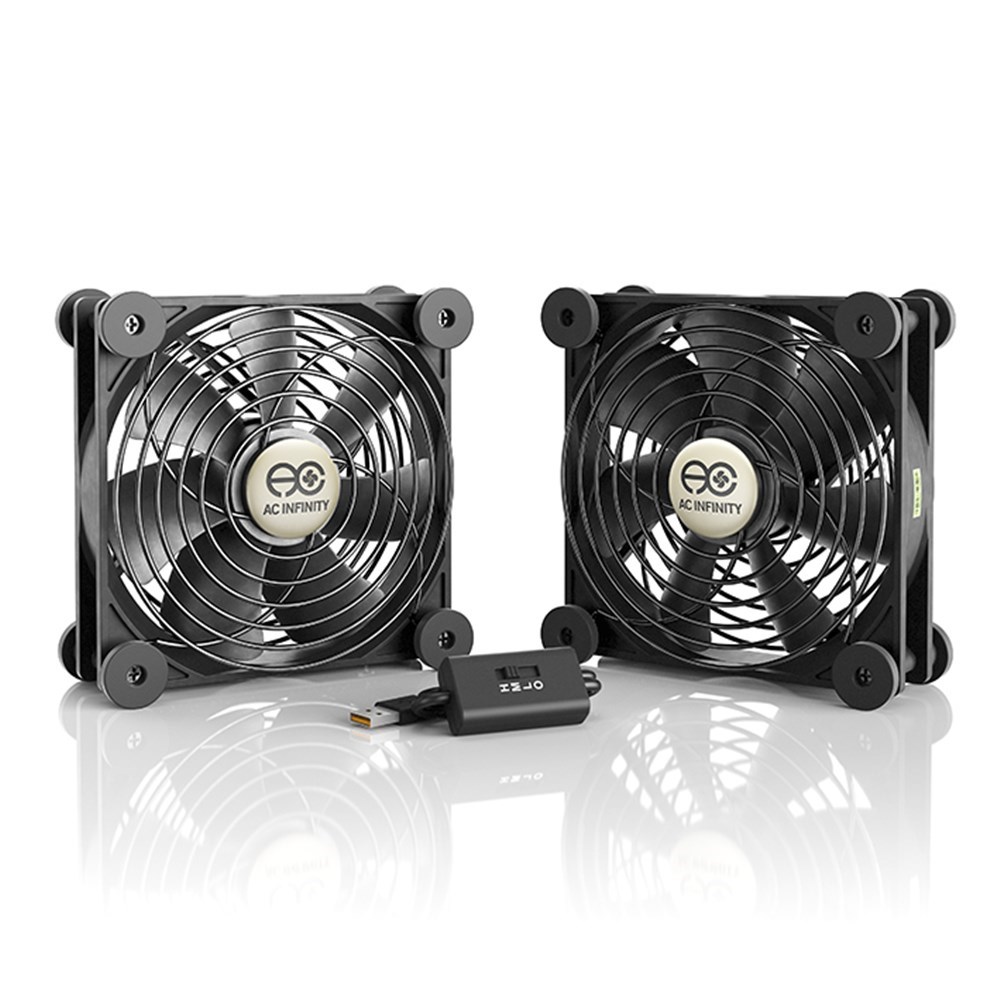

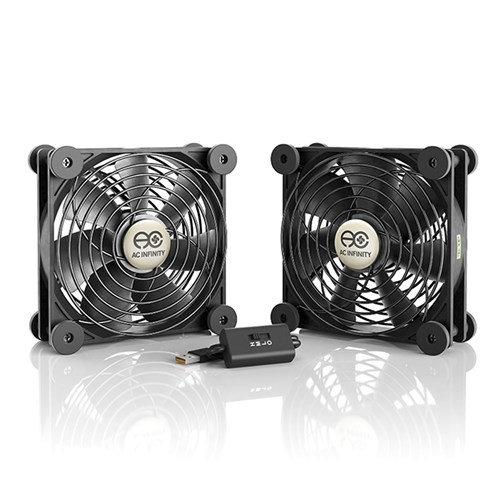

MULTIFAN S7, QUIET USB COOLING FAN, DUAL 120MM

Product Features

  • Ultra-quiet USB fans designed to cool various electronics and components.
  • Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
  • Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
  • USB plug can power the fan through USB ports found behind popular AV electronics and game consoles.
  • Dimensions: 4.7 x 4.7 x 1 in. per fan | Total Airflow: 104 CFM | Total Noise: 26 dBA| Technical Data Tab

Product Description
The ultra-quiet cooling fans can be positioned to stand upright or laid flat to cool various electronics and components. Features a multi-speed controller with power switch. Includes eight large anti-vibration rubber feet per fan and a 6-foot power cord. The USB plug can be plugged into the USB ports found behind popular electronics such as receivers and video game consoles. The two fans are permanently connected by a 2.5 feet cord and share the same multi-speed controller. Each unit contains an additional USB port, up to four fans can be daisy chained together to share the same power source. Certified by CE, UL, TUV, and RoHS.

Speed Controller
The fans include an in-line multi-speed controller with power switch to set the fan’s speed to optimal noise and airflow levels for various environments.

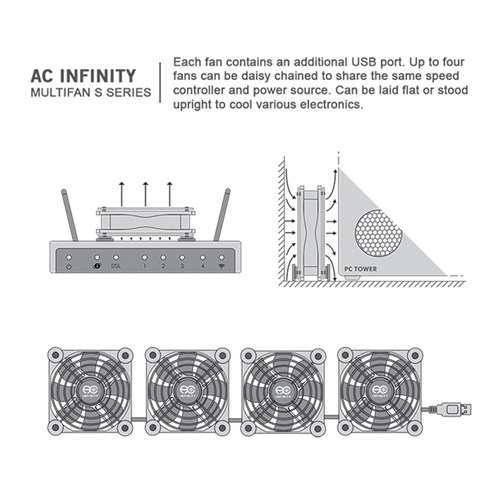

Connecting Additional Units
For electronics and components that requires more airflow, each fan unit can daisy chain additional MULTIFAN S series fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller (sold separately). MULTIFAN S1, S2, S3 and S4 contains one fan, and MULTIFAN S5 and S7 contains two fans.

Applications
The ultra-quiet cooling fans are popular in a variety of electronics and components such as receivers, DVRs, video game consoles, modems, computers, amplifiers, and other audio video equipment.



Technical Data

Product Identification
Manufacturer

  • AC Infinity Inc.

Product Name

  • MULTIFAN S7

Product Model

  • AI-MPF120A2

UPC Code

  • 854759004341

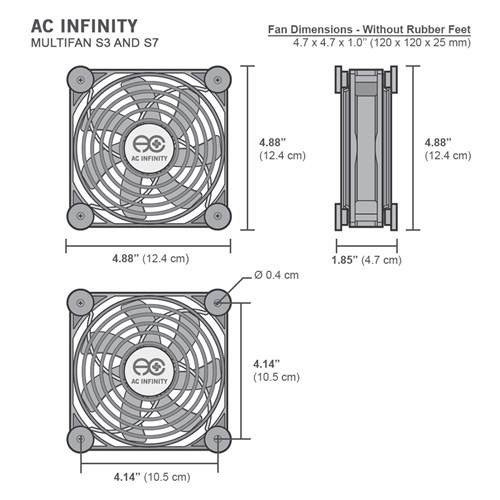

Product Dimensions - Per Fan
Total Dimensions

  • 4.7 x 4.7 x 1.0 in. (12.0 x 12.0 x 2.5 cm)

Hole to Hole Distance

  • 4.14 x 4.14 in. (10.5 x 10.5 cm)

Screw Hole Size

  • Ø 0.17 in. (Ø 0.4 cm)

Cord Length Between Fans

  • 30 in. (2.5 feet)

Power Cord Length

  • 72 in. (6 feet)

Product Performance and Technical Specs - Per Fan
Total Airflow

  • 52 CFM

Total Noise

  • 23 dBA

Speed

  • 1300 RPM

Operating Voltage

  • 3 to 7V DC

Power

  • 2.9 W

Current

  • 0.58 A

Wall Adapter Input

  • 100 to 240V AC

Static Pressure

  • 1 mm-H2O

Operating Humidity

  • 35 to 85% RH

Operating Temperature

  • 14 to 230°F

Fan Bearings

  • Dual Ball

L10 Life Expectency

  • 67,000 Hours

Fan Quality Approvals

  • UL, CE, TUV, RoHS

Product Documents
