Neutrik

NL2FXX-W-S bulk pack

Product Code: NU-NL2FXX-W-S-D

Brand
Neutrik
RRP $1,100.00


Quantity In Cart:
Unit of Measure
B100



1 Year
Technical Specifications
Brands Neutrik
Connector Type 2 Pole
  • Details
  • Downloads
  • Where to Buy
  • Ordering

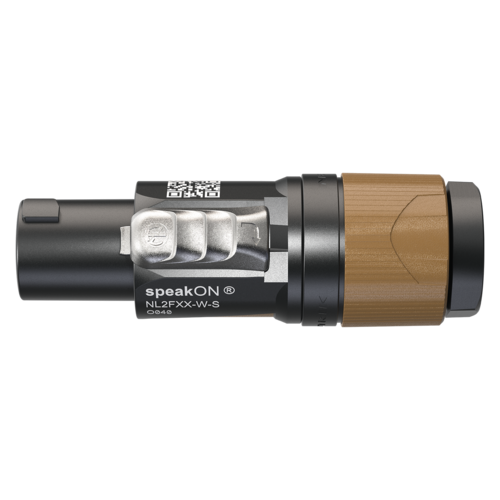

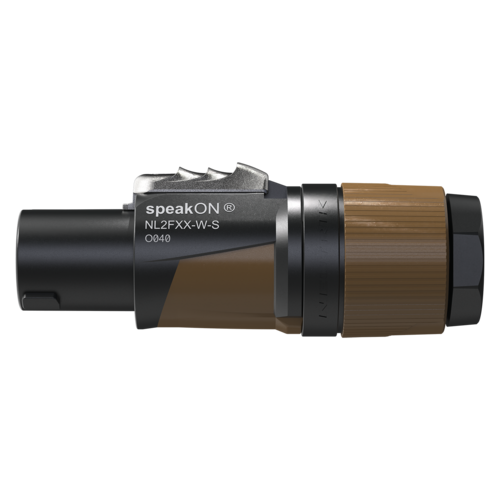

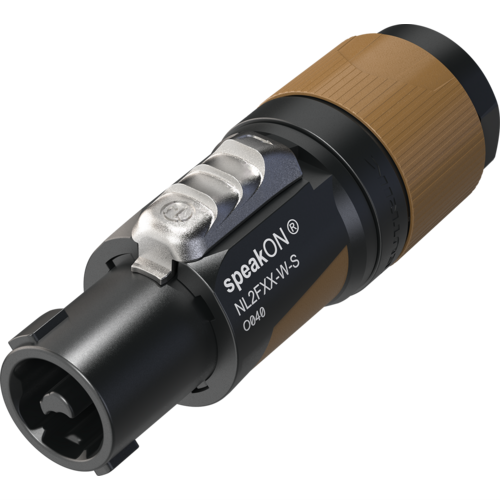

L2FXX-W-S bulk pack (Box of 100)

2 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Features & Benefits
  • Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
  • Ergonomic design with slip-proof two-component molded housing
  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Improved kink protection by two-component bushing

Technical Information

Product

  • Title:    NL2FXX-W-S
  • Connector series:    speakON 2-pole

Electrical

  • Contact resistance:    ≤ 2 mΩ
  • Dielectric strength:    2.8 kVac
  • Insulation resistance:    > 10 GΩ (initially)
  • Number of electronical contacts:    2
  • Rating Europe:    IEC 61984: 37 A 250 V AC
  • Rating USA:    UL1977: 35 A 250 V AC
  • Rating Canada:    CSA C22.2 No.182.3: 24 A 250 V AC
  • Attention:    This product is strictly not intended for use as an AC mains or power supply connector!
    CAUTION: NOT FOR INTERRUPTING CURRENT

Mechanical

  • Cable O.D.:    6 – 12 mm
  • Lifetime:    typically 5’000 mating cycles
  • Wiresize (mm):    1.5 – 4 mm²
  • Wiresize (AWG):    17 – 11 AWG
  • Locking device:    Twist lock
  • Termination:    screw type terminals

Material

  • Contact plating:    Ag
  • Contacts:    Copper Alloy
  • Insert:    Polyamide (PA6.6)
  • Locking element:    Zinc diecast
  • Shell:    Polyamide (PA6) / TPE
  • Strain relief:    Polyketone
  • Bushing:    Polypropylene / TPE

Environmental

  • Temperature range:    -33 °C to +80 °C
  • Protection class:    IP20
  • Flammability acc. to UL94:    V-0
