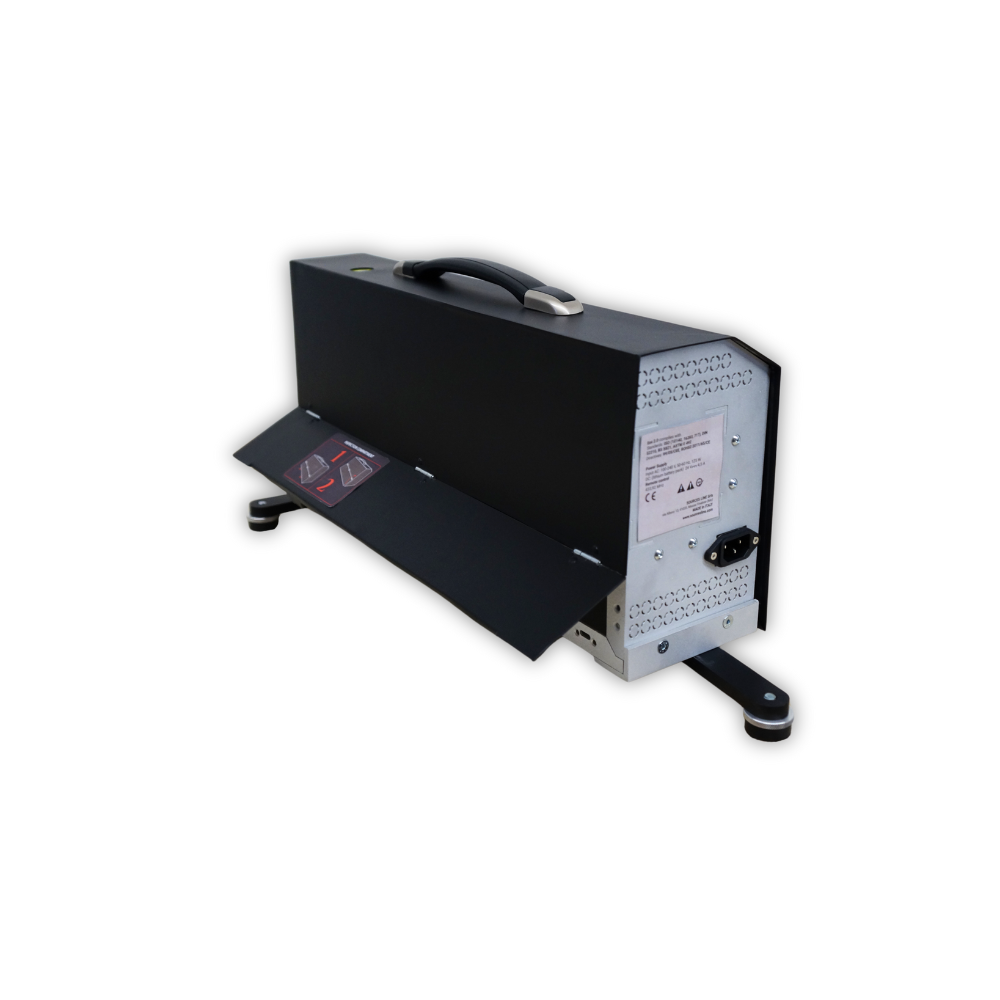

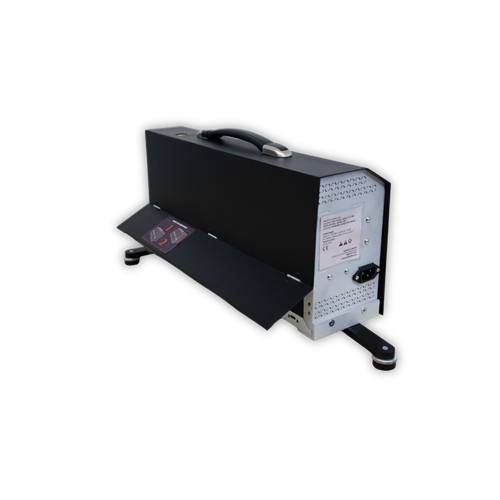

NTi Audio TM-EOS2 tapping machine

600 000 750 (NT-TM-EOS2)

Brand
NTI Audio
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



1 Year
Features

At a glance

  • Light and Robust: Constructed with a durable aluminum frame and adjustable rubber feet.
  • Wireless Remote Control: Reliable operation from a distance for convenience during measurements.
  • Battery Life: Up to 1 hour on hard floors and approximately 50 minutes on soft floors.
Technical Specifications
Brands NTi Audio
Application Building acoustics
Device Type Sound & noise sources
  • Details
  • Downloads
  • Where to Buy
  • Ordering

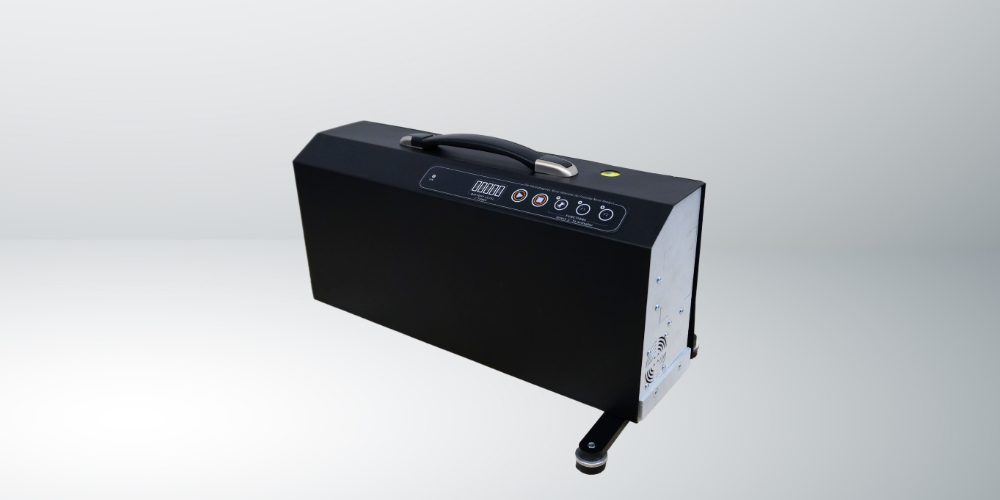

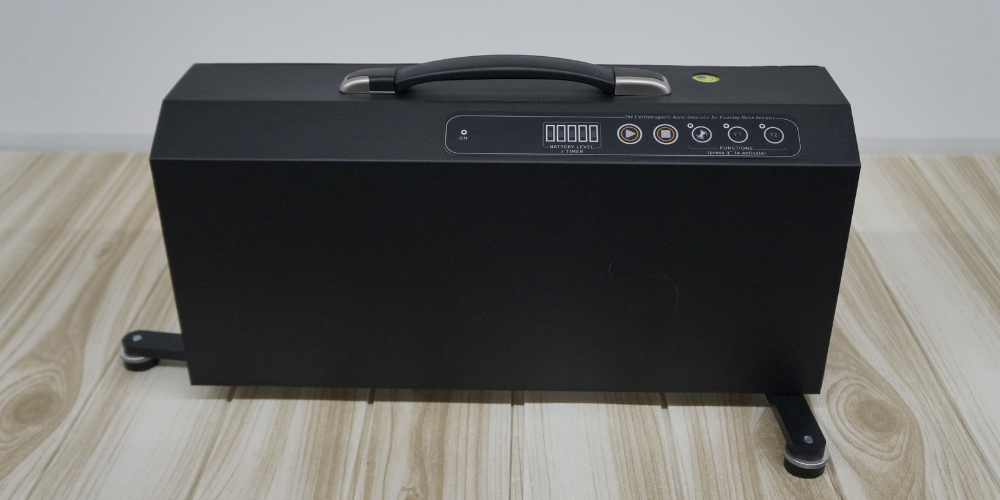

TM EOS2 Tapping Machine

Precision. Versatility. Compliance.

  • Impact Sound Insulation
  • On-site measurement
  • Laboratory measurement
The TM EOS2 Tapping Machine is a precision impact noise source designed for building acoustic measurements. It is specifically utilized for assessing impact sound insulation in ceilings and stairs, ensuring compliance with international standards. With its built-in battery, the TM EOS2 can operate autonomously, making it ideal for various settings.


Overview

The TM EOS2 Tapping Machine is designed to conduct impact sound measurements in compliance with current building regulations and international standards. It ensures precise impact noise assessments in accordance with ISO 10140, ISO 16283, and other relevant standards.



Lightweight, robust, and highly accurate, the TM EOS2 promises many years of reliable service.

  • Drop height of 40 mm for consistent impact measurements.
  • Impact interval of 100 ms (10 Hz ± 1%) for accurate testing.
  • Optimized operation with individual switches for hard and soft floors.
  • Reliable remote control for convenient operation during measurements.

Durable Construction

The TM EOS2 Tapping Machine features a robust aluminum frame supported by three adjustable rubber feet, ensuring stability during measurements. It is equipped with a mechanism that drives five impact hammers, each weighing 500 g and spaced 100 mm apart. The hammers can fall from a height of 40 mm, with a time interval of 100 ms between each drop, providing precise and consistent impact measurements. The machine is powered by a built-in lithium battery, allowing for optimized operation with up to 1 hour of continuous use on hard floors and approximately 50 minutes on soft floors. A user-friendly membrane keyboard facilitates easy operation and management of the machine.



Remote Controlled Operation

The TM EOS2 Tapping Machine comes with a reliable radio frequency remote control, enabling remote start and stop functions. The remote control operates effectively through walls and floors typically found in residential and office buildings, ensuring convenience during measurements.

Complying to Standards

The TM EOS2 Tapping Machine has undergone rigorous testing to ensure conformance with leading industry standards. It is validated by recognized authorities, confirming its reliability and accuracy in impact sound measurements. The TM EOS2 complies with the following standards: ISO 10140, ISO 16283, ISO 717, DIN 52210, BS 5821, ASTM E 492 and SIA 181:2020.

Product Documents

No documents available
