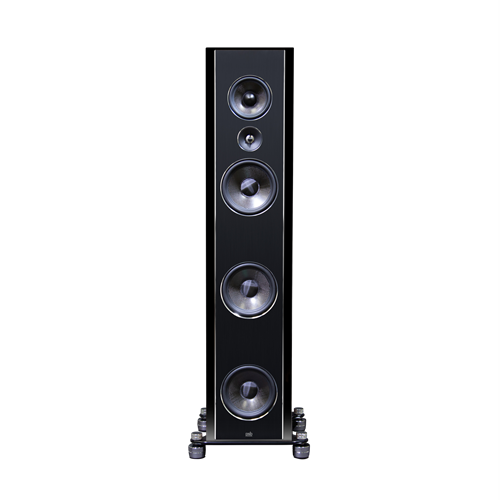

SYNCHRONY T800 TOWER

Prestigious Sound

The flagship Synchrony T800 Premium Towers represent the most advanced application of True to Nature sound principles in PSB’s 50-year history. With the largest and most accurate performance envelope of any PSB loudspeaker, the T800 delivers a caliber of micro-detail and realism that has never been heard before.

  • Frequency response: 21-23,000Hz (±3db), 24-20,000Hz (±1.5db)
  • 3 x 8” (203mm) woofers and 1 x 5¼″ (133mm) midrange driver with woven carbon fibre cones, cast aluminum baskets, mass-loaded rubber surrounds, and advanced motor structures
  • 1” (25mm) titanium dome with ferrofluid
  • Low-resonance MDF cabinet with extensive bracing and decoupled aluminum-clad front baffle
  • Outrigger stabilizers with integrated IsoAcoustics isolators

Advanced Driver Platform

The T800’s 8″ (200mm) woofers and 5 ¼ ″ (135mm) midrange driver feature die-cast aluminum baskets, woven carbon-fibre cones, mass-loaded rubber surrounds, and an advanced motor structure that maintains constant magnetic force in the voice coil gap. The 1″ (25mm) titanium dome tweeter features Ferrofluid damping and a neodymium magnet.

The improved driver platform results in a dramatic reduction of non-linear distortion, allowing for higher sound pressure levels without compression or increased THD and IM distortion. This can be immediately recognized by a more open midrange and deep bass impact. Small gradations in sound, or micro-dynamics, are vastly improved compared to all previous drivers. The advanced driver assembly features (Faraday rings, shorted turn, longer voice coil, and symmetrical magnetic drive) all work in harmony to reduce driver distortion.

In complement to an improved driver is the most advanced amplitude-perfect Linkwitz-Riley 4th order crossover that any PSB speaker has ever utilized, featuring high-voltage poly film capacitors and oxygen-free interconnect wire for complete driver control.

No Noise

A robust, acoustically inert MDF cabinet with aluminum-clad front baffles for maximum rigidity and density make up the enclosure for the Synchrony T800. Individually-tuned chambers and rear-firing ports are placed in each woofer to break up in-speaker standing waves.

On the base of each T800 tower, custom-designed IsoAcoustics integrated isolation feet prevent mechanical energy produced by the drivers and cabinet from being reflected back into the enclosure. Along with the outrigger stabilizers, the isolators provide a high degree of speaker isolation and control, while resisting lateral movement and oscillations to maintain accuracy and alignment with the listening position. Internal reflections with the supporting surface are attenuated, resulting in greater sound clarity and openness.

Extended Bass Response

The T800 features a full frequency bandwidth of 21 Hz-23kHz (±3db) with a well-defined, extended low-frequency performance comparable to a premium quality subwoofer. With its wide dynamic range, the T800 can play at the volume levels experienced in a live performance – even in large rooms. The T800 plays the deepest and loudest of any PSB speaker with great efficiency (92dB at 1 m) and the lowest distortion at any level.

Using the two provided bass port covers, listeners can fine tune the bass to control common room resonance problems at low frequencies. This allows them to control the bass output to their liking, allowing for customized balance of lows with the highs for any listening experience.

Frequency Response

  • On Axis @0 +/- 3db 21-23,000Hz

  • On axis @0 +/- 1 1/2db 24-20,000Hz

  • off Axis @ 30 =/- 1 1/2db 30-10,000Hz

  • LF Cutoff 20Hz

Sensitivity

  • Anechoic 89dB
  • Listening Room 91dB

Impedance

  • Nominal 4 Ohms
  • Minimal 4 Ohms

Input Power

  • Recommended 20-300 Watts
  • Program 300 Watts

Acoustic Design

  • Tweeter 1” (25mm) - Titanium Dome with Ferrofluid
  • Midrange 5 1/4” (133mm) - Cast Basket Carbon Fibre Cone Rubber Surround
  • Woofer 3 x 8” (203mm) - Cast Basket Carbon Fibre Cone Rubber Surround
  • Crossover 450Hz B3, 1800Hz LR4

Design Type Transitional 3-way system

  •  Bass Reflex,

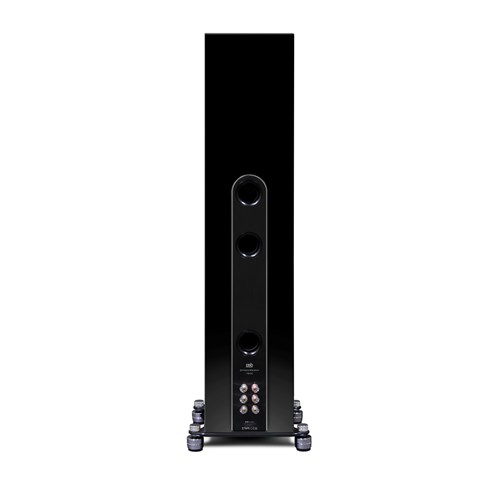

  • Triple Rear facing ports
  • 3 Individual Woofer chamber

Dimensions

  • 14 7/8 x 47 3/4 x 15 5/8”
  • Size ( WxHxD) 377 x 1212 x 396mm

Net Weight

  • 100 lbs
  •  45.36 kg
