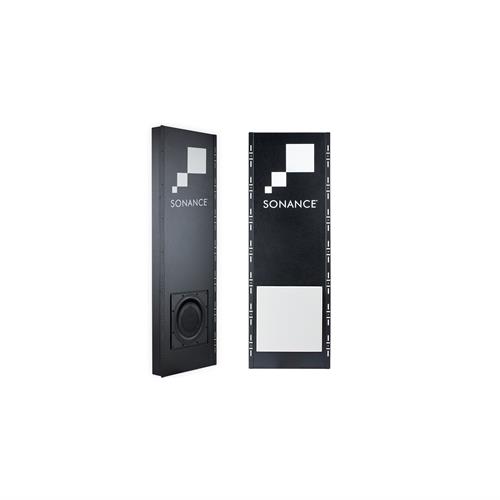

R10SUB in-Wall Subwoofer requires Enclosure- Reference Sonance

Product Code: SO-93354

Brand
Sonance
RRP $2,699.00


Quantity In Cart:
Unit of Measure
EACH



Lifetime
Technical Specifications
Brands Sonance
Product Category Speakers
Series Reference
Size 10"
Speaker Type Subwoofer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

R10SUB SURROUND SOUND REFERENCE IN-WALL SUBWOOFER


Overview
Created for AV Designers building systems that require the best surround sound available with a look that fits the space aesthetically, the Sonance Reference in-wall subwoofers provide a truly incredible sound without taking up floorspace. Engineered to give you an amazing cinema experience, Sonance Reference has options for in-wall, in ceiling and cabinet speakers.


Key Features

Aesthetics
  • Mix and match with Reference in-wall or in-ceiling speakers
  • One-piece paintable grille to blend into your walls
  • Available in 10” or 12” models to suit any sized room or available wall space
Performance
  • 1.4lbs (.64kg) N38SH Neodymium Magnet
  • Dual Spider Technology (DST) allows for increased movement
  • 4 1/2” (115mm) precision-aligned voice coil with 1 1/2” (30mm) winding height
Installation
  • Designed for installation during the construction or renovation process
  • Enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion
  • Custom-tuned amplifiers ensure optimum sonic performance
R10SUB
  • Width: 10 7/16” (265mm)
  • Height: 10 7/16” (265mm)
  • Depth: 3 5/32” (80mm)
  • Width with grille: 13 1/16” (332mm)
  • Height with grille: 13 1/16” (332mm)
  • Depth with grille: 5/32” (4mm)

Model: R10SUB
SKU: 93354
Unit of Measure: Each
Woofer: 10” (254mm) laminated carbon fiber cone with a rubber surround
Frequency Response: 30Hz - 250Hz +/-3dB
Impedance: 8 Ohms nominal
Sensitivity: 88dB (2.83V/1) meter
Grille Material: Perforated steel
Required Enclosure: R10SUB ENC acoustic enclosure
(sold separately)
Required Amplification: Sonance DSP 2-150 or Sonance DSP 8-130 MKII
(Using two channels bridged)
