• R12SUB in-Wall Subwoofer requires Enclosure- Reference Sonance

R12SUB in-Wall Subwoofer requires Enclosure- Reference Sonance

Product Code: SO-93355

RRP $2,860.00
Unit of Measure


Technical Specifications
Brands Sonance
Series Reference
Size 12"
  • Details
  • Downloads
  • Where to Buy
  • Ordering


Created for AV Designers building systems that require the best surround sound available with a look that fits the space aesthetically, the Sonance Reference in-wall subwoofers provide a truly incredible sound without taking up floorspace. Engineered to give you an amazing cinema experience, Sonance Reference has options for in-wall, in-ceiling and cabinet speakers.

Key Features

  • Mix and match with Reference in-wall or in-ceiling speakers
  • One-piece paintable grille to blend into your walls
  • Available in 10” or 12” models to suit any sized room or available wall space
  • 1.4lbs (.64kg) N38SH Neodymium Magnet
  • Dual Spider Technology (DST) allows for increased movement
  • 4 1/2” (115mm) precision-aligned voice coil with 1 1/2” (30mm) winding height
  • Designed for installation during the construction or renovation process

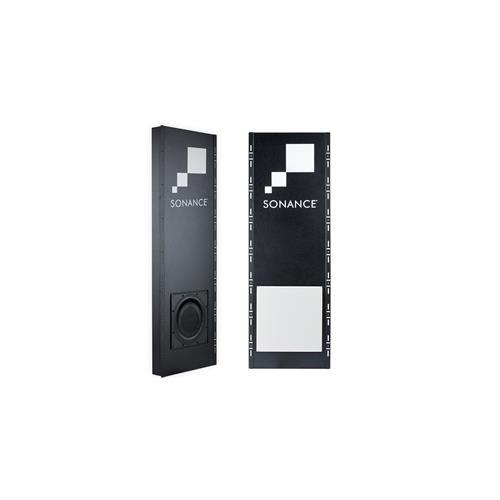

  • Enclosure is positioned behind the wall to deliver unprecedented performance with minimal visual intrusion
  • Custom-tuned amplifiers ensure optimum sonic performance
R12SUB Dimensions
  • Width: 12 3/8” (314mm)
  • Height: 12 3/8” (314mm)
  • Depth: 3 5/32” (80mm)
  • Width with grille: 15” (381mm)
  • Height with grille: 15” (381mm)
  • Depth with grille: 5/32” (4mm)


Model: R12SUB
SKU: 93355
Unit of Measure: Each

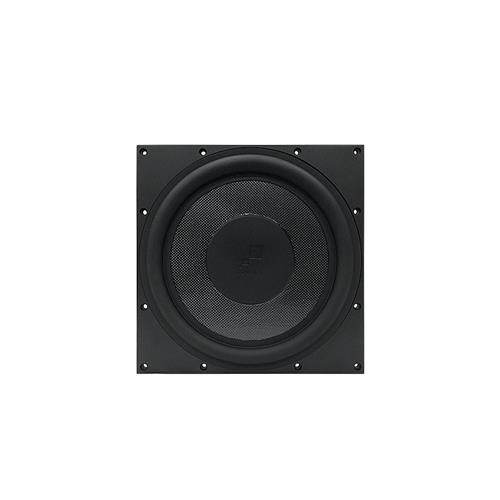

Woofer: 12” (305mm) laminated carbon fiber cone with a rubber surround
Frequency Response: 25Hz - 250Hz +/-3dB
Impedance: 8 Ohms nominal
Sensitivity: 90dB (2.83V/1) meter
Grille Material: Perforated steel
Required Enclosure: R12SUB ENC acoustic enclosure
(sold separately)
Required Amplification: Sonance DSP 2-750 (Used in stereo setting)
