DPA Microphones

This is a Special Order Item

Surround Kit with 5 matched 4006A Omnidirectional Mics

Product Code: DP-5006-A

Brand
DPA Microphones
RRP $19,859.00


Quantity In Cart:
Unit of Measure
EACH



Unspecified
Technical Specifications
Brands DPA Microphones
Series d:mension
  • Details
  • Downloads
  • Where to Buy
  • Ordering

d:mension™ Surround Kit


PRODUCT ID
5006Ad:mension™ Surround Kit with 5 x 4006A, Clips, Windscreens in Peli Case

The ultimate in surround solutions
  • Five carefully matched microphones
  • Useful as orchestral main pair

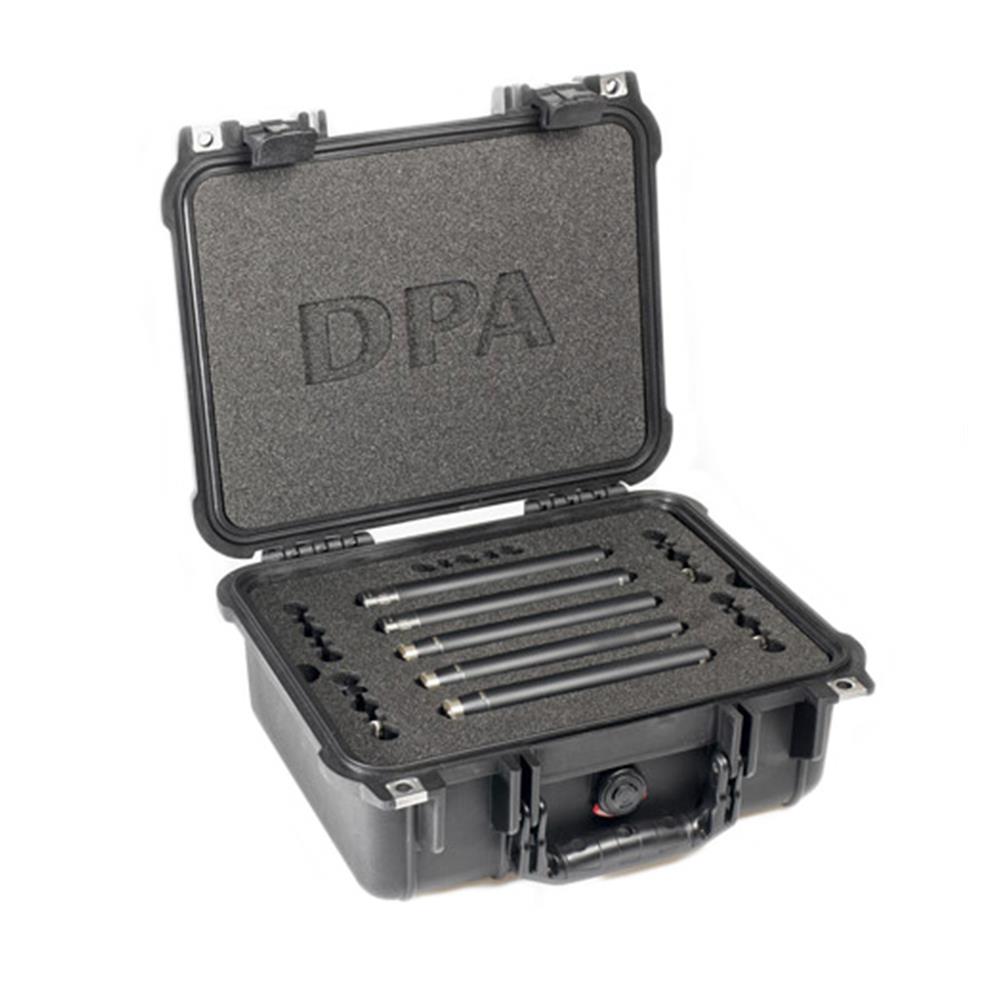

  • Peli™ Case transportation and protection
d:mension™ Surround Kits all have unique features for surround sound recording. There are three different types of microphone kits and you can read about the details for the individual kits below and their qualities and applications. The microphones can be used in any given configuration, but when used with the dedicated S5 Surround/Decca Tree Mount you’ll have endless of possibilities to capture the nature of the environment in which the mics are placed. The S5 Surround Mount can be used for both Decca as well as numerous Surround main array setups.


d:mension™ 5006A Surround Kit
This is a complete Surround Kit with five carefully factory-matched omnidirectional microphones. Even though the standard tolerances on the d:dicate™ 4006A Omnidirectional Microphones are extremely low, the surround match is even closer. The specially selected d:dicate™ 4006As are matched within ±0.5 dB on both frequency response and sensitivity from mean of set.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the d:dicate™ 4006A Omnidirectional Microphones the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of d:dicate™ 4006A Omnidirectional Microphones will provide you with a lifetime of satisfying listening.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone / accessory inlays.

4006A Specifications

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency range 10 Hz - 20 kHz
Frequency range, ±2 dB 10 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 79 dB(A)
Total harmonic distortion (THD) < 1% up to 139 dB SPL peak
Dynamic range Typ. 124 dB
Max. SPL, peak before clipping 146 dB
Switchable attenuator, filters etc. 0 dB / -20 dB
Output impedance 200 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 163 g (5.7 oz)
Microphone diameter 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter 16 mm (0.6 in)
Microphone length 170 mm (6.7 in)
Maximum output voltage, RMS 8.0 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
Matching tolerance (frequency response and sensitivity) ±0.5 dB
Phase deviation for kit < 5°
