Turbine Kit IP Video+ TKIV+ Zenitel

Product Code: ZE-TKIV+

Brand
Zenitel
$3,200.00 inc GST
RRP $3,200.00

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Zenitel
  • Details
  • Downloads
  • Where to Buy
  • Ordering

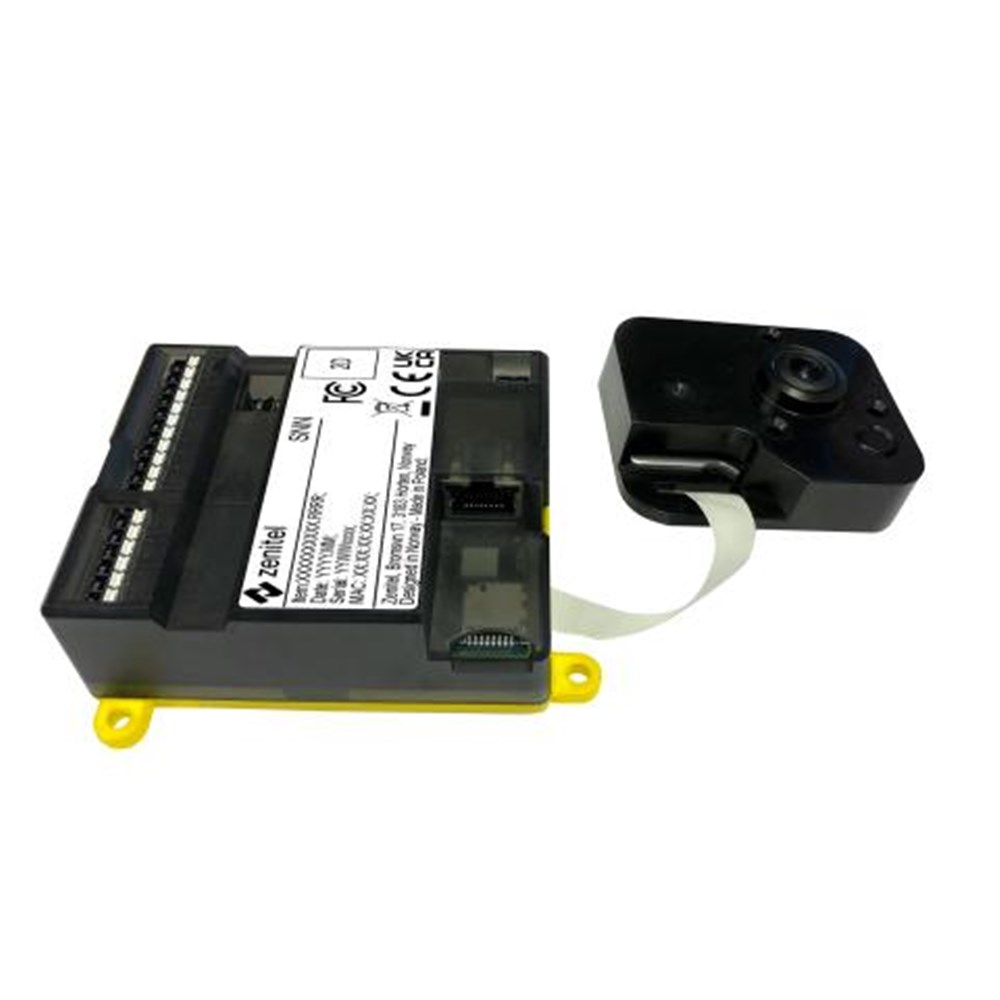

The TKIV+ Turbine Compact Intercom Video Kit combines the unrivaled high-quality audio of Zenitel’s Turbine Compact Series with exceptional video. It provides partners with the opportunity to use our technology to build their own video intercom stations.

  • Build your own IP Intercom video station or Help-Point
  • Add VoIP and video to your parking solution, cash point, vending machine, et al
  • Advanced audio technology like automatic gain and volume adjustment, background noise cancellation, open duplex, etc.
  • HD Video at up to 30 frames per second in 1440x1080p
  • Wide angle lens
  • ONVIF Profile S conformant
  • MJPEG and H.264
  • Control relay and I/Os over IP
  • Supports ICX-AlphaCom, IC-EDGE and SIP
  • Supports a wide set of IP networking standards
  • Powered from the IP network cable using Power over Ethernet (PoE and PoE+)
Audio
  • SPL peak power at 1m in open duplex    90 dB
  • SPL peak power at 1m in half duplex    100 dB
  • SPL peak power at 1m in program distribution and announcement    100 dB
  • Noise cancelling - suppression of musical noise    Yes
  • Codecs    G.711, G.722, G.729
  • Frequency range, G.722 Codec    200 Hz – 7000 Hz
  • Audio technology    Modes: Full open duplex, switched open duplex
  • Adaptive jitter buffer
  • Custom Ringing Tone
  • Audio Mixing – Conversation and Group Call
  • Sound Level Detection / scream alarm (only in AlphaCom)
  • Automatic gain control (microphone)
  • Internal speaker amplifier    10 W class D
  • Internal speaker    10 W
  • Microphone technology    Digital MEMS, omnidirectional microphone
  • Automatic Volume Control (AVC)    Yes
  • Acoustic Echo Cancellation (AEC)    Yes
Video
  • Image Sensor    1/2.5" RGB CMOS
  • Lens    F 2.0, fixed iris
  • Light Sensitivity    Down to 1 lux
  • Resolution    240 / 480p / 960x720p / 1440x1080p*
  • Frame Rate    Up to 30 FPS in 1440x1080p**
  • Supported Codecs    MJPEG, H.264 ***
  • Digital PTZ    Yes
  • Digital Zoom    Up to 4x
  • Field of View    Configurable up to 180 degrees horizontally and vertically
  • Snapshot Function    No
  • IR LED    No
  • Parallel videostreams    6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions)
  • * MJPEG does not support 720p and 1080p resolution.
  • ** 30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS.
  • *** ICX-AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264.
Hardware
  • Ethernet connector    1 x RJ-45
  • All other connectors    Tool less, spring loaded, vibration proof terminals
  • General inputs and outputs    6 (configurable)
  • Outputs    12mA as LED drivers
  • Change-over relay (NO+NC+COM)    SELV
  • Power options    PoE, PoE+, external power supply
  • PoE (Power over Ethernet)    IEEE 802.3af standard, IEEE 802.3at
  • External power supply    24VDC - 48VDC
  • Power consumption    Idle 3.5W, max 12W (depending on volume)
  • Audio Line out / Induction loop signal    600 OHM
  • Length of included camera connection cable    100 mm
  • Processor / Chipset
  • CPU cores    4 x Cortex-A53
  • CPU Clock Speed    1.6 GHz
  • RAM    512MB LPDDR4
  • Flash    1 Gb
  • Video encoder    MJPEG, H.264
  • Dual Image    Yes
Construction
  • Dimensions CPU module (HxWxD)    89 x 108 x 31 mm
  • Dimensions camera module (HxWxD)    53 x 66 x 23 mm
  • Networking & Protocols
  • Protocols    IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
  • LAN protocols    Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at)
  • Management and operation    HTTP/HTTPS (Web configuration). DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
  • Advanced supervision functions    E.g network test, tone test, status reports (only in AlphaCom)
  • SIP support    RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
  • DTMF support    RFC 2833, 2976 (SIP info)
  • Integration and API    AlphaCom, Scripting (plugins)
Environmental
  • Operating temperature range    -30° to 70° C / -22° to 158 ° F
  • Storage temperature range    -40° to 70° C / -40° to 158 ° F
CERTIFICATIONS
  • ONVIF Conformance    Profile S for streaming video
  • Other Specifications
  • IP address information    Speaks IP address after system boot
  • Country of manufacture    Poland
  • Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
