  • VX52R UTL fits VX6.5" cutout Ultra Thin 35.7mm depth In Ceiling speaker 100W 8 Ohm

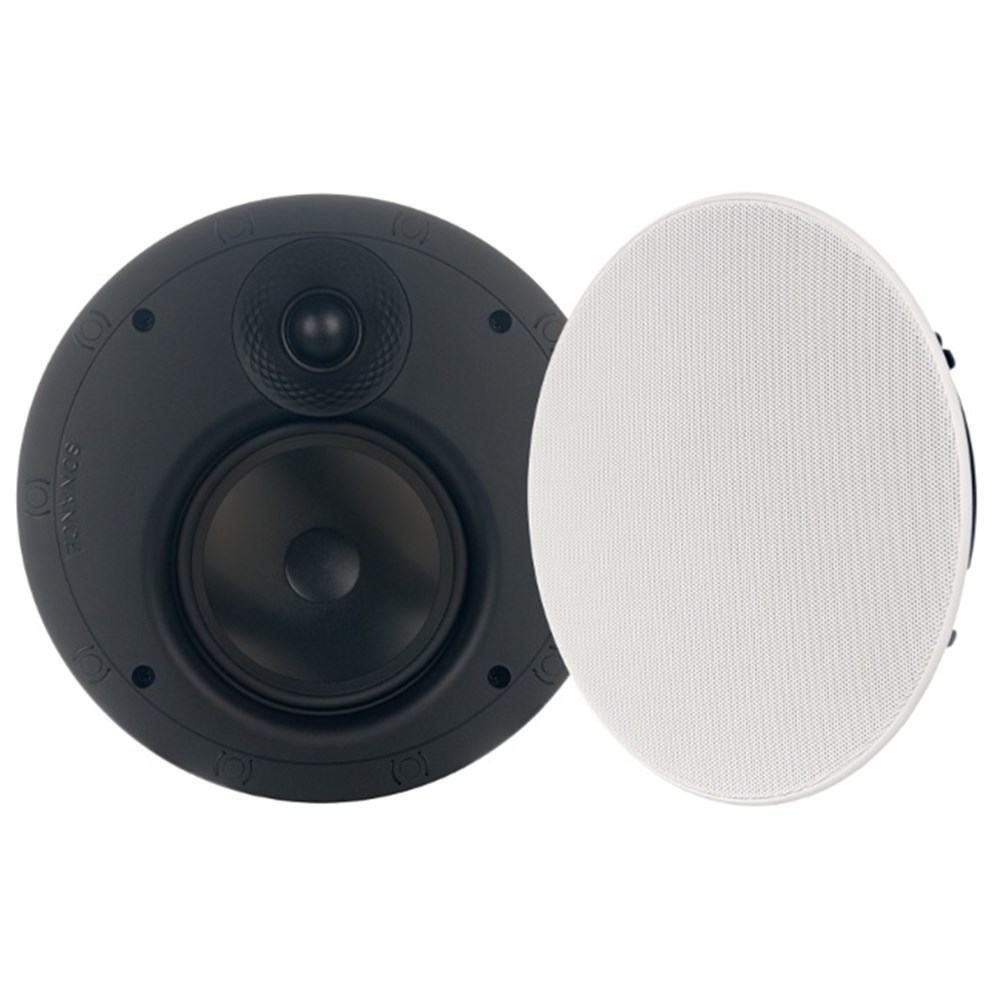

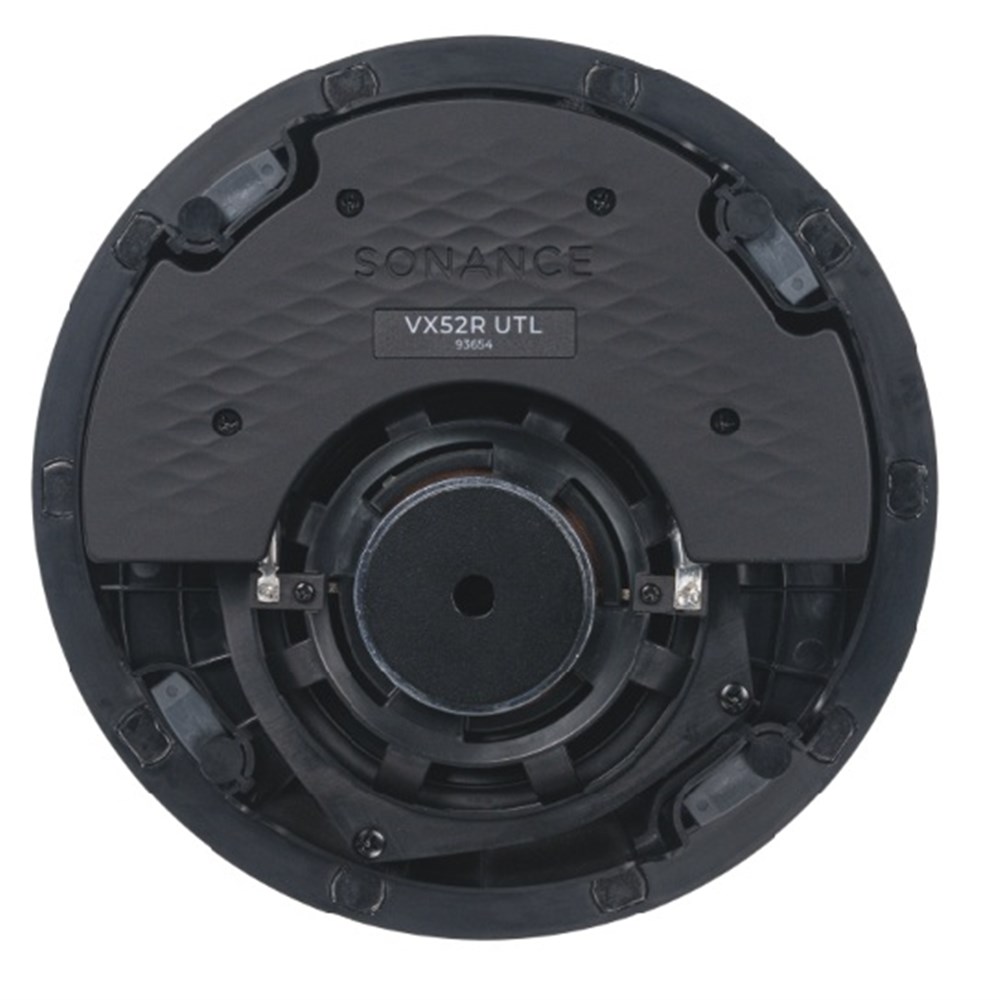

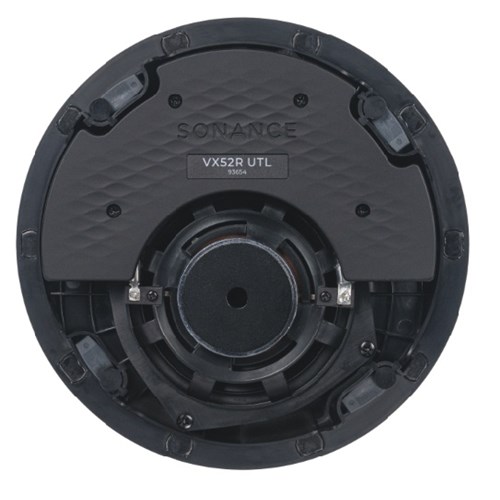

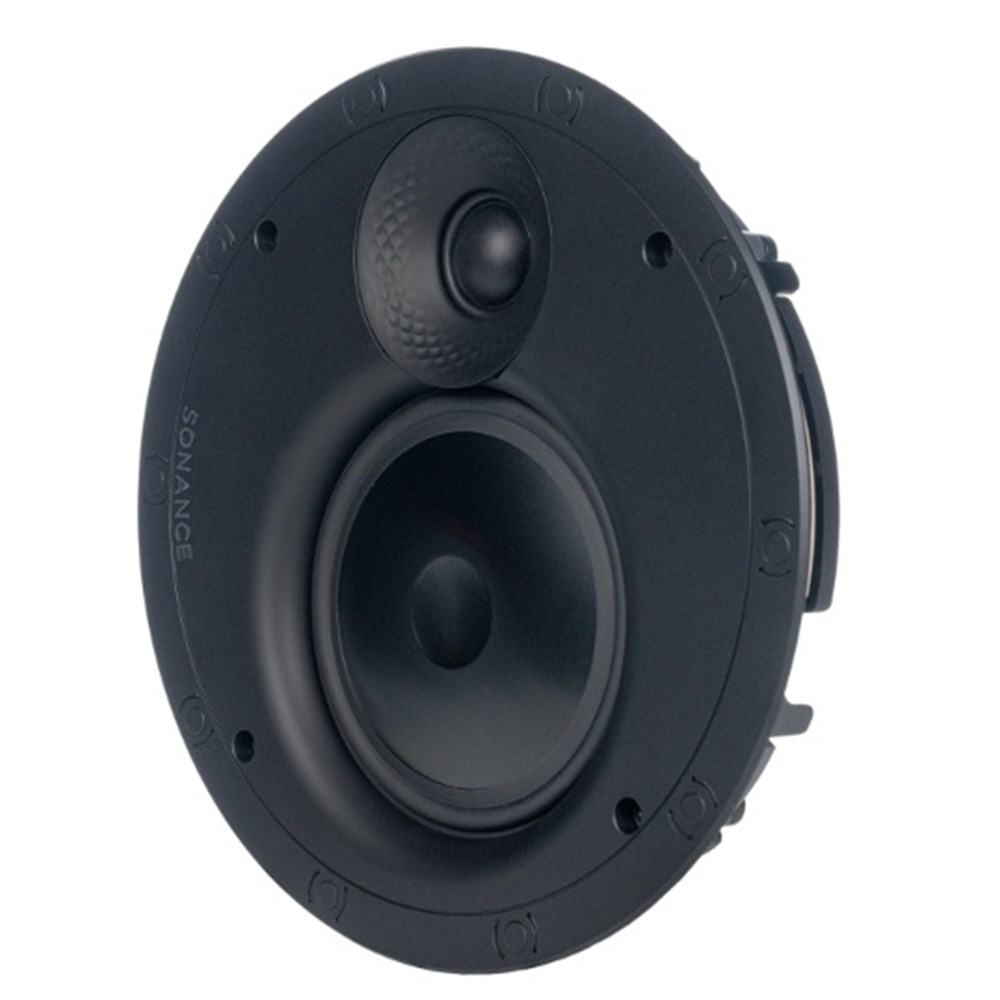

VX52R UTL fits VX6.5" cutout Ultra Thin 35.7mm depth In Ceiling speaker 100W 8 Ohm

Product Code: SO-93654

Brand
Sonance
RRP $999.00


Quantity In Cart:
Unit of Measure
PAIR



5 Year
GTIN
041093936548
Technical Specifications
Brands Sonance
  • Details
  • Downloads
  • Where to Buy
  • Ordering

new Sonance VX52R UTL



5.25" Ultra Thin-Line In-Ceiling Speaker - SAME CUTOUT AND GRILLE AS vx6 RANGE


The Sonance VX52R UTL brings the performance and architectural finish of the Sonance Visual Experience Series to installations where ceiling depth is extremely limited.

With an ultra-shallow mounting depth of just 35.7 mm, the VX52R UTL is specifically engineered for challenging construction environments including apartments, high-rise residential projects, MDUs, concrete ceiling applications and other installations where conventional architectural speakers simply will not fit.

Despite its remarkably shallow profile, the VX52R UTL incorporates Sonance VX transducer and waveguide technology to deliver detailed, consistent sound and wide, even coverage throughout the listening space.

Importantly for system designers and installers, the VX52R UTL uses a 210 mm ceiling cut-out, allowing it to maintain the architectural footprint and grille options associated with Sonance's VX6 round speaker platform while dramatically reducing the required mounting depth.

Ideal Applications

The VX52R UTL is particularly suited to:

•    Apartments and multi-dwelling developments
•    Restricted ceiling cavities
•    Shallow metal framing applications
•    Renovations where available mounting depth is extremely limited
•    Premium residential projects requiring discreet architectural audio
•    Applications where maintaining a consistent Sonance VX ceiling aesthetic is important

Ultra-Thin – Without Compromising the VX Experience

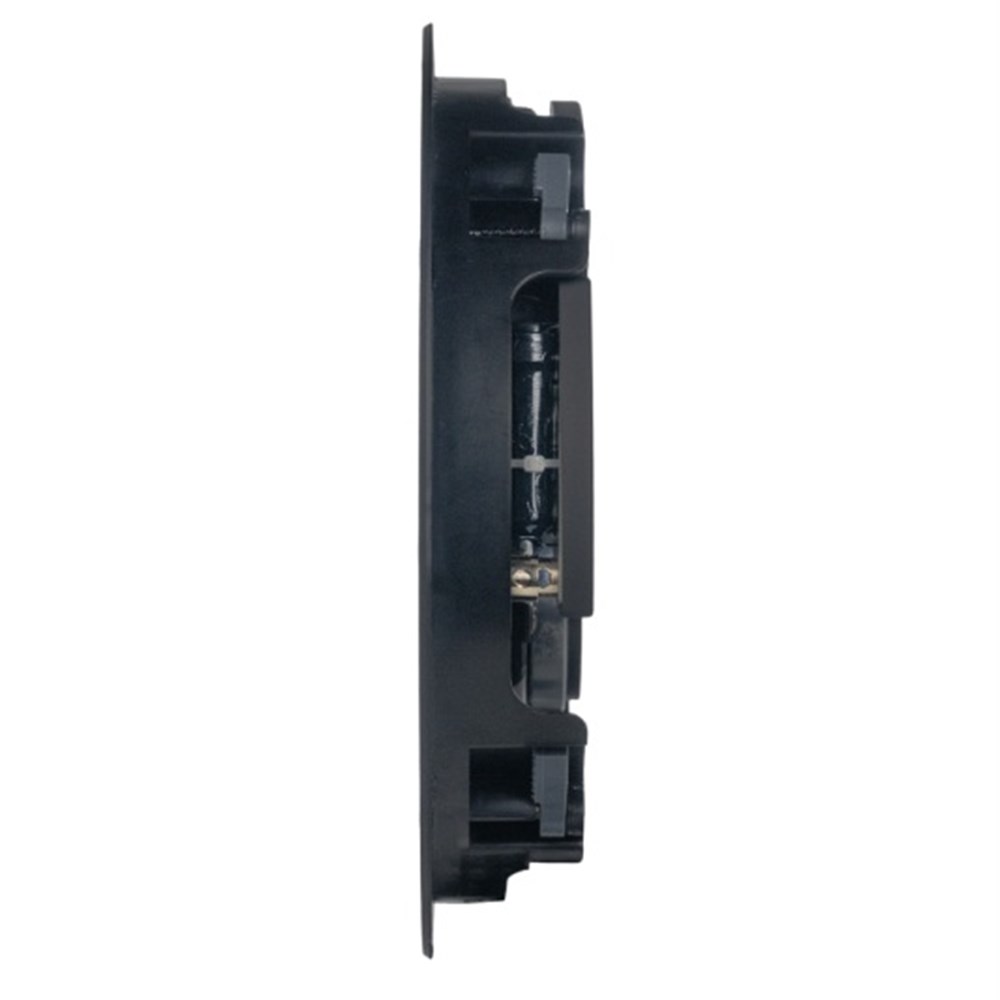

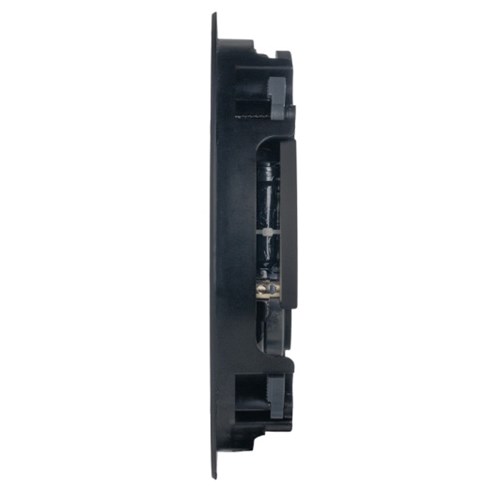

At only 35.7 mm deep, the VX52R UTL provides an exceptionally practical solution for projects where structural limitations would normally prevent the use of a premium architectural loudspeaker.

A 130 mm anodized aluminium woofer and 25 mm cloth-dome tweeter provide a frequency response of 55 Hz–20 kHz ±3 dB, with power handling up to 100 watts RMS.

Sonance's Sinusoidal Textured Waveguide is engineered to provide controlled, consistent dispersion and tonality across the listening area, helping designers create balanced audio coverage rather than concentrating performance directly beneath the speaker.


Key Features

•    Ultra-thin 35.7 mm mounting depth
•    Designed to fit challenging construction environments including 2.5" metal framing
•    Ideal for MDU, apartment, high-rise and concrete construction
•    5.25" (130 mm) anodized aluminium woofer
•    1" (25 mm) cloth-dome tweeter with acoustic back chamber
•    Sonance VX Sinusoidal Textured Waveguide
•    Wide, consistent coverage and natural tonality
•    Familiar Sonance VX one-stage installation
•    210 mm cut-out diameter
•    Micro Trim grille supplied
•    Paintable grille for discreet architectural integration

Specifications

Amber Product Code: SO-93654
Series: Visual Experience – Thin Line
Speaker Type: In-Ceiling
Woofer: 5.25" (130 mm) anodized aluminium cone, rubber surround
Tweeter: 1" (25 mm) cloth dome, Ferrofluid-cooled, acoustic back chamber
Frequency Response: 55 Hz–20 kHz ±3 dB
Impedance: 8 ohms nominal; 6 ohms minimum
Power Handling: 5 watts minimum; 100 watts maximum RMS
Sensitivity: 89 dB SPL (2.83 V / 1 m)
Speaker Diameter: 232.8 mm
Mounting Depth: 35.7 mm
Cut-Out Diameter: 210 mm
Round Micro Trim Grille Diameter: 244.4 mm
Round Trimless Grille Diameter: 235.6 mm
Square Micro Trim Grille: 244.4 × 244.4 mm
Square Trimless Grille: 235.6 × 235.6 mm
Product Weight: 0.89 kg each
Unit of Measure: Pair
