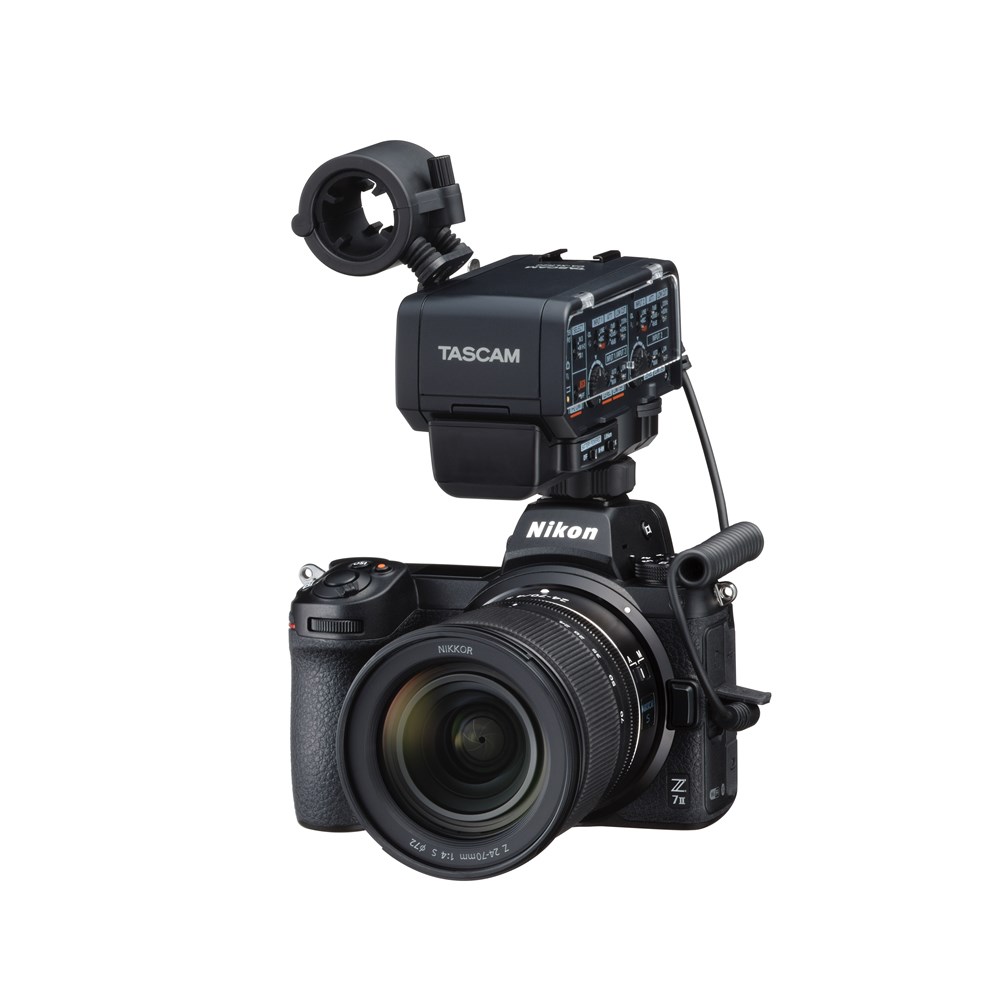

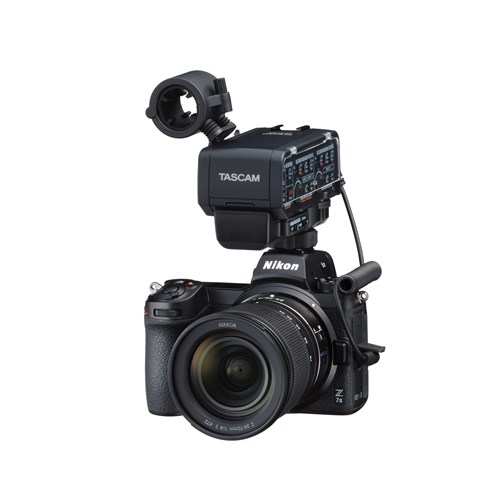

XLR Mic Adapter for general DSLR Cameras Analog Signal

Product Code: TA-CA-XLR2D-AN

Brand
Tascam
RRP $899.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands TASCAM
  • Details
  • Downloads
  • Where to Buy
  • Ordering

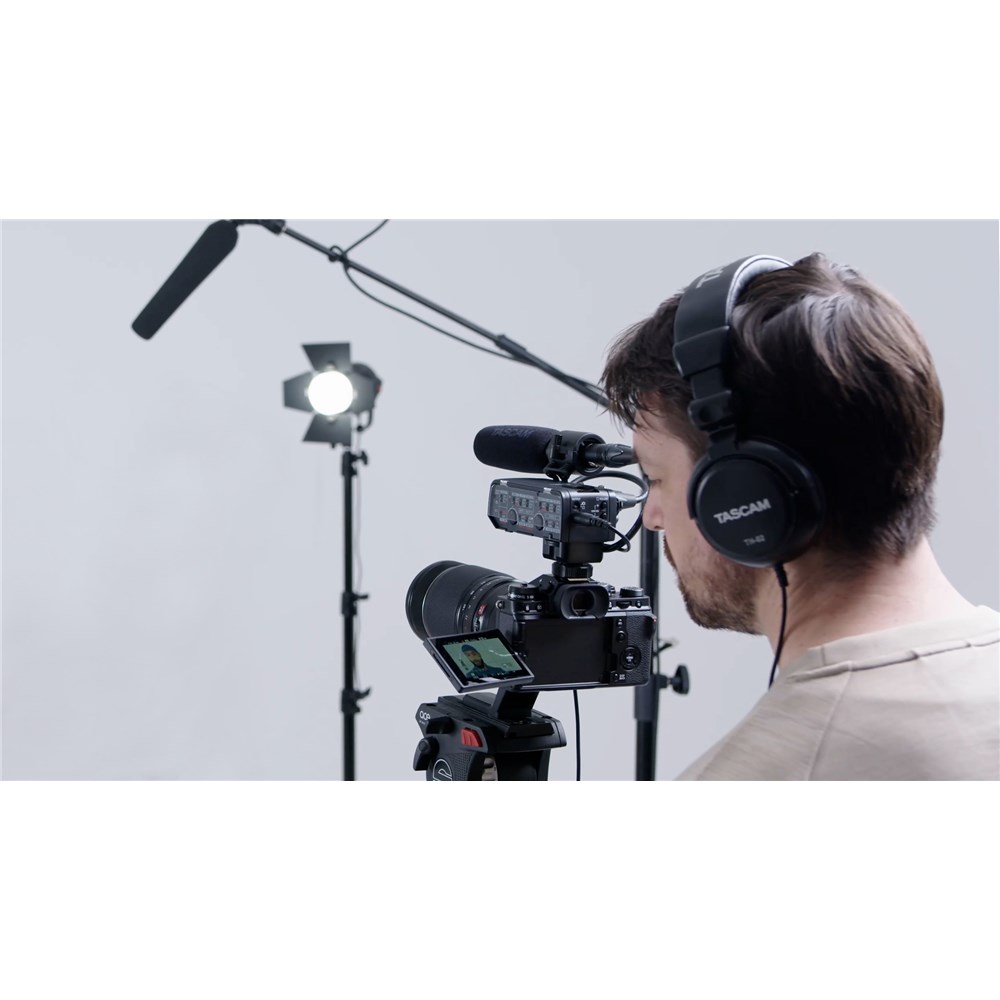

Select the Best Microphone According to the Application

Select the Best Microphone According to the Application

Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications.

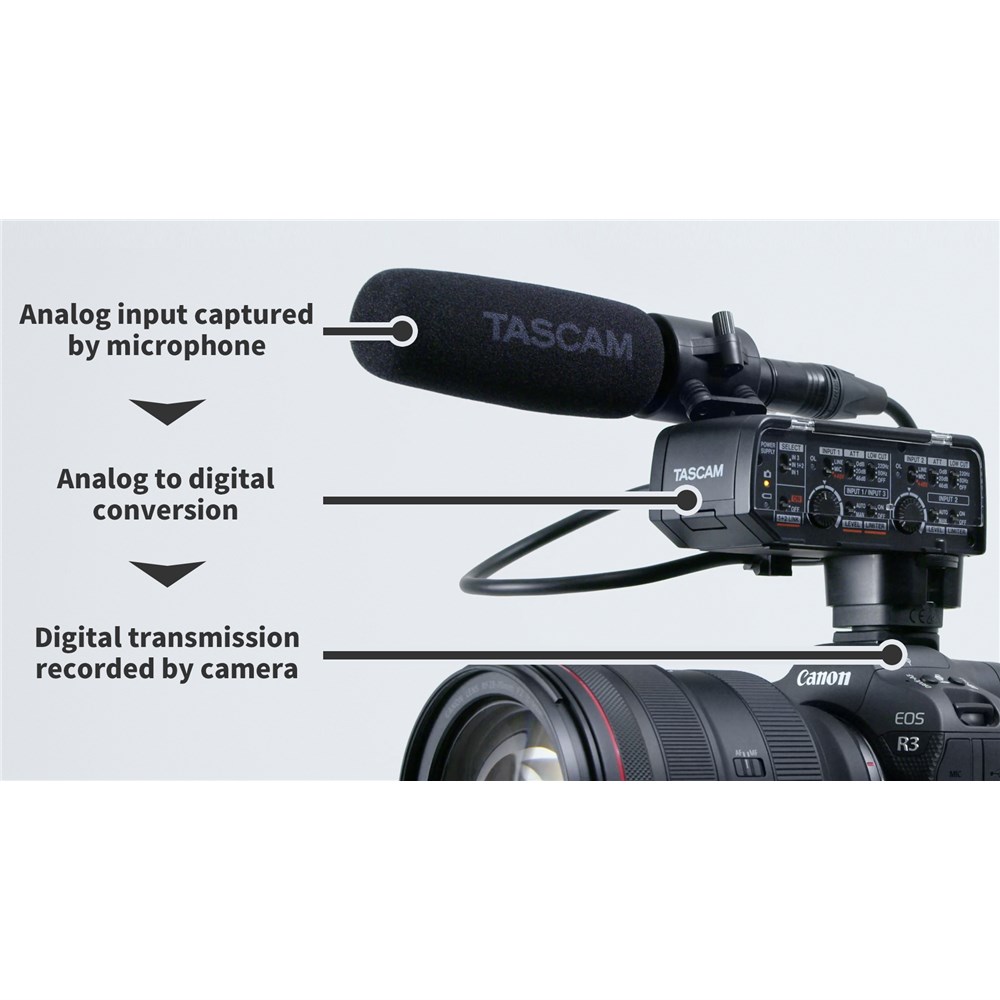

Equipped With a High-performance AD Converter, Direct Transmission of Digital Audio to the Camera

Because of TASCAM know how and premium AD converters, the CA-XLR2d is all about clean, noise-free, professional audio. It enables high-quality audio and smart voice recording utilizing various specialized brands of audio equipment. By transmitting digital audio directly to the camera via an accessory shoe that supports digital transmission, there is no deterioration in sound quality, but it also frees you from the work of synchronizing images and sound in post production. In addition, the CA-XLR2d is driven by the power supply from the camera, so if you connect it to a compatible camera, you can have compact operation without the need for a dedicated power supply.

(Compatible manufacturers: Canon, FUJIFILM)

Equipped With a High-performance AD Converter, Direct Transmission of Digital Audio to the Camera
High-performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range

High-performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range

CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.

Designed For a High Degree of Freedom

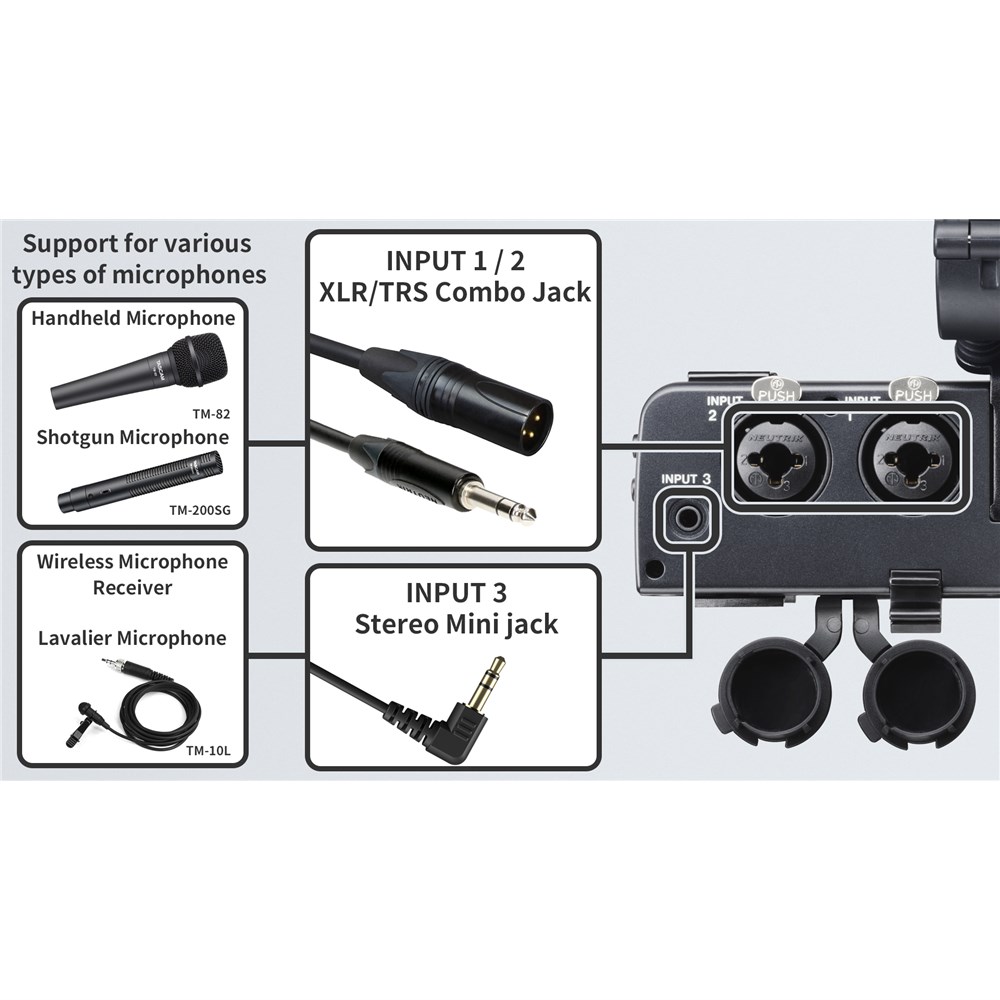

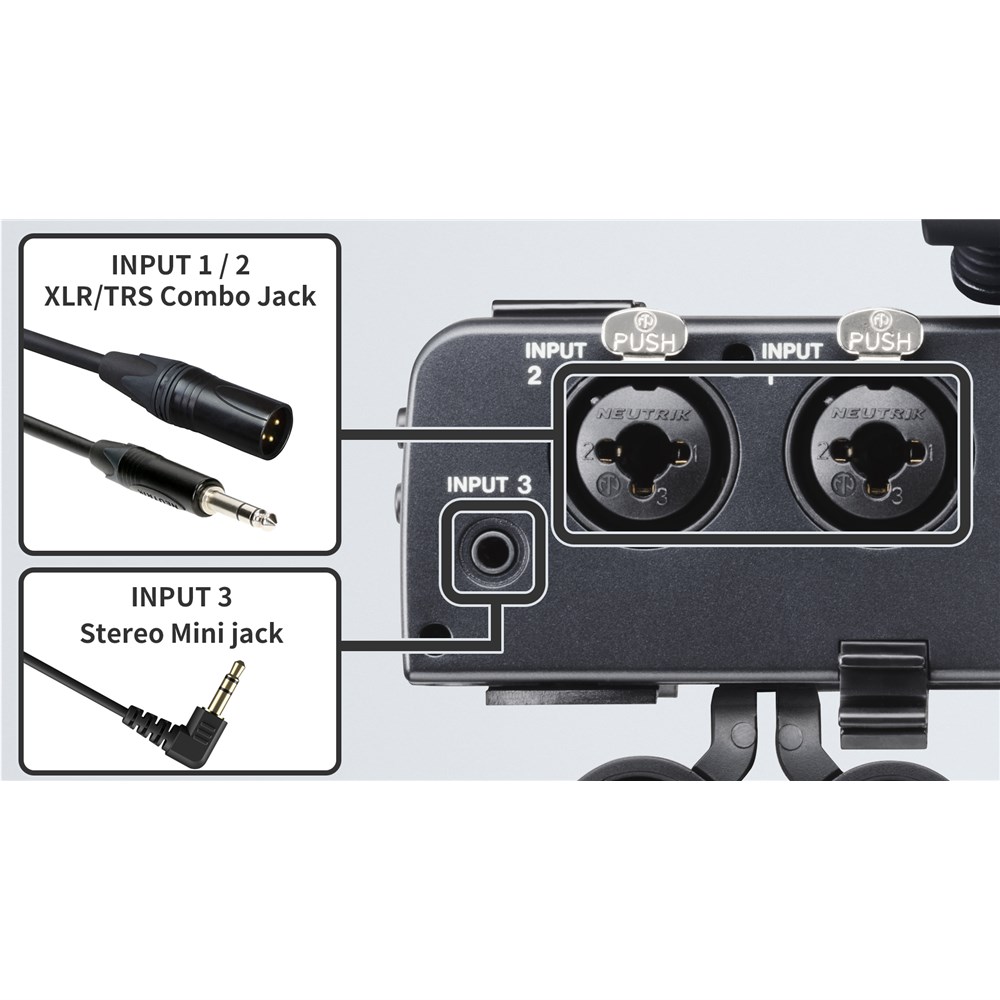

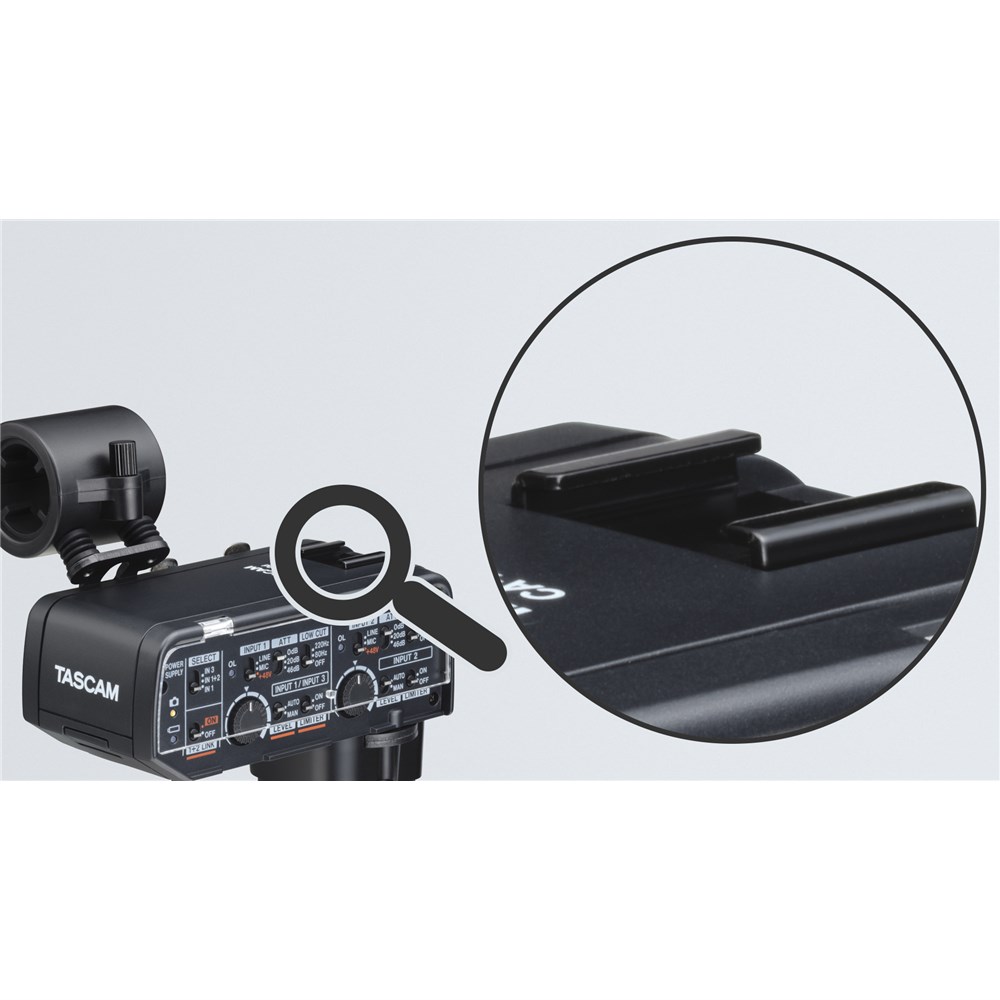

A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.

Designed For a High Degree of Freedom


Features at a Glance

  • Microphone adapter with XLR input expansion for mirrorless cameras
  • Equipped with 2 XLR/TRS input terminals, you can use the optimum microphone according to the set and environment
  • Equipped with a high-performance AD converter, it can directly transmit digital audio without deterioration to the camera via a accessory shoe.
    (Compatible manufacturers: Canon, FUJIFILM)
  • Power can be supplied from the camera body via the corresponding accessory shoe
    (Compatible manufacturers: Canon, FUJIFILM)
  • Equipped with a high-performance HDDA mic preamplifier for high sound quality, low noise,  and wide dynamic range
    (microphone / line level switching, + 48V phantom power supply compatible)
  • Equipped with 1/8-inch stereo mini jack (INPUT 3) for a lavalier microphone or microphone requiring plug-in power
  • Compatible with virtually all cameras that have an analog input by using the included battery box, cold shoe mount adapter, detachable microphone holder with shock mount mechanism, and analog audio cable
  • Equipped with a convenient cable holder for wiring around the camera
    • Camera mode: Audio can be transmitted to the microphone input of the camera.
    • Headphone mode: Direct monitoring with headphones is possible.
  • Equipped a cold shoe mount on the top panel for extra adapters or accessories



Other Features
  • Replaceable shoe connection adapter.
    • Conversion adapters "CA-AK1-C", "CA-AK1-F" and "CA-AK1-AN" for accessory shoe connection are available.
    • One unit can support both Canon and FUJIFILM cameras by switching the conversion adapters.
  • Attenuator function: 0dB / 20dB / 46dB
  • Low cut filter: OFF / 80Hz / 220Hz
  • Limiter function
  • Auto level function
  • Overload indicator for each input level
  • 1+2 LINK function: Linked volume, level and limiter of INPUT 1 and INPUT 2
  • Equipped with a convenient cable holder for wiring around the camera



Optional Items
Accessory shoe mount adapter
  • CA-AK1-C (Accessory shoe mount adapter for Canon)
  • CA-AK1-F (Accessory shoe mount adapter for FUJIFILM)
  • CA-AK1-AN (Cold shoe mount adapter)
HEADPHONES
  • TH-02
  • TH-06
  • TH-07
SHOTGUN MICROPHONE
  • TM-200SG
Lavalier Microphone
  • TM-10L
