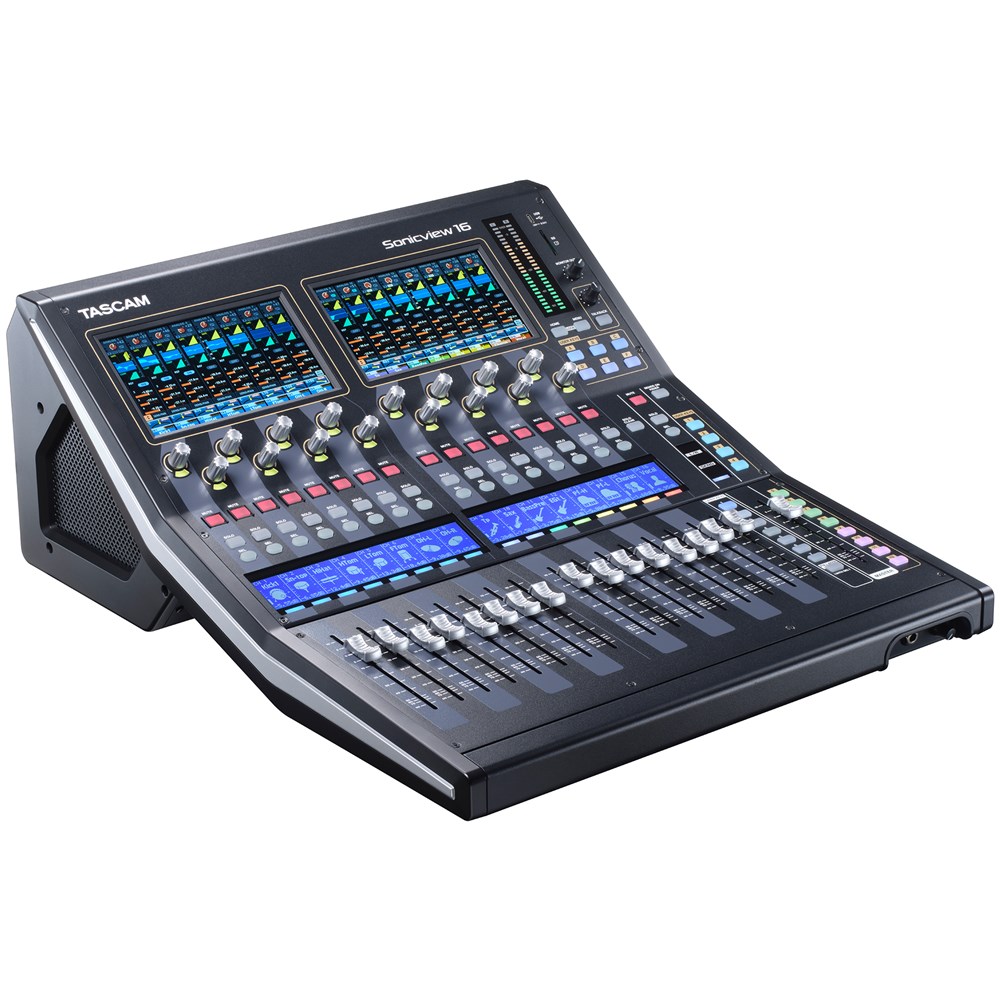

TASCAM Sonicview 16

TASCAM Sonicview
TASCAM has a long history of high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview, TASCAM has created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.

TASCAM Sonicview mixing consoles integrate beautifully with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

Intuitive Operation at Your Fingertips

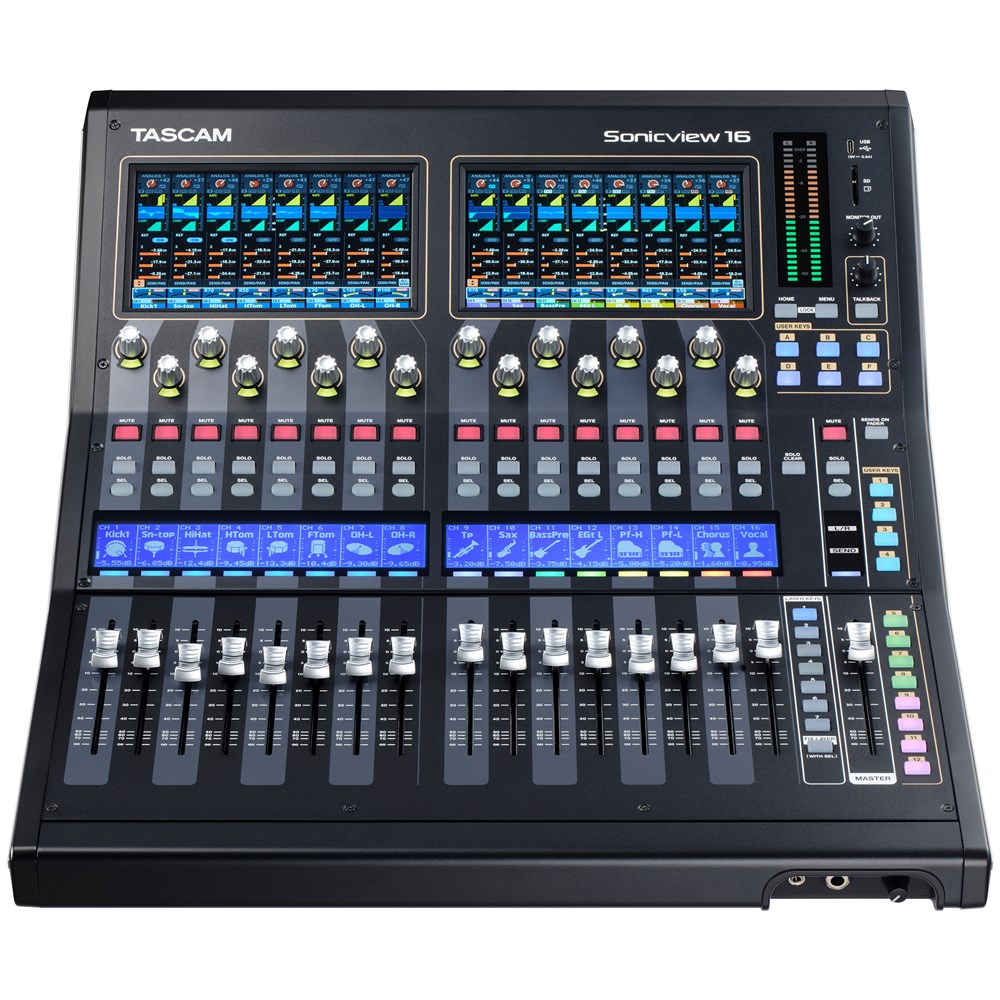

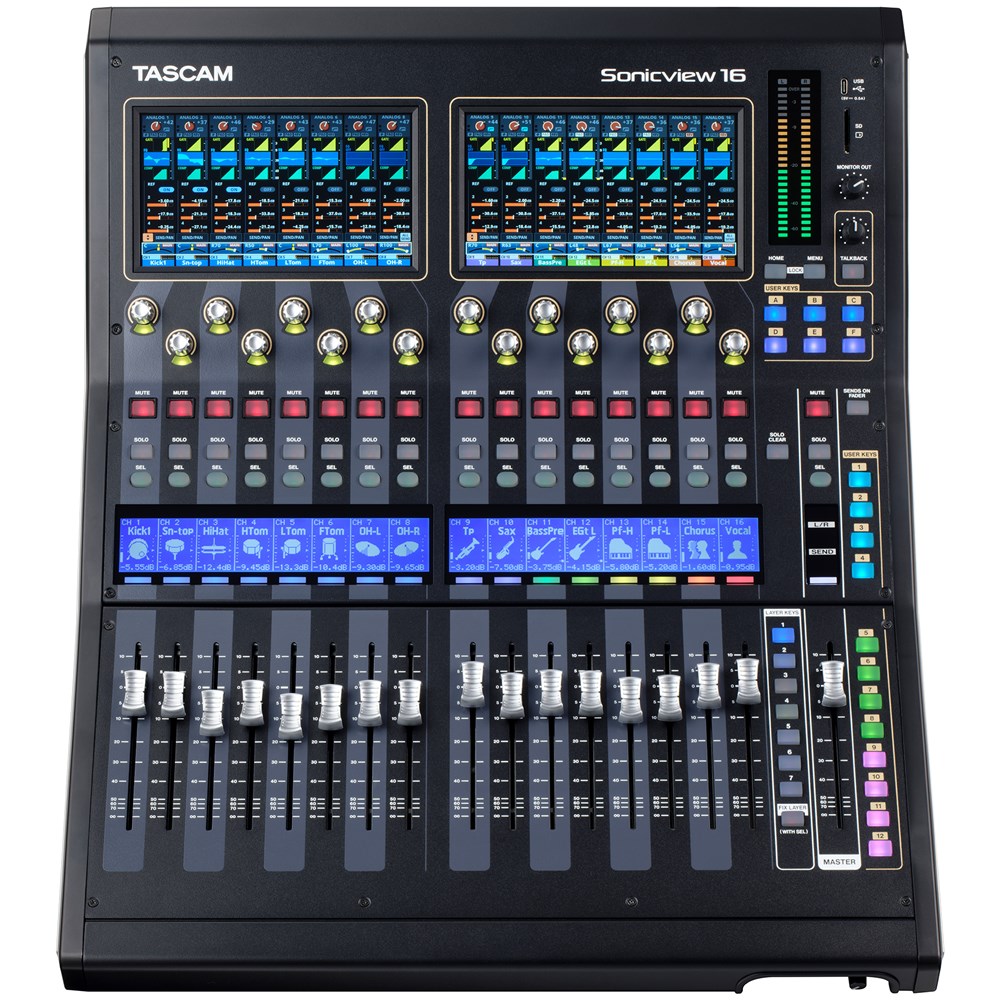

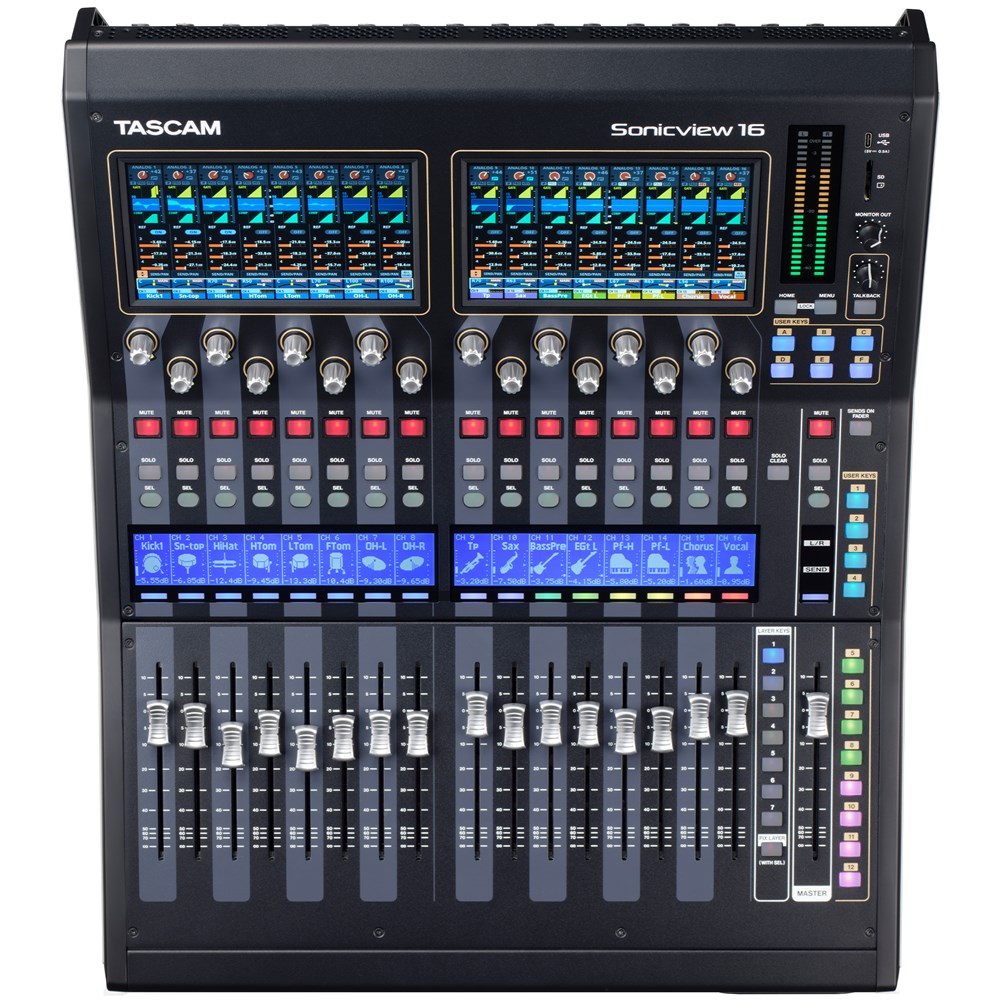

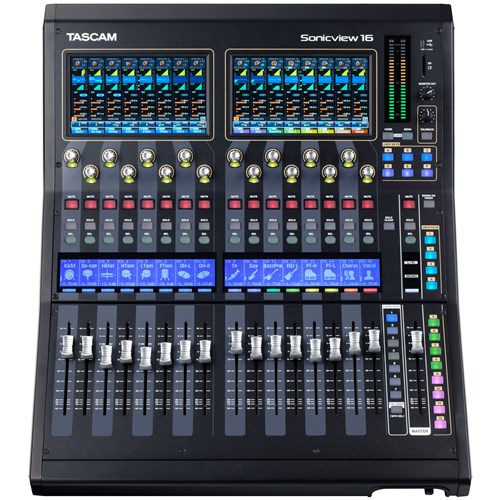

The TASCAM Sonicview 16 offers motorized channel faders in two banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip.

Intuitive Operation at Your Fingertips

The Amazing VIEW

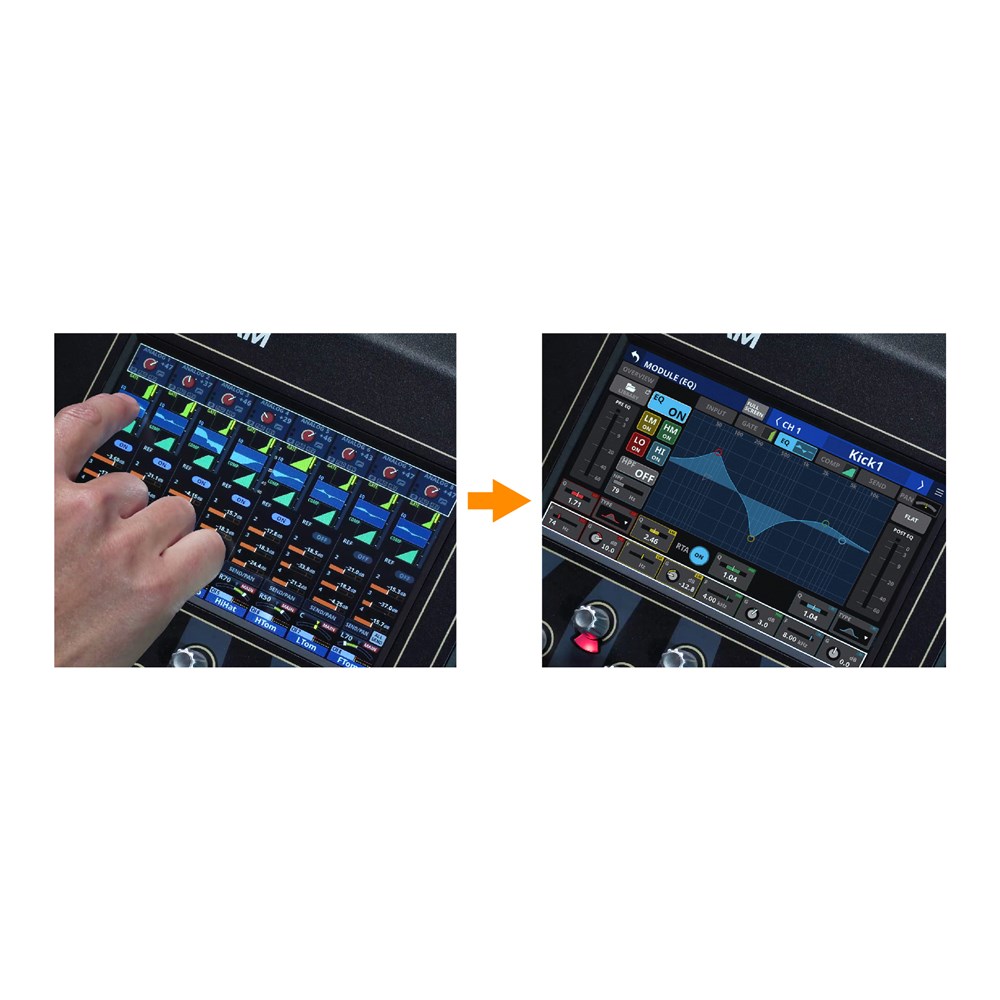

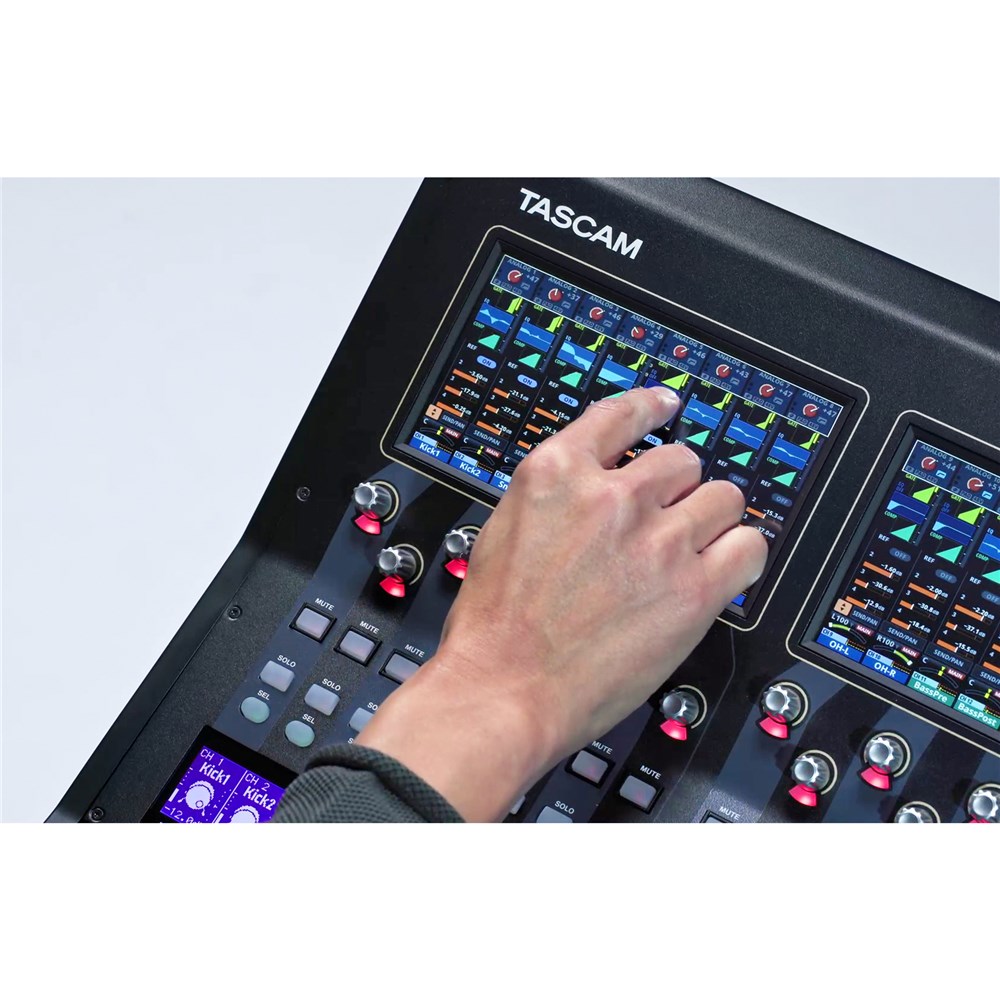

Truly the next generation in mixer user interfaces, the powerful intuitive TASCAM Visual Interactive Ergonomic Workflow (VIEW) system lets you quickly and easily configure the TASCAM Sonicview 16's two touch screens.

VIEW
Thanks to the VIEW user interface, there are three different ways to view your settings, and each touch screen can be configured independently, so you can monitor and control any combination of settings you want, in whichever screens you want, whenever you want. For instance, you could monitor levels for eight channels of vocals on screen 1, while tweaking the parametric EQ on a drum submix on screen 2.

To view the status of any eight adjacent channels at a glance, as you would see on vertical channel strips with an analog mixer, choose Channel Strip View.
In Module View, you can monitor and control any two sets of parameters for one single channel, including the compressor, graphic EQ, effects send, and more.
Individual View is the ultimate in customized displays. View any functions for any channel, group of channels, and more—all on different screens, simultaneously. For instance, you could simultaneously monitor the output bus meter on screen 1, and monitor levels on important input channels on screen 2.

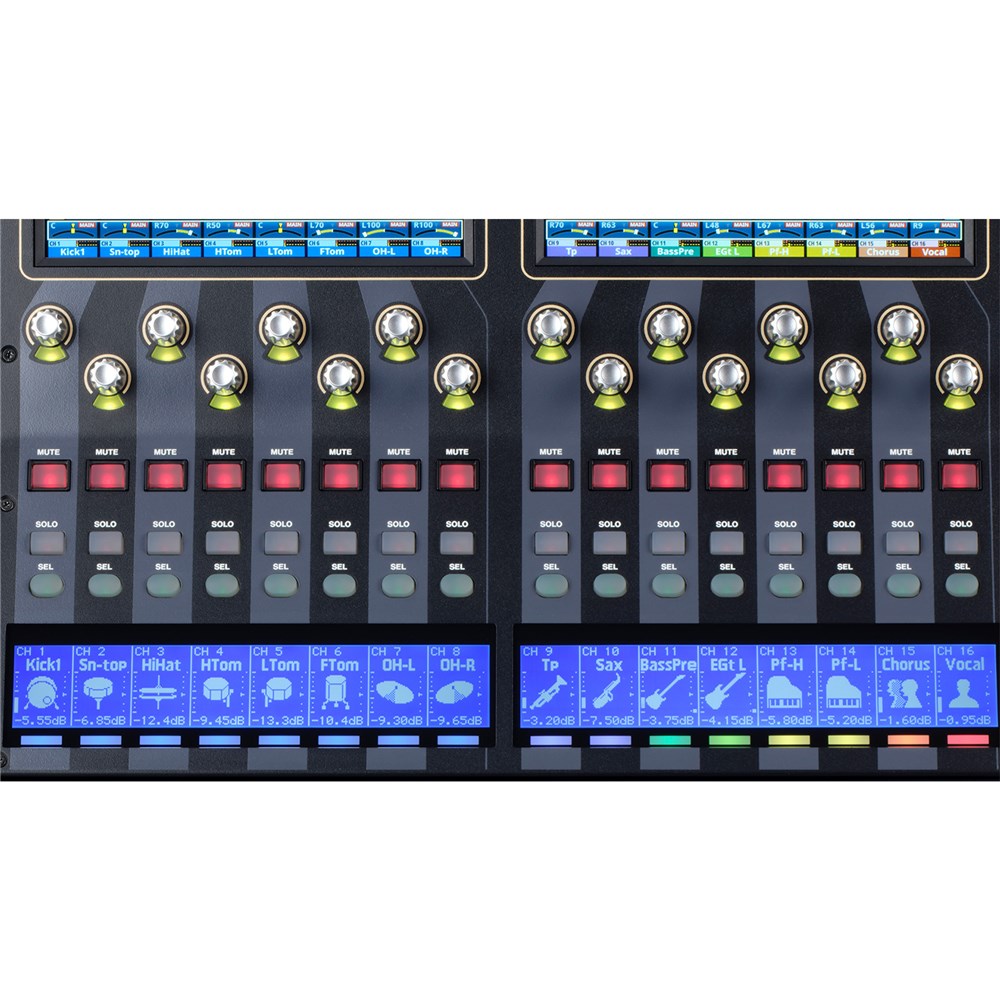

Channel Strip View
Channel Strip View lets you monitor and control eight adjacent channels, and view them as virtual channel strips like an analog mixer layout.

Channel Strip View
Module View
Module View lets you monitor and control any two sets of parameters simultaneously for one single channel.

Individual View
Individual View lets you monitor and control a custom selection of functions for any channel or group of channels.

Individual View

High-end Audio Quality
TASCAM Sonicview delivers the finest audio performance in its class, thanks to a 54-bit float-point FPGA mixing engine; continuous, high-definition 32-bit/96 kHz sampling; and 32-bit analog-to-digital converters. The mixing engine's float-point processing makes it possible to flexibly change levels without compromising resolution and FPGA mixing engine make it possible to ensures ultra-low latency, even in analog-to-analog connections. The result is no-compromises performance, including with Dante networks and in-line monitoring systems.

Input Channels and Processing
The TASCAM Sonicview 16 offers 16 channels with XLR mic/line inputs or 8 channels with both XLR mic inputs and balanced TRS line inputs. You also get TRS insert points on two channels, two stereo pairs of RCA aux inputs, and an XLR input for a talkback mic.

Input Channels and Processing

Channel Control and Processing
There's much more to TASCAM Sonicview than meets the eye. Internally, TASCAM Sonicview mixers have a generous 40 mono channels, 2 stereo and 4 stereo FX return channels channels so you can fly in backing tracks to make a small praise band sound huge, accommodate additional physical audio inputs via the expansion slots for larger ensembles, manage sources from every part of a venue via the Dante network, and mix dozens of DAW tracks. Eight DCAs enable you to easily control groups of channels. The programmable layer keys select which custom combination of channels and output buses are controlled by the motorized faders.
Each input channel can use any or all of 11 processing functions, which can be independently set:

Delay (Input/Pre-fader)    Phase    Digital Trim    High-pass Filter
Gate/Expander/De-esser    4-band Parametric EQ    Compressor/Ducker    Solo
Mix 1-22 Send/Pan (Pre/Post)    FX 1-4 Send/Pan (Pre/Post)    Fader/Pan/Mute to L/R

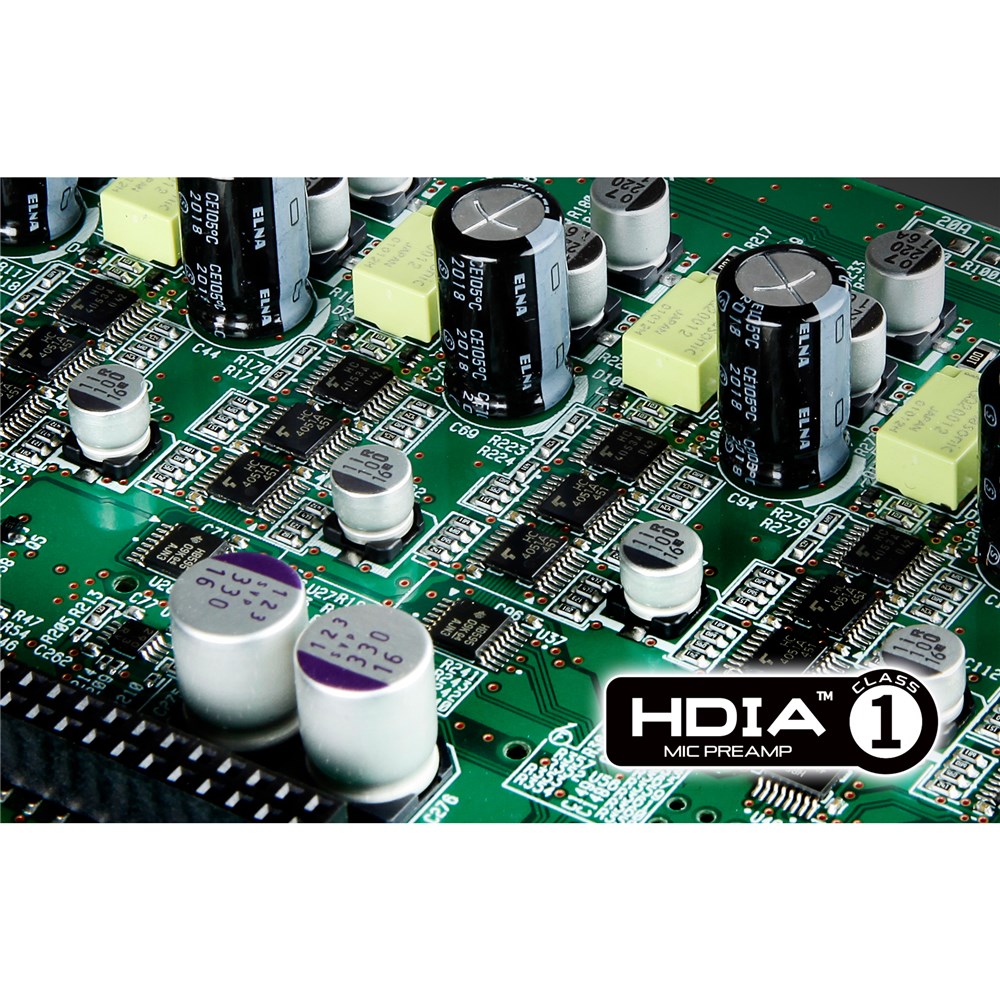

Top-of-the Line Class 1 HDIA Mic Preamps
Each TASCAM Sonicview microphone input feeds a TASCAM Class 1 HDIA (High Definition Instrumentation Architecture) preamp—the finest mic preamp we've ever made. Thanks to an instrumentation amplifier with extremely good noise characteristics in the first stage, Class 1 HDIA microphone preamps exhibit excellent EIN, signal-to-noise ratio, distortion ratio, and frequency response. TASCAM Sonicview ultra definition mic preamps will pick up the slightest nuance from rosin on a violin bow to the subtle dynamic changes of a voice or saxophone. The mic inputs can accept up to +32 dBu signals, providing plenty of headroom for sudden level increases.

The combination of Class 1 HDIA preamps, 32-bit/96 kHz ADCs, and our 54-bit FPGA mixing engine is impressive but we didn't stop there: We conducted extensive internal and external evaluations to tune TASCAM Sonicview mixers for optimal performance. The result is best-in-class sound that will never disappoint.

Class 1 HDIA

Top-of-the Line Class 1 HDIA Mic Preamps
Built-in USB Audio Interface and Stereo Recording
Built-in USB Audio Interface and Stereo Recording
TASCAM Sonicview's integrated 32-in/32-out USB audio interface makes it a first-rate front end for recording and broadcast studios, as well as for capturing live events. Record your choice of channel direct outs, flex buses, and the L/R main bus to your favorite DAW at up to 96 kHz with the same 32-bit precision used throughout the TASCAM Sonicview.

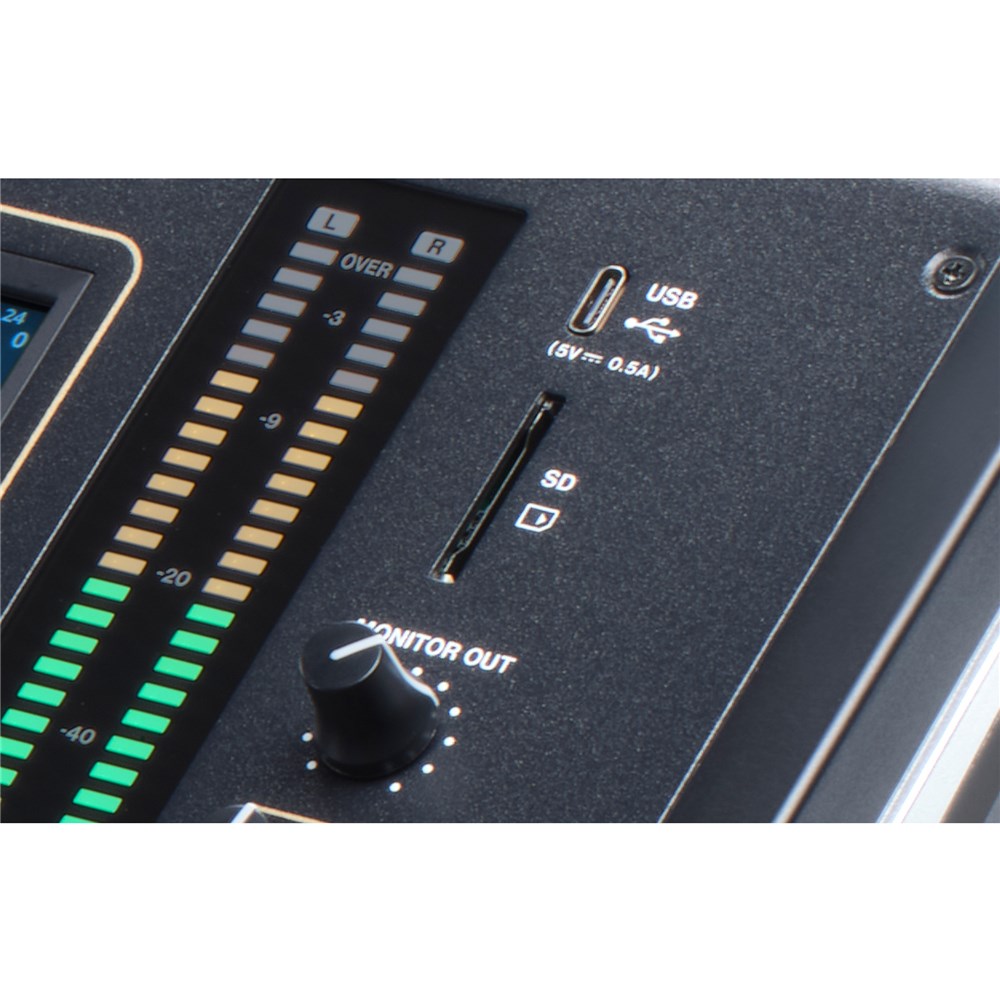

You can simultaneously capture the main mix directly to the onboard stereo SD/USB recorder — handy when the band wants to listen to their performance at the hotel or on the bus. A top-panel port also lets you record in stereo to a USB flash drive.

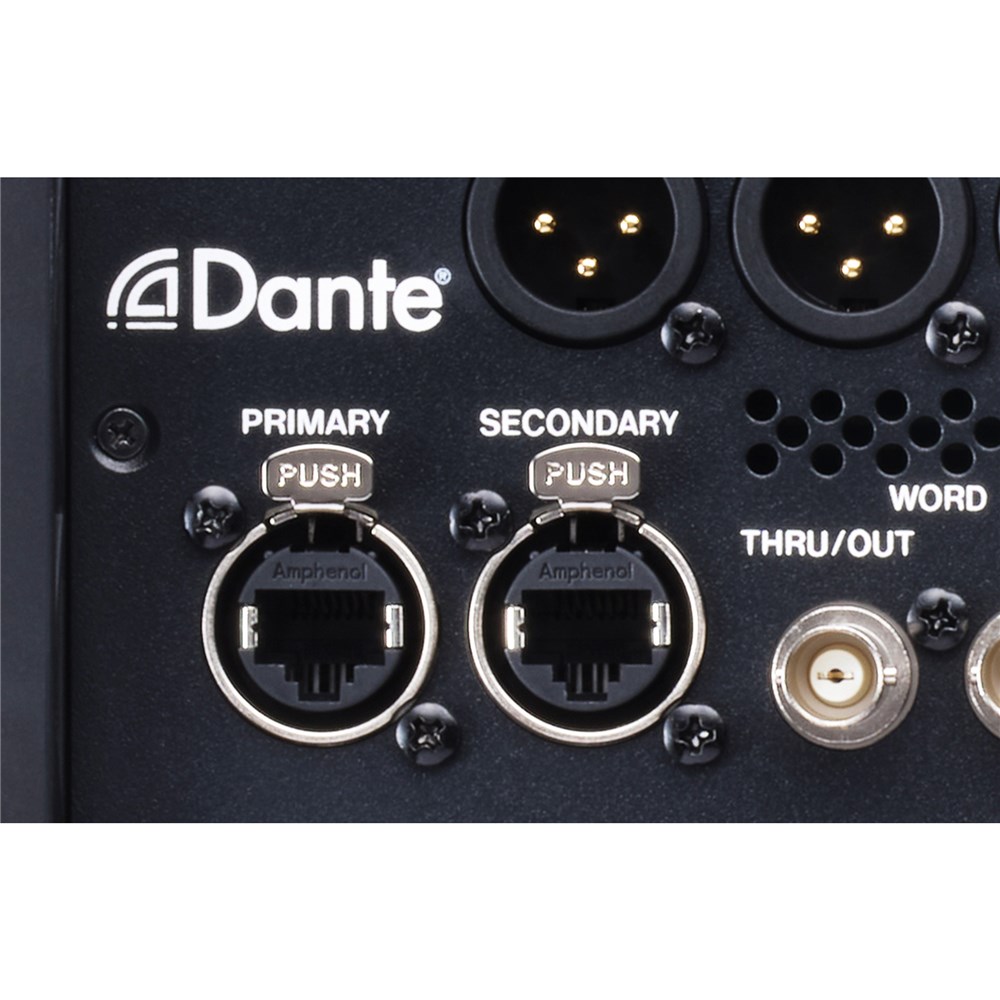

Dante-enabled for Superior Networking
Dante-enabled for Superior Networking

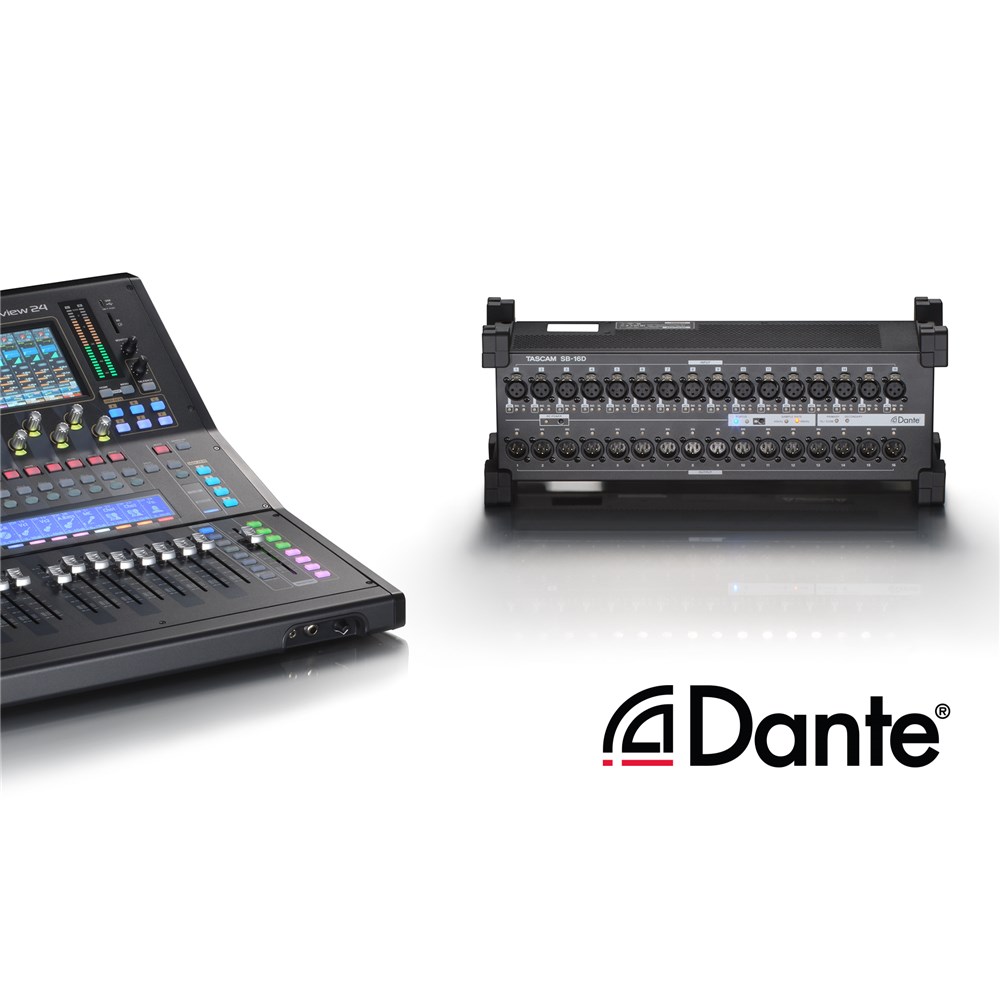

Dante® audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, houses of worship, and much more. TASCAM Sonicview consoles can serve as the audio center of these systems, thanks to a built-in 64-in/64-out Dante interface that supports Dante Domain Manager and have AES67 and SMPTE ST 2110 interoperability. Two Dante ports enable redundant streams.

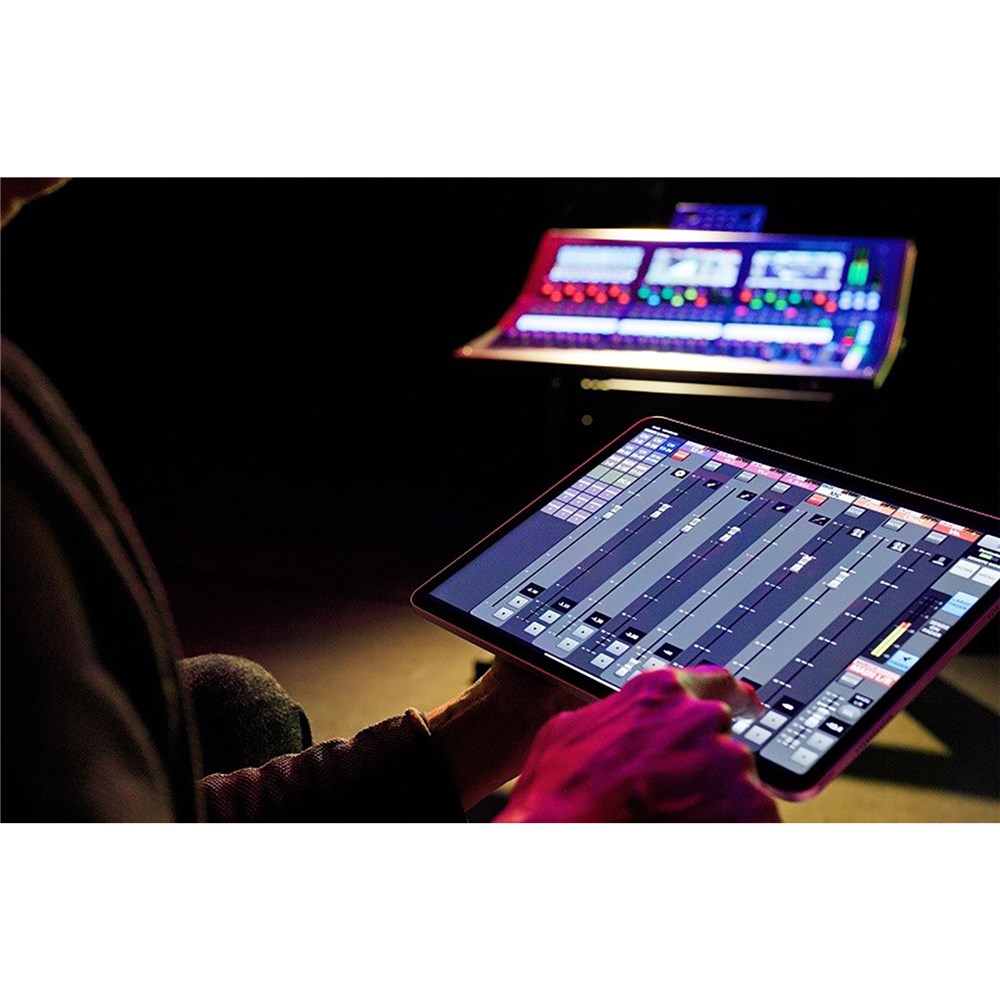

Remote Control and Offline Editing

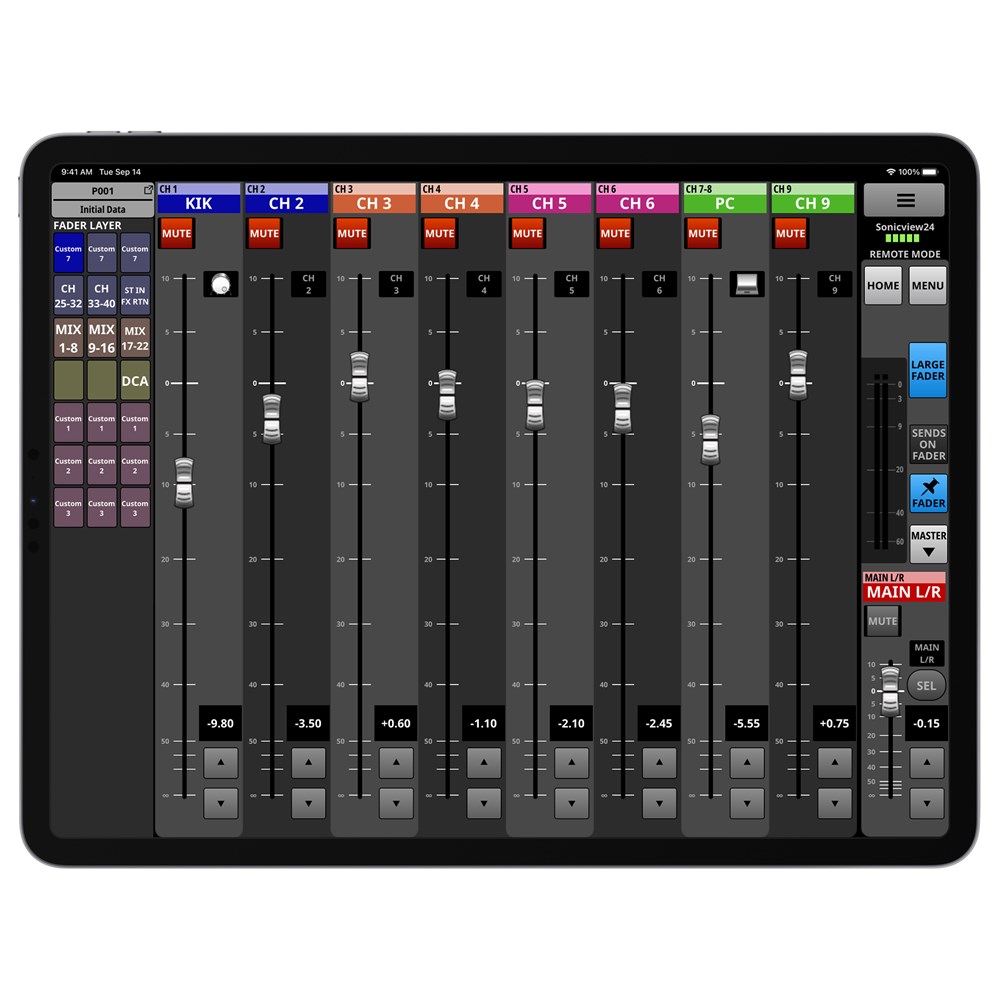

Whether onstage, backstage, in a control room, or at the rear of a concert hall, you're always in full control of your TASCAM Sonicview 16 mixer. Just connect a Wi-Fi router to the TASCAM Sonicview's Ethernet port and use free TASCAM Sonicview Control software for macOS, Windows, and iPadOS to manage your TASCAM Sonicview 16 from virtually anywhere in the venue. Edit settings offline in advance so you're ready to go when a session or show begins, then make adjustments from the console or from the software.

Remote Control and Offline Editing
Work Quickly with Function Keys
Work Quickly with Function Keys
TASCAM Sonicview offers intuitive, analog-like operation, while providing a variety of convenient digital functions that can be customized as needed. Eighteen user-defined function keys can be assigned to recording with the internal recorder, playback, and more. Several keys are conveniently preassigned to functions such as Sends On Fader and Snapshot Recall but you can reassign them as desired. A footswitch (not included) can be used to tap in delay-time settings.

Expanded User Keys & Configurable Library (supported in V2.2.0)
TASCAM Sonicview's User Keys now offer expanded functionality, with up to 64 additional keys accessible via the LCD screen. This enhancement delivers greater flexibility and more customization options for frequently used functions. The new User Defined Control Library makes it easy to store and recall multiple User key layouts, GPIO and Foot switch—ideal for switching between different workflows, users, or production scenarios.

Expanded User Keys & Configurable Library
Clear, Mistake-free Navigation
Clear, Mistake-free Navigation
When you're mixing a show, broadcast, or crucial recording session, you can't afford to hit the wrong button or grab the wrong control. TASCAM Sonicview's mixing surface makes it easy to see at a glance what you're controlling, even in a dark concert hall. Each channel strip includes a channel-name LCD with a full-color LED. The User keys feature full-color LEDs, so you can group each input source and function by color and view them easily. The Solo and Channel Select keys have distinctive shapes, and the Mute key is guarded with a cap. With these features and the customizable touch panels, you always know where you are and what you're controlling.

Auto Mixer (supported in V2.0.0)
The TASCAM Sonicview features a gain-sharing Auto Mixer function that automatically controls gain in real time, ensuring optimal conditions at all times during panel discussions, events, and talk shows where multiple participants are speaking.
Four groups allow up to four different mixes to be created independently for each group. A PRIORITY function that enables only the chairperson or moderator to speak, and a WEIGHT function allows the level of a particular channel to be mixed higher or lower for each group.
The PRIORITY function can also be externally controlled via GPIO IN.

Auto Mixer (supported in V2.0.0)
An additional monitor bus system and OSC/talkback capability add more versatility for broadcast and monitoring applications (supported in V1.5.0)
An additional monitor bus system and OSC/talkback capability add more versatility for broadcast and monitoring applications (supported in V1.5.0)
Two monitor buses are now available with V1.5.0, Monitor 1 and Monitor 2. Each monitor section comes with 6 switchable monitor source presets with essential functions such as MUTE/DIMMER. In addition, a location setting has been added to automatically mute the monitor speakers when in the same enclosed space as a live microphone.
Input sources can be freely assigned in the talkback section. Also, outputs can now be directly assigned into each bus or monitor, or to output routers. All of these settings and OSC on/off settings can be assigned to, and controlled by USER keys for quick control a variety of broadcast system and monitoring environments.

Audio Follow Video Function to Link Video and Audio (supported in V1.6.1)
The corresponding audio fader level can be operated in conjunction with the video material tally from the video switcher. Tally events can be input via GPIO, with 8 inputs on the TASCAM Sonicview and up to 40 inputs when a SB-16D is connected.

Various parameters (ON LEVEL, OFF LEVEL, WAIT TIME, RISE TIME, HOLD TIME, FALL TIME) can be set on the channel selected as the control target. It enables simple sound and video interlocking operation in broadcast studio systems as well as in various outside broadcasting such as sports.

Audio Follow Video Function to Link Video and Audio (supported in V1.6.1)
SMPTE ST2110 Compliant (supported in V2.0.0)
SMPTE ST2110 Compliant (supported in V2.0.0)
By installing the optional IF-ST2110 card (sold separately), IP connection compliant with SMPTE ST 2110 is possible, making TASCAM Sonicview a mixer that is compatible with a ST2110 system.

Main Features – IF-ST2110 Expansion Card

Compliant with ST2110-30/31 and AES67 standards
64in/64out (48kHz), 32in/32out (96kHz) audio transmission
Redundancy (ST2022-7) compliant
Equipped with media stream and independent control ports
NMOS IS-04/05
WebUI app included for system control
Remote Control With Ember+ (supported in 2.2.0)
Integrate your TASCAM Sonicview console into your Ember+ network and unlock powerful remote control capabilities. With expanded protocol support, a wide range of Sonicview parameters are now accessible remotely - bringing deeper connectivity and control to your workflow.

* Use the Ethernet port on the TASCAM Sonicview main unit for Ember+.

Control With Ember+ (supported in V2.0.0)
SMPTE ST2110 Compliant (supported in V2.0.0)
Monitoring via Network Using SNMP (supported in V2.0.0)
The TASCAM Sonicview supports SNMPv1 and SNMPv2c, allowing monitoring of the unit over the network.

* Use the Ethernet port on the TASCAM Sonicview main unit for SNMP.


Features at a Glance
Key Features
TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
Multiple displays with two 7-inch touch panels
44 input channels (or 40 mono input channels and 2 stereo input channels) and 4 FX return
22 flexible output buses and main L/R bus with 31-band graphic EQ
96 kHz, 54-bit float-point FPGA mixing engine
Ultra-low latency: 2 x samples (20.8µS) in mixing engine, 0.51 ms analog-to-analog
32-bit/96 kHz AD/DA conversion
TASCAM Class 1 HDIA microphone preamplifiers
32-in/32-out, 32-bit/96 kHz USB audio interface
64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability
16 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
4 multi-effects processors
TASCAM Sonicview Control software for macOS/Windows/iPadOS enables remote control and off-line editing

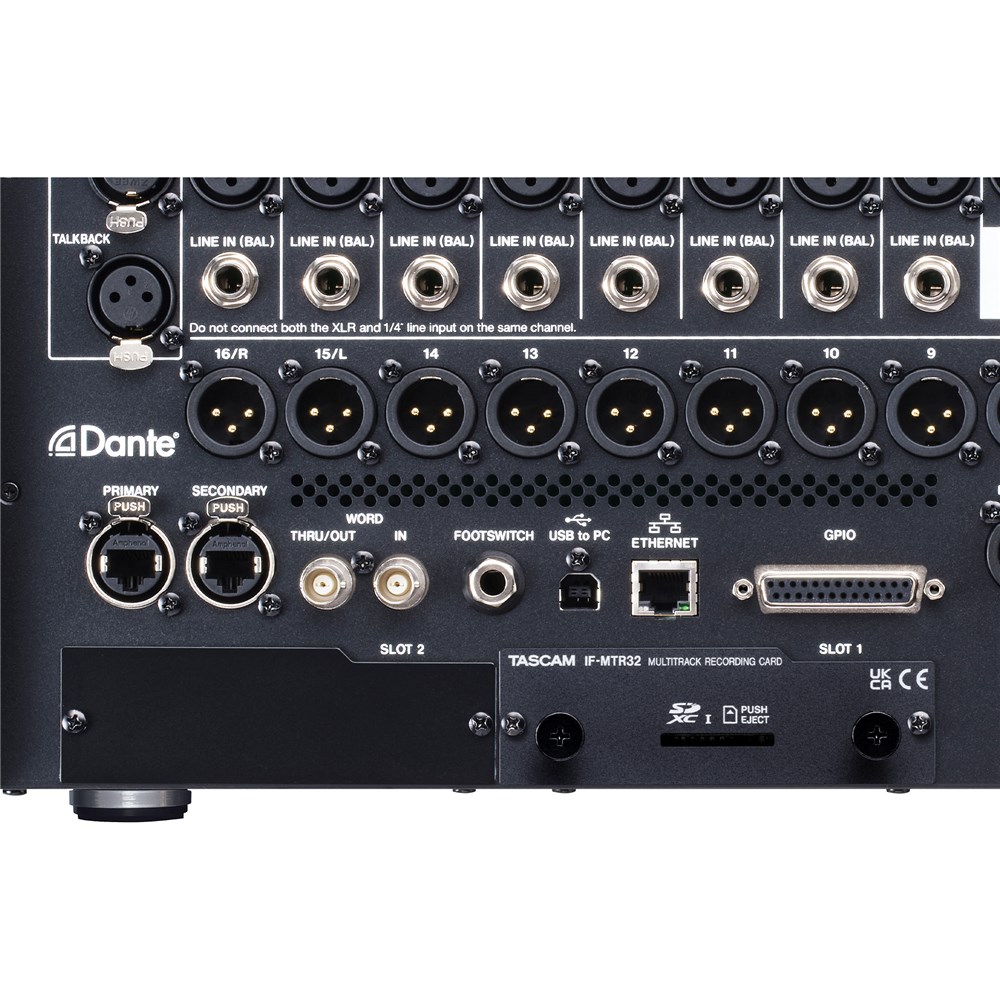

2 TASCAM expansion slots
- Optional SDXC multi-track recording, MADI, Dante, AES/EBU, analog outputs, SMPTE ST 2110 cards available.
Auto mixer function
Compliant with ST2110-30/31 and AES67 standards (with optional IF-ST2110 Expansion card)
Ember+ compatible, external control protocols with Ember+ are now open to the public


Other Features
Hardware mixing surface and mixing engine operating system are independent of each other for high stability and continuous audio flow
Library: Snapshot/Effect/Module/Parametric EQ/Graphic EQ/Gate/Compressor
18 assignable user key and extended using the LCD screen for up to 64 additional user keys.
User Defined Control Library feature allows users to store and recall multiple User Key, GPIO and Foot Switch configurations
7 custom fader layers, 8 DCA groups
16+1 100mm motorized faders
16 encoder knobs with color LED
16 LCDs with color LED display channel name, input level, and gain reduction meter
2 ch internal recording/playback with SD card or USB flash drive
8 TRS line inputs, 2 RCA stereo input pairs, XLR talkback input
XLR monitor outputs

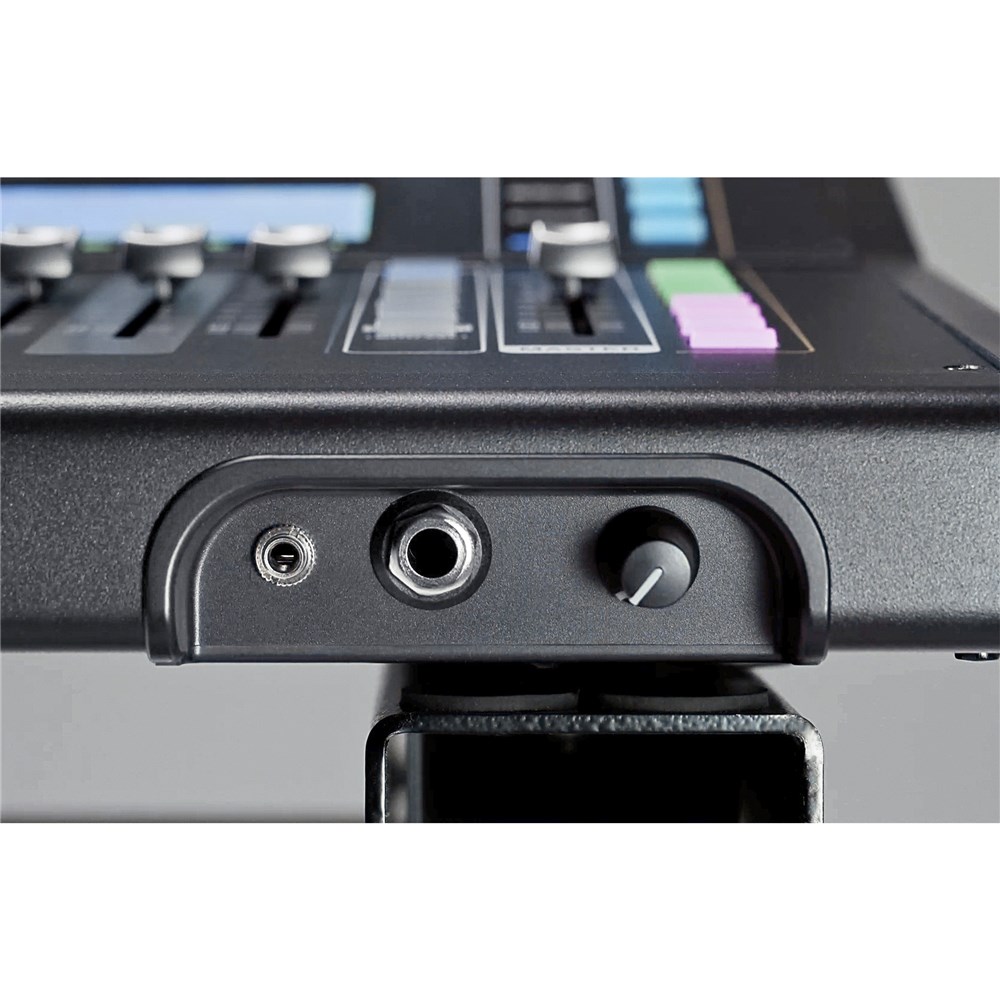

1/4-inch and 1/8-inch headphone outputs
Word clock In and Out/Thru
1000BASE-T gigabit Ethernet
8-in/8-out GPIO on DB25
TRS footswitch jack
XLR 4-31 lamp connector
Power switch with guard
Optional SB-16D 16-in, 16-out Dante-enabled stage box
Rack mountable with optional AK-RMSV16 rack mount kit
2 monitor bus system and OSC/talkback capability
RTB (Return Talkback) for two-way communication
Audio Follow Video function to link video and audio
User defined names can be set for input/output ports
SNMP compatible
24 Input Port to Output Port Direct Routing
Two input sources to one module as input Source A/B
