4+2 Input Hdbaset Switching EXSW0401H2PRO Wyrestorm

Product Code: WY-EXSW0401H2PRO

Brand
Wyrestorm
RRP $3,329.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
  • Details
  • Downloads
  • Where to Buy
  • Ordering

4+2 Input HDBaseT™ Switching Extender with USB2.0 & Relay Triggering

EX-SW-0401-H2-PRO

When HDBT2.0 meets WyreStorm’s presentation switcher platform, the result is a very powerful solution that is perfect for corporate meeting & video conference rooms. Multiple I/O’s, condition based relays and USB 2.0 extensions mean an autonomous experience with no user input required.

4-INPUT SWITCHING EXTENDER
A new flagship in our PRO range and a first for our switching extenders, the EX-SW-0401-H2-PRO brings features of the H2 and PRO products into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. Proudly carrying the H2 moniker, it will support 4K content and even HDCP2.2 protected content.

ADDITIONAL RECEIVER INPUTS
When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.

TWO CONDITION-BASED RELAYS BUILT INTO RECEIVER
With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.

USB 2.0 PASS-THROUGH
HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.

Features

  • 4x input professional switcher/extender for video conference and meeting rooms
  • Bidirectional USB2.0 for connection of webcams, smart whiteboards, touchscreens and microphones
  • Inputs include HDMI, VGA, DisplayPort 1.3 and USB 3.1c
  • Supports source content up to 4K/60 4:2:0
  • Variable audio de-embed on receiver
  • Automatic or manual CEC triggering for compatible connected screens or projectors


SPECIFICATIONS

Audio and Video

  • Inputs

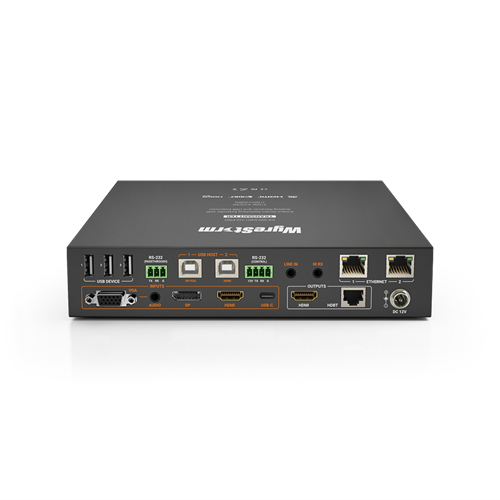

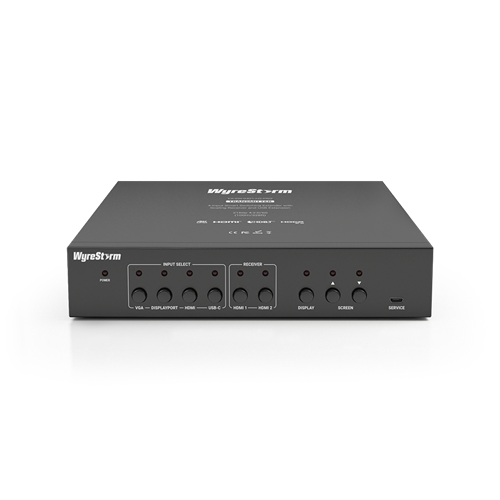

    • (Transmitter)
      • 1x VGA In: 15-pin VGA
      • 1x Display Port In: DisplayPort 1.3
      • 1x HDMI In: 19-pin type A
      • 1x USB-C: USB 3.1 Audio/Video
      • 1x Audio In: 3.5mm (1/8in) TRS Stereo
      • 1x Line In: 3.5mm (1/8in) TRS Stereo

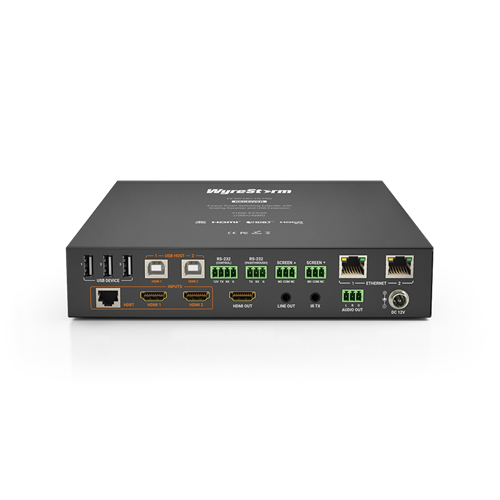

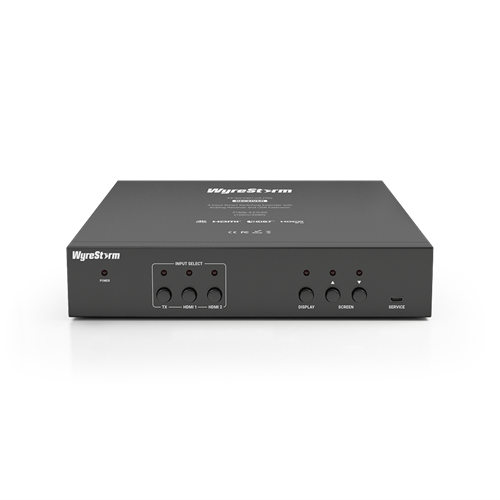

    • (Receiver)
      • 2x HDMI In: 19-pin type A
      • 1x HDBT In: 8-pin RJ-45 Female
  • Outputs
    • (Receiver)
      • 1x HDMI Out: 19-pin type A
      • 1x HDBT Out: 8-pin RJ-45 Female
    • (Transmitter)
      • 1x HDMI Out: 19-pin type A
      • 1x Audio Out: 3-pin Pheonix
      • 1x Line Out: 3.5mm (1/8in) TRS Stereo
  • Output Video Encoding: HDBaseT™ Class C
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency: 10μs (micro seconds)
  • Audio Formats: 2ch Analog/PCM | Multichannel: LPCM
  • Video Resolutions (Max)Video ResolutionsHDMICat6Cat6a/7
    1920x1080p @60Hz 8bit15m/49ft150m/492ft150m/492ft
    1920x1200p @60Hz 8bit15m/49ft150m/492ft150m/492ft
    3840x2160p @30Hz 8bit 4:4:47m/23ft100m/328ft100m/328ft
    4096x2160p @60Hz 8bit 4:2:07m/23ft100m/328ft100m/328ft
  • Supported Standards: DCI | RGB
  • Maximum Pixel Clock: 297MHz
Communication and Control
  • HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
  • HDBaseT™: HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
  • RS-232: 1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
  • Ethernet: 2x 8-pin RJ-45 female | Web UI | IP Control | Bidirectional over HDBaseT™
  • IR: 1x IR TX: 3.5mm (1/8in) TS Mono
  • Relays: 1x Screen UP: 3-pin Phoenix | 1x Screen DWN: 3-pin Phoenix
  • USB:
    • 1x USB-C: USB 3.1 Audio/Video (Transmitter Only)
    • 2x USB Host: USB-B | 3x USB Device: USB-A (Transmitter and Receiver)
Power
  • Power Supply: 12V DC 2A
  • Max Power Consumption: Transmitter: 14.02W | Receiver: 16.25W
Environmental
  • Operating Temperature:
    • 32°F ~ 113°F (0°C ~ 45°C)
    • 10% ~ 90%, non-condensing
  • Storage Temperature:
    • -4°F to ~ 158°F (-20°C ~ +70°C)
    • 10% ~ 90%, non-condensing
  • Maximum: BTU Transmitter: 56.3BTU/hr | Receiver: 55BTU/hr
  • TransmitterReceiver
    Rack Units | Wall Box<1U<1U
    Height With | Without Feet45.5mm/1.76in | 42mm/1.66in44.5mm/1.76in | 42mm/1.66in
    Width With | Without Brackets263mm/10.36in | 220mm/8.67in263mm/10.36in | 220mm/8.67in
    Depth With | Without Handles148.7mm/5.86in | 148.7mm/5.86in148.7mm/5.86in | 148.7mm/5.86in
    Weight0.97kg/2.13lbs0.95kg/2.09lbs
Regulatory
  • Safety and Emission CE | FCC | RoHS
